Control Dampers

Direct airflow to where it's needed. Our control dampers are designed for efficient airflow. Available for on-off and modulated flow applications.

Products 31

Products

517 / 518

5.5" Deep Airfoil Blade Steel Control Damper

Featured

Arrow - 518_slice

518

  • Maximum Velocity (FPM): 5000 fpm
  • Max Static Pressure: 12 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 5000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

AFD-20

5" Deep Ultra Low Leak Airfoil Control Damper

Featured

Arrow - AFD-20

AFD20

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Insulation: Uninsulated
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

1770

4" Deep Single Thickness Blade Steel Control Damper

Arrow - 1770

1770

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

182

4" Deep Single Thickness Blade Stainless Steel Control Damper

Arrow - 182

182

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or 316 Stainless Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

200VCRD

Round Single Blade Volume Control Damper

Arrow - 200VCRD

200VCRD

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

250-SRD

Round Single Blade Control Damper with Seals

Arrow - 250SRD

250SRD

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .013 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .013 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

260-DW

Dual Wall Insulated Round Single Blade Volume Control Damper

Arrow - 260DW

260DW

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy, 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
  • Blade Type: True Round Single Thickness (UVU)
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
More Info

395

4" Deep Single Thickness Blade Low Leakage Control Damper

Arrow - 395

395

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

495

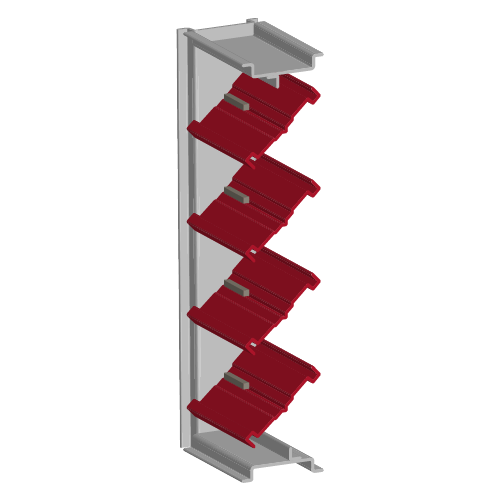

5.5" Deep Single Thickness Blade Control Damper (Parallel)

Arrow - 495_slice1

495

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

496

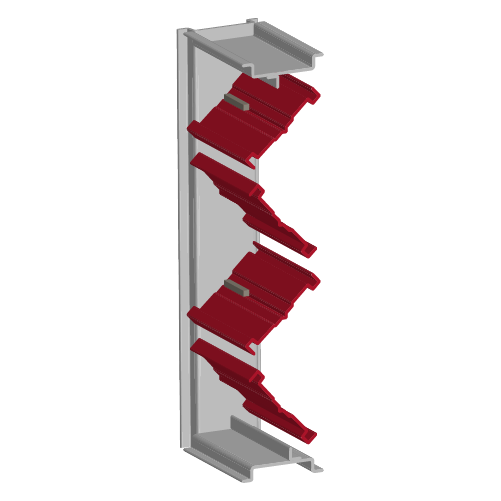

5.5" Deep Single Thickness Blade Control Damper (Opposed)

Arrow - 496_slice

496

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

506

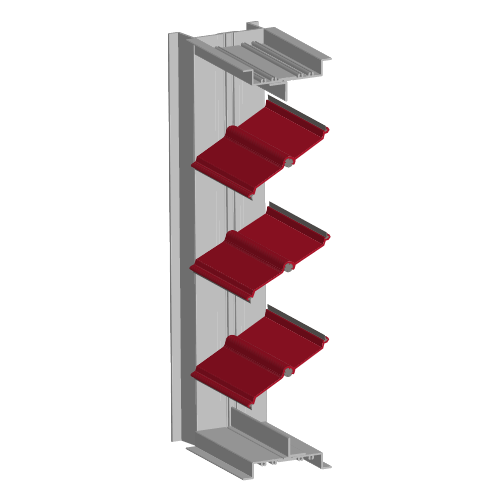

5" Deep Parallel Single Thickness Blade Pin-Lock Control Damper

Arrow - 506_parallel slice

506

  • Maximum Velocity (FPM): 2500 fpm
  • Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2500 fpm (FPM)
More Info

507

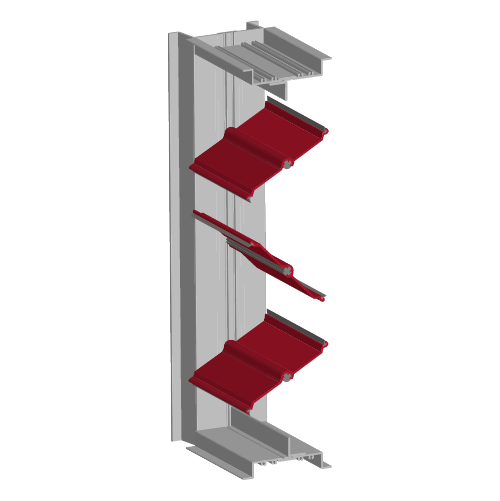

5" Deep Opposed Single Thickness Blade Pin-Lock Control Damper

Arrow - 506_opposed slice

507

  • Maximum Velocity (FPM): 2500 fpm
  • Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .03 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2500 fpm (FPM)
More Info

515SAF

5.5" Deep Airfoil Blade Steel Control Damper (Parallel)

Arrow - 515SAF_slice

515SAF

  • Maximum Velocity (FPM): 4000 fpm
  • Max Static Pressure: 8 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel
  • Frame Shape: Rectangular
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 4000 fpm (FPM)
  • Temperature Rating (°F): 150 °F
More Info

516SAF

5.5" Deep Airfoil Blade Steel Control Damper (Opposed)

Arrow - 516SAF_slice

516SAF

  • Maximum Velocity (FPM): 4000 fpm
  • Max Static Pressure: 8 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Airfoil Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 4000 fpm (FPM)
  • Temperature Rating (°F): 150 °F
More Info

56

6.5" Deep Aluminum Airfoil Control Damper with Transition

Arrow - 56

56

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 6 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Round
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
More Info

70

7.5" Deep Round Galvanized Steel Damper

Arrow - 70

70

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

70-GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

Arrow - 70GL

70GL

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

70-R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

Arrow - 70R

70R

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

75

7.5" Deep Round Aluminum Damper

Arrow - 75

75

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

80

7.5" Deep Round Stainless Steel Damper

Arrow - 80

80

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or 316 Stainless Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -35 °F to 180 °F
More Info

85

6.5" Deep Aluminum Pin-Lock Control Damper with Transition

Arrow - 85

85

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Pin-Lock
  • Blade Action: Parallel / Opposed
  • Frame Shape: Round
  • Pressure Drop: .012 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
More Info

AF-206

5" Deep Aluminum Airfoil Blade Damper (Parallel)

Arrow AF-206_slice

206

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Parallel
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

AF-207

5" Deep Aluminum Airfoil Blade Damper (Opposed)

Arrow AF-207_slice

207

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Airfoil Blade
  • Blade Action: Opposed
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

AFDTI-25

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

Arrow - AFDTI-25

AFDTI25

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

AFDTI-25-4

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

Arrow - AFDTI-25-4

AFDTI254

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

AFDTI-25-4I

5" Deep Ultra Low Leak Insulated Control Damper

Arrow - AFDTI-25-4-I

AFDTI254I

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

AFDTI-25-I

5" Deep Ultra Low Leak 6" Airfoil Control Damper

Arrow - AFDTI-25I

AFDTI25I

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Insulated and Thermally Broken Airfoil
  • Blade Action: Parallel / Opposed
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 200 °F
More Info

AFDTI-25LT

5" Deep Ultra Low Leak Thermal Break Airfoil Control Damper

Arrow - AFDTI-25LT

AFDTI25LT

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Action: Parallel / Opposed
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -70 °F to 200 °F
More Info

AFDTI-25LT-4

5" Deep Ultra Low Leak Thermal Break 4" Airfoil Blade Control Damper

Arrow - AFDTI-25LT-4

AFDTI25LT4

  • Maximum Velocity (FPM): 3000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Action: Parallel / Opposed
  • Pressure Drop: .05 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 3000 fpm (FPM)
  • Temperature Rating (°F): -70 °F to 200 °F
More Info

ID-200

Parallel Double Thickness Insulated Blade Control Damper

Arrow - ID-200

ID200

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: < .1 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Insulated Airfoil
  • Blade Action: Parallel
  • Insulation: Two Part High Density Polyurethane Foam
  • Pressure Drop: < .1 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

SB-28

2" Deep Single Blade Aluminum Damper

Arrow - SB28

SB28

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info
Arrow - Logo

Arrow United Industries manufactures HVAC solutions including AMCA-rated louvers, dampers, Life Safety products, and more. We also offer Severe Weather and Hurricane louvers! Choose Arrow United for your next project.

Contact Us

  • 450 Riverside Drive
    Wyalusing, PA 18853
  • p : (570) 746-1888
  • f : (570) 746-9286
  • Contact

Useful links

Mestek, Inc. © Copyright 2026. All Rights Reserved. | Purchase Terms | Terms & Conditions | Terms of Use
