Life Safety (UL Rated) - Arrow

Sub Types

Dynamic Fire Dampers

Will the fans keep running? Dynamic fire dampers close against airflow. Available with a 1.5 or 3-hour fire rating.

Fire-Smoke Dampers

These dampers are tested for fire and smoke safety requirements. Models rated for 1.5 or 3-hours fire resistance and for Class 1 or Class 2 Smoke Leakage.

Smoke Dampers

These dampers are built for smoke control and containment. Models available with Class 1 or Class 2 smoke leakage.

Static Fire Dampers

Fire dampers for systems with automatic fan shutoff. Rated for 1.5 or 3 hours of fire resistance.

Ceiling Radiation Dampers

Minimize the risk caused by radiant heat. These life safety dampers protect the spaces between ceiling and floor. Available with square, rectangular, or round frames.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products 97

Life Safety (UL Rated)

UL-rated dampers for meeting fire and smoke safety requirements. This category includes fire dampers, smoke dampers, fire-smoke dampers, and ceiling radiation dampers.

Products

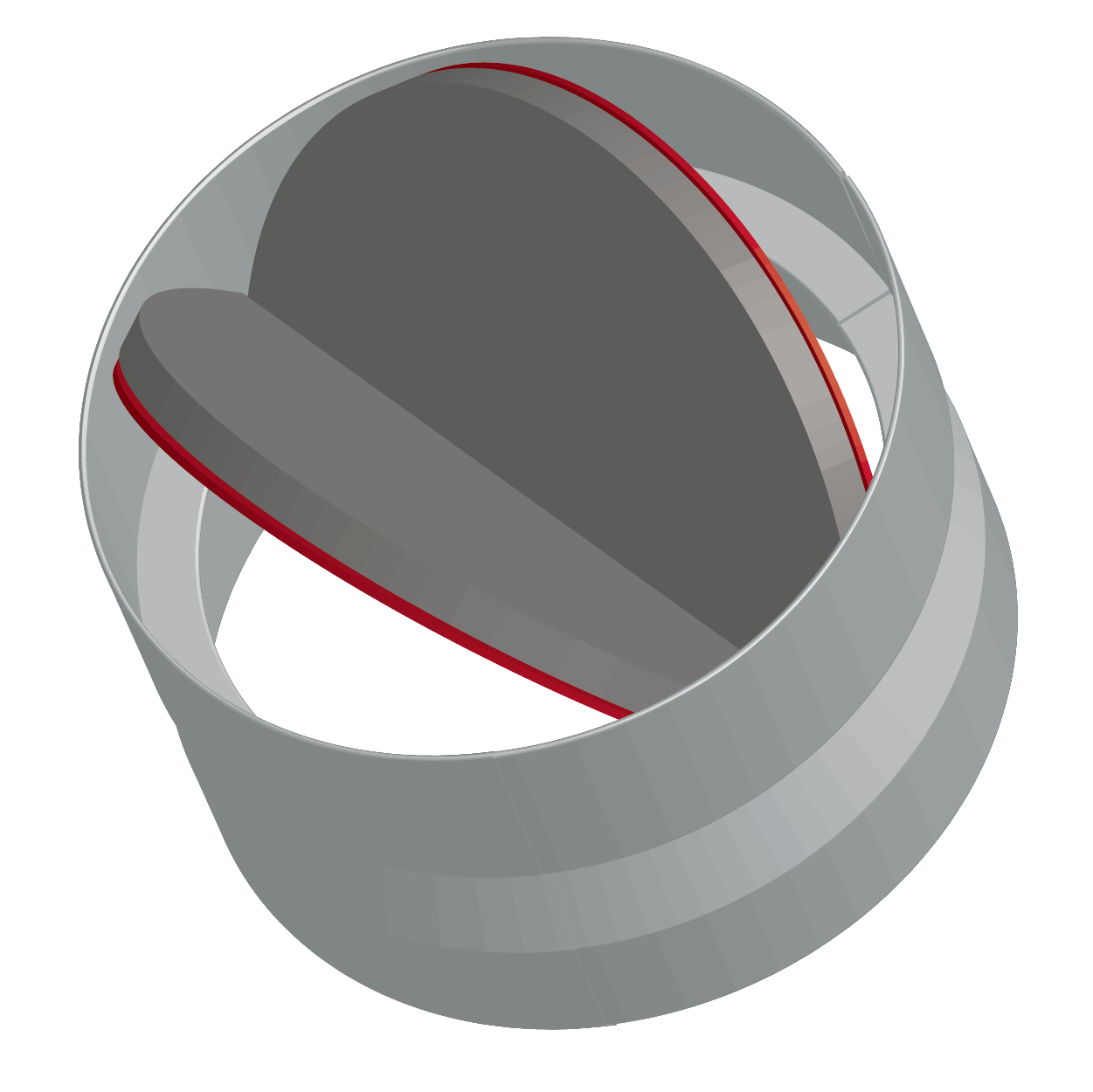

A97

Insulated Static Round Ceiling Radiation Damper

A97

Insulation: Insulated (unspecified)
Single Panel Product Max Sizes: Diameter: 20", When Horizontally Mounted

Material Options: Galvanized Steel
Frame Shape: Round
Insulation: Insulated (unspecified)

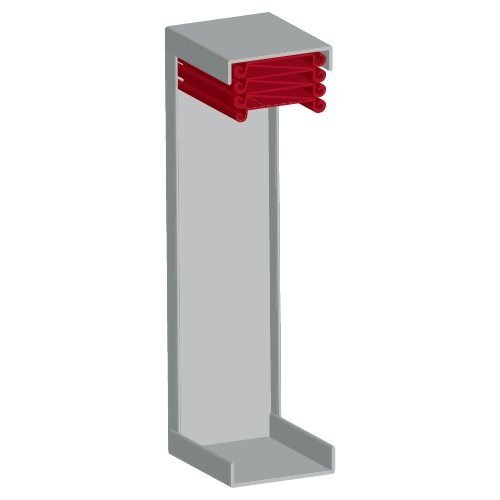

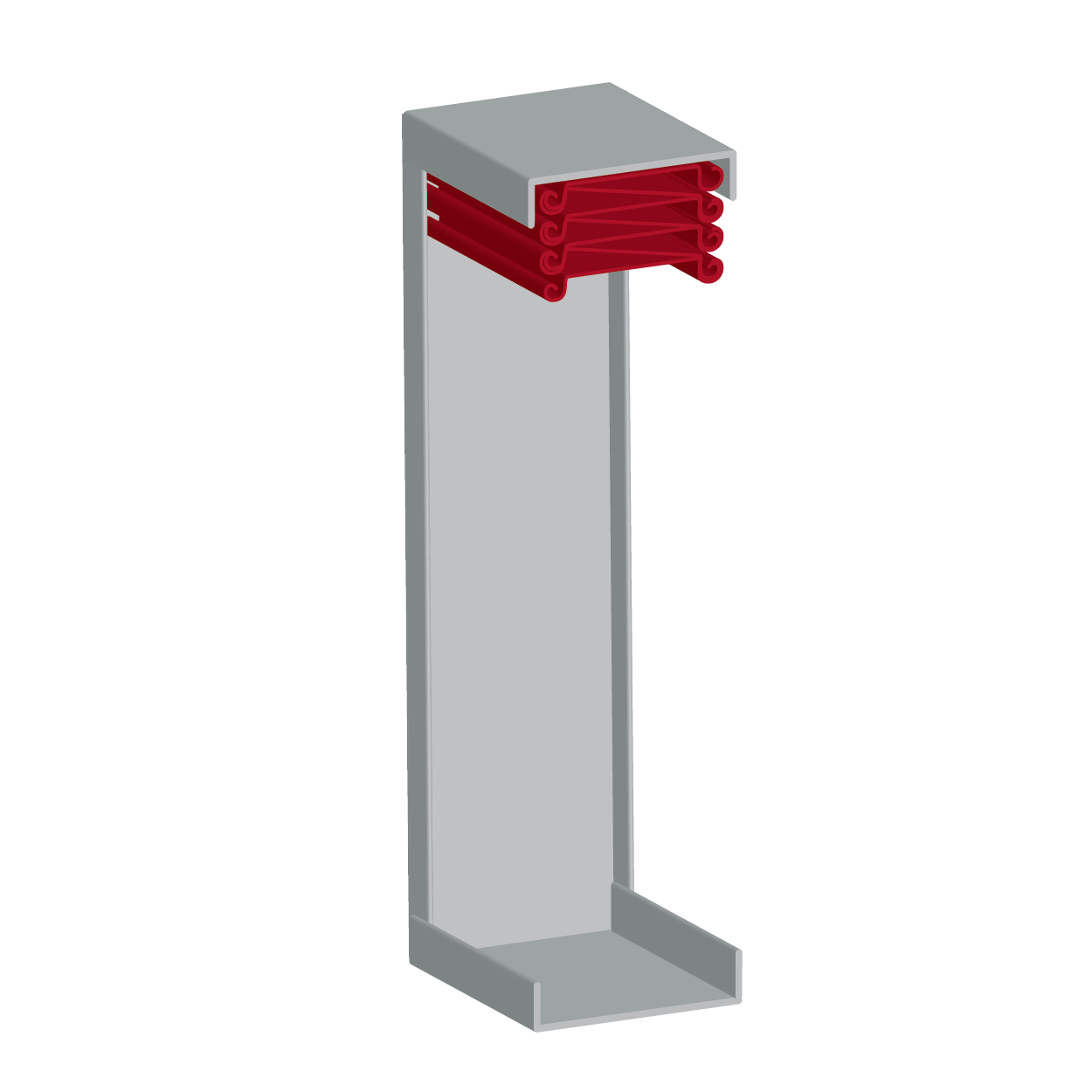

117F

1.5 Hour Rated Curtain Blade Thin Line Static Fire Damper

117FV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Style: A-Style

A2 EP Series

Class II Single Thickness Blade Smoke Damper (EP Series)

A2H25034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

A2(SS)

Class II Single Thickness Blade Stainless Steel Smoke Damper

A2(SS)H250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

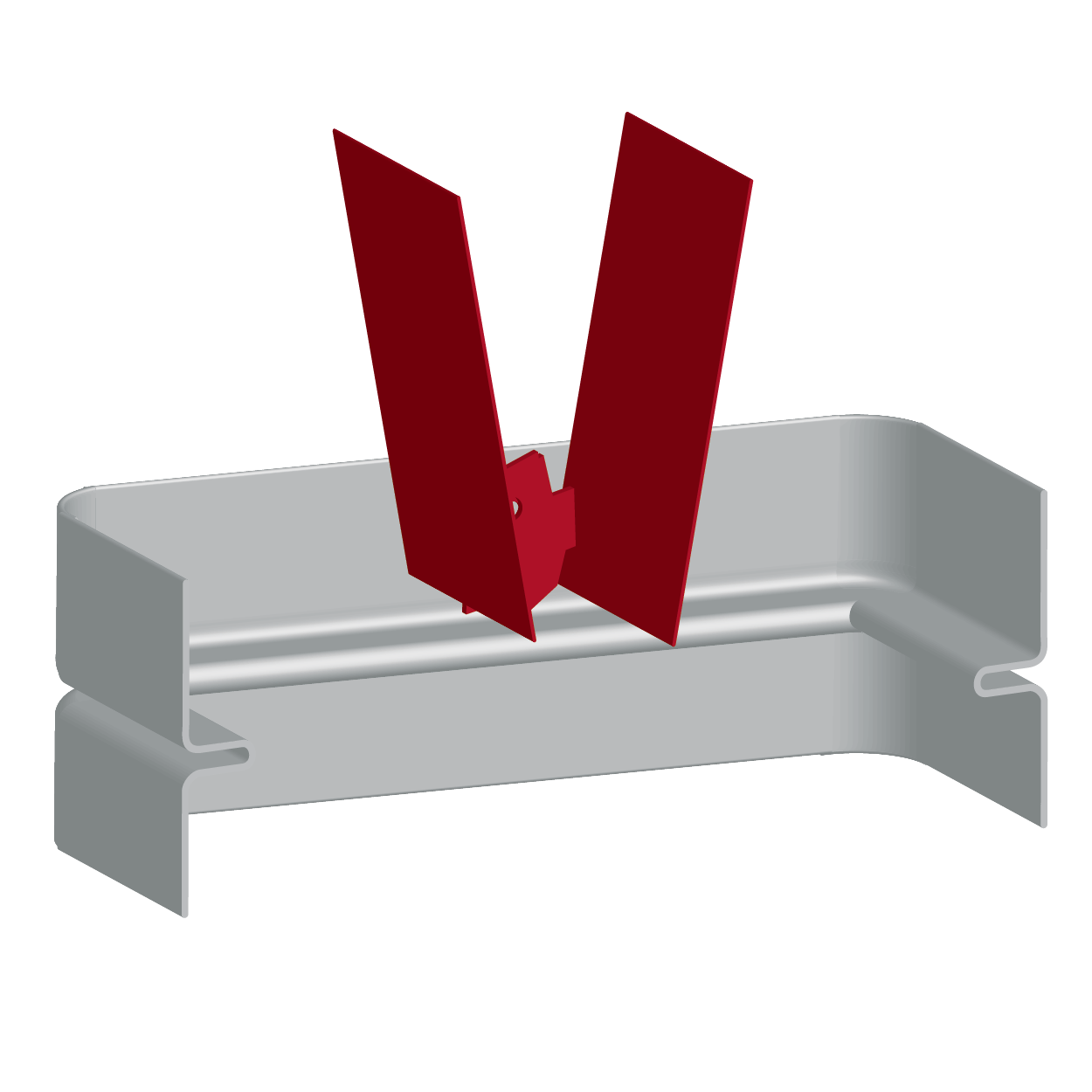

A89

Uninsulated Static Rectangular Ceiling Radiation Damper

A89

Insulation: Uninsulated
Single Panel Product Max Sizes: W: 18"x H: 10", When Horizontally Mounted

Material Options: Galvanized Steel
Frame Shape: Rectangular
Insulation: Uninsulated

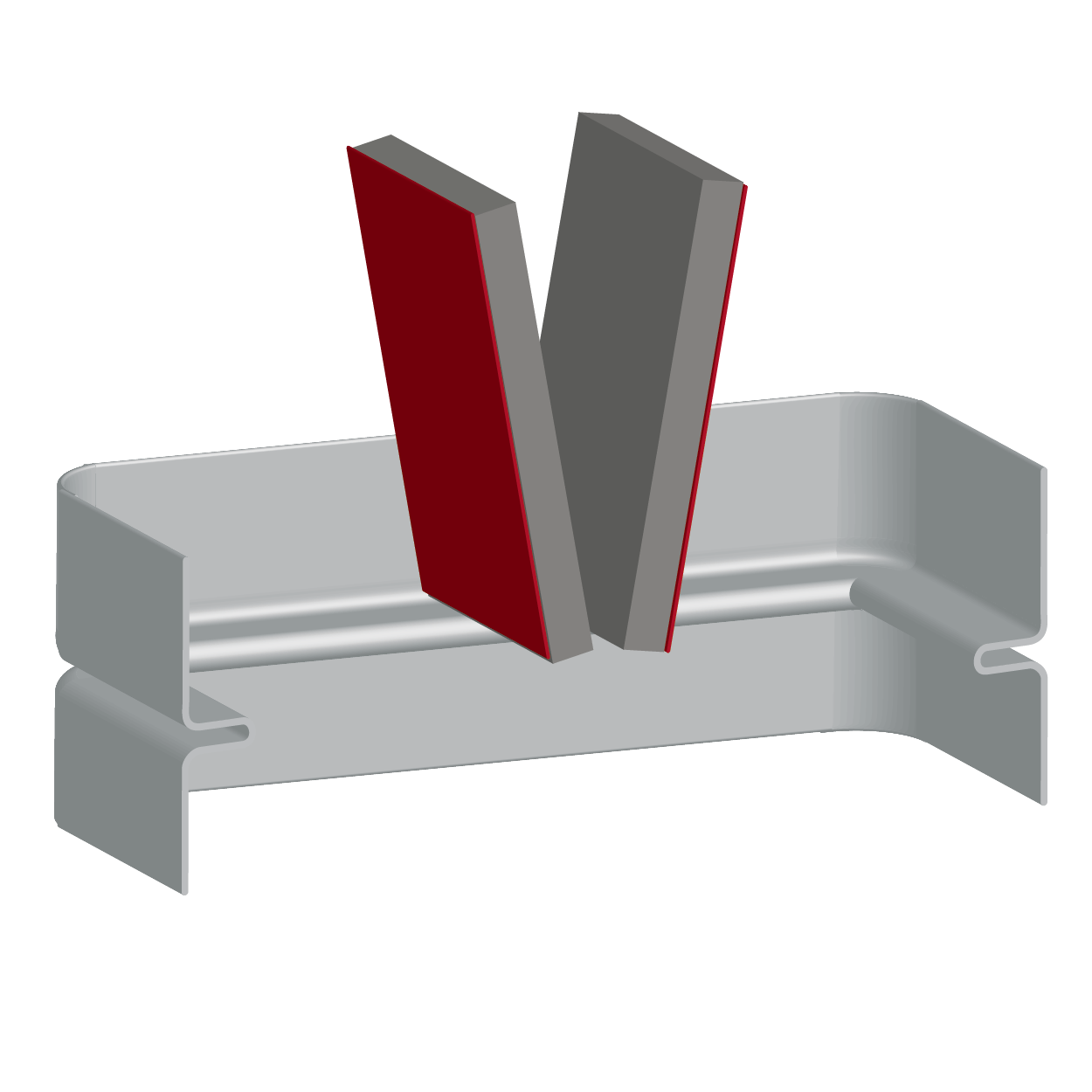

A91

Insulated Static Rectangular Ceiling Radiation Damper

A91

Insulation: Insulated (unspecified)
Single Panel Product Max Sizes: W: 18"x H: 18", When Horizontally Mounted

Material Options: Galvanized Steel
Frame Shape: Rectangular
Insulation: Insulated (unspecified)

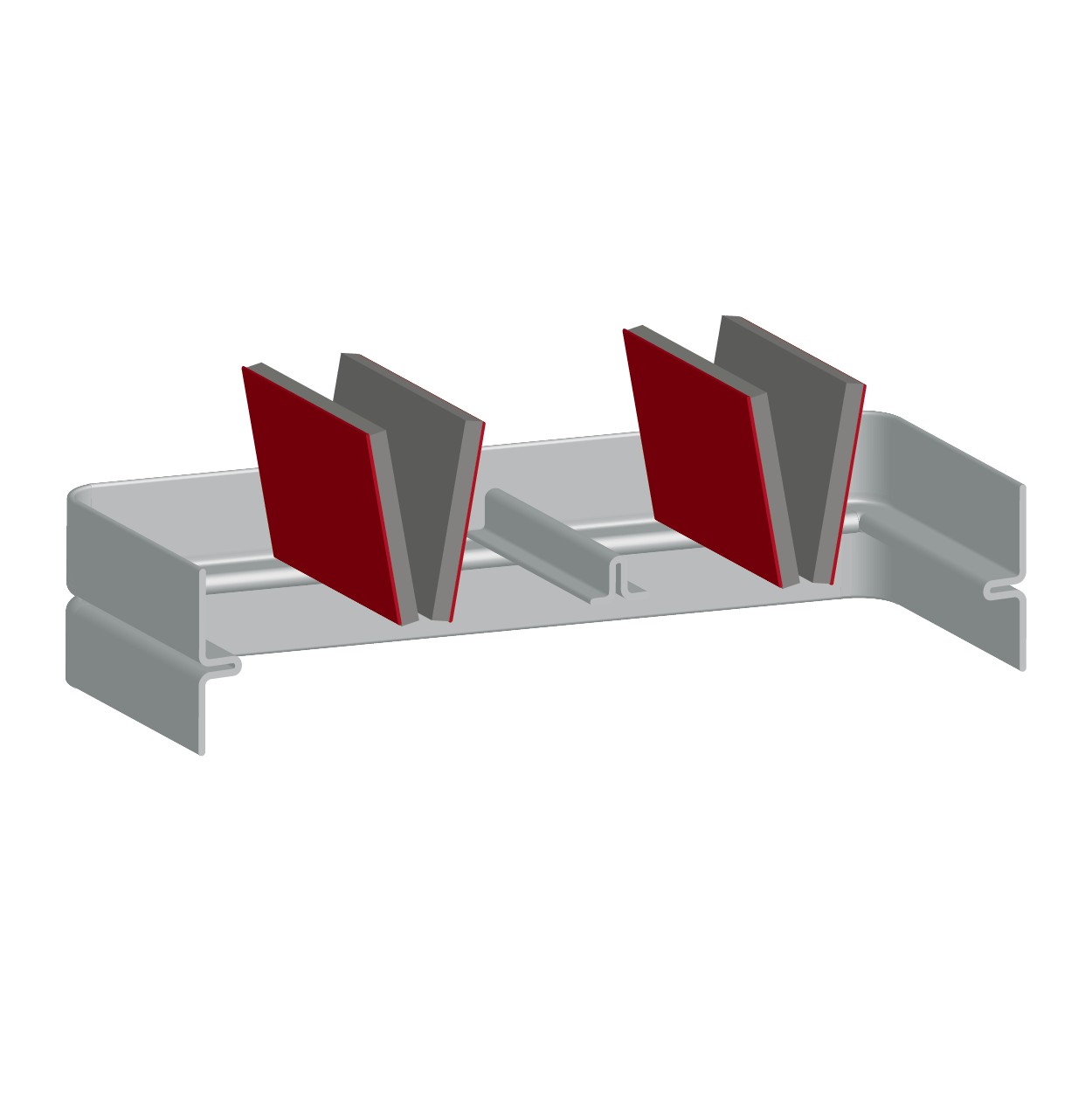

A93

Insulated Dual Opening Static Ceiling Radiation Damper

A93

Insulation: Insulated (unspecified)
Single Panel Product Max Sizes: W: 24"x H: 24", When Horizontally Mounted

Material Options: Galvanized Steel
Frame Shape: Rectangular
Insulation: Insulated (unspecified)

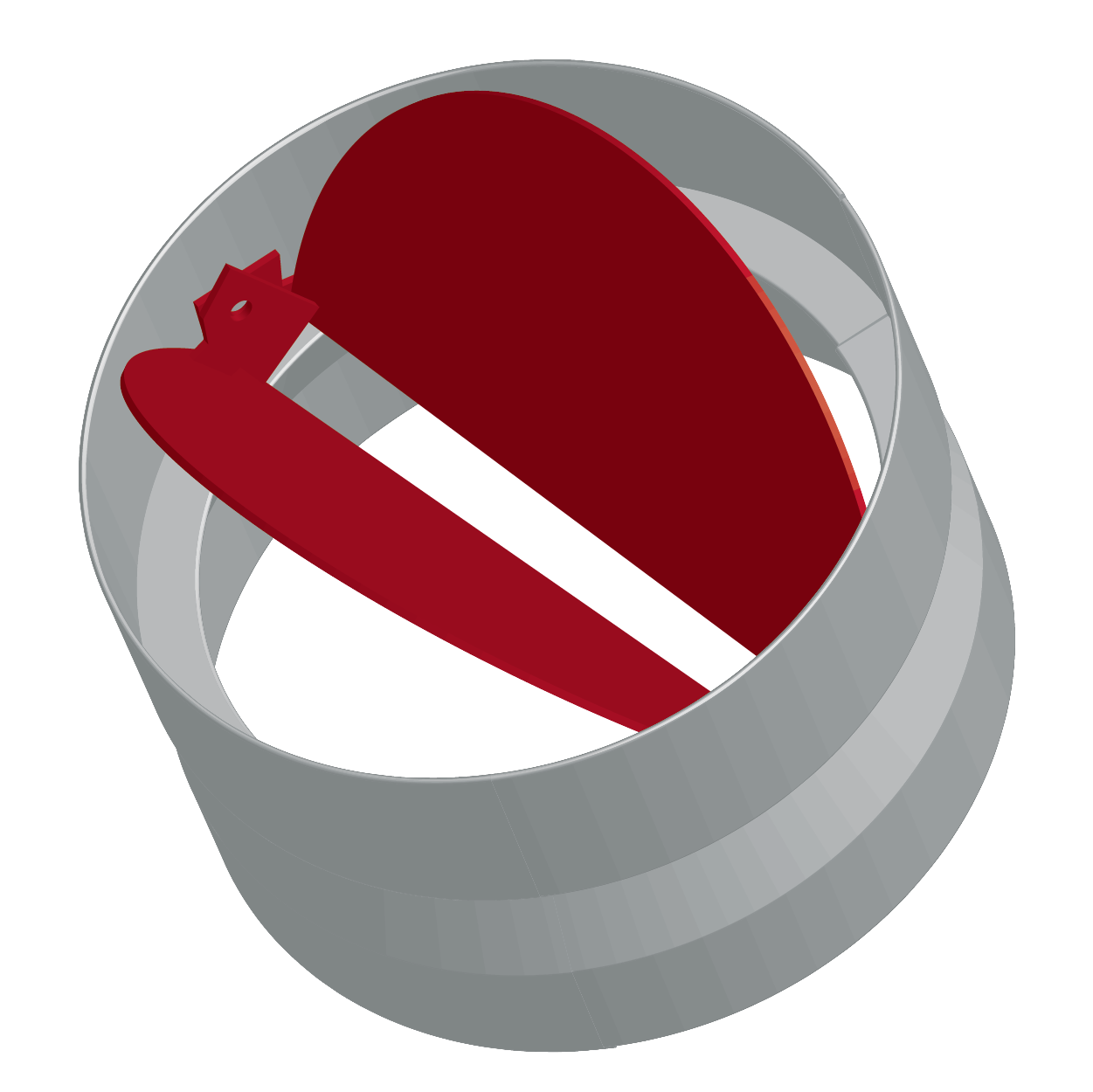

A95

Uninsulated Static Round Ceiling Radiation Damper

A95

Insulation: Uninsulated
Single Panel Product Max Sizes: Diameter: 11", When Horizontally Mounted

Material Options: Galvanized Steel
Frame Shape: Round
Insulation: Uninsulated

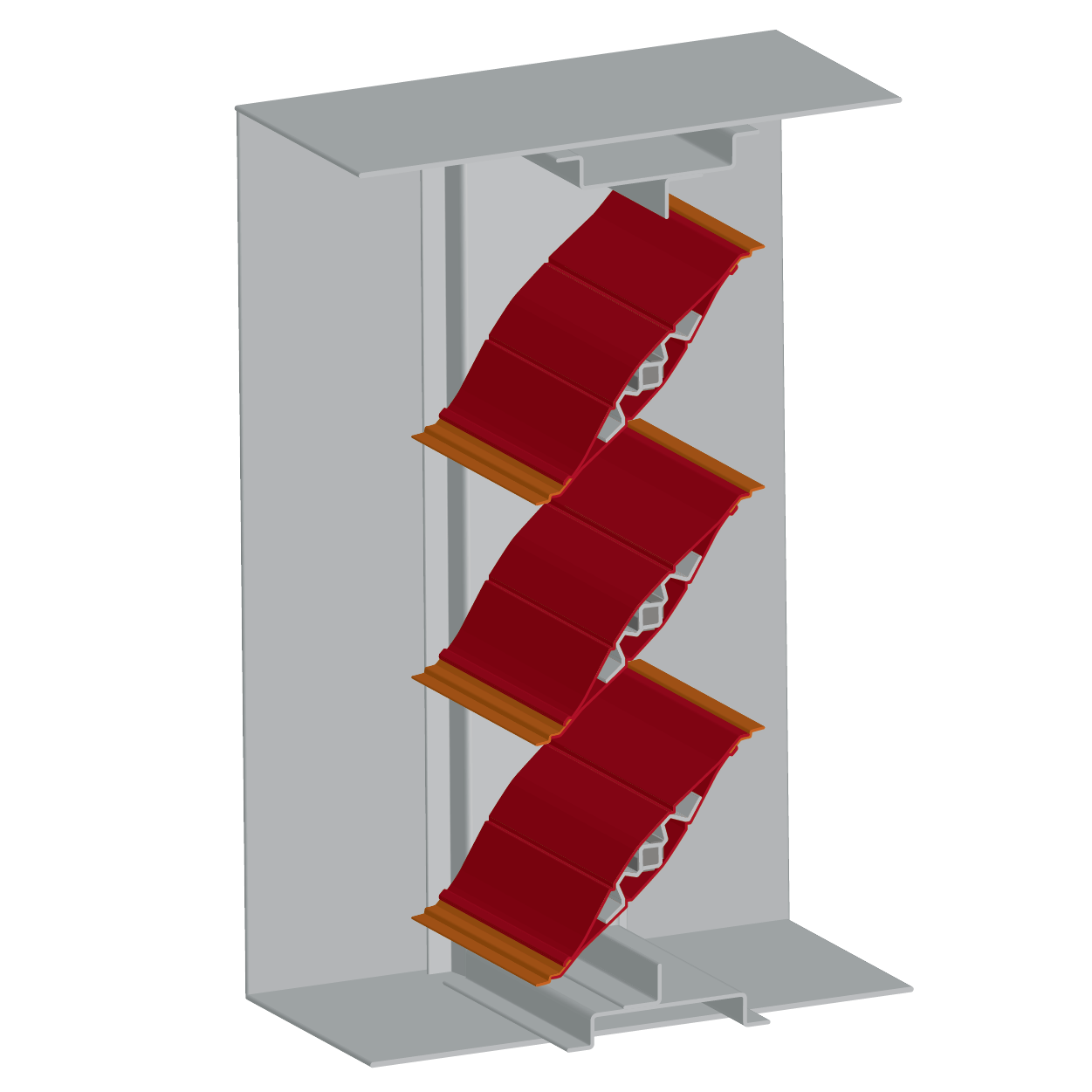

AA2M

Class II Airfoil Blade Modulating Smoke Damper

AA2M

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F

AR2

Class II, 1.5 Hour Single Thickness Blade Mini Combination Fire-Smoke Damper

AR2H250, AR2H350, AR2V250, AR2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2C

Class II 1.5 Hour Tunnel-Type Single Thickness Blade Combination Fire-Smoke Damper

AS2C250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AS2C DAN Variant

Class II 1.5 Hour Tunnel-Type Single Thickness Blade Combination Fire-Smoke Damper

AS2C2G250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

MS17

1½ Hr. Rated Vertical Mount Non-Motorized Fire Damper

MS17V, MS17CV

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Fire Resistance Rating (hrs): 1.5 hrs.

R17

1½ Hour Rated True Round "Philips" Curtain Fire Damper

R17

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: True Round Curtain
Frame Shape: Round
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

R9

1½ Hour Rated True Round Single Blade Fire Damper

R9

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: True Round Single Thickness (UVU)
Frame Shape: Round
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D17F

1.5 Hour Rated Dynamic Curtain Blade Thin Line Fire Damper

D17FV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

UA1 EP Series

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (EP Series)

UA1H25034, UA1V25034, UA1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA1 HP Series

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (HP Series)

UA1H25044, UA1V25044, UA1H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA1 HE Series

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (HE Series)

UA1H25046, UA1V25046, UA1H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA1GF SSB Series

Class I, 1.5 Hour Front Access Grille Airfoil Blade Combination Fire-Smoke Damper (SSB Series)

UA1HE250, UA1HE350, UA1VG250, UA1VG350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA1GF ESB Series

Class I, 1.5 Hour Front Access Grille Airfoil Blade Combination Fire-Smoke Damper (ESB Series)

UA1HD250, UA1HD350, UA1VF250, UA1VF350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA1

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

UA1H250, UA1V250, UA1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

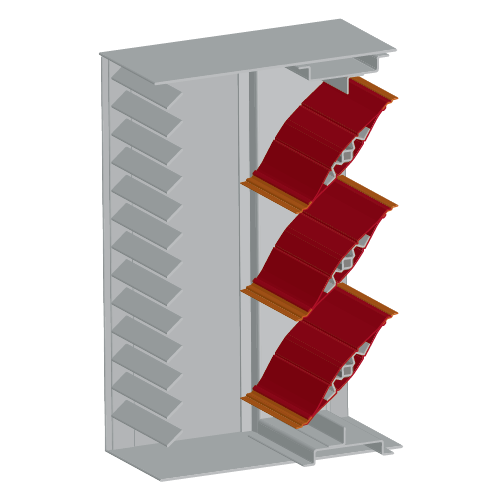

UA2GF SSB Series

Class II, 1.5 Hour Front Access Grille Airfoil Blade Combination Fire-Smoke Damper (SSB Series)

UA2HE250, UA2HE350, UA2VG250, UA2VG350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA2GF ESB Series

Class II, 1.5 Hour Front Access Grille Airfoil Blade Combination Fire-Smoke Damper (ESB Series)

UA2HD250, UA2HD350, UA2VF250, UA2VF350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA2 HE Series

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (HE Series)

UA2H25046, UA2H35046, UA2V25046, UA2V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA2 HP Series

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (HP Series)

UA2H25044, UA2H35044, UA2V25044, UA2V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

UA2 EP Series

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper (EP Series)

UA2H25034, UA2H35034, UA2V25034, UA2V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

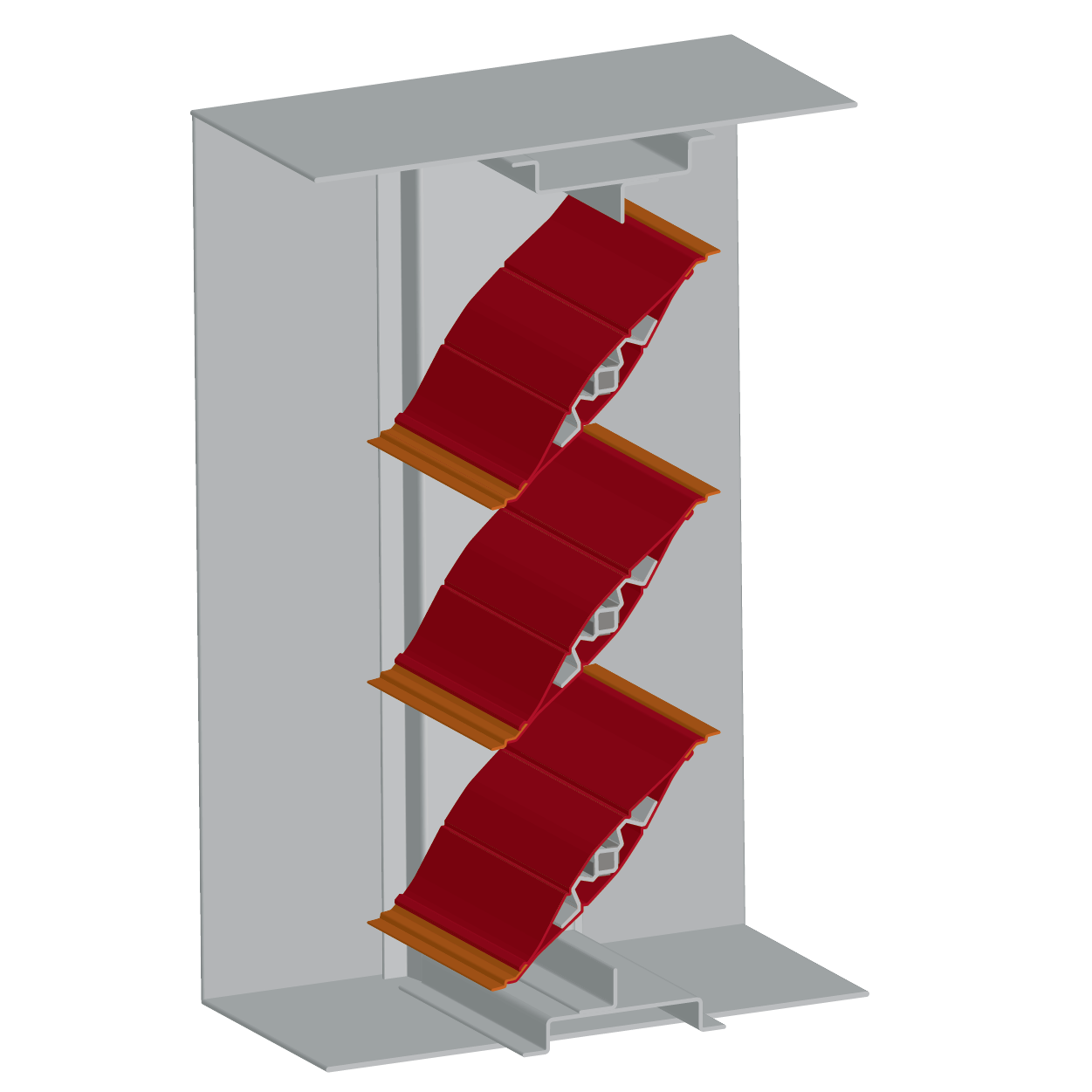

UA2

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

UA2H250, UA2H350, UA2V250, UA2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1GF ESB Series

Class I, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (ESB Series)

AS1HD250, AS1HD350, AS1VF250, AS1VF350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1GF SSB Series

Class I, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (SSB Series)

AS1HE250, AS1HE350, AS1VG250, AS1VG350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1

Class I 1.5 Hour Single Thickness Blade Combination Fire-Smoke Damper

AS1H250, AS1H350, AS1V250, AS1V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2C GCF Series

Class II 1.5 Hour Tunnel-Type Combination Fire-Smoke Damper (GCF Series)

AS2C2H250, AS2C2J250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AS2C ECF Series

Class II 1.5 Hour Tunnel-Type Combination Fire-Smoke Damper (ECF Series)

AS2C2I250, AS2C2K250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AS2

Class II 1.5 Hour Single Thickness Blade Combination Fire-Smoke Damper

AS2H250, AS2H350, AS2V250, AS2V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2GF ESB Series

Class II, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (ESB Series)

AS2HD250, AS2HD350, AS2VF250, AS2VF350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2GF SSB Series

Class II, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (SSB Series)

AS2HE250, AS2HE350, AS2VG250, AS2VG350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

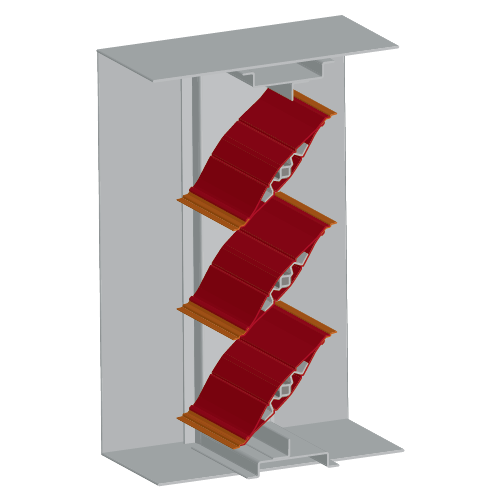

VA1

Class I, 3 Hour Airfoil Blade Combination Fire-Smoke Damper

VA1H250, VA1H350, VA1V250, VA1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA1 EP Series

Class I, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (EP Series)

VA1H25034, VA1H35034, VA1H35034, VA1V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA1 HP Series

Class I, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (HP Series)

VA1H25044, VA1H35044, VA1V25044, VA1V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA1 HE Series

Class I, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (HE Series)

VA1H25046, VA1H35046, VA1V25046, VA1V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA2

Class II, 3 Hour Airfoil Blade Combination Fire-Smoke Damper

VA2H250, VA2H350, VA2V250, VA2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA2 EP Series

Class II, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (EP Series)

VA2H25034, VA2H35034, VA2V25034, VA2V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA2 HP Series

Class II, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (HP Series)

VA2H25044, VA2H35044, VA2V25044, VA2V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

VA2 HE Series

Class II, 3 Hour Airfoil Blade Combination Fire-Smoke Damper (HE Series)

VA2H25046, VA2H35046, VA2V25046, VA2V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

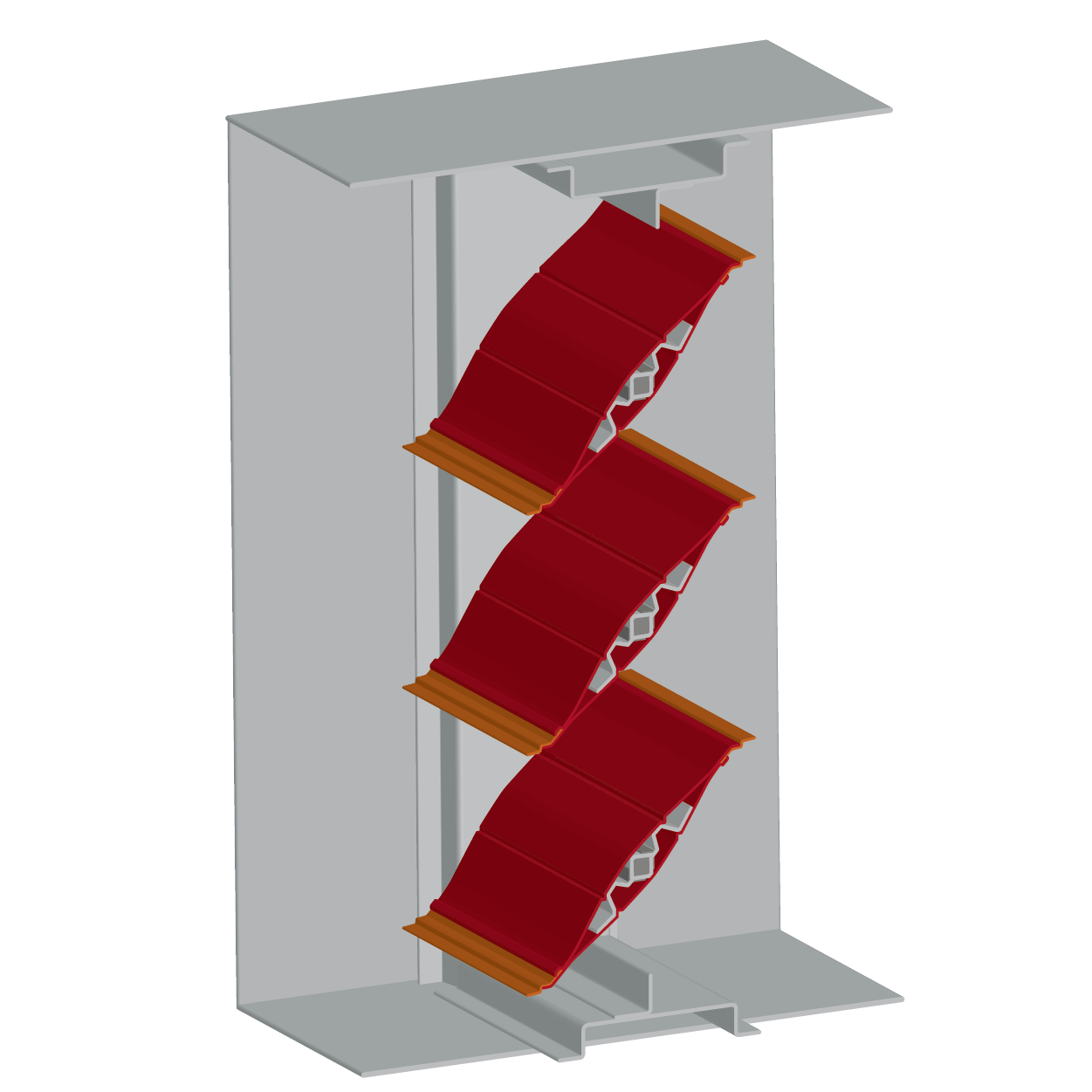

VA2M

Class II, 3 Hour Modulating Airfoil Blade Combination Fire-Smoke Damper

VA2HM250, VA2VM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F

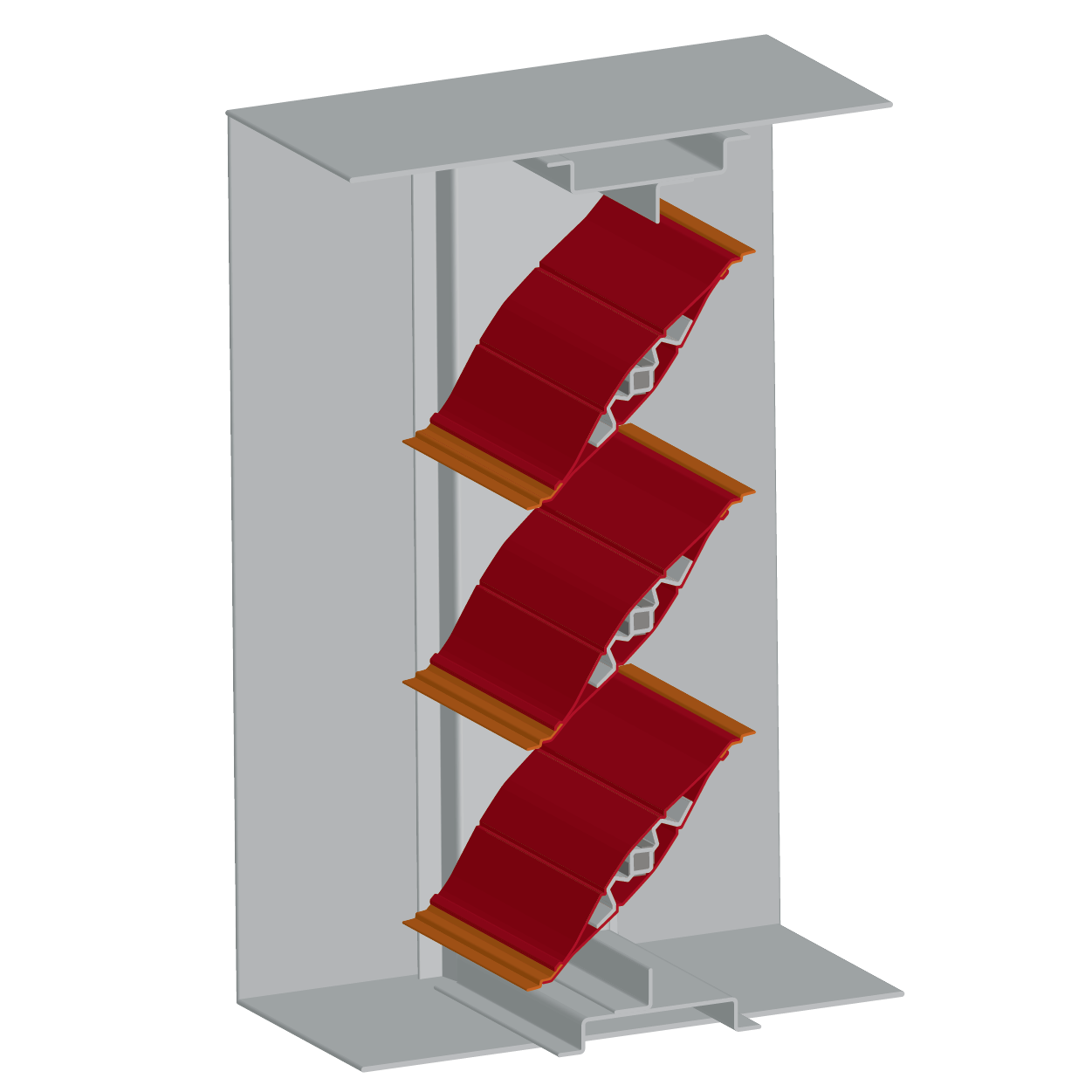

UA2M

Class II, 1.5 Hour Modulating Airfoil Blade Combination Fire-Smoke Damper

UA2HM250, UA2VM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AT1

Class I, 3 Hour Single Thickness Blade Combination Fire-Smoke Damper

AT1H250, AT1H350, AT1V250, AT1V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AT2

Class II, 3 Hour Single Thickness Blade Combination Fire-Smoke Damper

AT2H250, AT2H350, AT2V250, AT2V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AR1

Class I, 1.5 Hour Single Thickness Blade Mini Combination Fire-Smoke Damper

AR1H250, AR1H350, AR1V250, AR1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

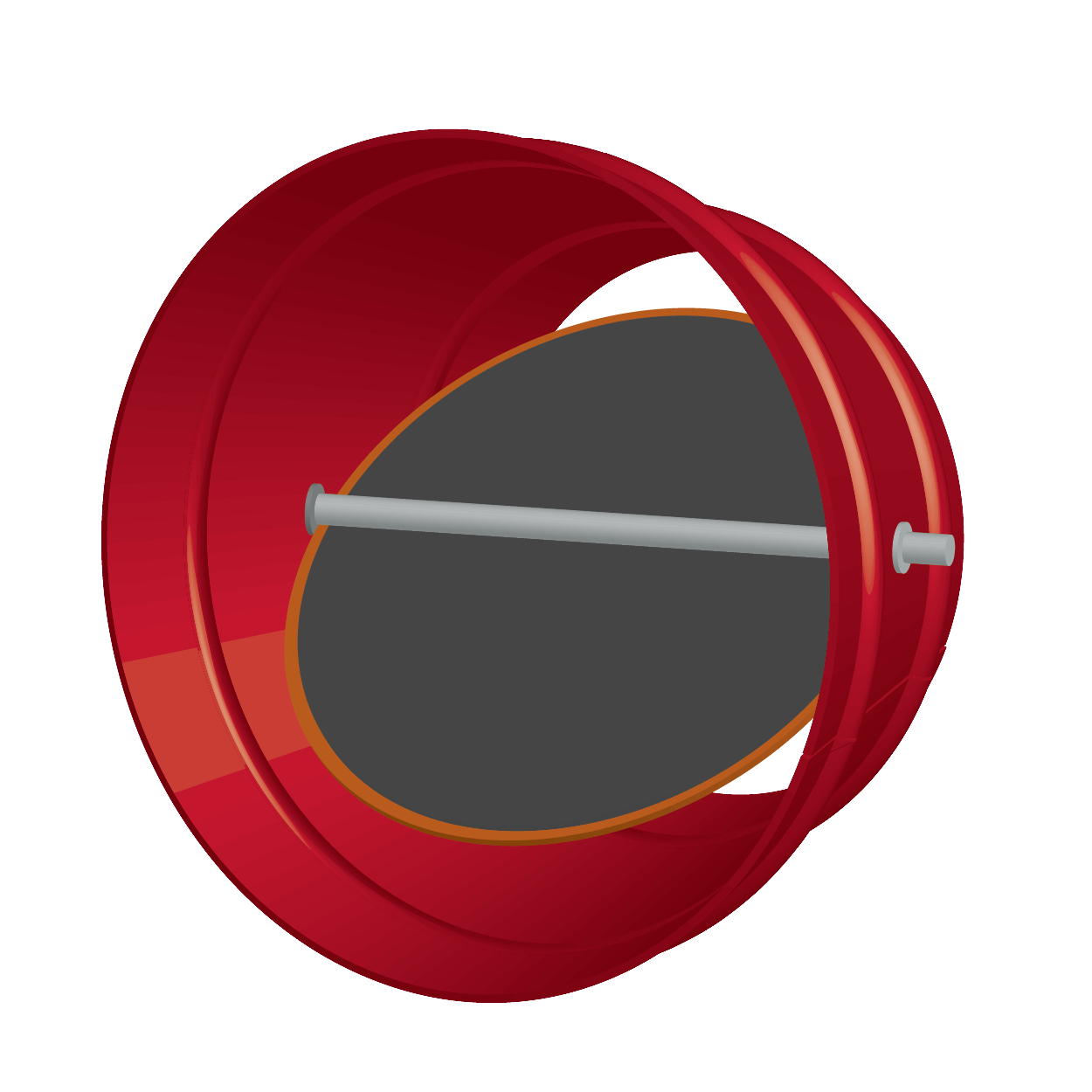

RA

Class I True Round Combination Fire-Smoke Damper

RA250, RA350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: True Round Straight
Frame Shape: Round
Pressure Drop: .015 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1(SS)

Class I 1.5 Hour Single Thickness Blade Stainless Steel Combination Fire-Smoke Damper

AS1(SS)H250, AS1(SS)V250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2(SS)

Class II 1.5 Hour Single Thickness Blade Stainless Steel Combination Fire-Smoke Damper

AS2(SS)H, AS2(SS)V

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

A1

Class I Single Thickness Blade Smoke Damper

A1H250, A1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

A1 EP Series

Class I Single Thickness Blade Smoke Damper (EP Series)

A1H25034, A1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

A1(SS)

Class I Single Thickness Blade Stainless Steel Smoke Damper

A1(SS)H250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

A2

Class II Single Thickness Blade Smoke Damper

A2H250, A2H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

UR1

Class I Single Thickness Blade Mini Smoke Damper

UR1H250, UR1H350, UR1V250, UR1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

UR2

Class II Single Thickness Blade Mini Smoke Damper

UR2H250, UR2H350, UR2V250, UR2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

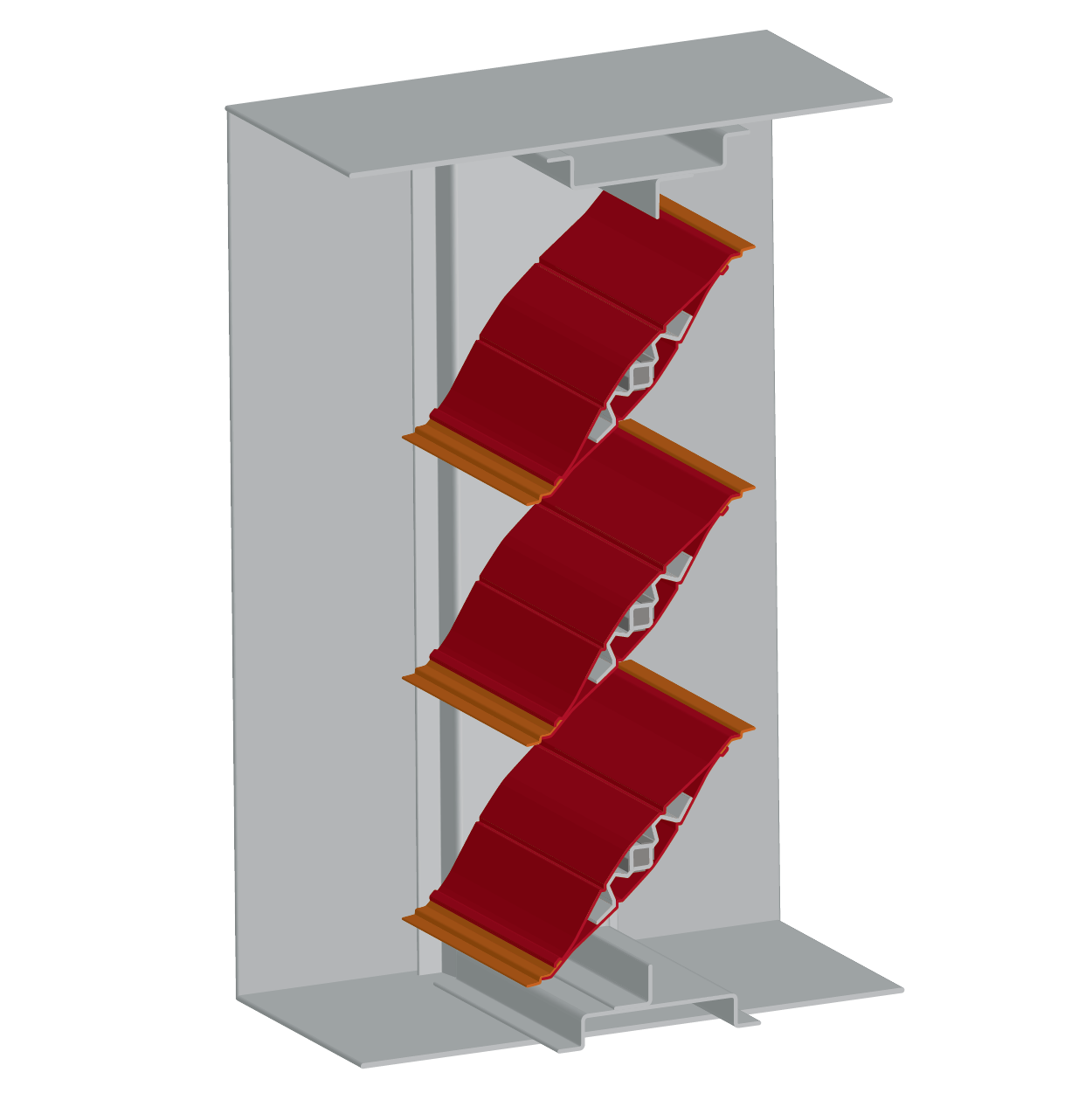

AA1

Class I Airfoil Blade Smoke Damper

AA1H250, AA1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA1 EP Series

Class I Airfoil Blade Smoke Damper (EP Series)

AA1H25034, AA1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA1 HP Series

Class I Airfoil Blade Smoke Damper (HP Series)

AA1H25044, AA1H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA1 HE Series

Class I Airfoil Blade Smoke Damper (HE Series)

AA1H25046, AA1H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

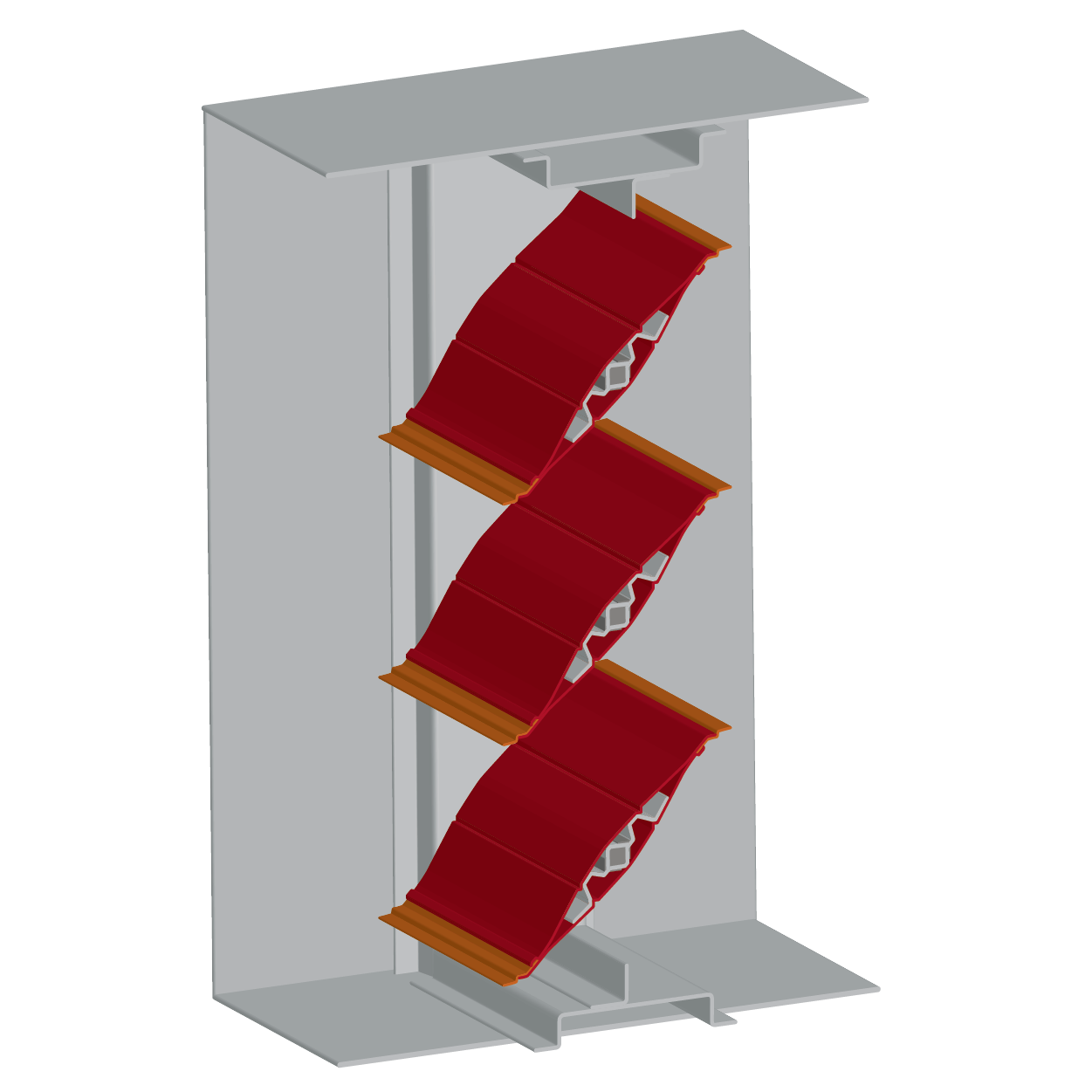

AA2

Class II Airfoil Blade Smoke Damper

AA2H250, AA2H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA2 EP Series

Class II Airfoil Blade Smoke Damper (EP Series)

AA2H25034, AA2H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA2 HP Series

Class II Airfoil Blade Smoke Damper (HP Series)

AA2H25044, AA2H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

AA2 HE Series

Class II Airfoil Blade Smoke Damper (HE Series)

AA2H25046, AA2H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

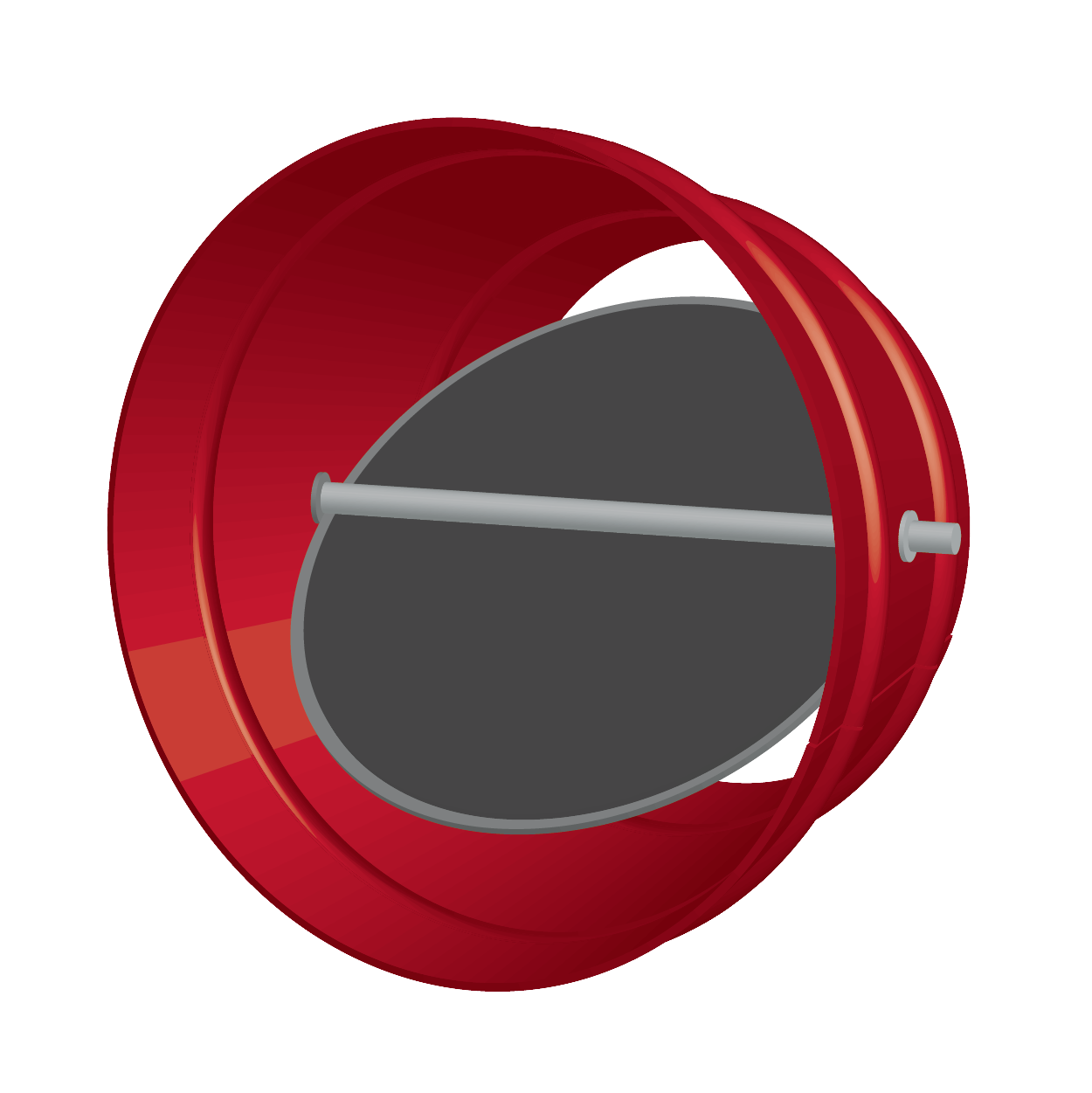

RU

Class I True Round Smoke Damper

RU250, RU350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: True Round Straight
Frame Shape: Round
Pressure Drop: .02 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

117

1.5 Hour Rated Curtain Blade Static Fire Damper

117AH, 117AV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 1.5 hrs.

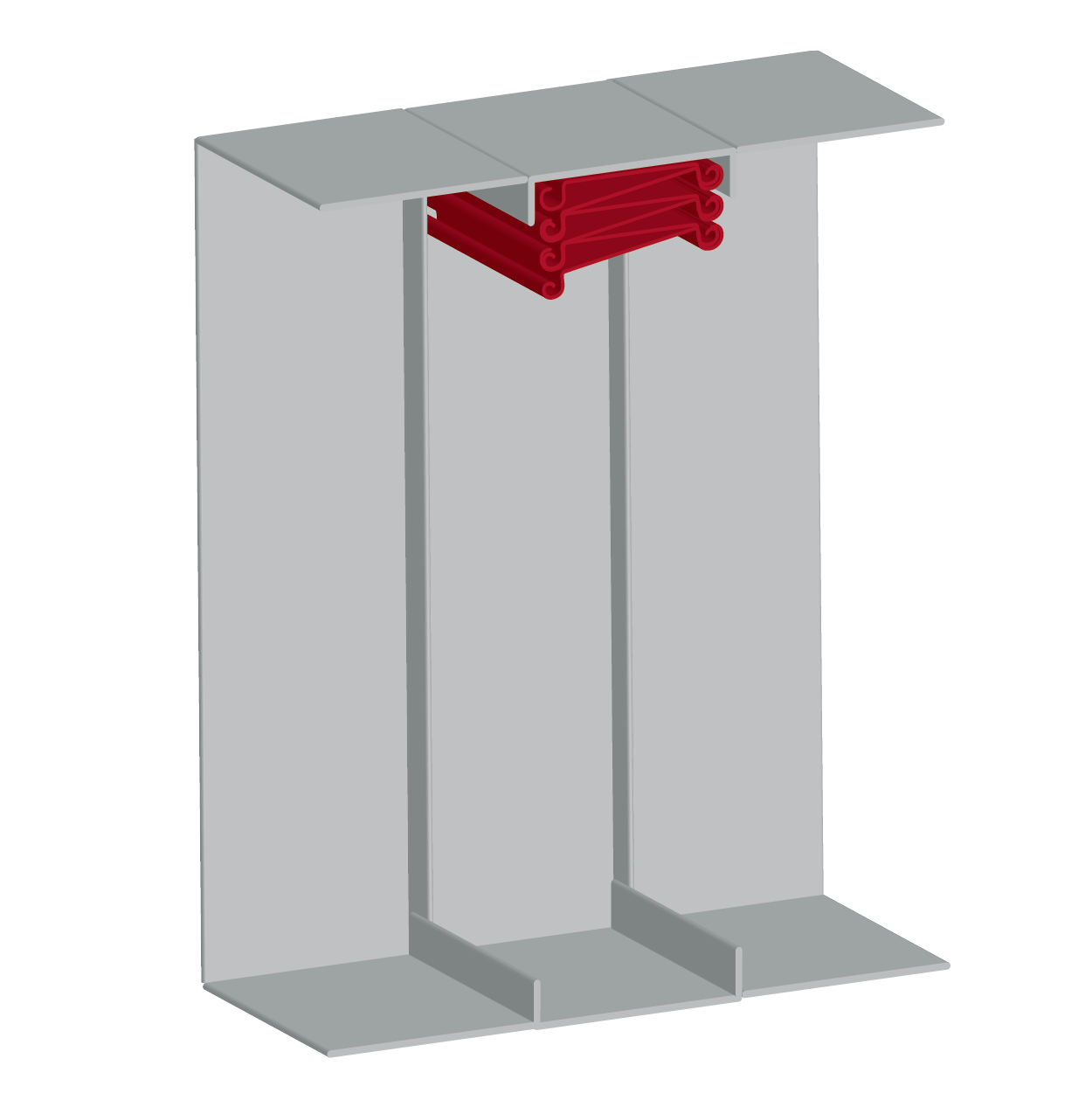

117X

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

117XAH, 117XAV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 1.5 hrs.

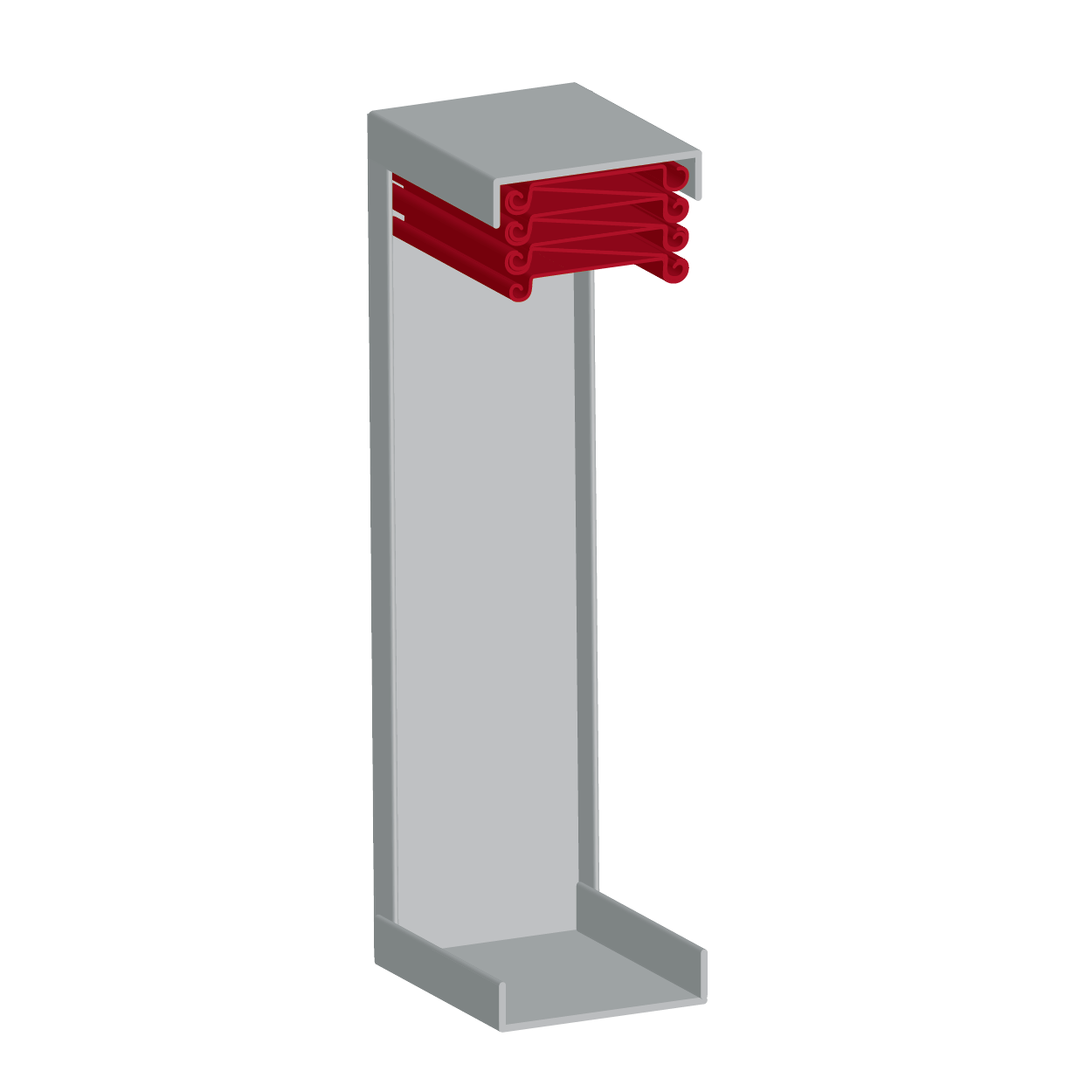

317

3 Hour Rated Curtain Blade Static Fire Damper

317AH, 317AV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 3 hrs.

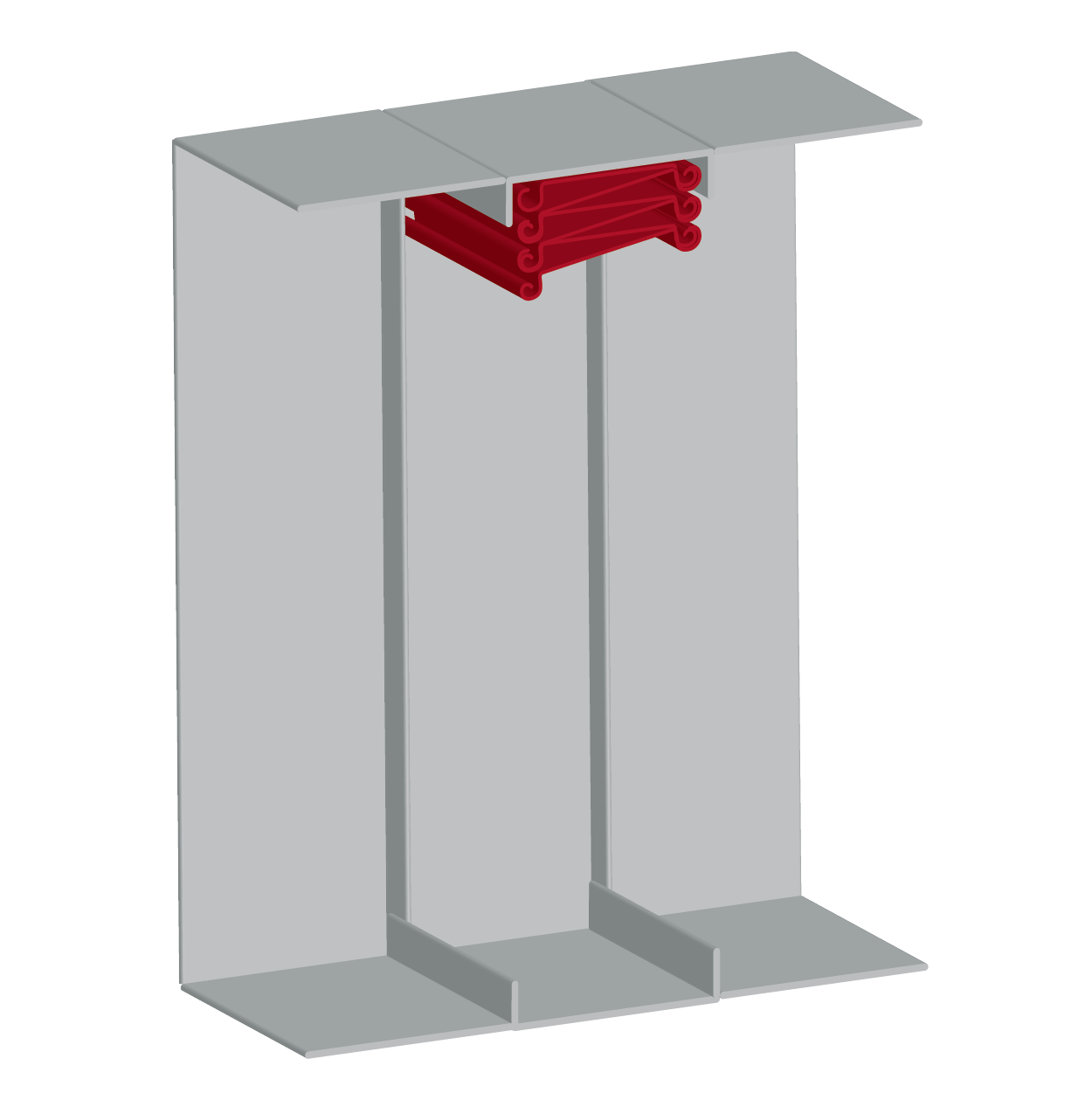

317X

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

317XAH, 317XAV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 3 hrs.

D17

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D17AH, D17AV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D17X

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D17XAH, D17XAV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D37

3 Hour Rated Curtain Blade Dynamic Fire Damper

D37AH, D37AV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D37X

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D37XAH, D37XAV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

MD37

3 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD37H, MD37V, MD37CH, MD37CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

MA37

3 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA37H, MA37V, MA37CH, MA37CV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

MA37 HP Series

3 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper (HP Series)

MA37H4, MA37V4, MA37CH4, MA37CV4

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

MD17(SS)

1.5 Hour Rated Non-Motorized Stainless Steel Dynamic Fire Damper

MD17(SS)H, MD17(SS)V, MD17(SS)CH, MD17(SS)CV

Maximum Velocity (FPM): 2000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

MD17(SS) HP Series

1.5 Hour Rated Non-Motorized Stainless Steel Dynamic Fire Damper (HP Series)

MD17(SS)H4, MD17(SS)V4, MD17(SS)CH4, MD17(SS)CV4

Maximum Velocity (FPM): 4000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

MD17

1.5 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD17H, MD17V, MD17CH, MD17CV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

MA17

1.5 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA17H, MA17V, MA17CH, MA17CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D17B

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D17BH, D17BV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D17C

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D17CH, D17CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D37B

3 Hour Rated Curtain Blade Dynamic Fire Damper

D37BH, D37BV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D37C

3 Hour Rated Curtain Blade Dynamic Fire Damper

D37CH, D37CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

117B

1.5 Hour Rated Curtain Blade Static Fire Damper (B-Transition)

117BH, 117BV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 1.5 hrs.

117XB

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

117XBH, 117XBV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 1.5 hrs.

117XC

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

117XCH, 117XCV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 1.5 hrs.

317B

3 Hour Rated Curtain Blade Static Fire Damper

317BH, 317BV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 3 hrs.

317C

3 Hour Rated Curtain Blade Static Fire Damper

317CH, 317CV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 3 hrs.

317XB

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

317XBH, 317XBV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 3 hrs.

317XC

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

317XCH, 317XCV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 3 hrs.

D17XB

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D17XBH, D17XBV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D17XC

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D17XCH, D17XCV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D37XB

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D37XBH, D37XBV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D37XC

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D37XCH, D37XCV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
