Blade Type - Arrow

Single Thickness Blade

Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products

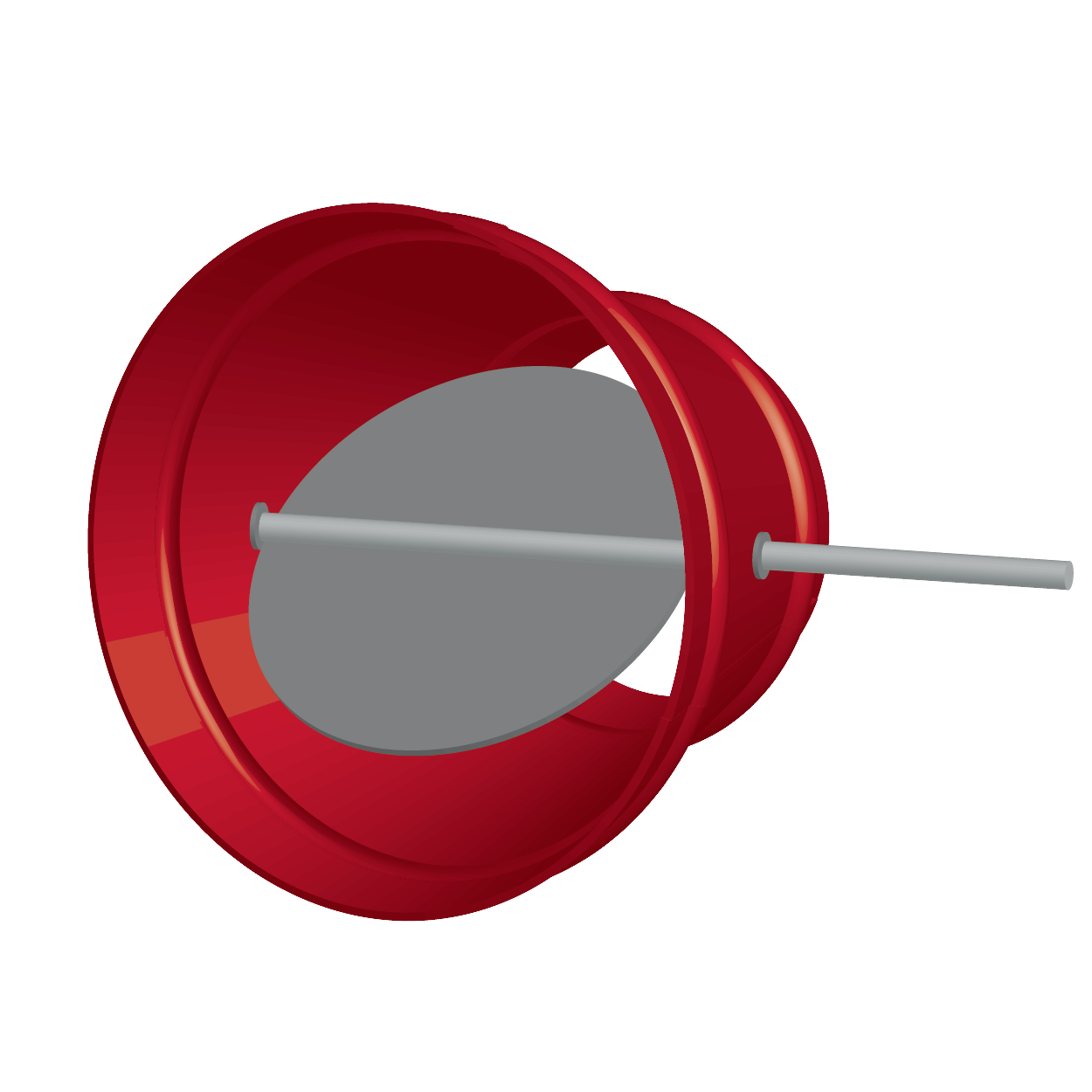

70

7.5" Deep Round Galvanized Steel Damper

70

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

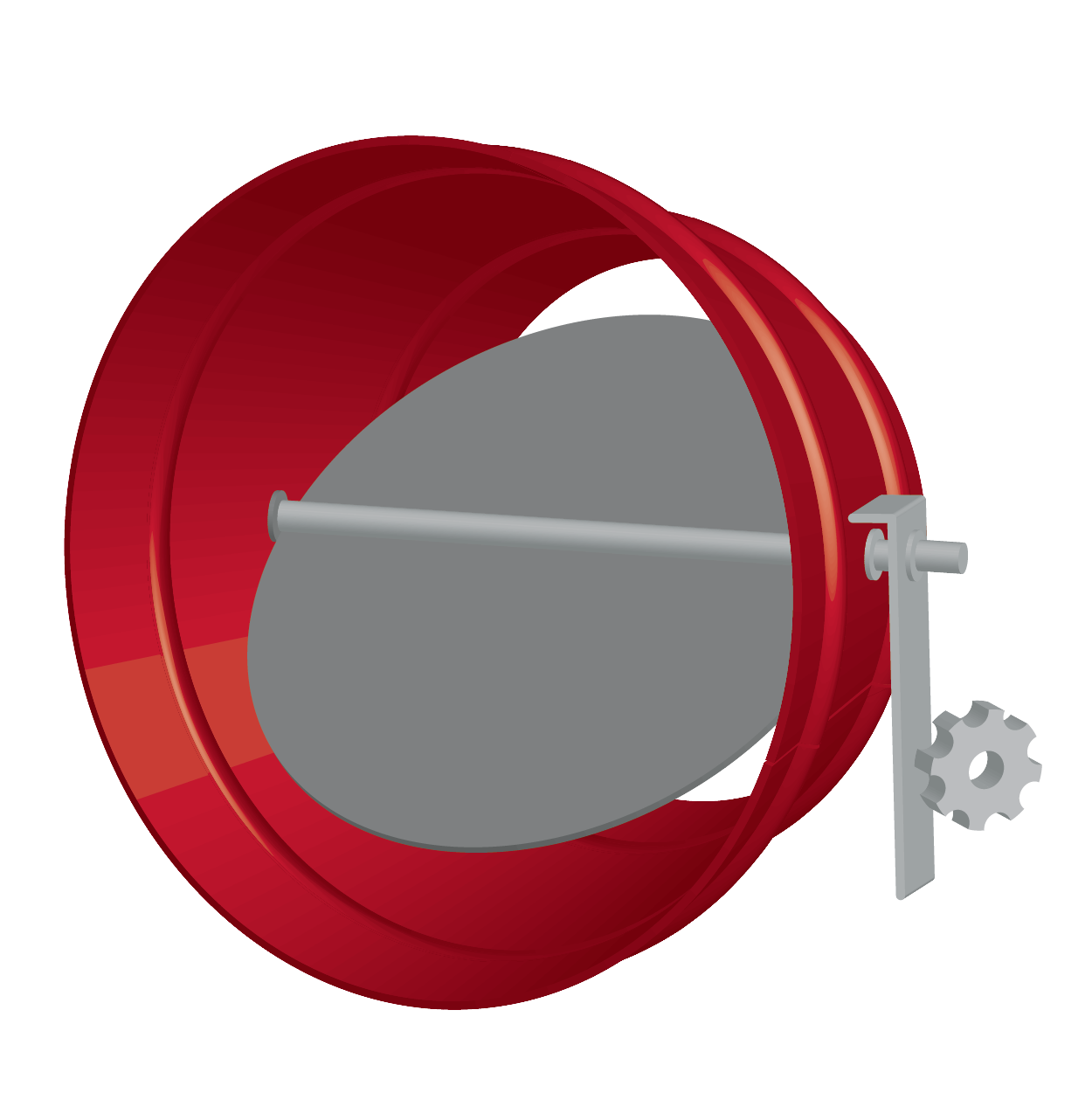

70-GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

70GL

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

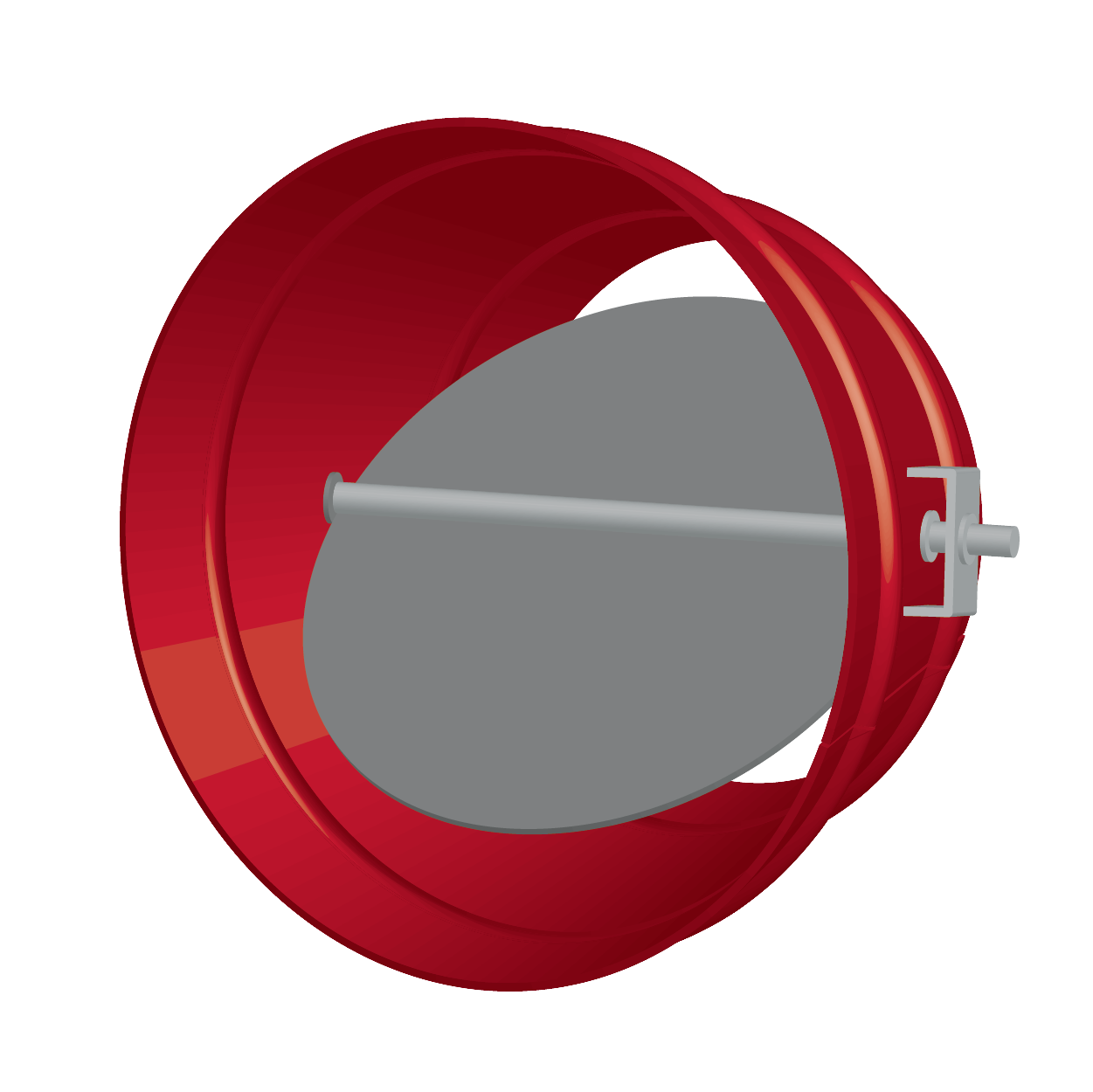

70-R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

70R

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

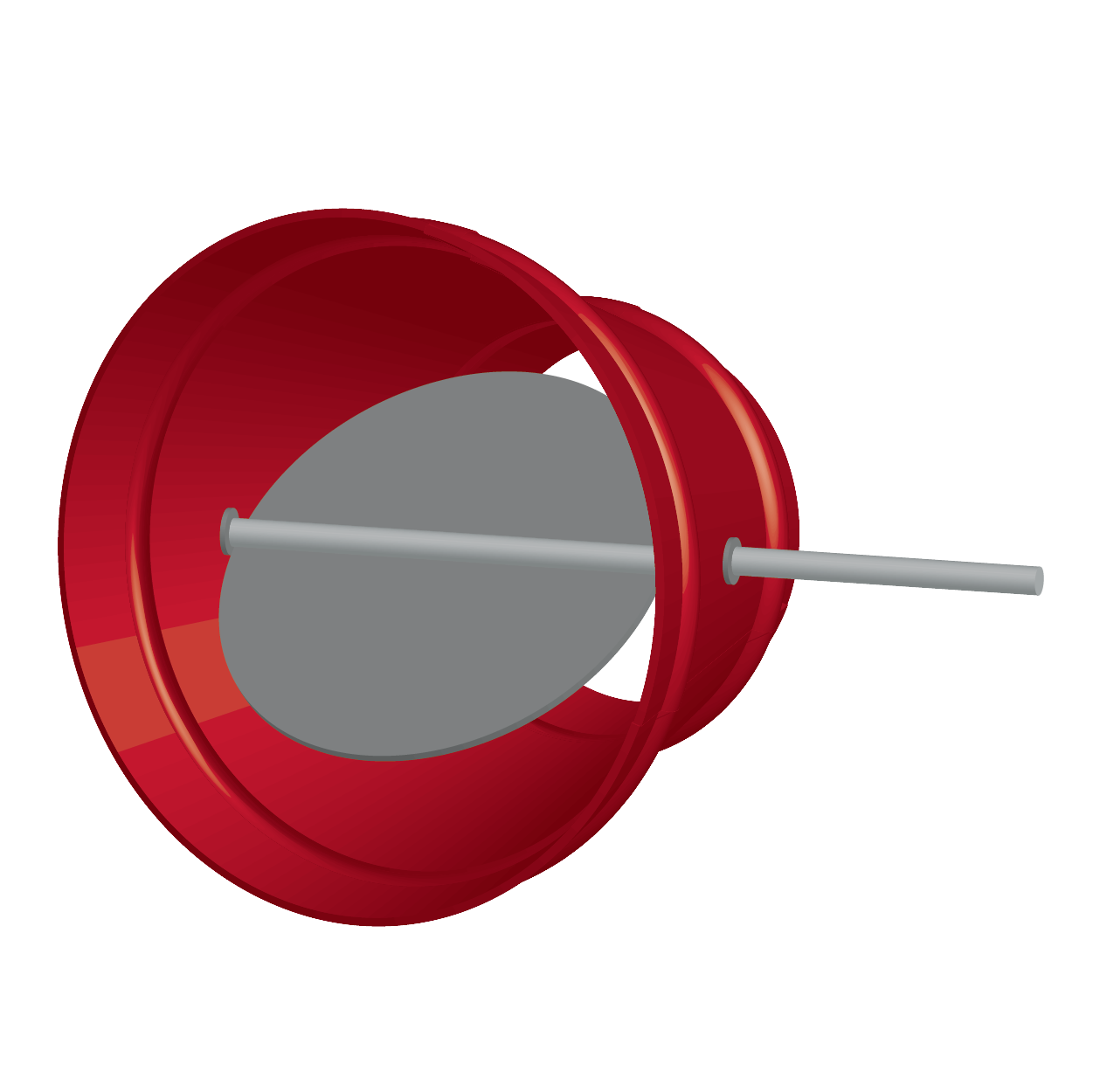

75

7.5" Deep Round Aluminum Damper

75

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

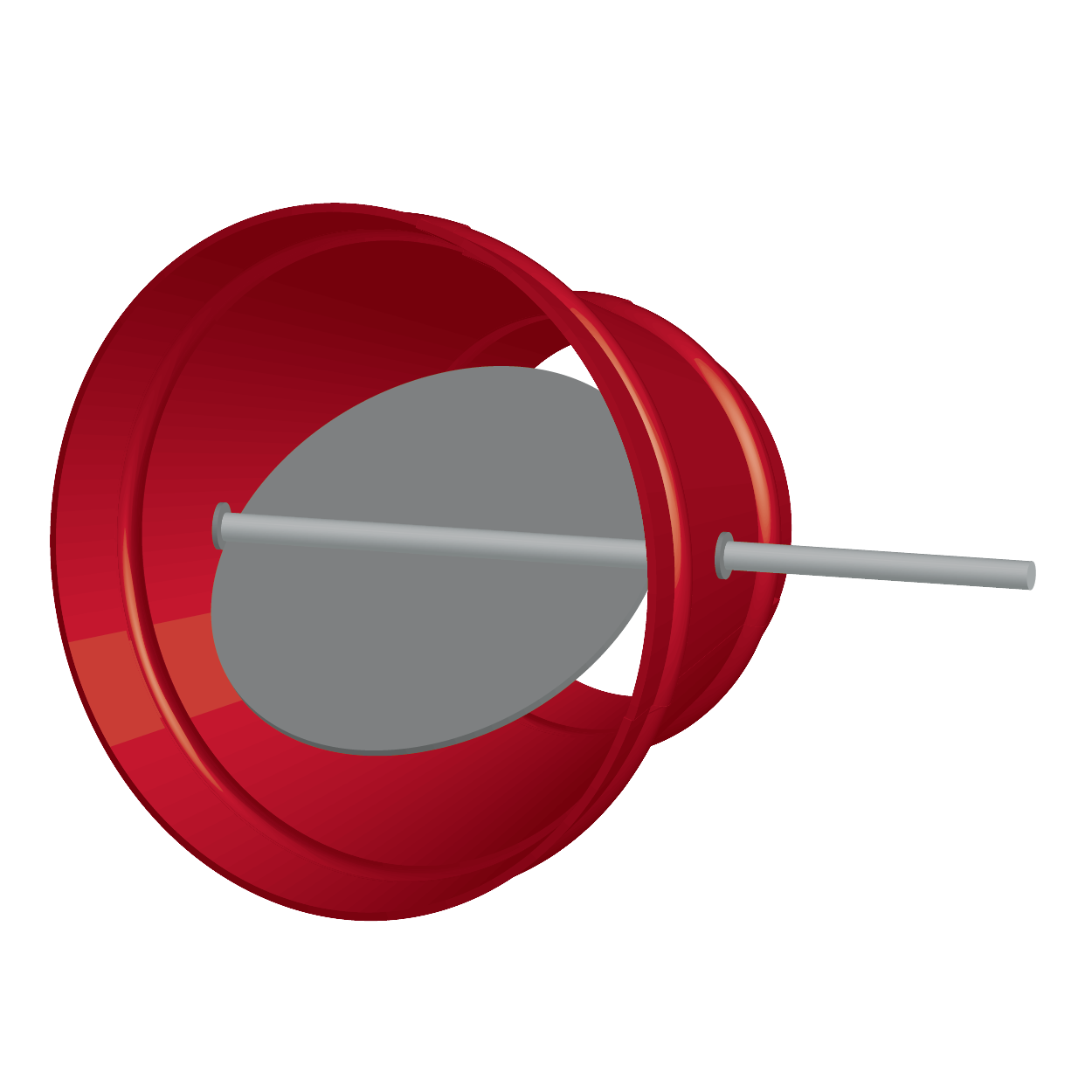

80

7.5" Deep Round Stainless Steel Damper

80

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

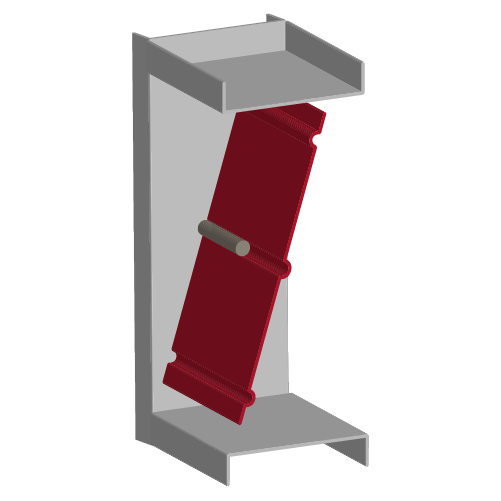

150VCD

4" Deep Single Blade Volume Control Balancing Damper

150VCD

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

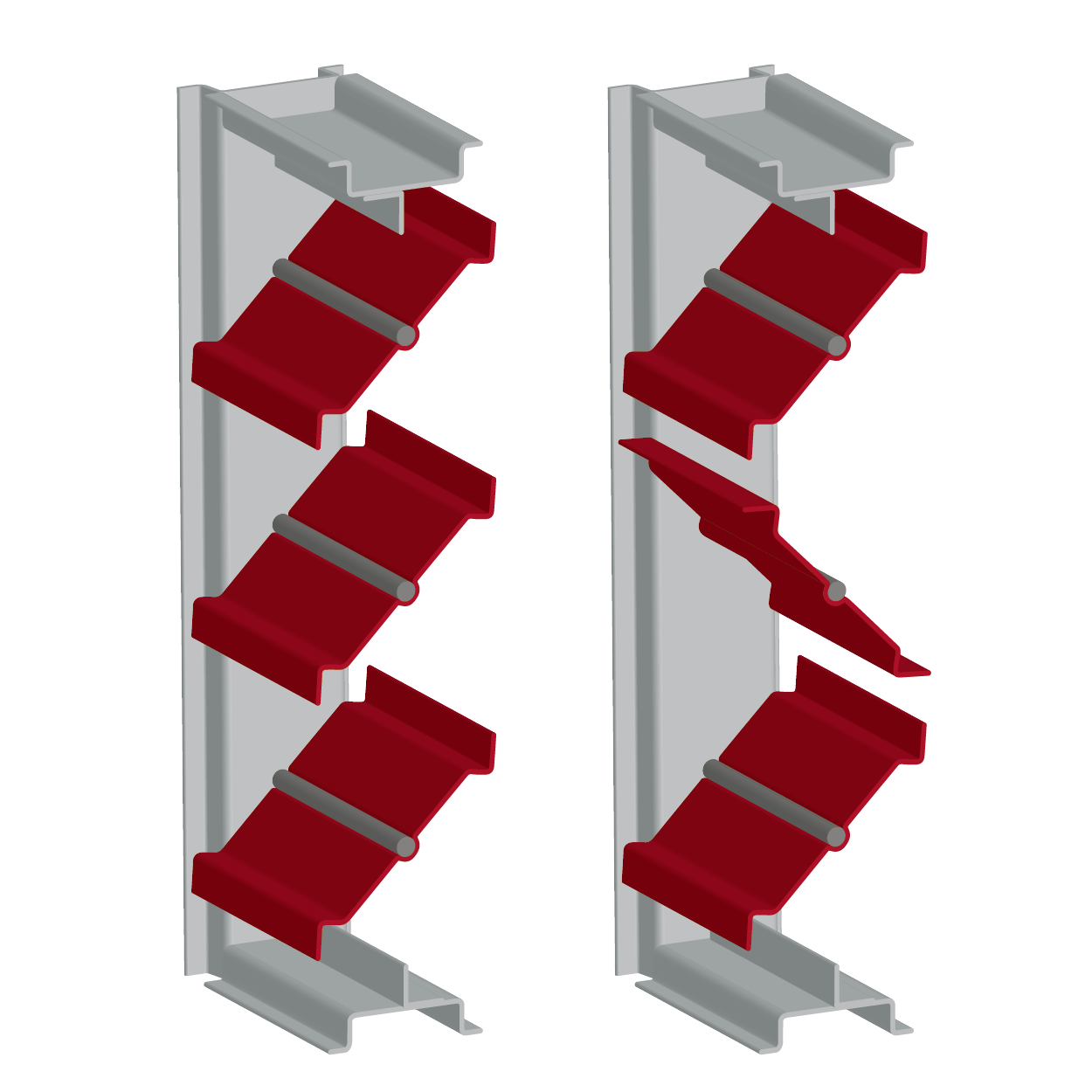

182

4" Deep Single Thickness Blade Stainless Steel Control Damper

182

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

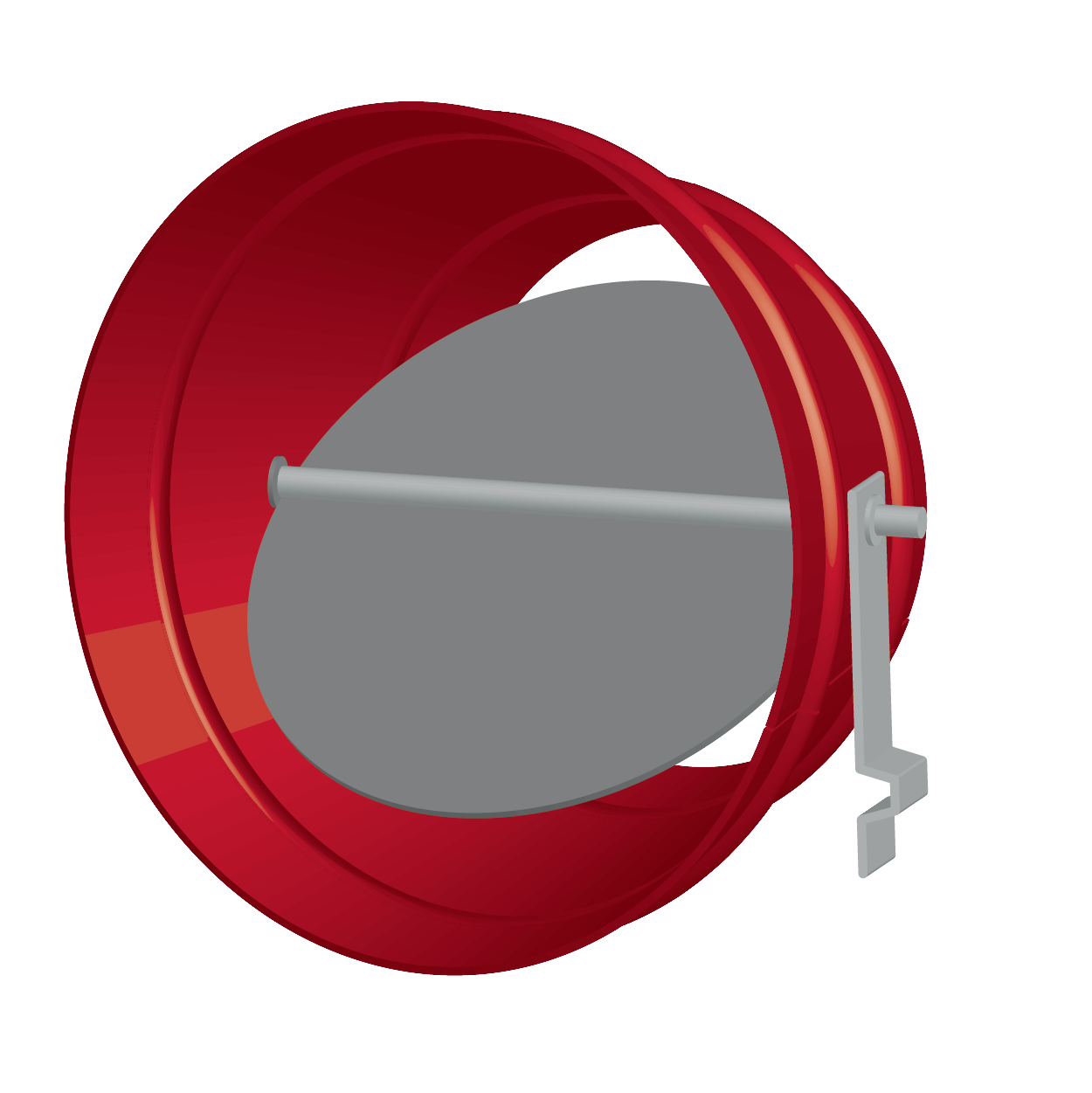

200VCRD

Round Single Blade Volume Control Damper

200VCRD

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

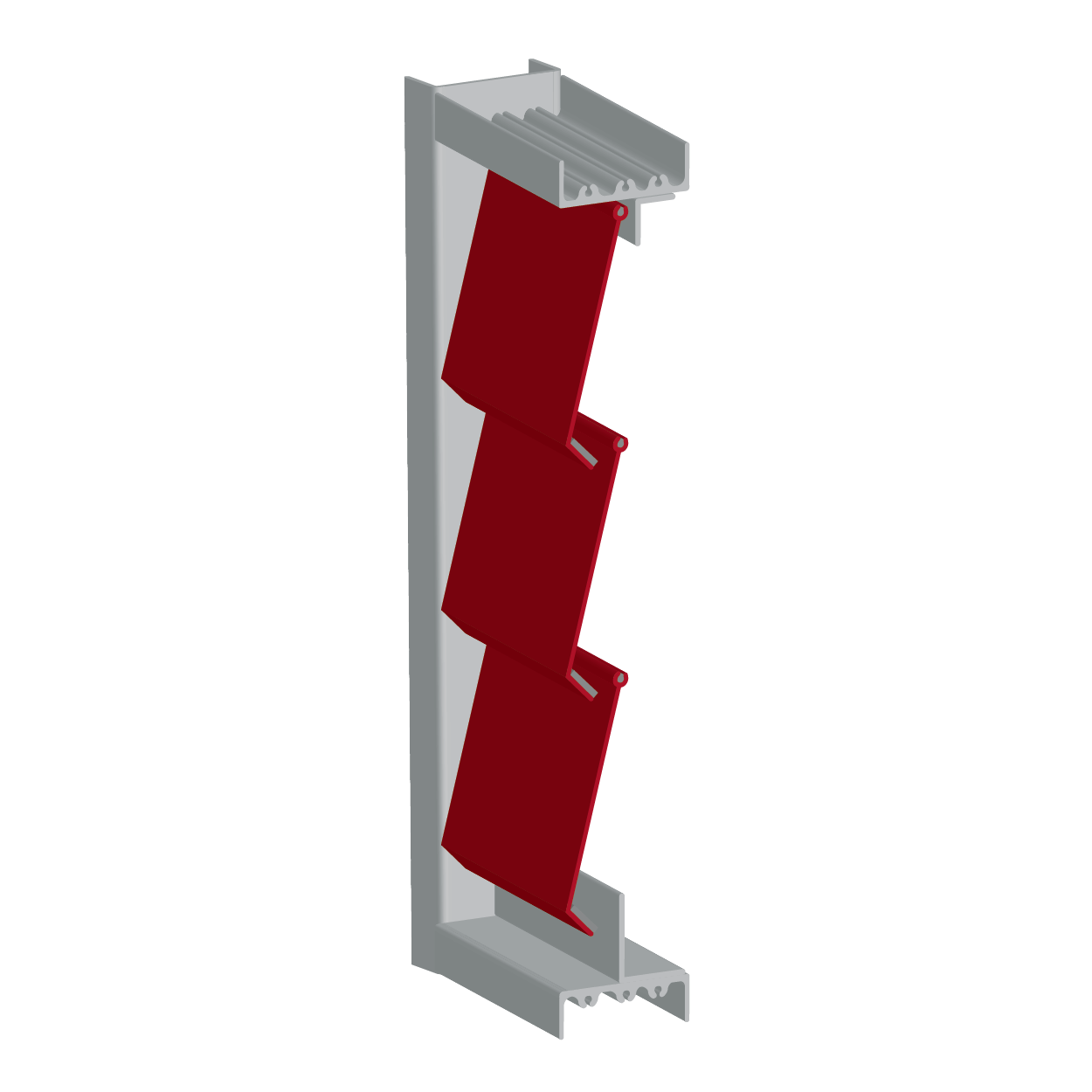

225-B

2" Deep Light Duty Aluminum Pressure Relief Backdraft Damper

225B

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .14 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

260-DW

Dual Wall Insulated Round Single Blade Volume Control Damper

260DW

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)

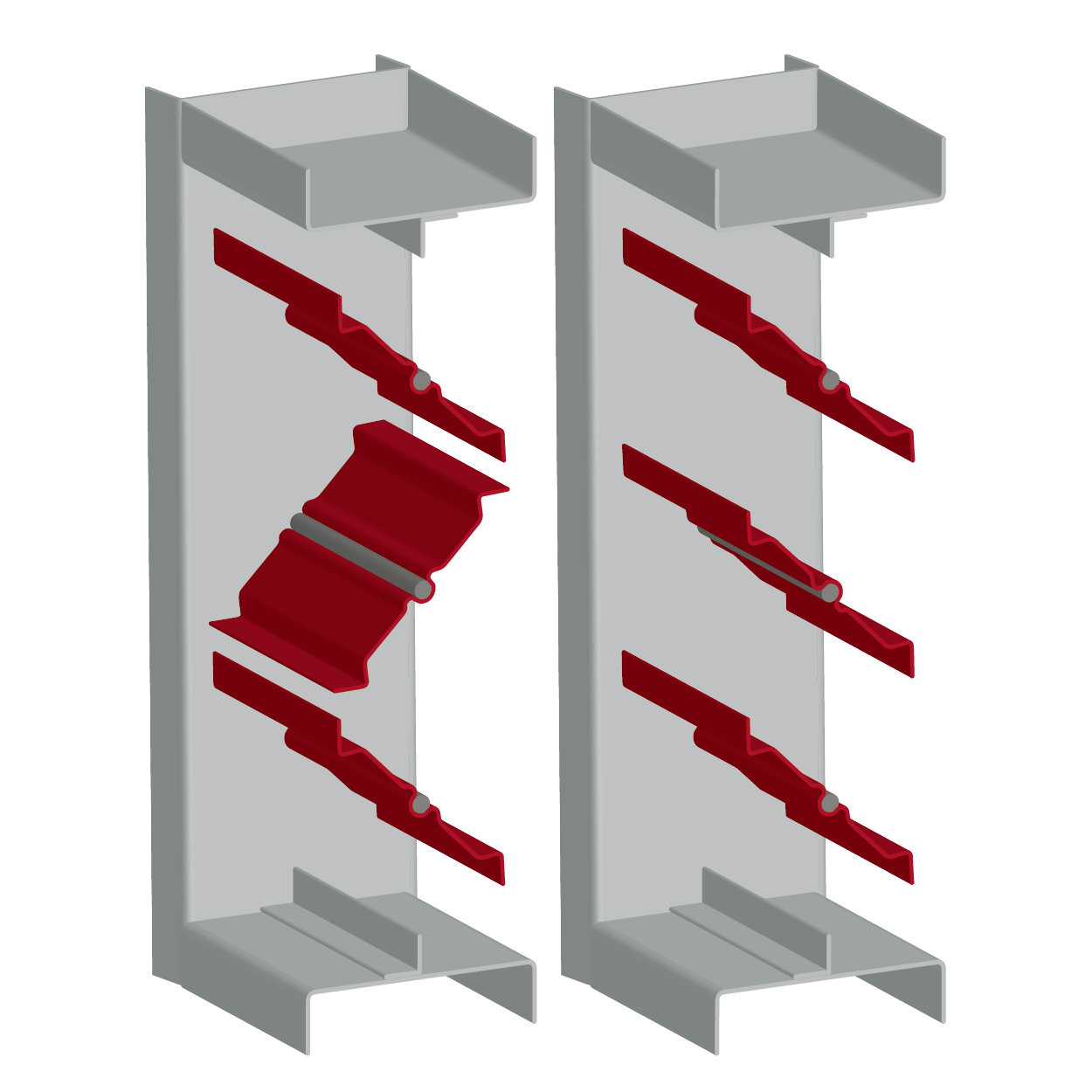

303

8" Deep Light Industrial Single Thickness Control Damper

303

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 5 .in w.g. @ 1000 fpm
Pressure Drop: .017 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .017 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

304

8" Deep Light Duty Industrial Galvanized Damper

304

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .017 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .017 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

335

2" Deep Aluminum Backdraft Damper

335

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .35 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .35 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 190 °F

354

6" to 8" Deep Double Deck Multi-Zone Damper

354

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

356-10

10" Deep Triple Deck Multi-Zone Damper

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

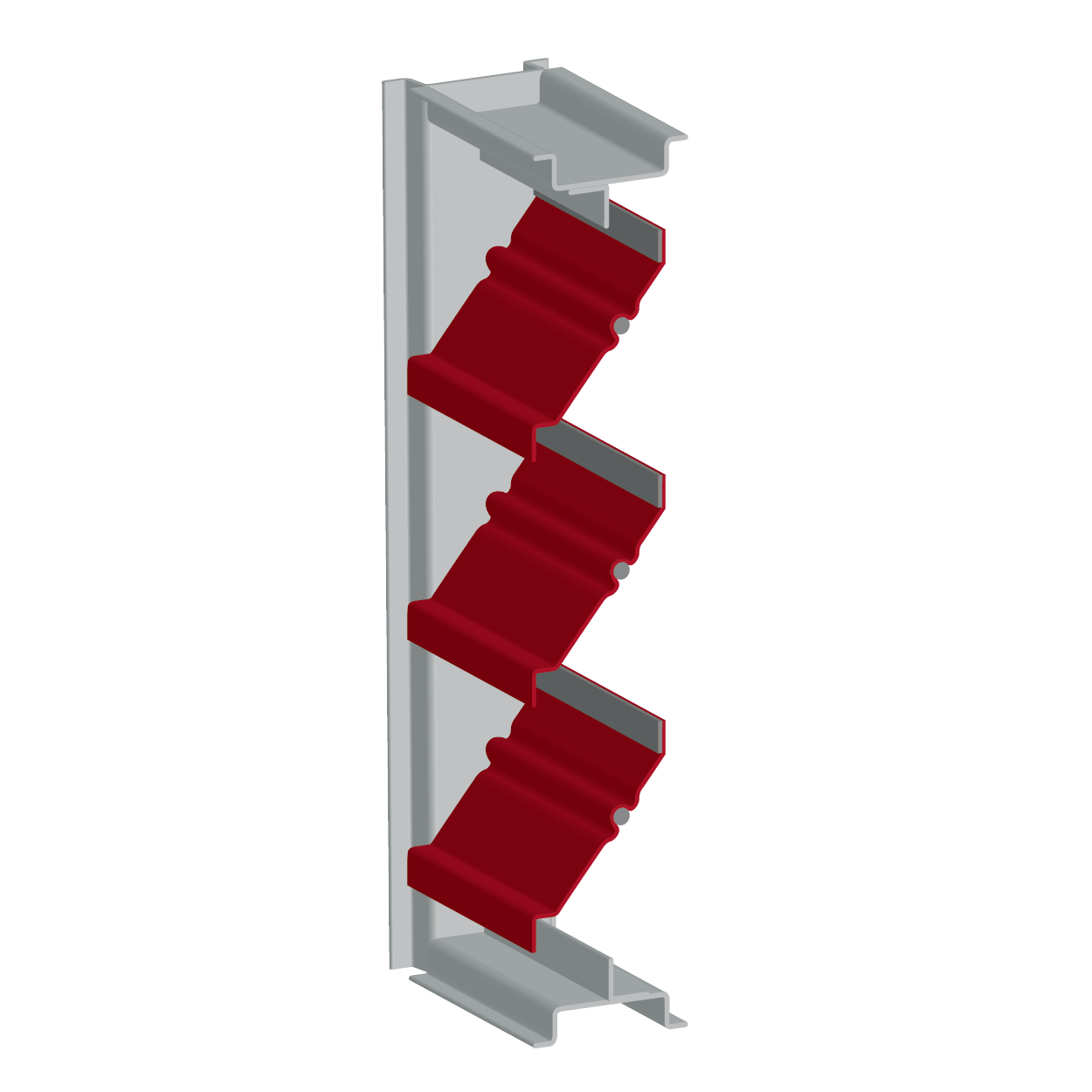

366

4' Deep Galvanized Steel Backdraft Damper - Intake or Discharge

366

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -30 °F to 180 °F

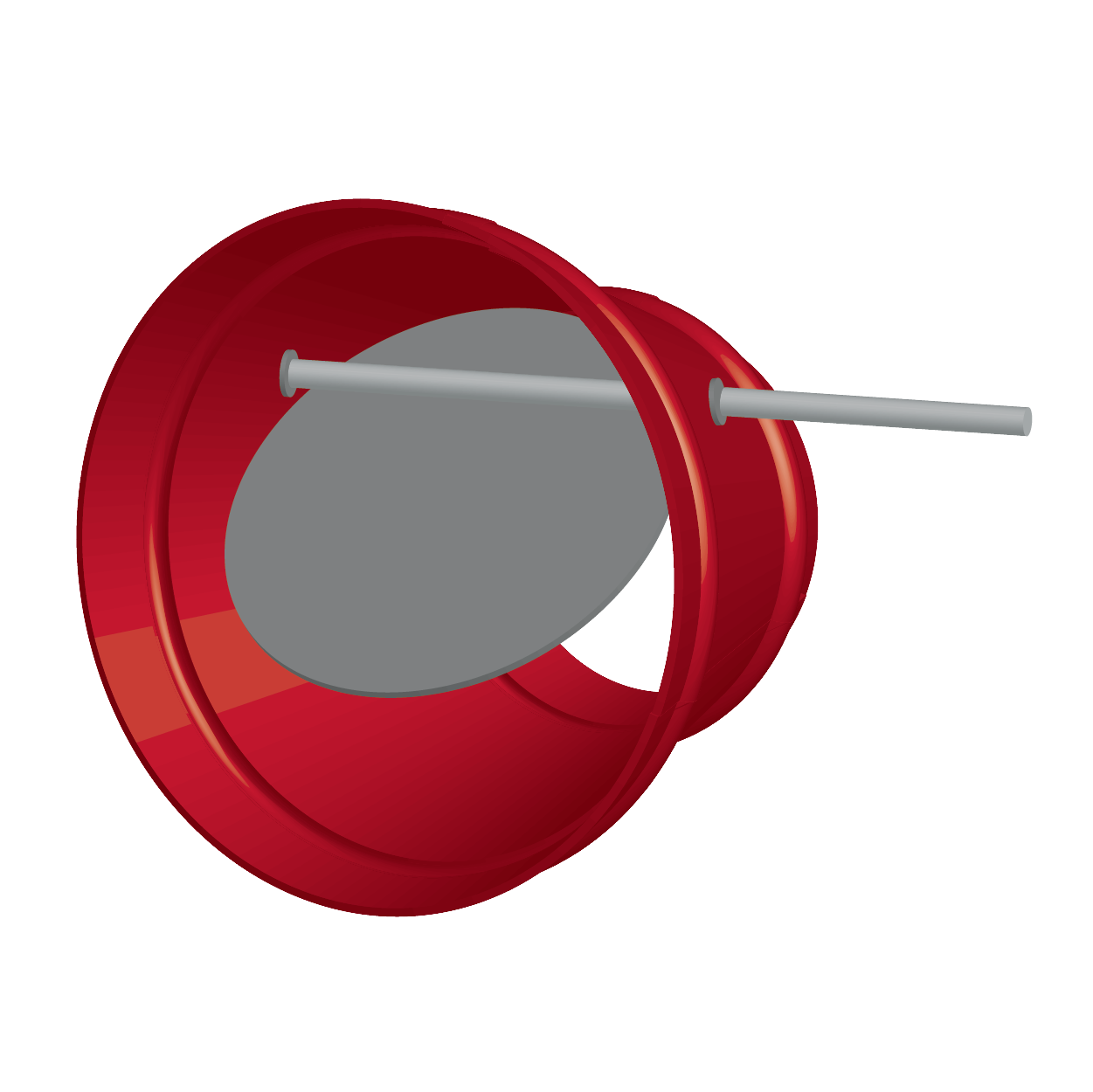

388

Galvanized Steel Round Backdraft Damper

388

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

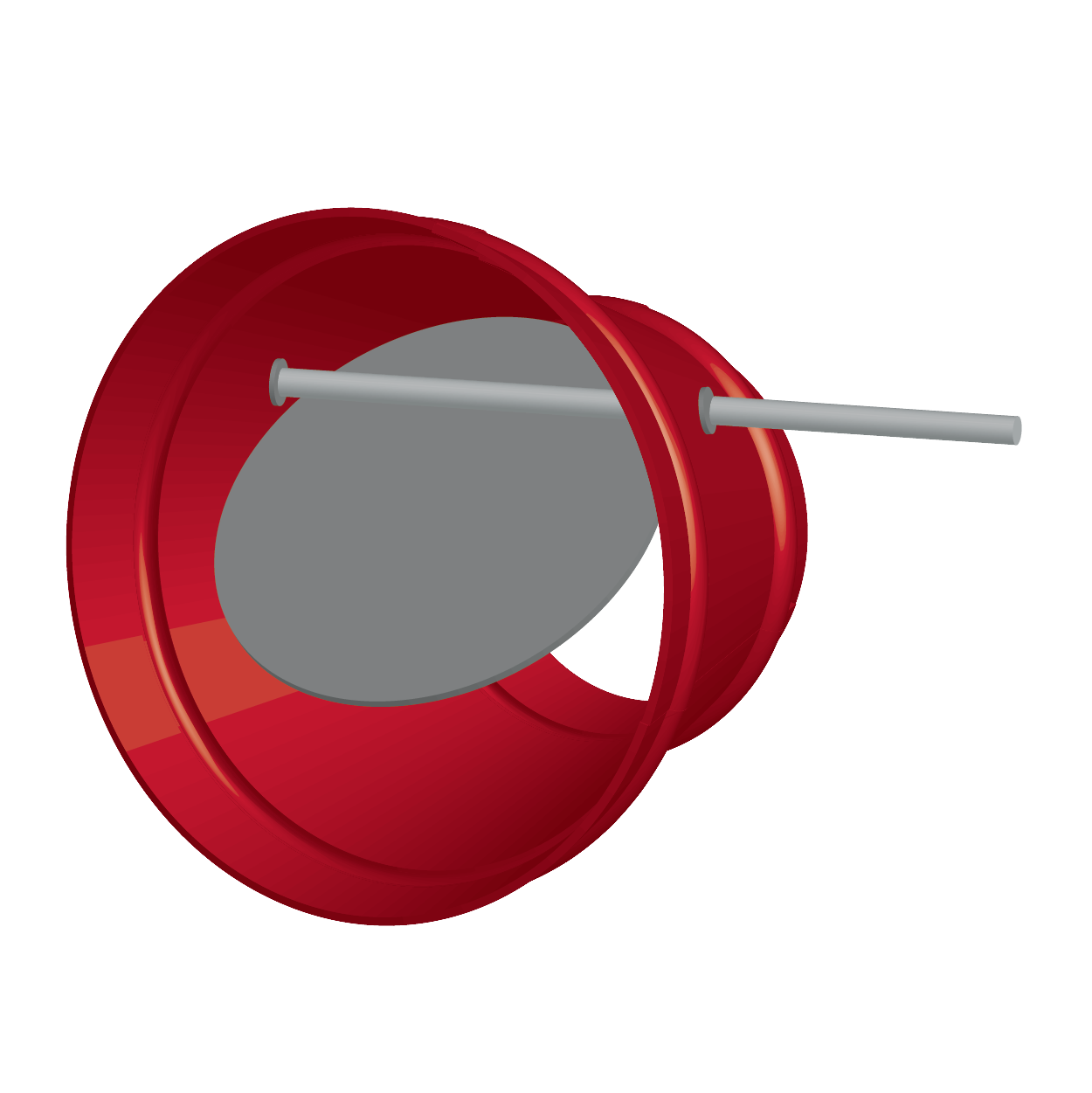

389

Aluminum Round Backdraft Damper

389

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

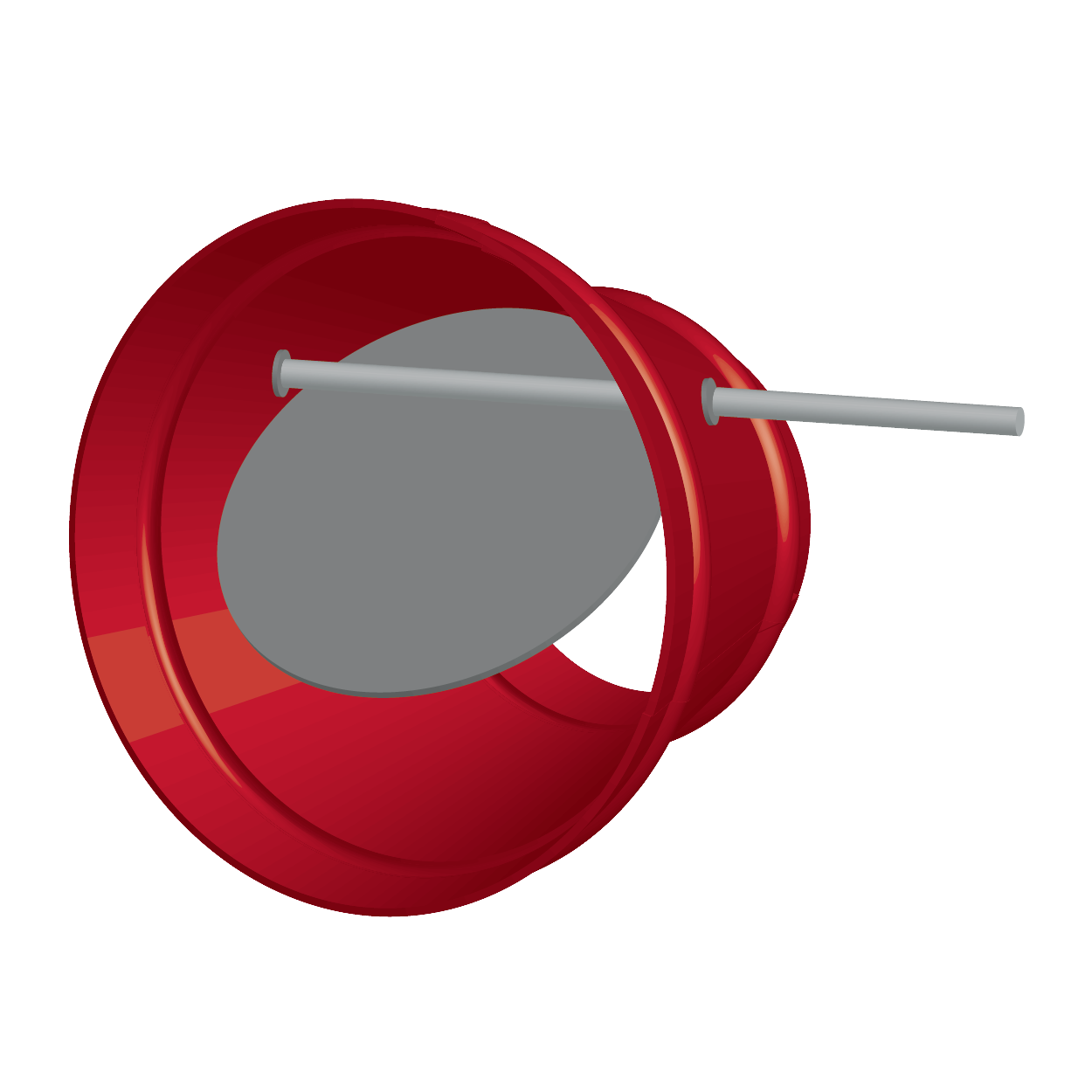

390

Stainless Steel Round Backdraft Damper

390

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

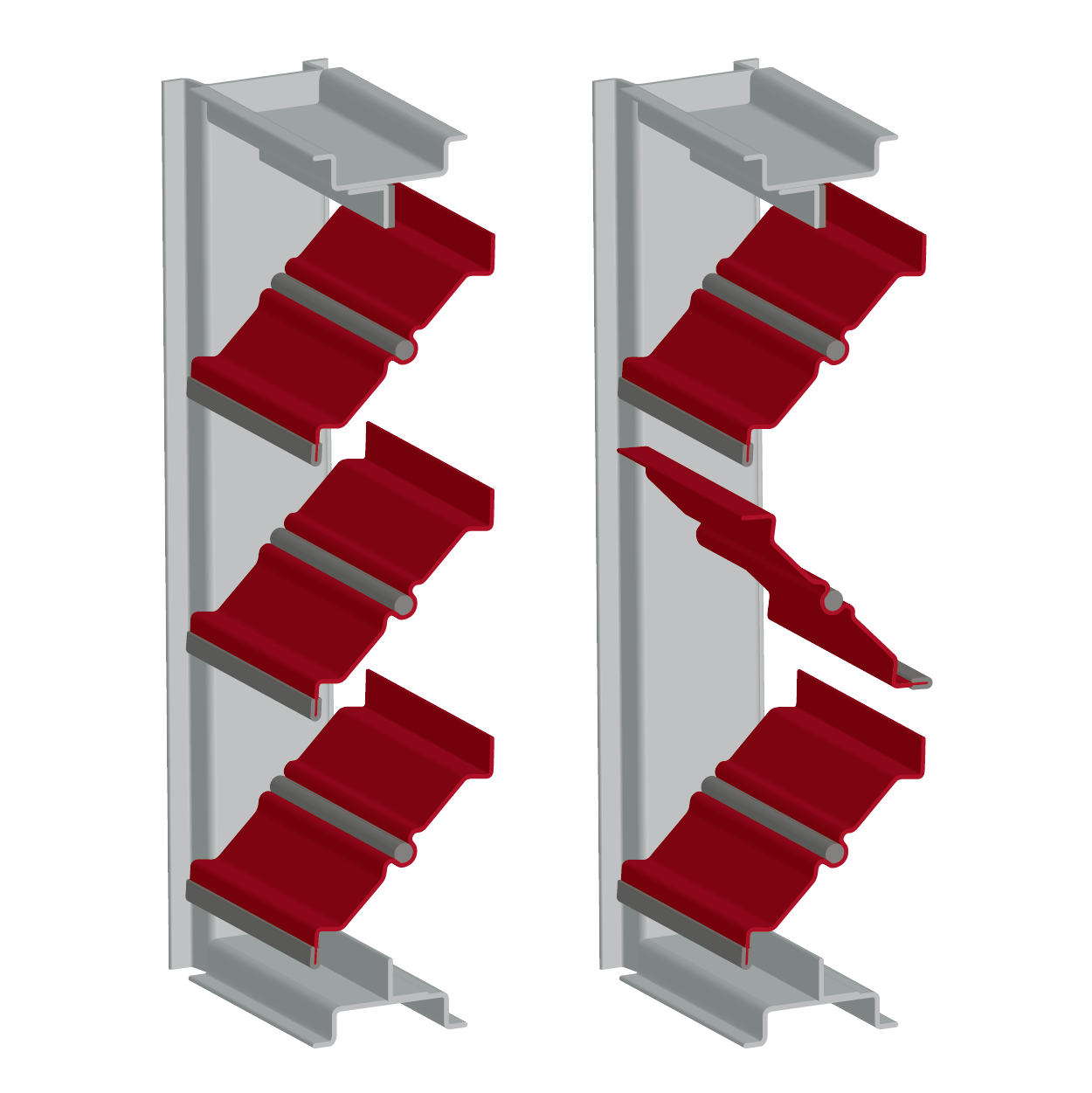

395

4" Deep Single Thickness Blade Low Leakage Control Damper

395

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

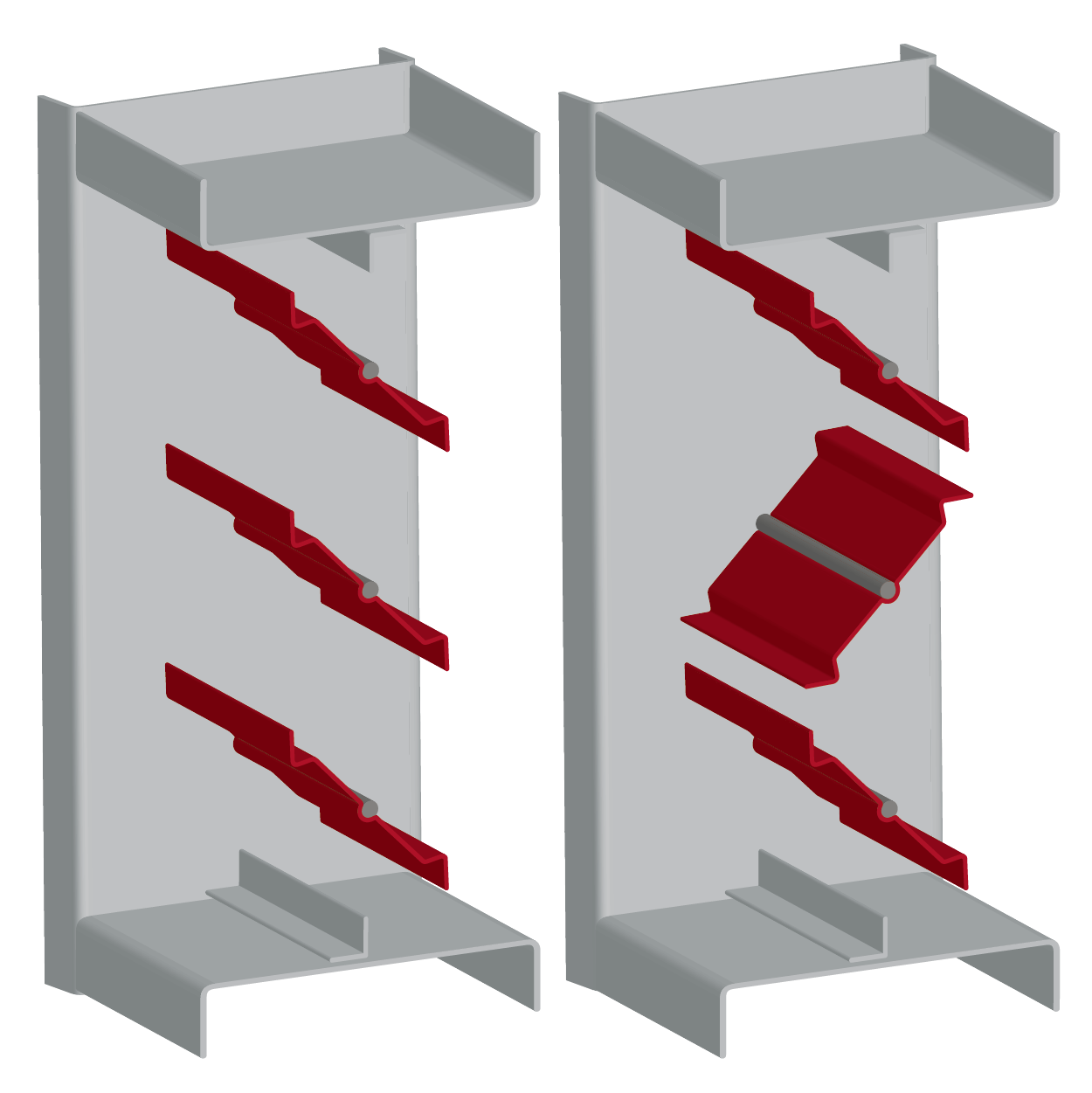

421

10" Deep Industrial Single Thickness Blade Control Damper

421

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

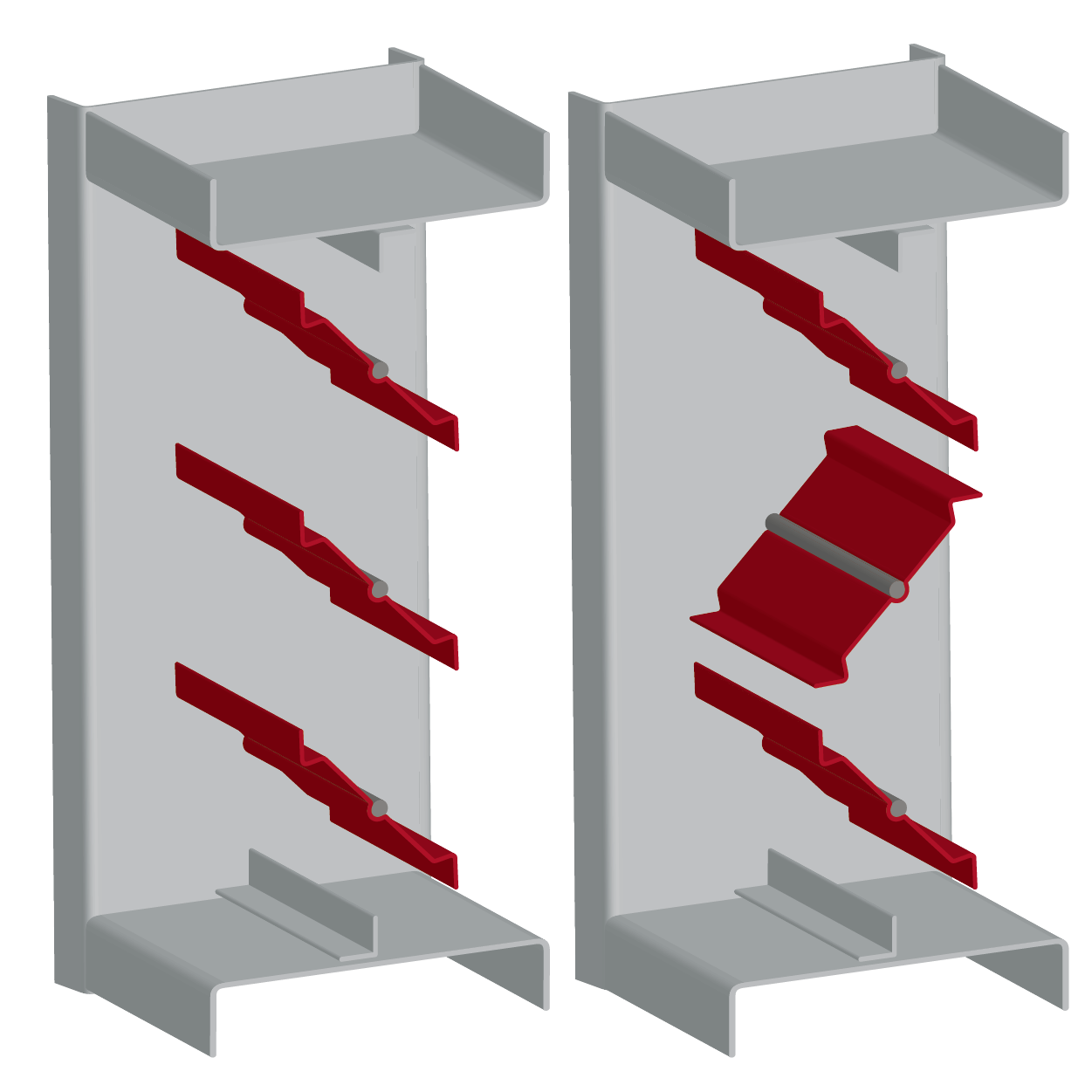

422

10" Deep Industrial Single Thickness Blade Control Damper

422

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

423

10" Deep Formed Steel Industrial Control Damper

423

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

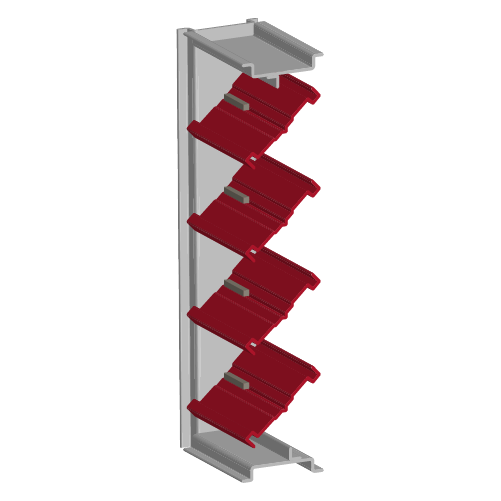

495

5.5" Deep Single Thickness Blade Control Damper (Parallel)

495

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

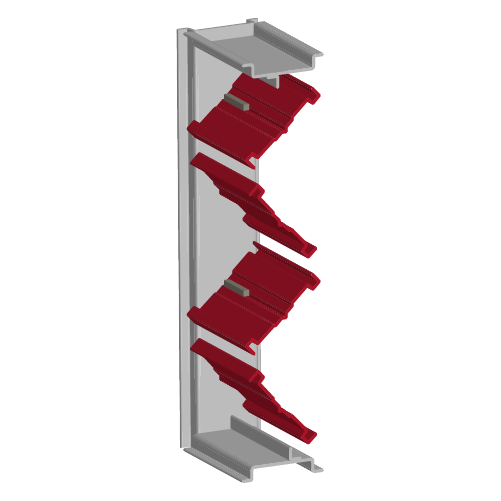

496

5.5" Deep Single Thickness Blade Control Damper (Opposed)

496

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

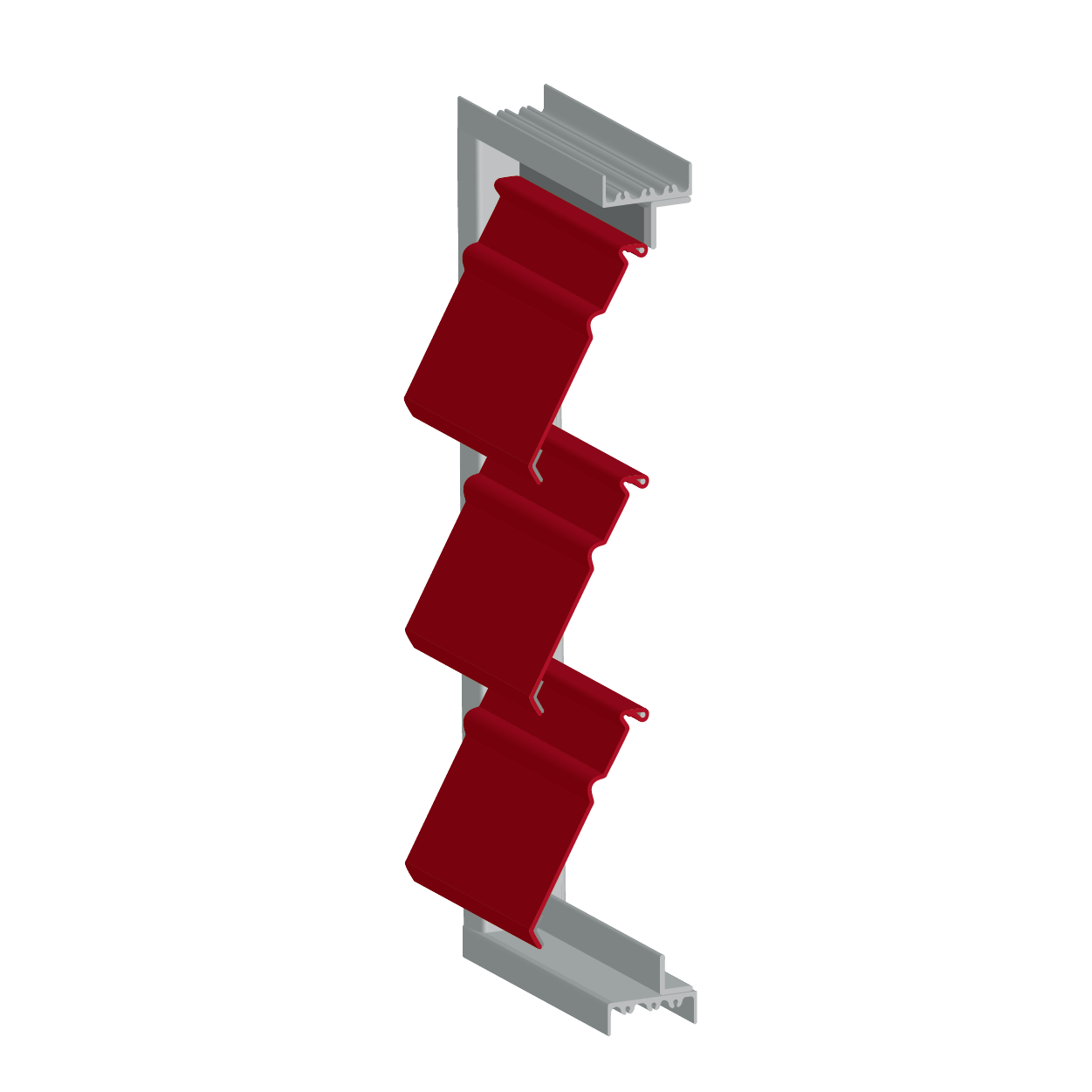

500-B

2" Deep Light Duty Aluminum Pressure Relief Damper

500B

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .075 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

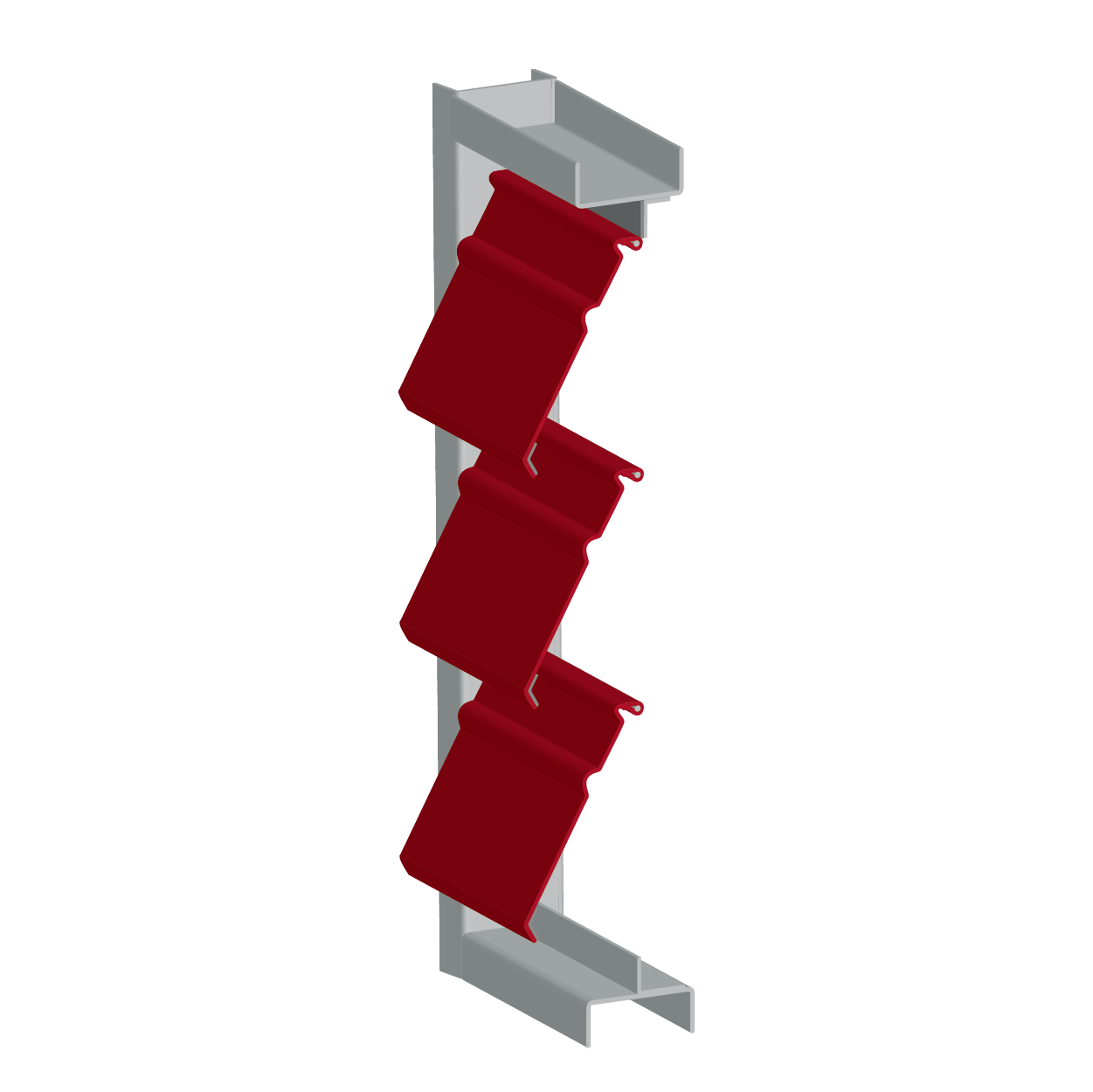

503

2" Deep Light Duty Stainless Steel Backdraft Damper

503

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .25 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .25 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

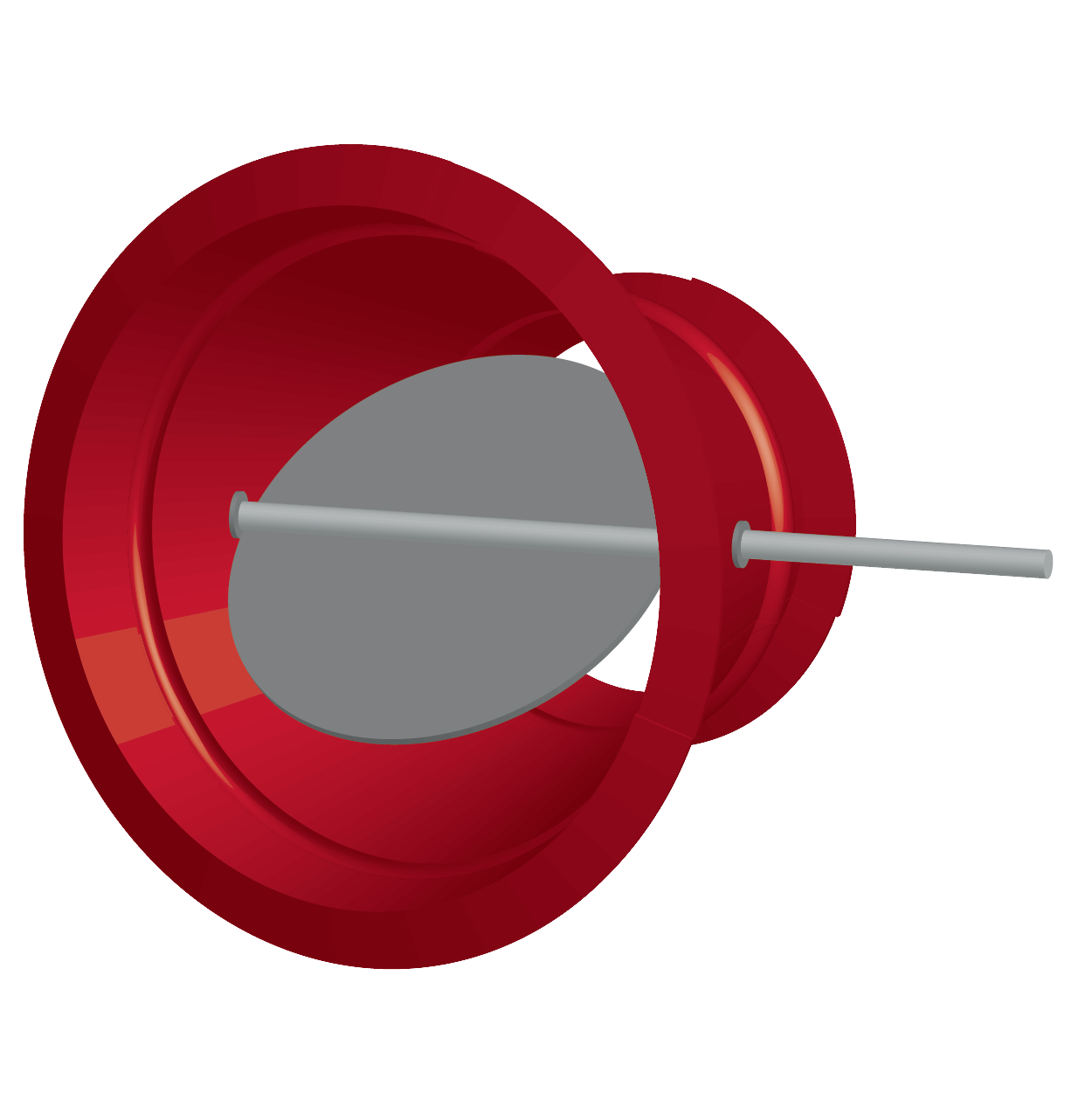

580-BD

10" Deep Round Industrial Backdraft Damper

580BD

Maximum Velocity (FPM): 6000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 6000 fpm (FPM)
Temperature Rating (°F): 200 °F

580-R

Industrial Single Blade Round Control Damper

580R

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 10000 fpm (FPM)
Temperature Rating (°F): 250 °F

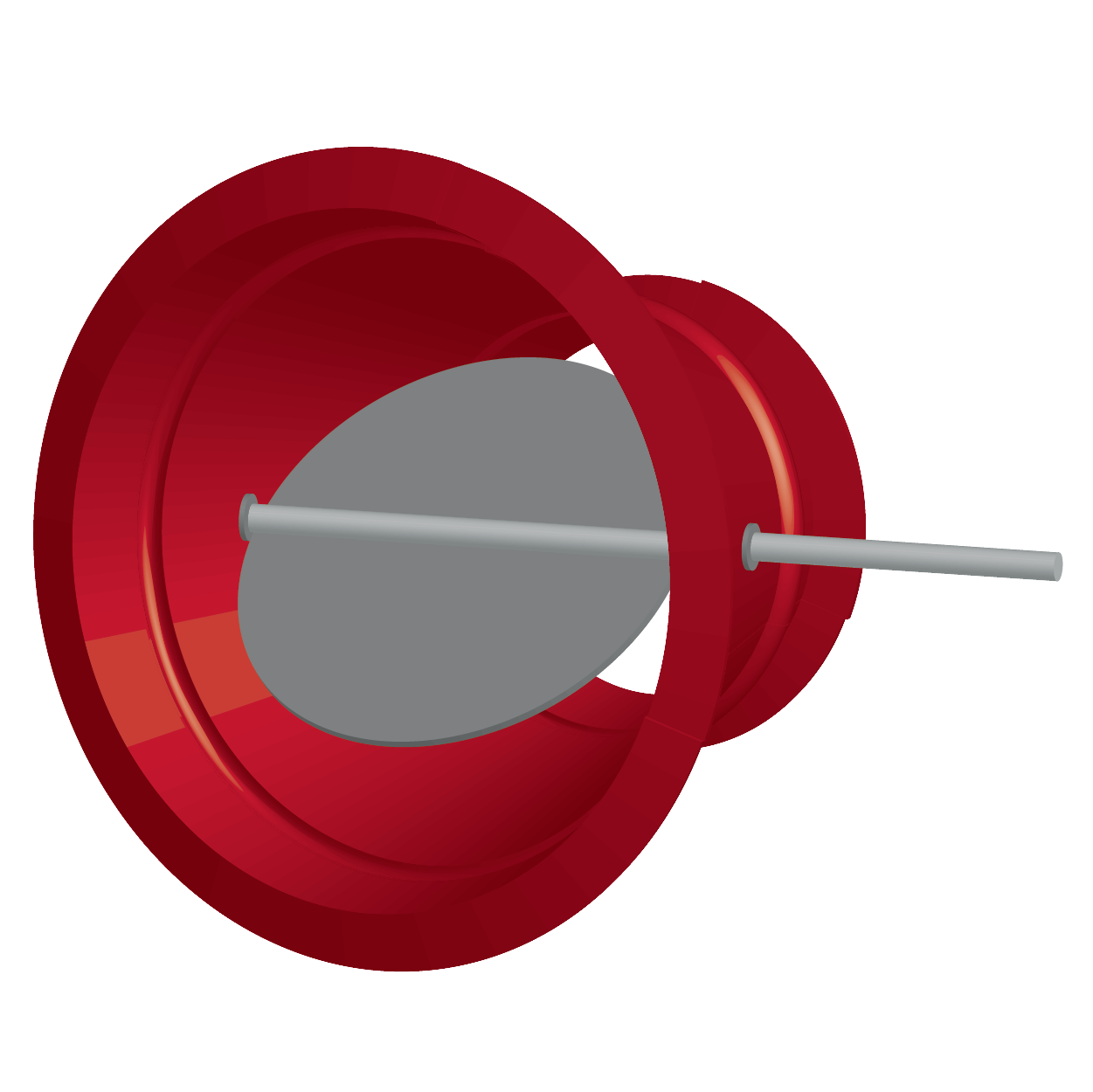

581-R

Industrial Heavy Duty Round Control Damper

581R

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 16 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 10000 fpm (FPM)
Temperature Rating (°F): 250 °F

655

4" Deep Extruded Aluminum Backdraft Damper

655

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .14 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 190 °F

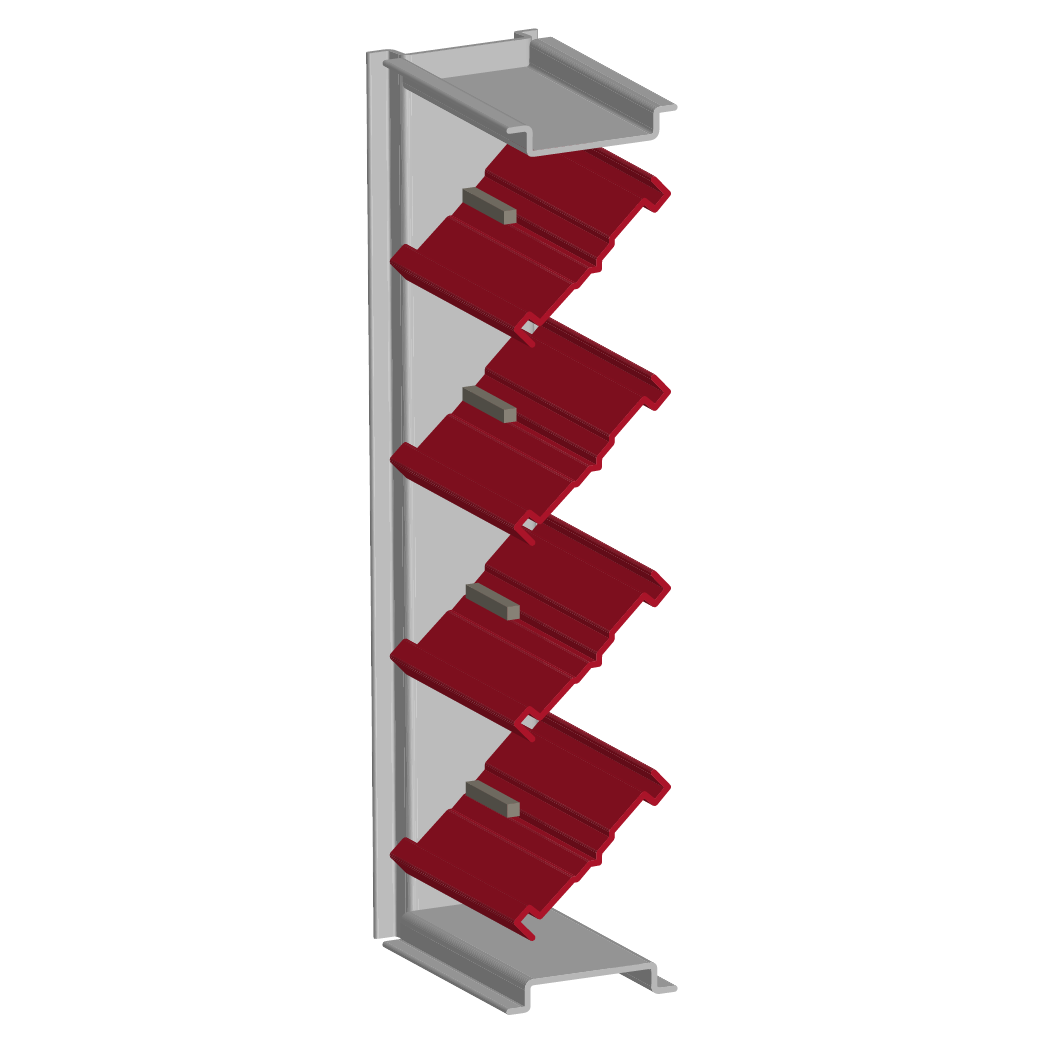

1660

5.5" Deep Single Thickness Blade Balancing Damper

1660

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

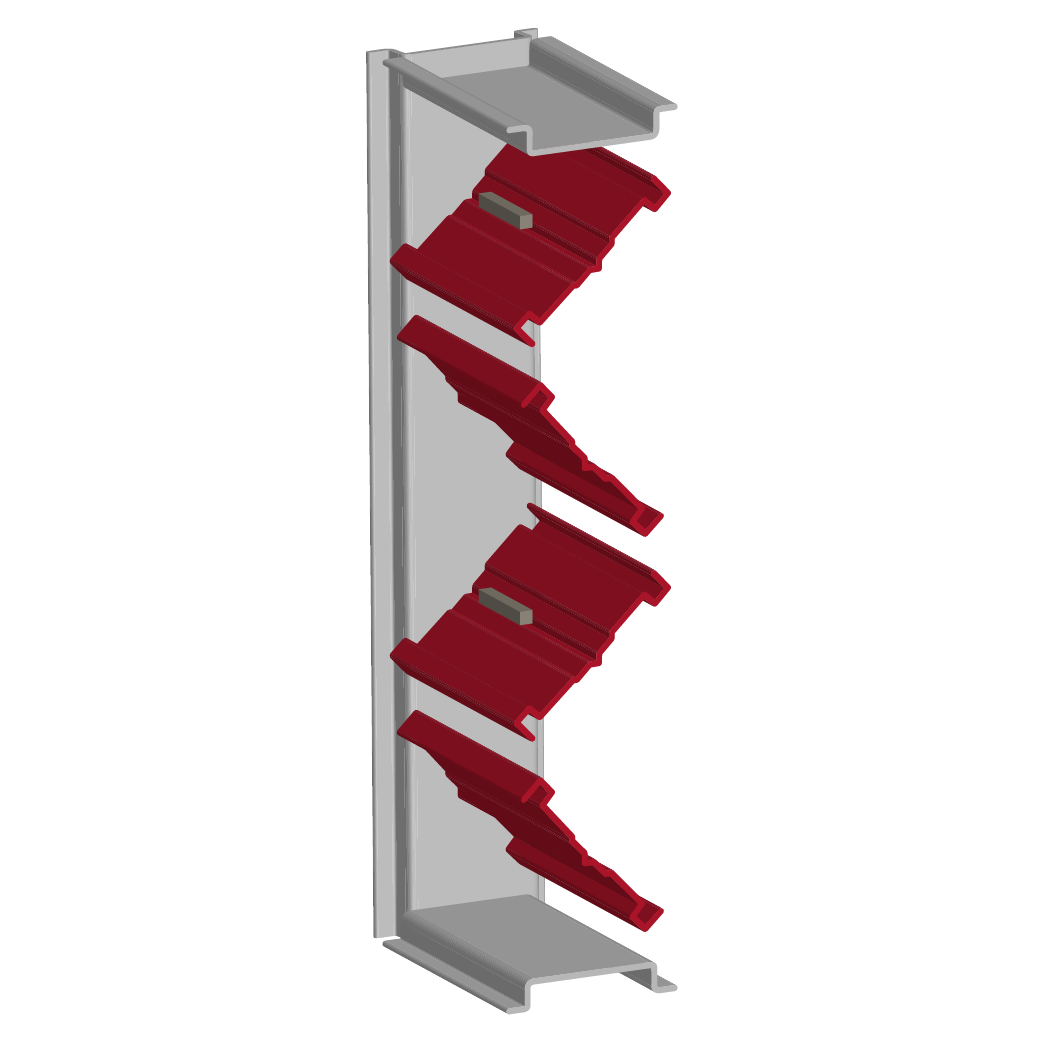

1661

5.5" Deep Single Thickness Blade Balancing Damper

1661

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

1770

4" Deep Single Thickness Blade Steel Control Damper

1770

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

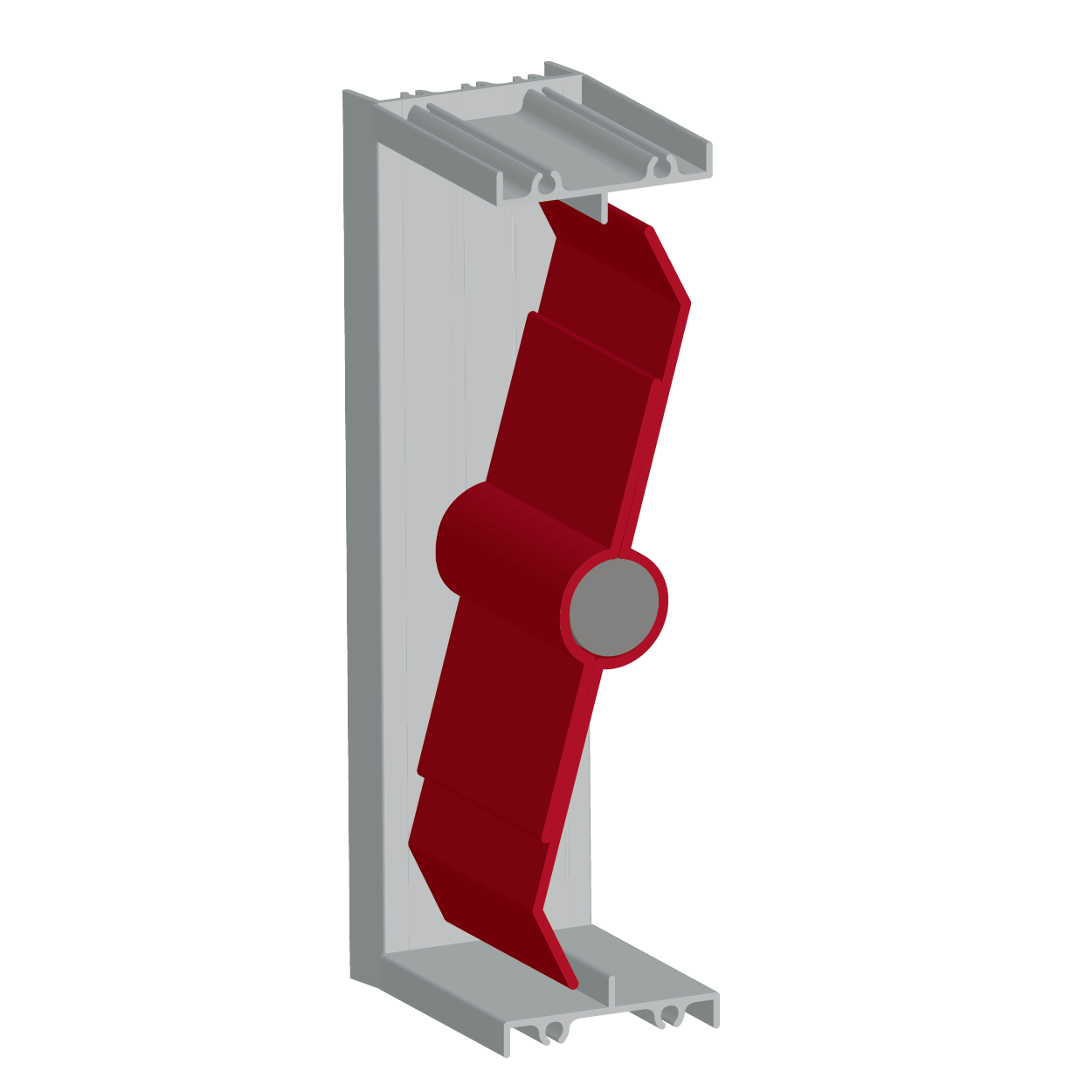

SB-28

2" Deep Single Blade Aluminum Damper

SB28

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum
Blade Type: Single Thickness Blade
Blade Action: Single
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

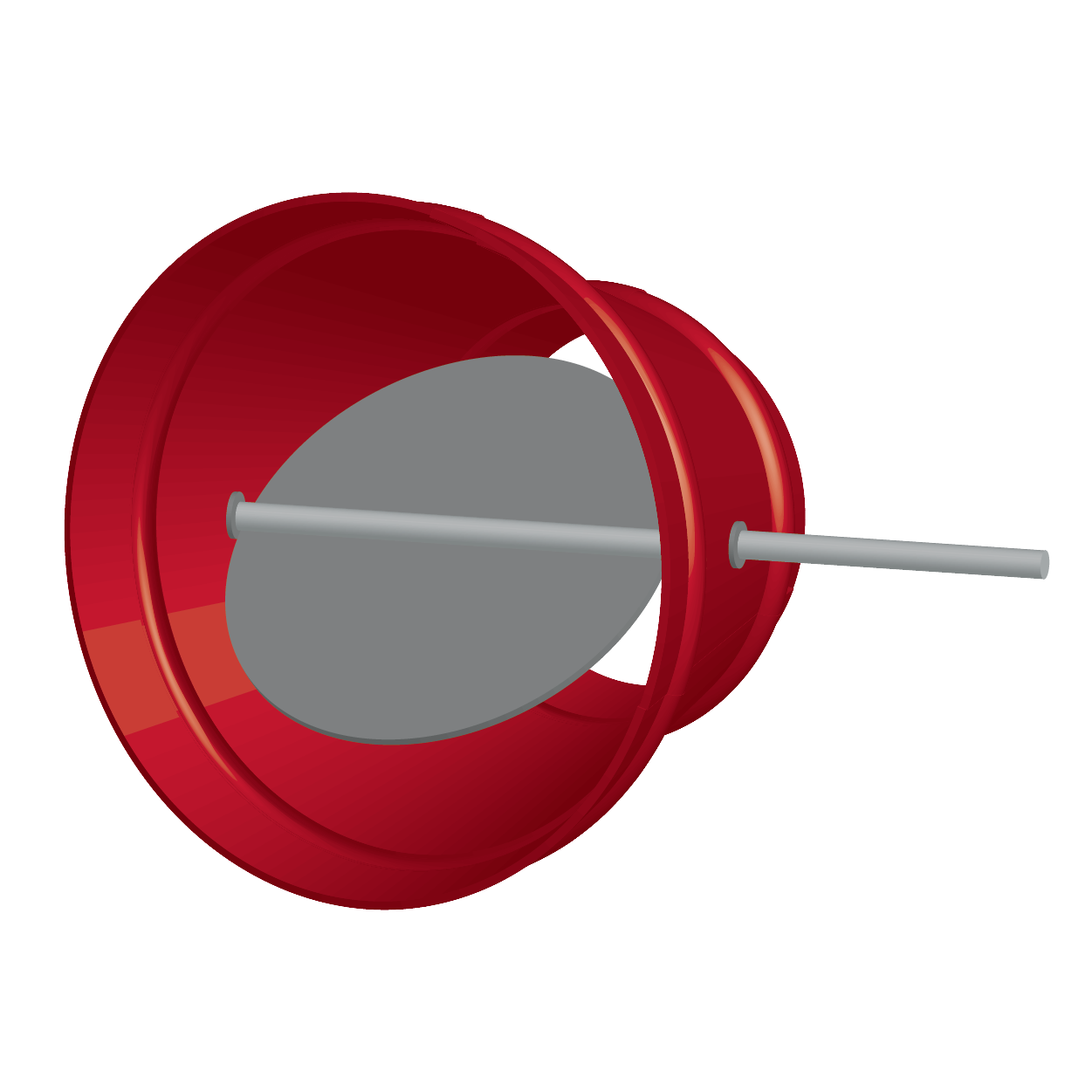

250-SRD

Round Single Blade Control Damper with Seals

250SRD

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .013 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .013 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

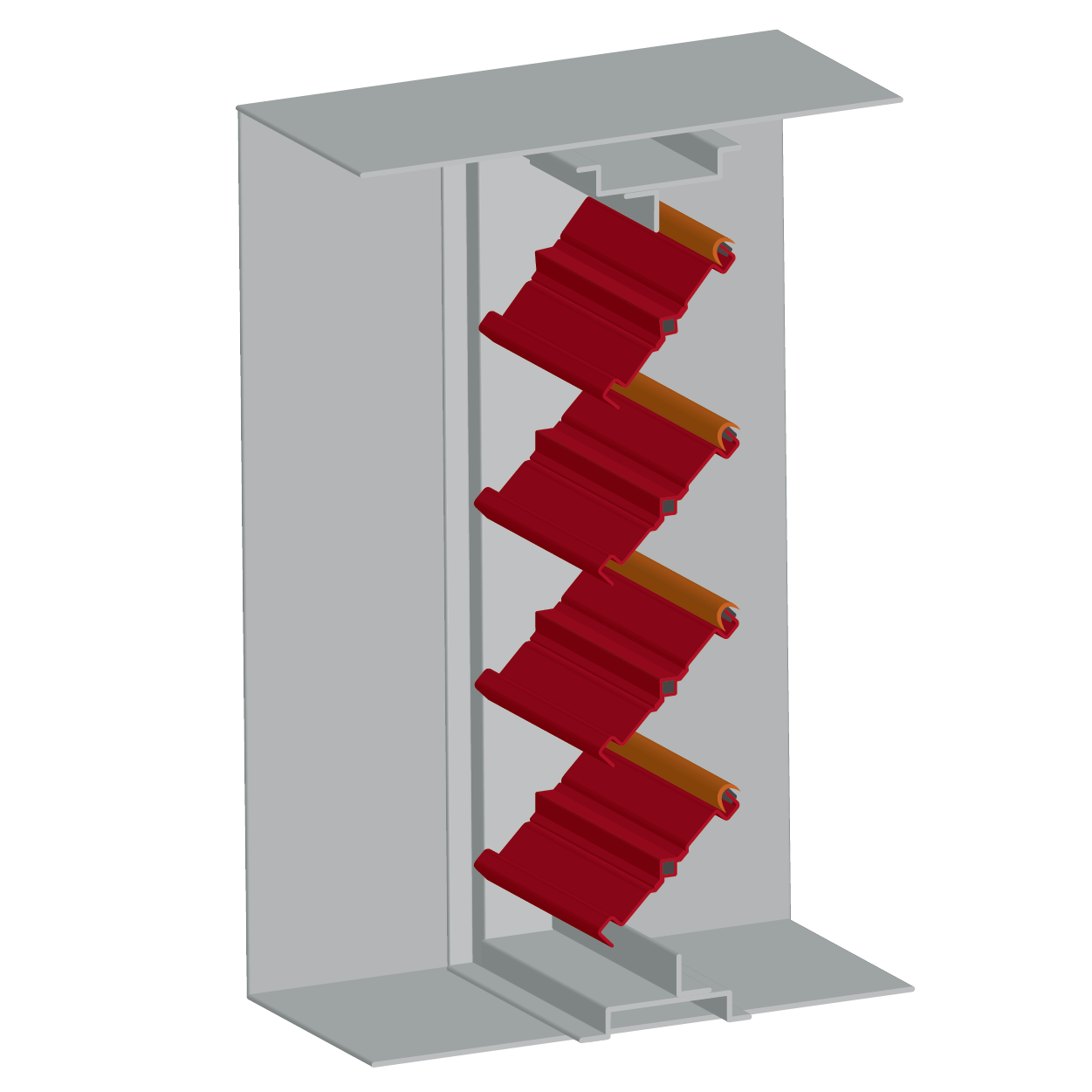

A2 EP Series

Class II Single Thickness Blade Smoke Damper (EP Series)

A2H25034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

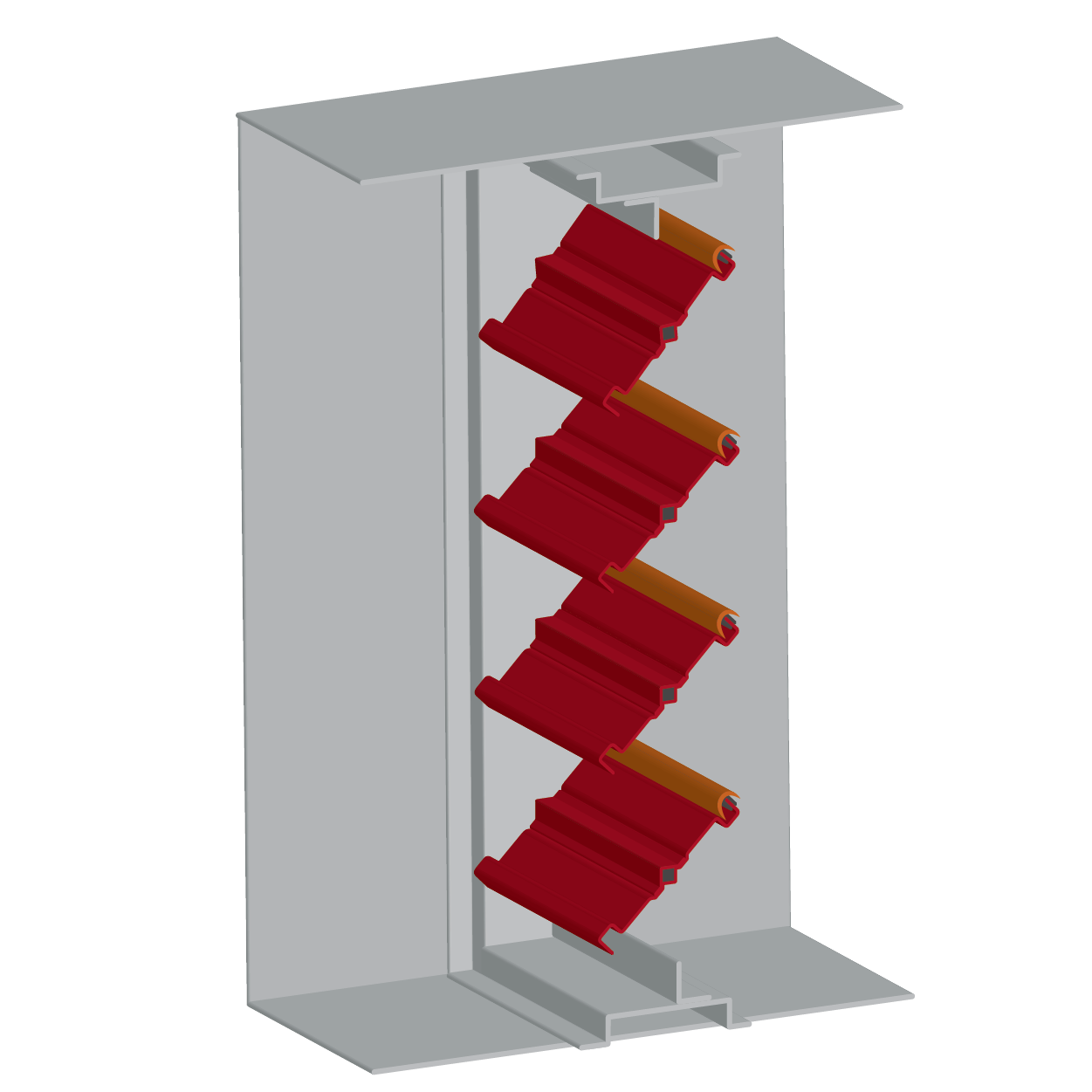

A2(SS)

Class II Single Thickness Blade Stainless Steel Smoke Damper

A2(SS)H250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

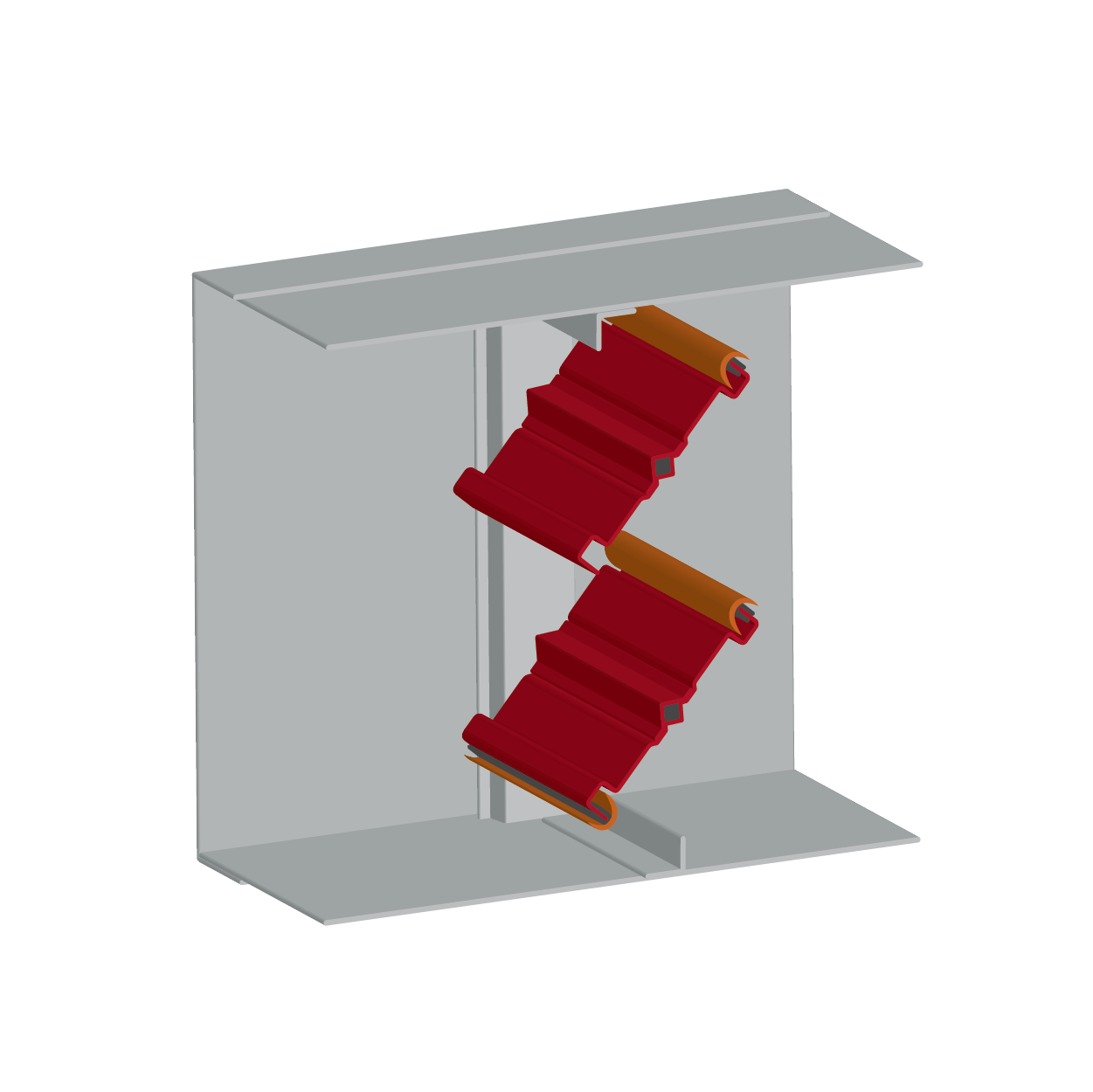

AR2

Class II, 1.5 Hour Single Thickness Blade Mini Combination Fire-Smoke Damper

AR2H250, AR2H350, AR2V250, AR2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

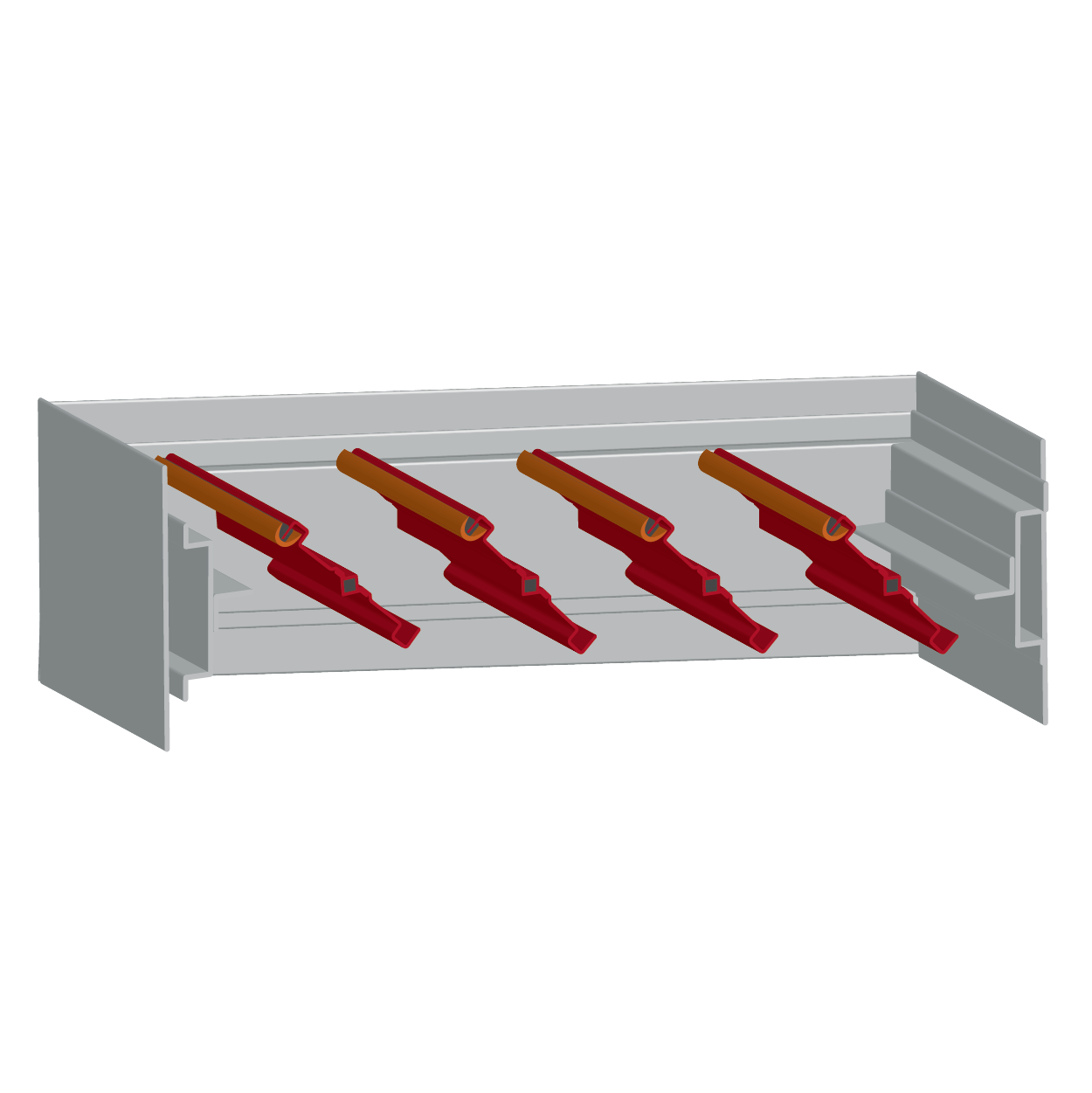

AS2C

Class II 1.5 Hour Tunnel-Type Single Thickness Blade Combination Fire-Smoke Damper

AS2C250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AS2C DAN Variant

Class II 1.5 Hour Tunnel-Type Single Thickness Blade Combination Fire-Smoke Damper

AS2C2G250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

MS17

1½ Hr. Rated Vertical Mount Non-Motorized Fire Damper

MS17V, MS17CV

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Fire Resistance Rating (hrs): 1.5 hrs.

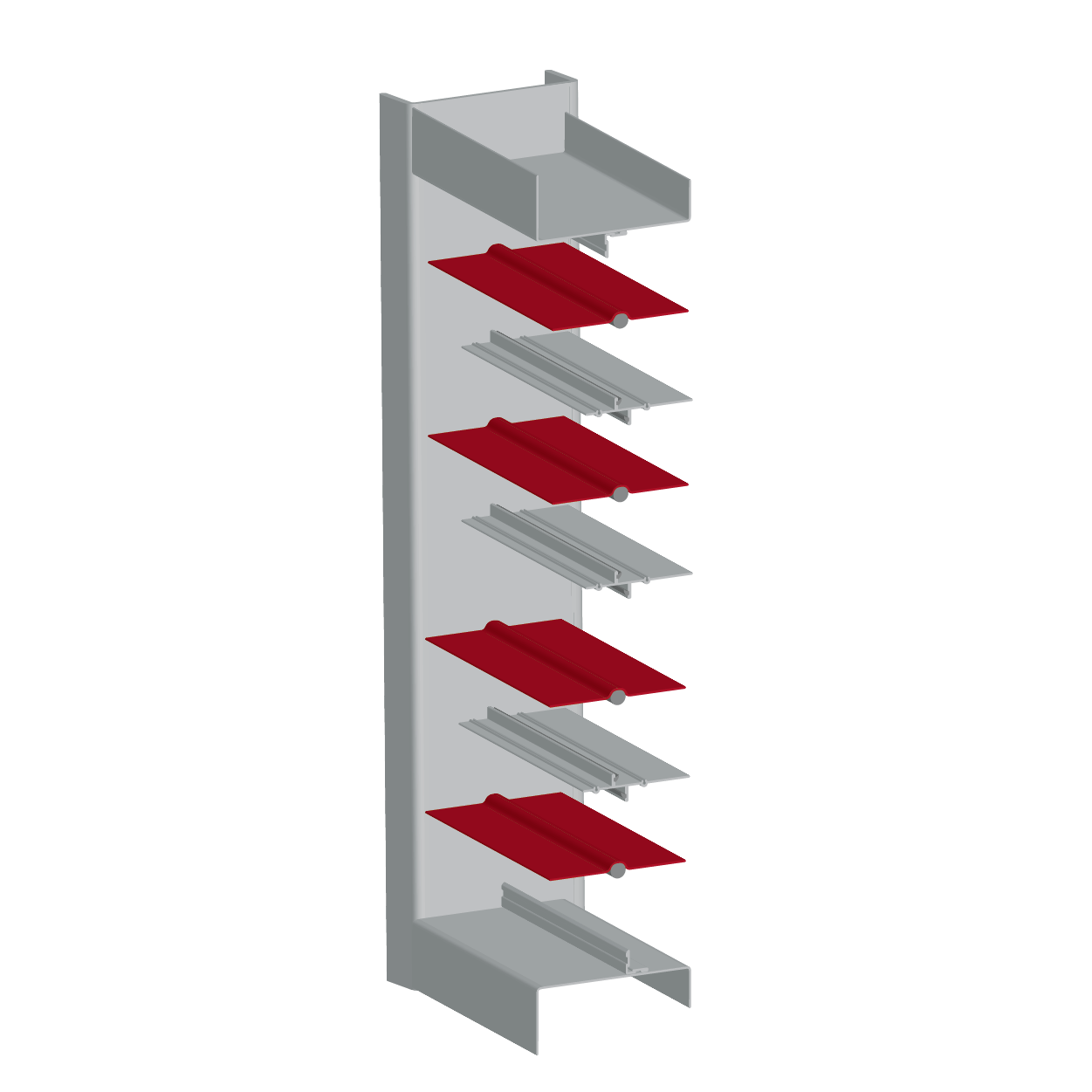

356-12

12" Deep Triple Deck Multi-Zone Galvanized Steel Damper

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -20 °F to 140 °F

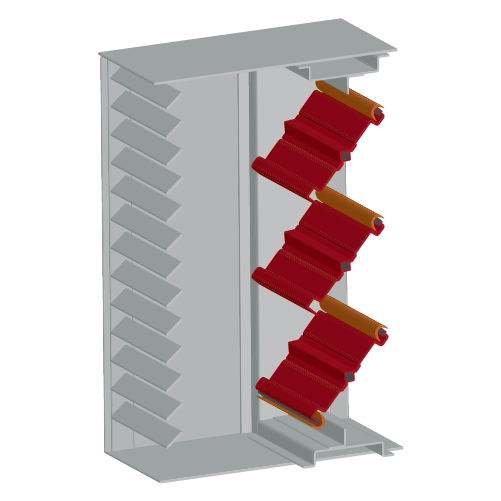

AS1GF ESB Series

Class I, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (ESB Series)

AS1HD250, AS1HD350, AS1VF250, AS1VF350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1GF SSB Series

Class I, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (SSB Series)

AS1HE250, AS1HE350, AS1VG250, AS1VG350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS1

Class I 1.5 Hour Single Thickness Blade Combination Fire-Smoke Damper

AS1H250, AS1H350, AS1V250, AS1V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2C GCF Series

Class II 1.5 Hour Tunnel-Type Combination Fire-Smoke Damper (GCF Series)

AS2C2H250, AS2C2J250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

AS2C ECF Series

Class II 1.5 Hour Tunnel-Type Combination Fire-Smoke Damper (ECF Series)

AS2C2I250, AS2C2K250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

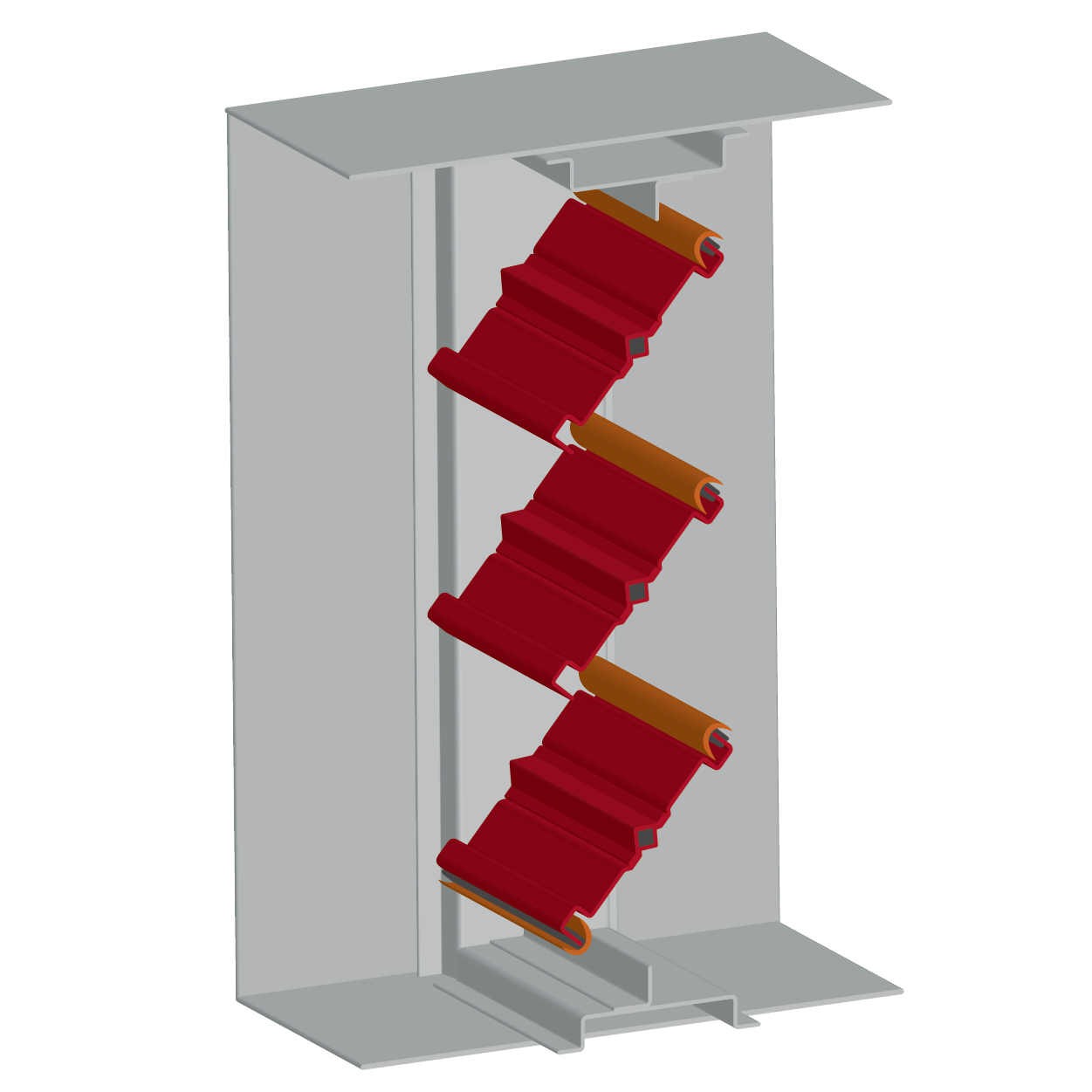

AS2

Class II 1.5 Hour Single Thickness Blade Combination Fire-Smoke Damper

AS2H250, AS2H350, AS2V250, AS2V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2GF ESB Series

Class II, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (ESB Series)

AS2HD250, AS2HD350, AS2VF250, AS2VF350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AS2GF SSB Series

Class II, 1.5 Hour Front Access Grille Combination Fire-Smoke Damper (SSB Series)

AS2HE250, AS2HE350, AS2VG250, AS2VG350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

AT1

Class I, 3 Hour Single Thickness Blade Combination Fire-Smoke Damper

AT1H250, AT1H350, AT1V250, AT1V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

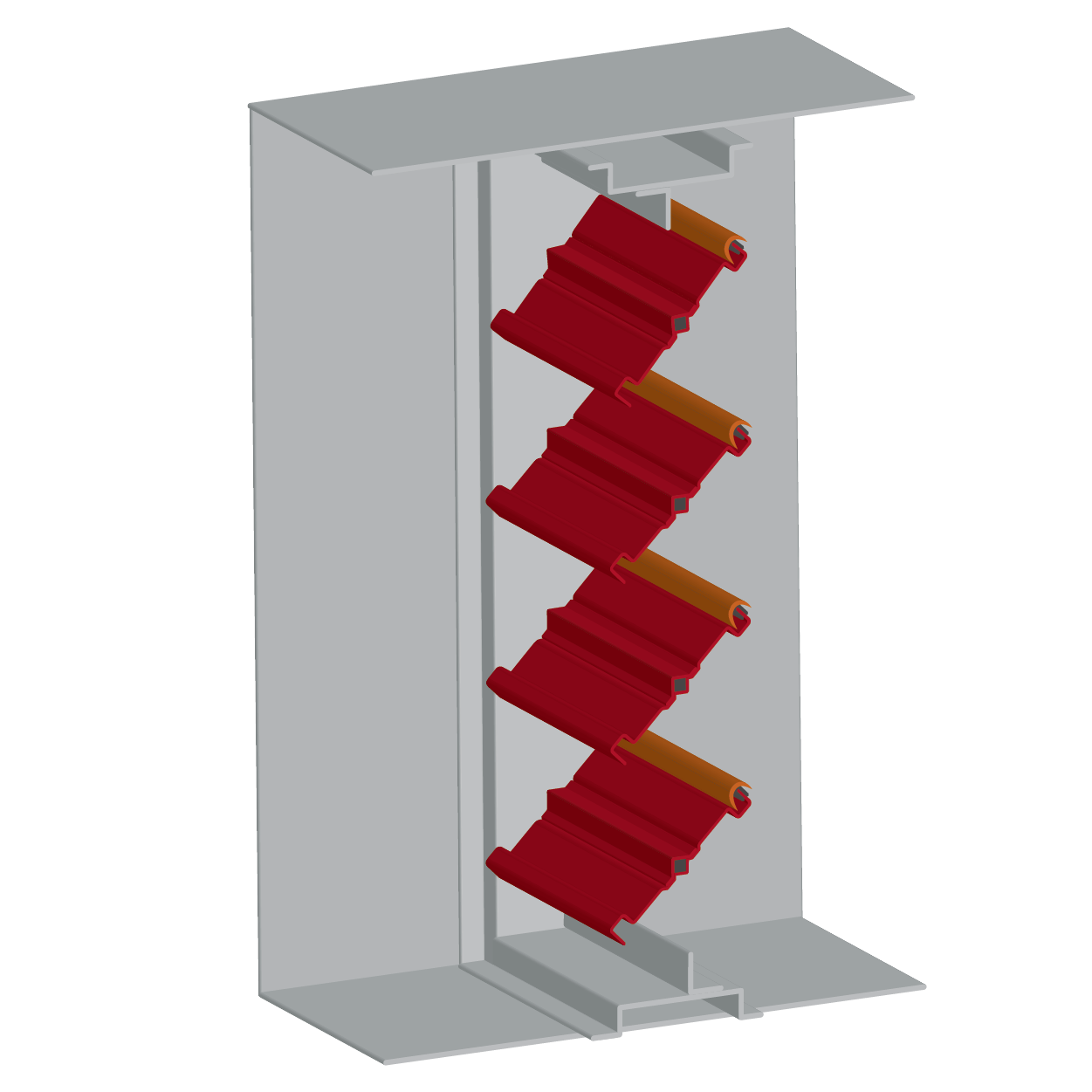

AT2

Class II, 3 Hour Single Thickness Blade Combination Fire-Smoke Damper

AT2H250, AT2H350, AT2V250, AT2V350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

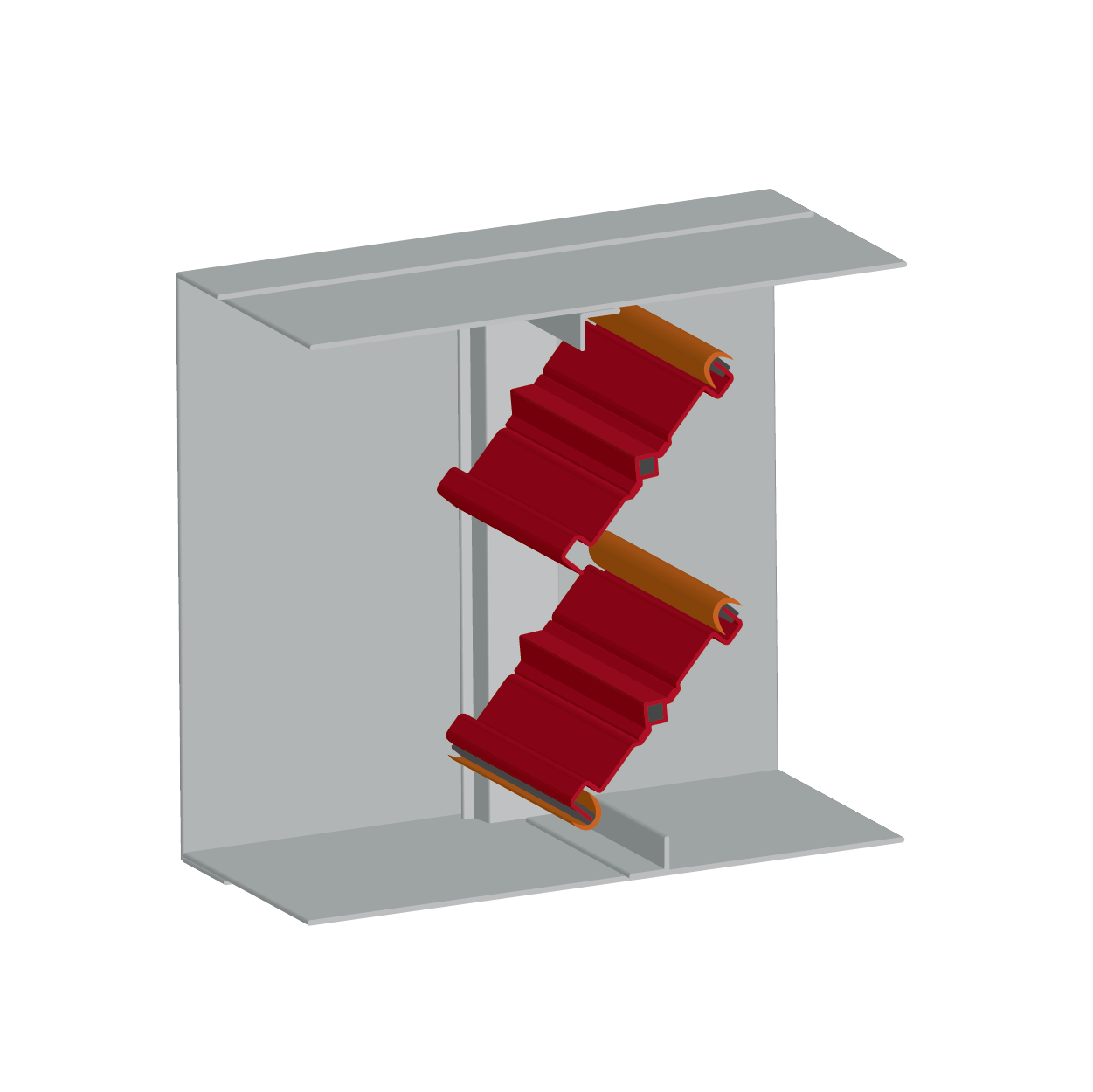

AR1

Class I, 1.5 Hour Single Thickness Blade Mini Combination Fire-Smoke Damper

AR1H250, AR1H350, AR1V250, AR1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

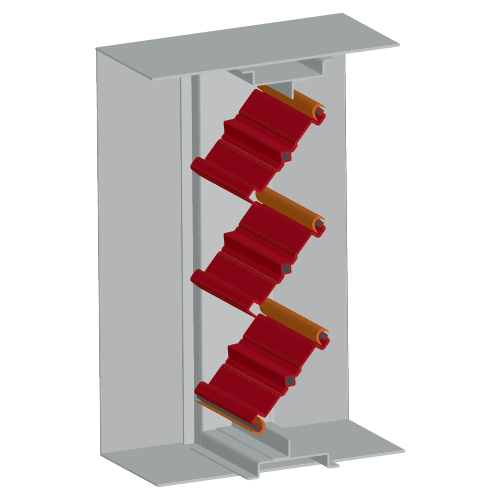

AS1(SS)

Class I 1.5 Hour Single Thickness Blade Stainless Steel Combination Fire-Smoke Damper

AS1(SS)H250, AS1(SS)V250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

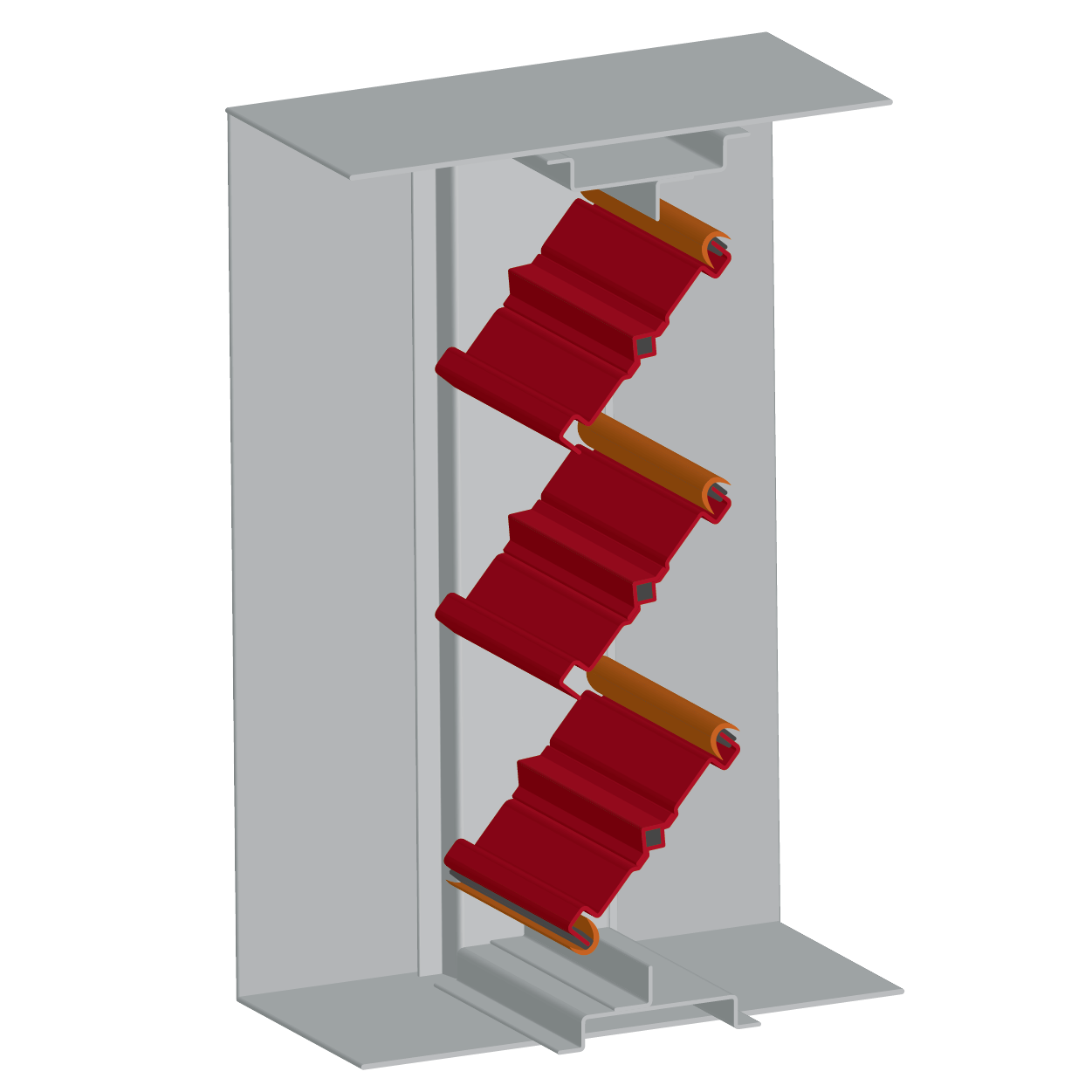

AS2(SS)

Class II 1.5 Hour Single Thickness Blade Stainless Steel Combination Fire-Smoke Damper

AS2(SS)H, AS2(SS)V

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

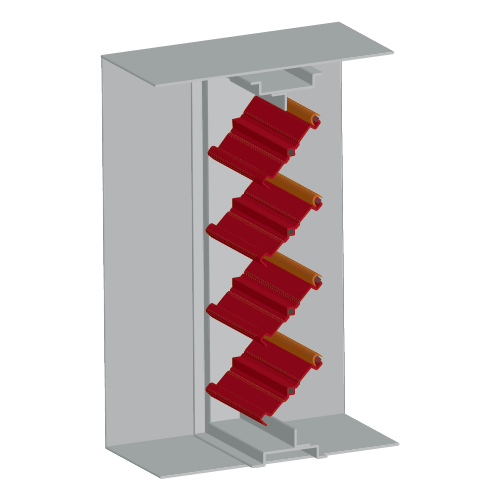

A1

Class I Single Thickness Blade Smoke Damper

A1H250, A1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

A1 EP Series

Class I Single Thickness Blade Smoke Damper (EP Series)

A1H25034, A1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

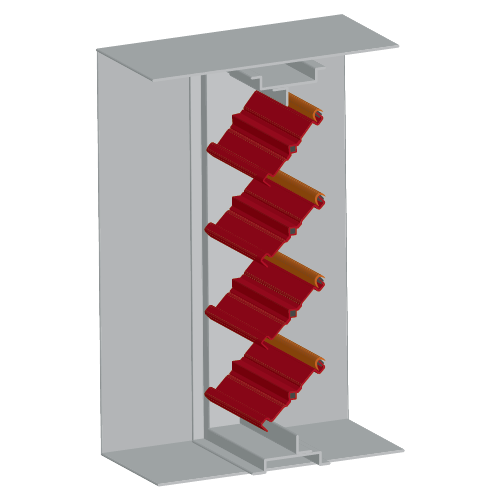

A1(SS)

Class I Single Thickness Blade Stainless Steel Smoke Damper

A1(SS)H250

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

A2

Class II Single Thickness Blade Smoke Damper

A2H250, A2H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

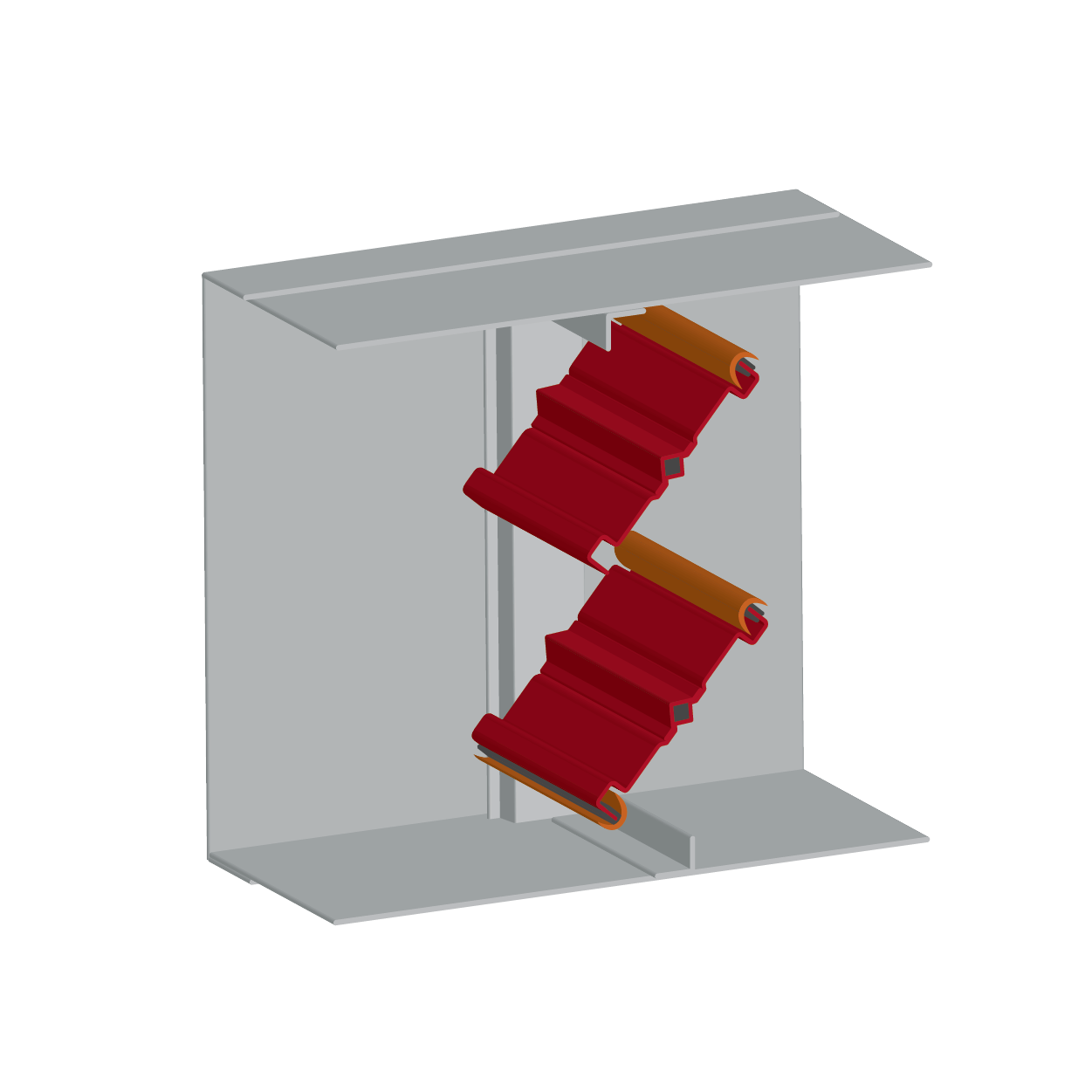

UR1

Class I Single Thickness Blade Mini Smoke Damper

UR1H250, UR1H350, UR1V250, UR1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

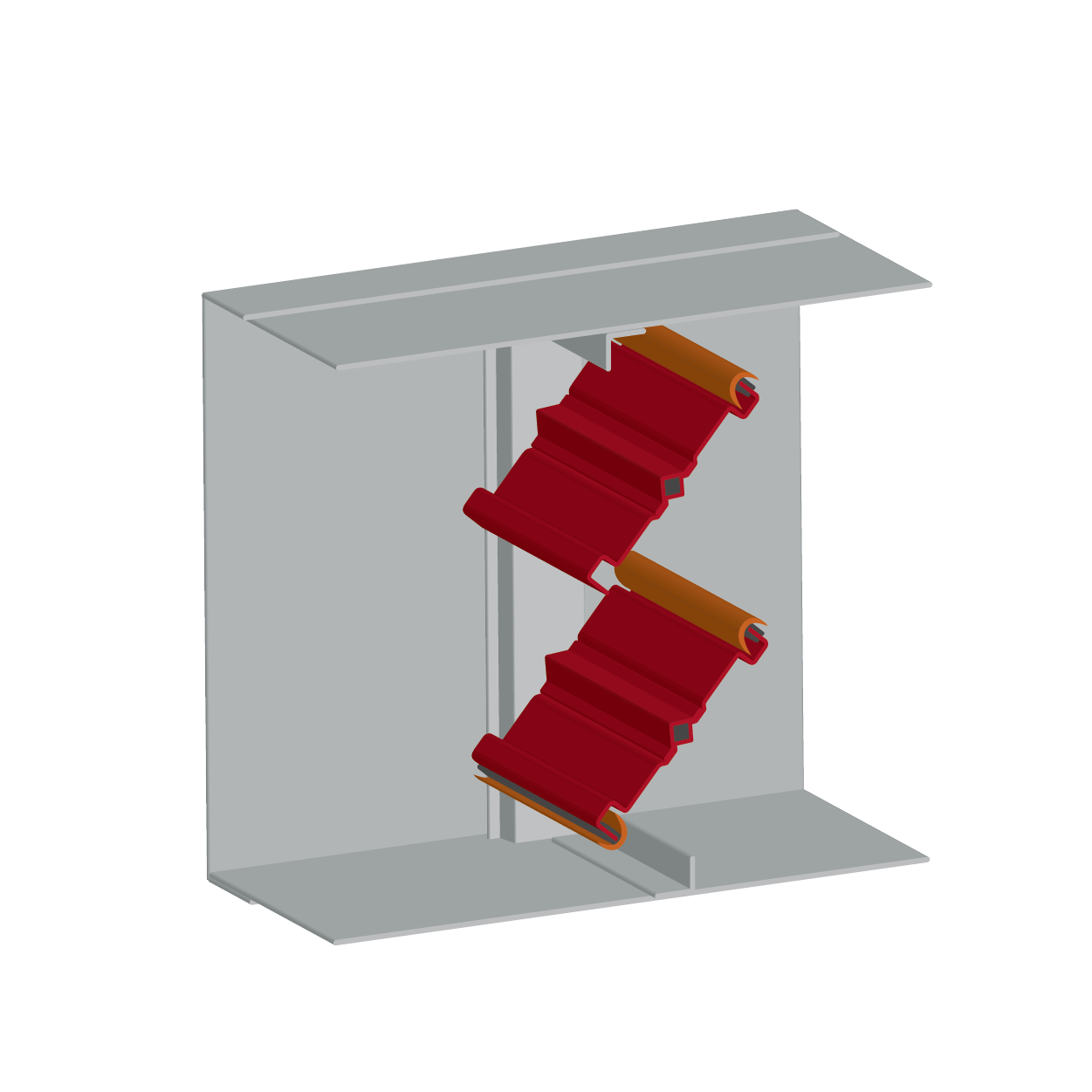

UR2

Class II Single Thickness Blade Mini Smoke Damper

UR2H250, UR2H350, UR2V250, UR2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

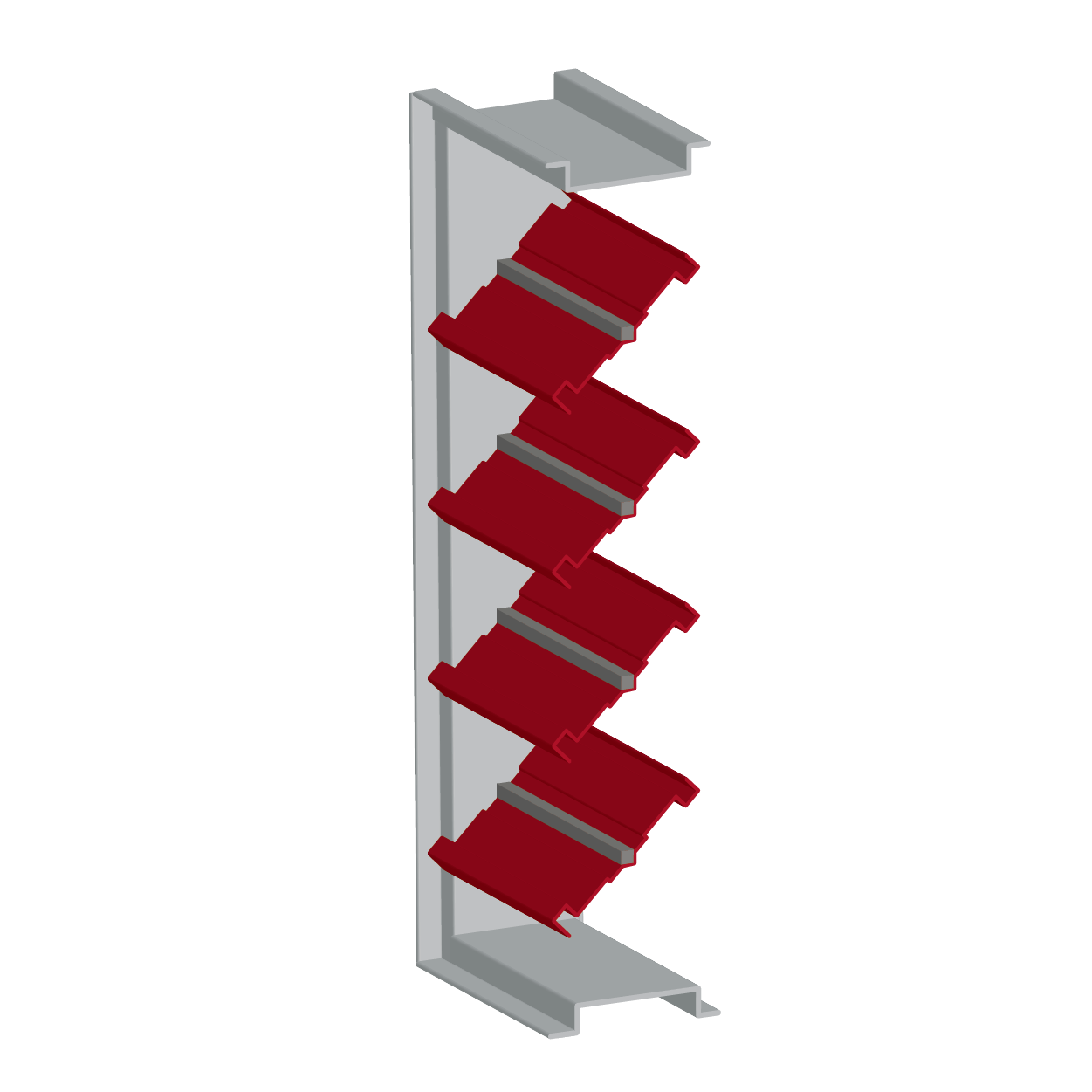

MD37

3 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD37H, MD37V, MD37CH, MD37CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

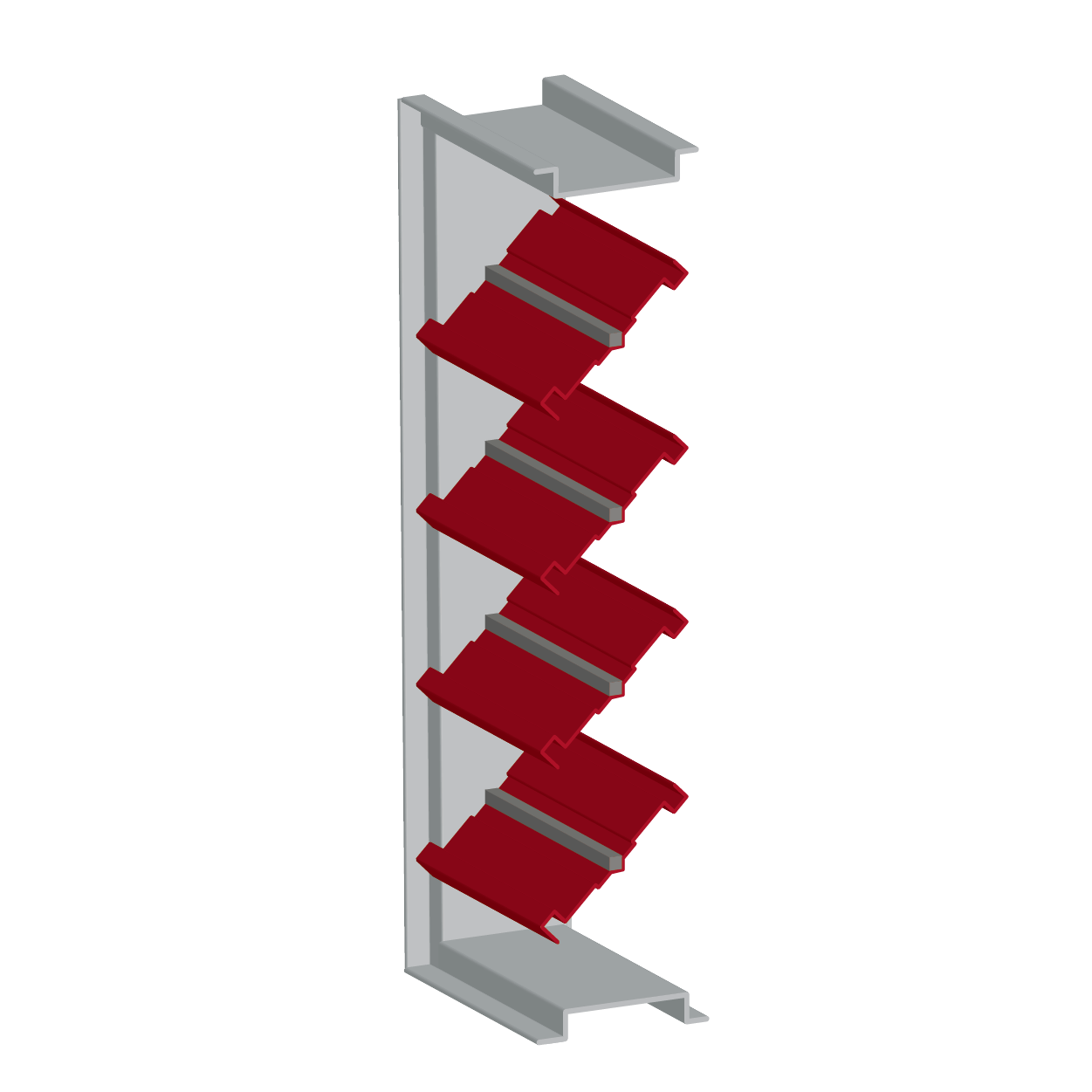

MD17(SS)

1.5 Hour Rated Non-Motorized Stainless Steel Dynamic Fire Damper

MD17(SS)H, MD17(SS)V, MD17(SS)CH, MD17(SS)CV

Maximum Velocity (FPM): 2000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

MD17(SS) HP Series

1.5 Hour Rated Non-Motorized Stainless Steel Dynamic Fire Damper (HP Series)

MD17(SS)H4, MD17(SS)V4, MD17(SS)CH4, MD17(SS)CV4

Maximum Velocity (FPM): 4000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

MD17

1.5 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD17H, MD17V, MD17CH, MD17CV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
