Blade Type - Arrow

Straight Blade (J-Blade)

Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products

377

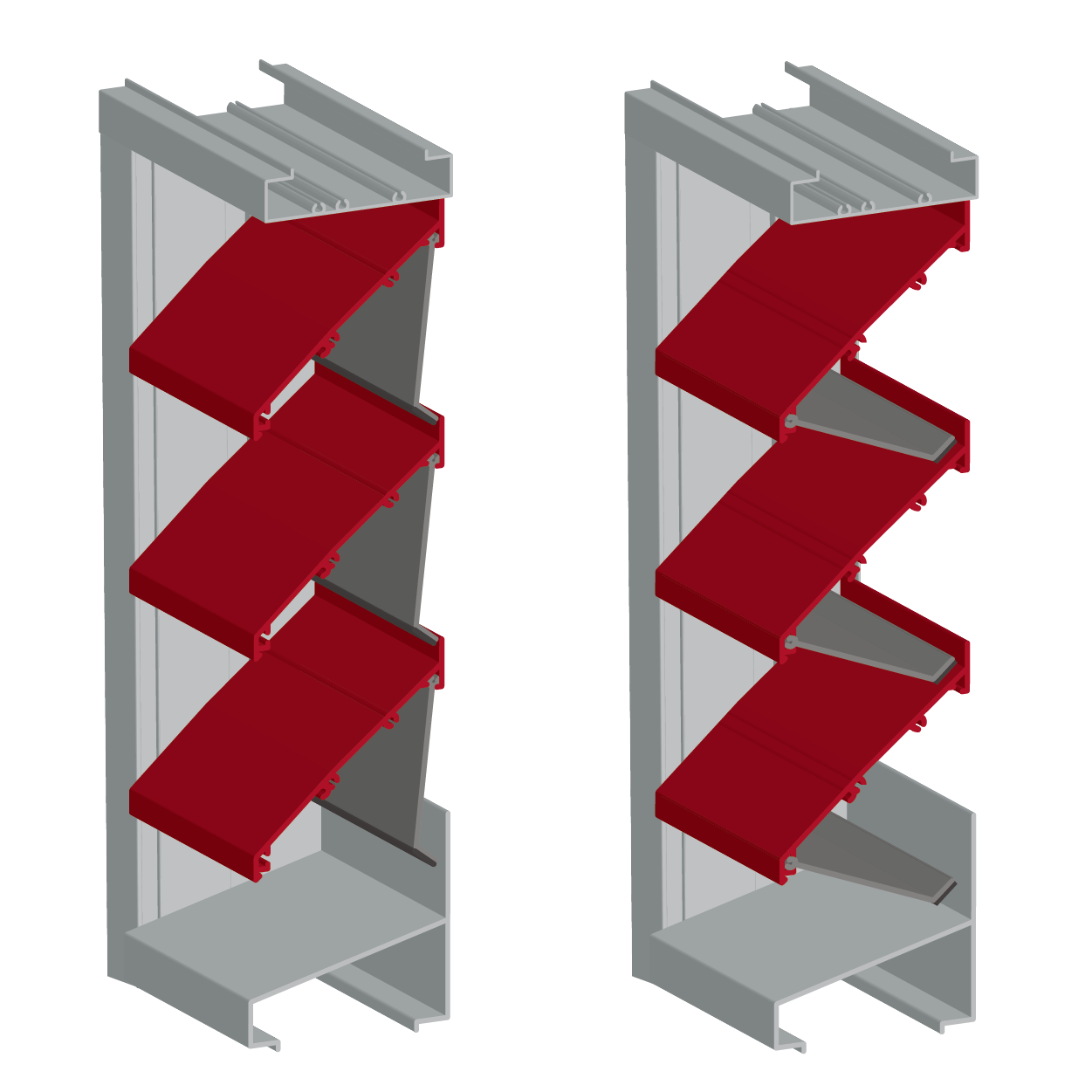

4" Deep Automatic Combination Louver - Intake or Discharge

377

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

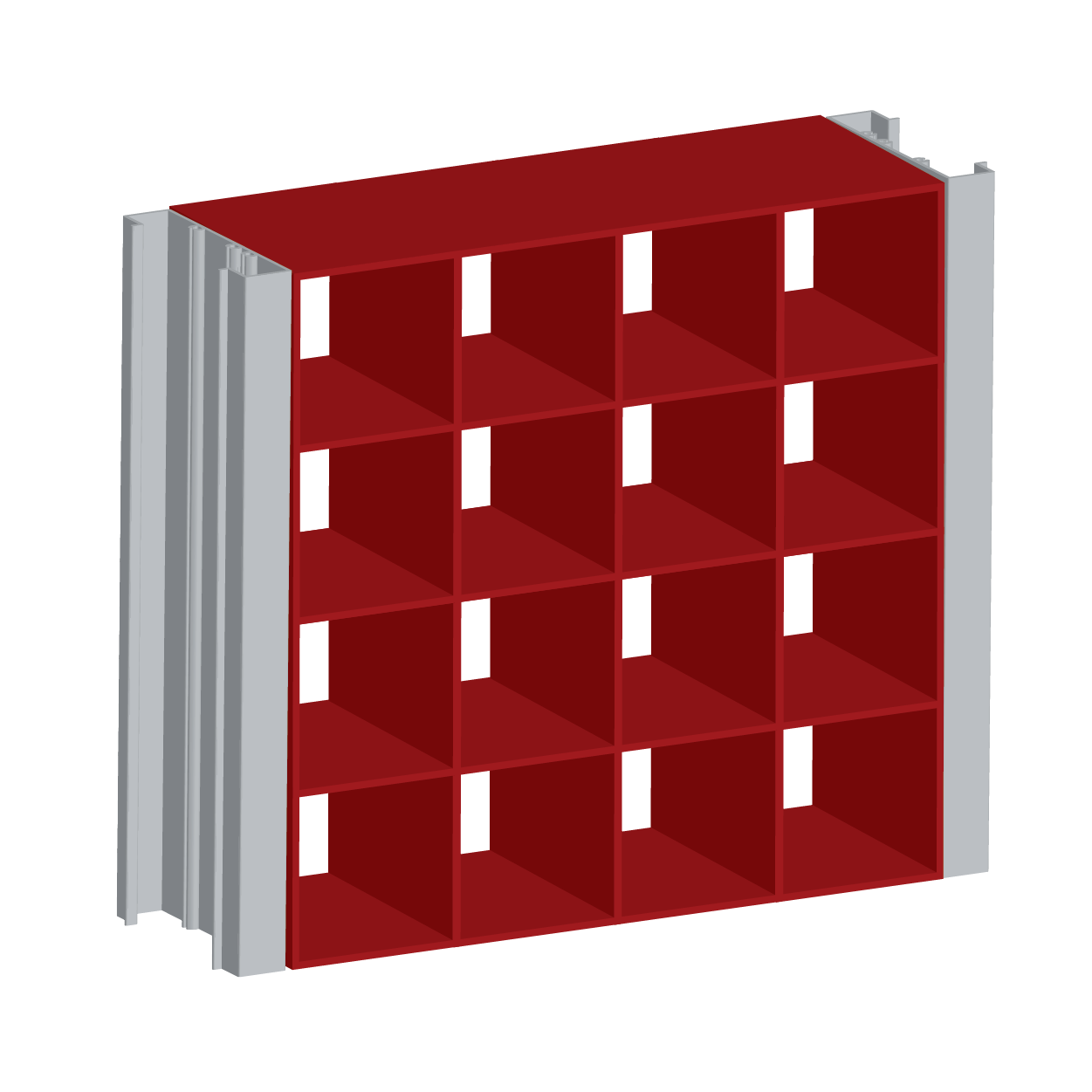

AG-1

Modular Extruded Aluminum Grille Screen

AG1

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

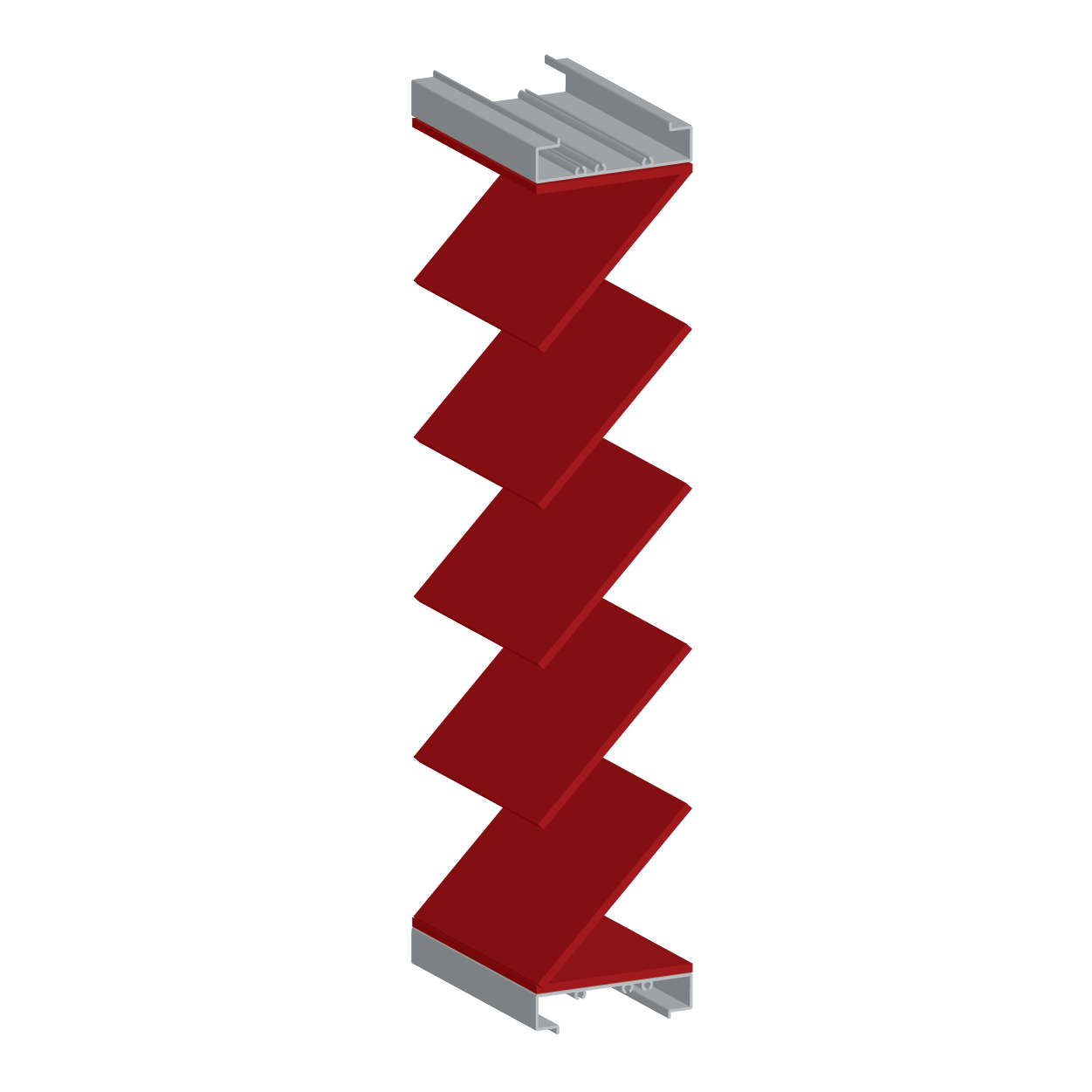

AG-2

Horizontal Angular Blade Extruded Aluminum Grille Screen

AG2

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

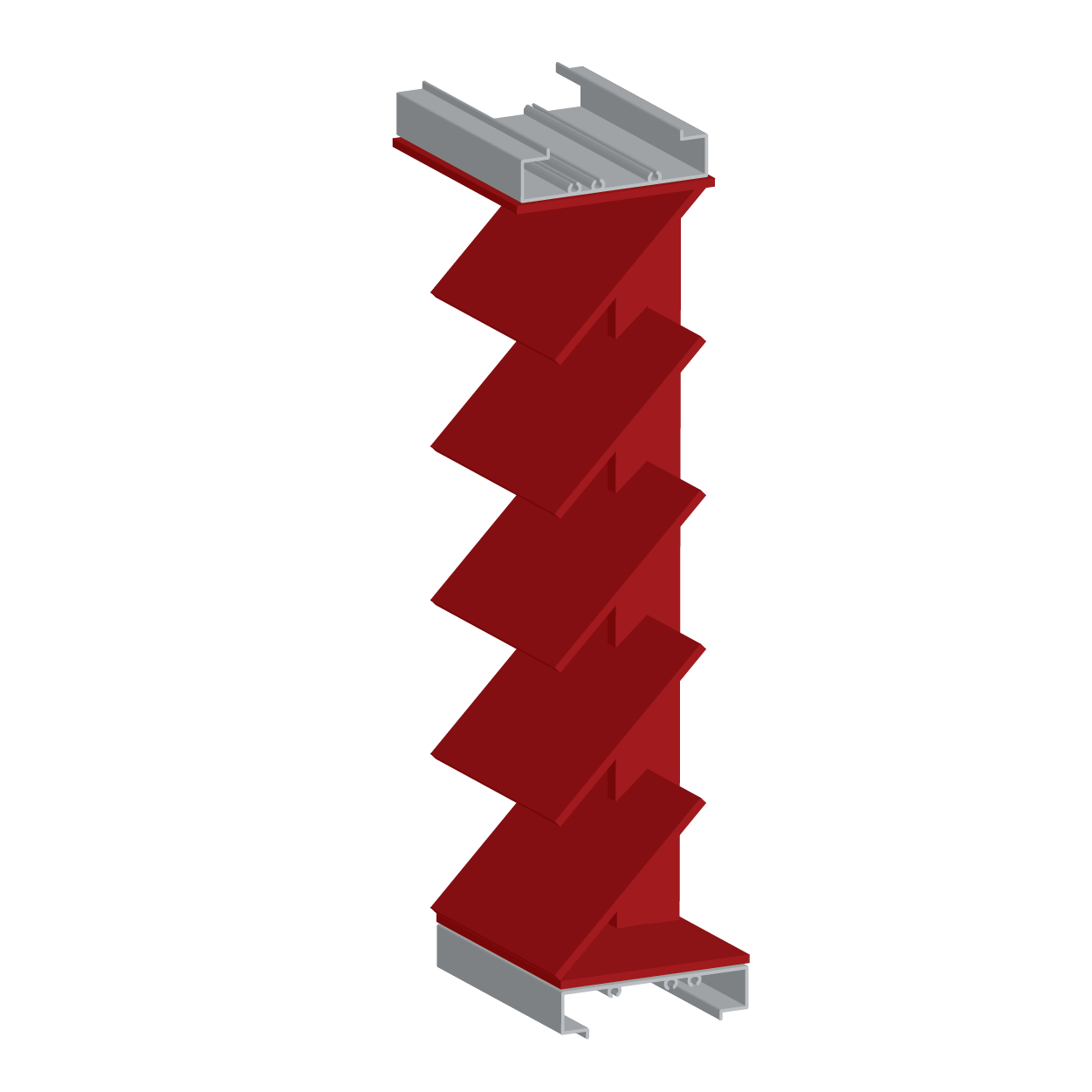

AG-2CL

Horizontal Angular Blade Extruded Aluminum Continuous Line Grille Screen

AG2CL

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

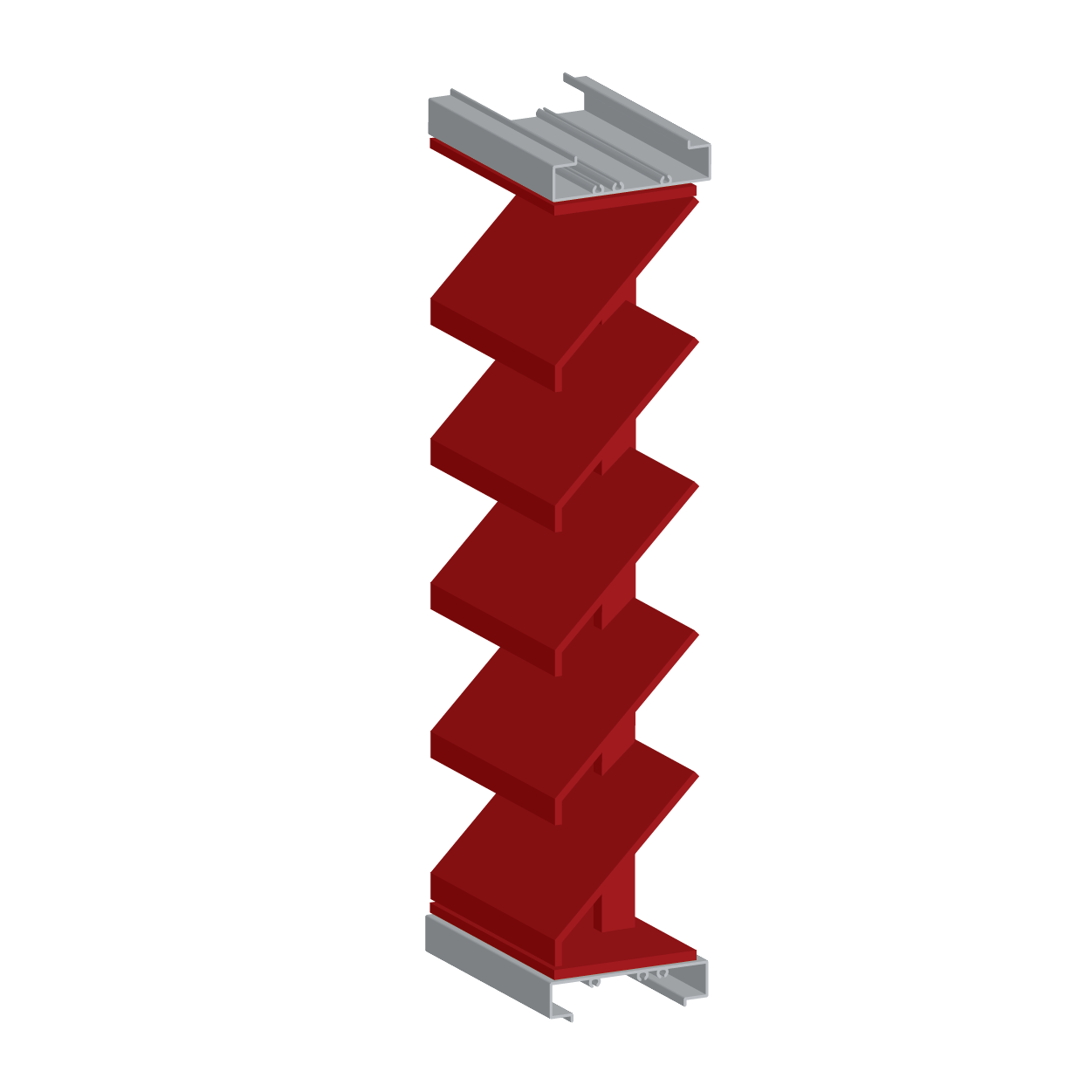

AG-3CL

Solar Angular Continuous Line Extruded Aluminum Grille Screen

AG3CL

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

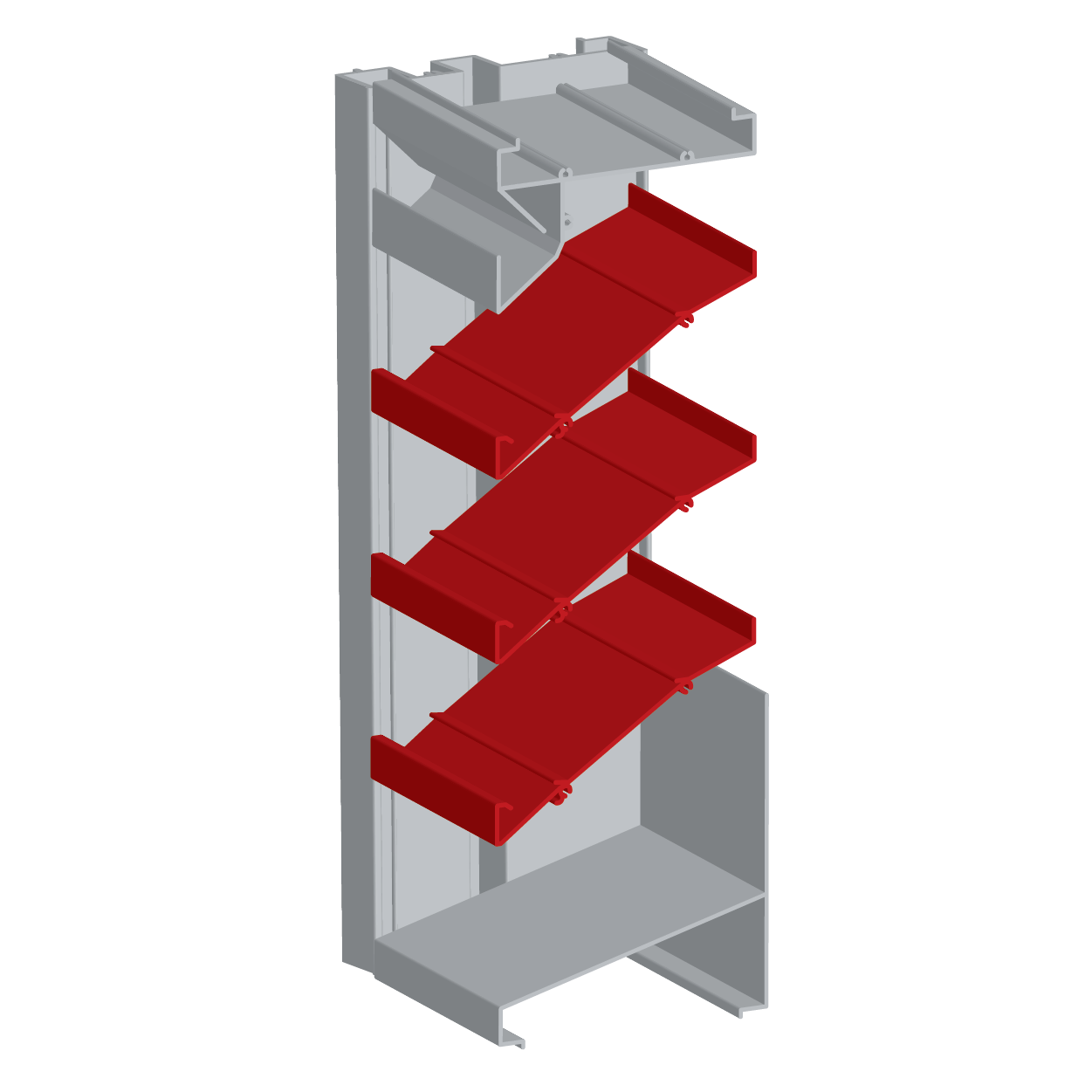

EA-6DHP

6" Deep Extruded Aluminum Drainable Blade High Performance Louver

EA6DHP

Free Area %: 63%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)(FPM)

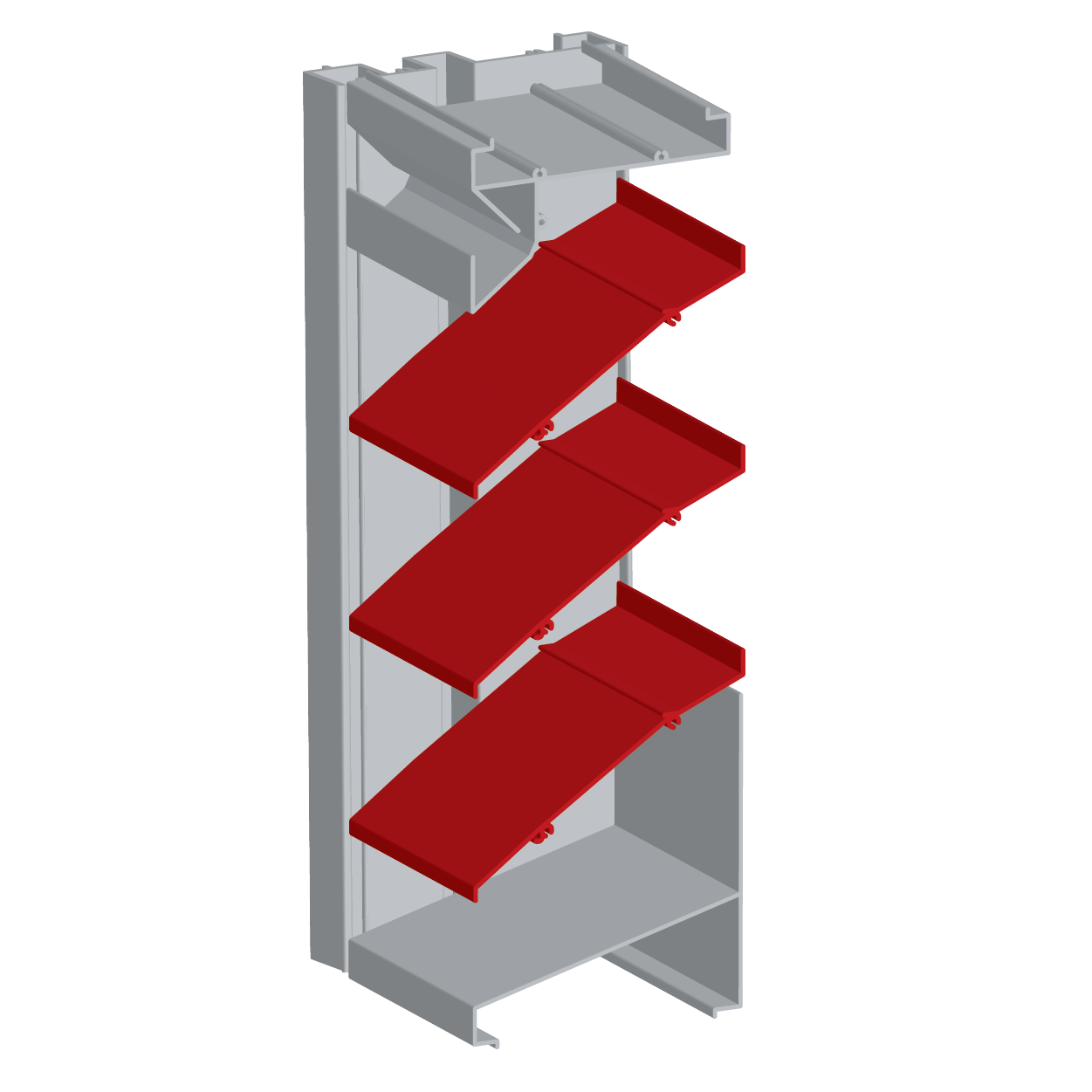

EA-6SHP

6" Deep Extruded Aluminum Non-Drainable Blade High Performance Louver

EA6SHP

Free Area %: 61%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)(FPM)

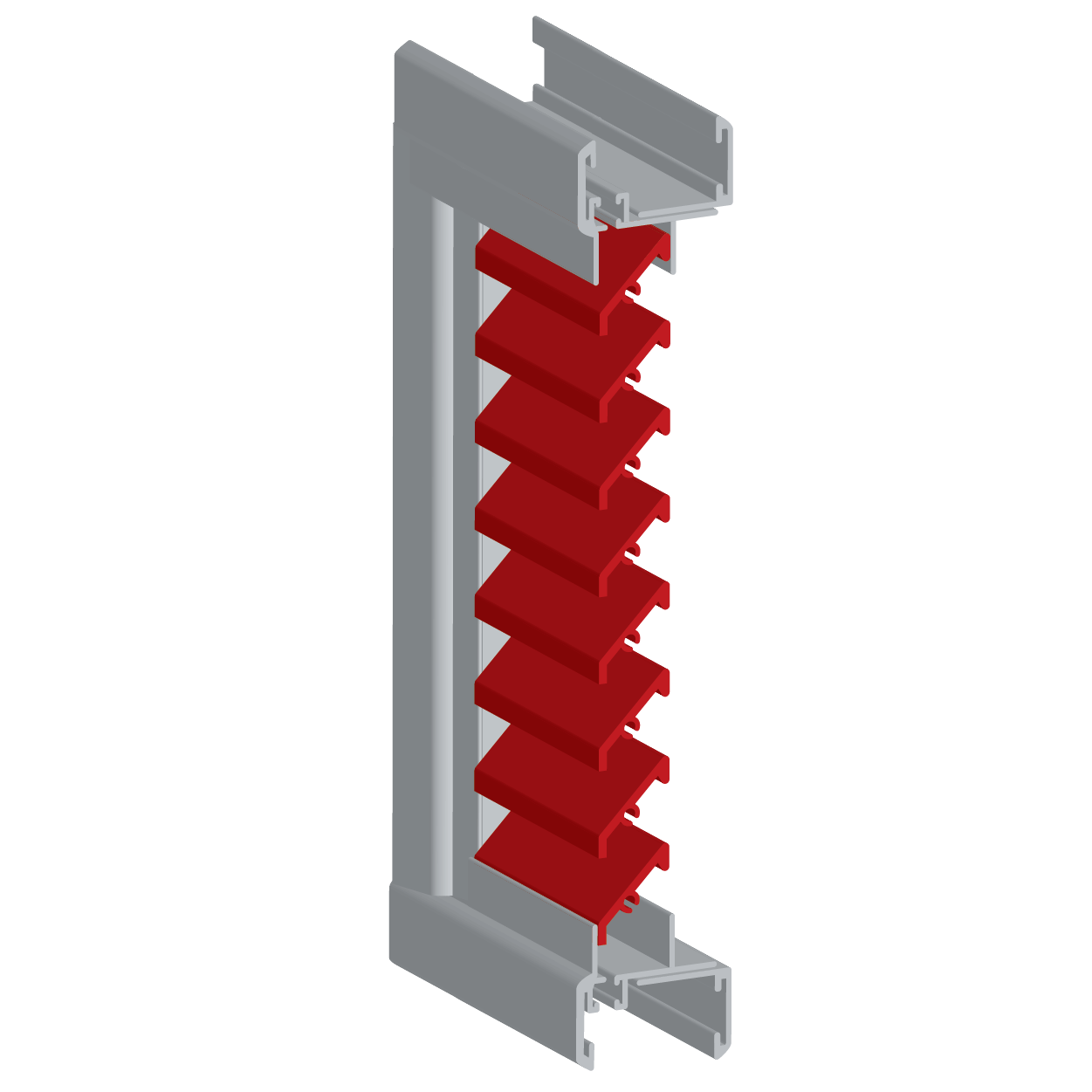

EA-11-F

45° Stationary Blade Flanged Frame Door Louver

EA11F

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

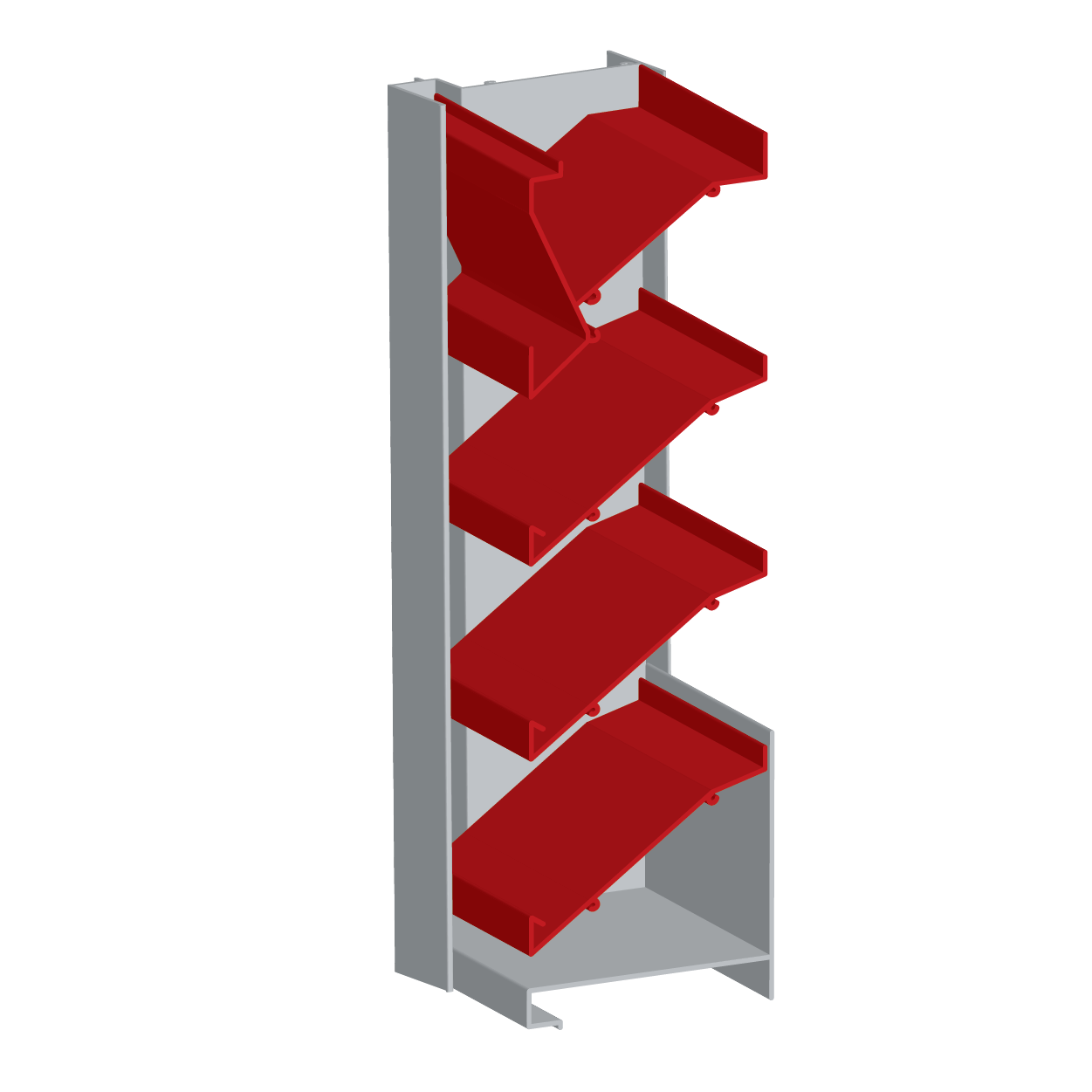

EA-64

6” Fixed Deep Drainable Blade Hurricane Louver (Miami-Dade Certified)

EA64

Free Area %: 58%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

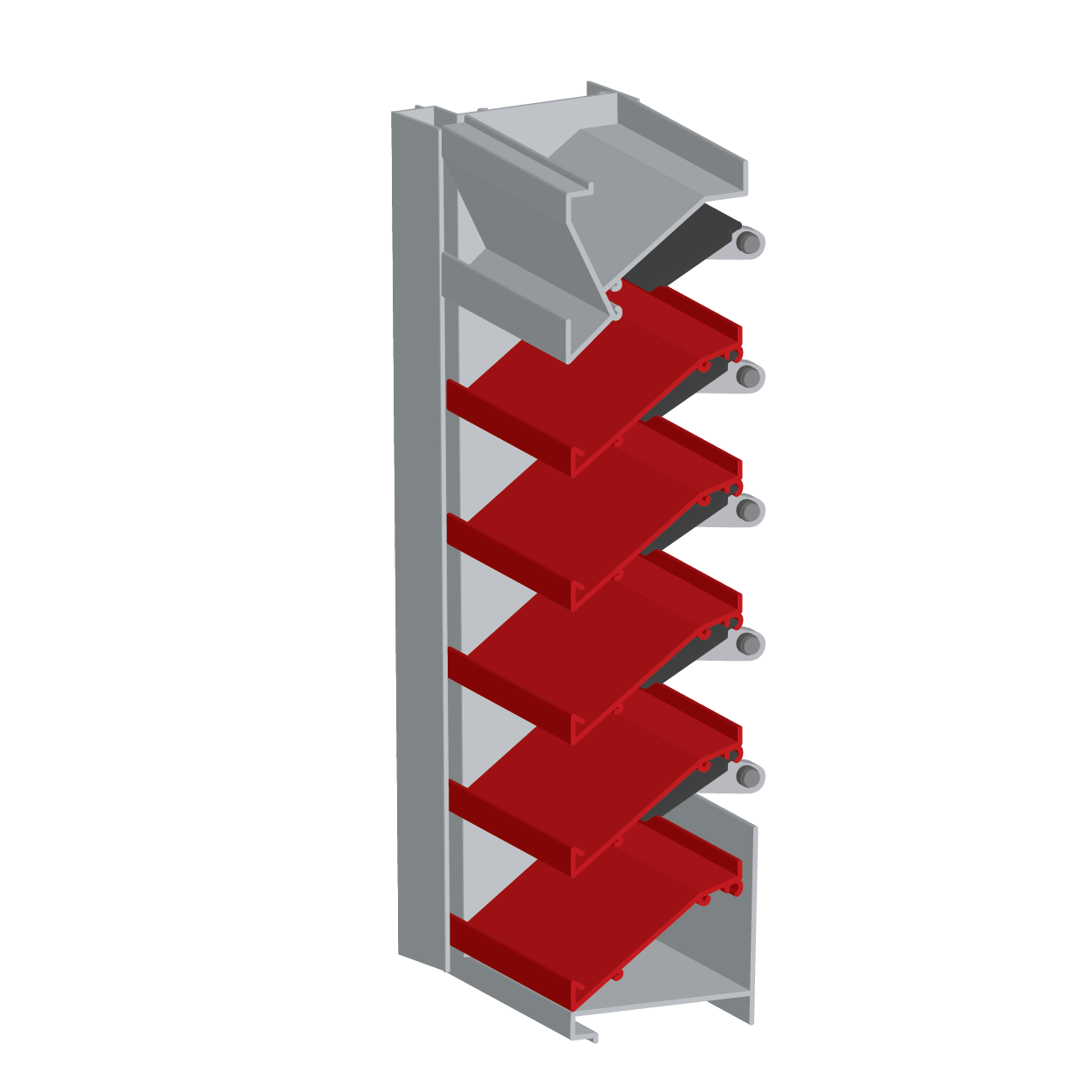

EA-64C

6" Deep Adjustable Blade Hurricane Louver (Miami-Dade Certified)

A320C

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

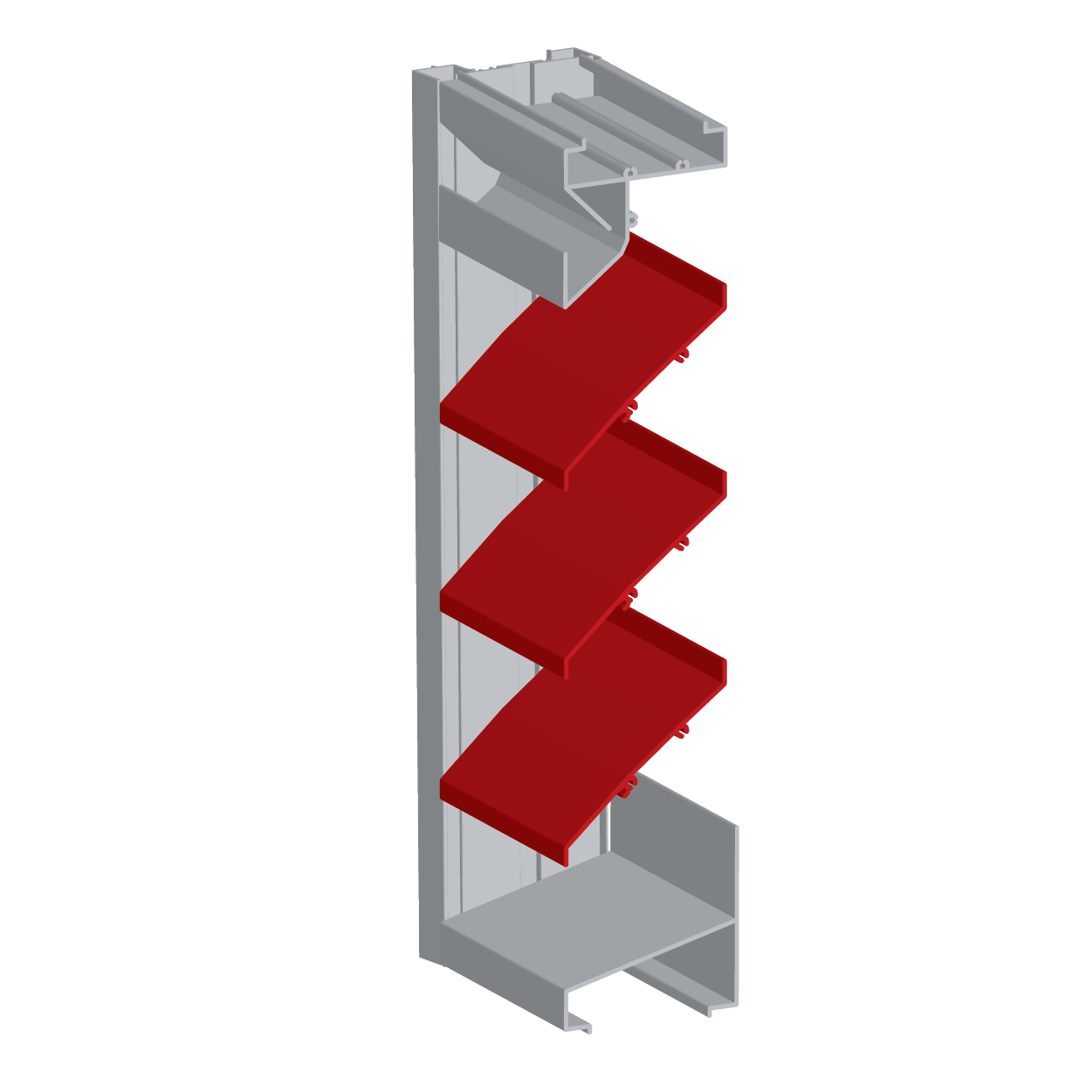

EA-400

4" Deep 45° Straight Blade Extruded Aluminum Louver

EA400

Free Area %: 57%
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)(FPM)

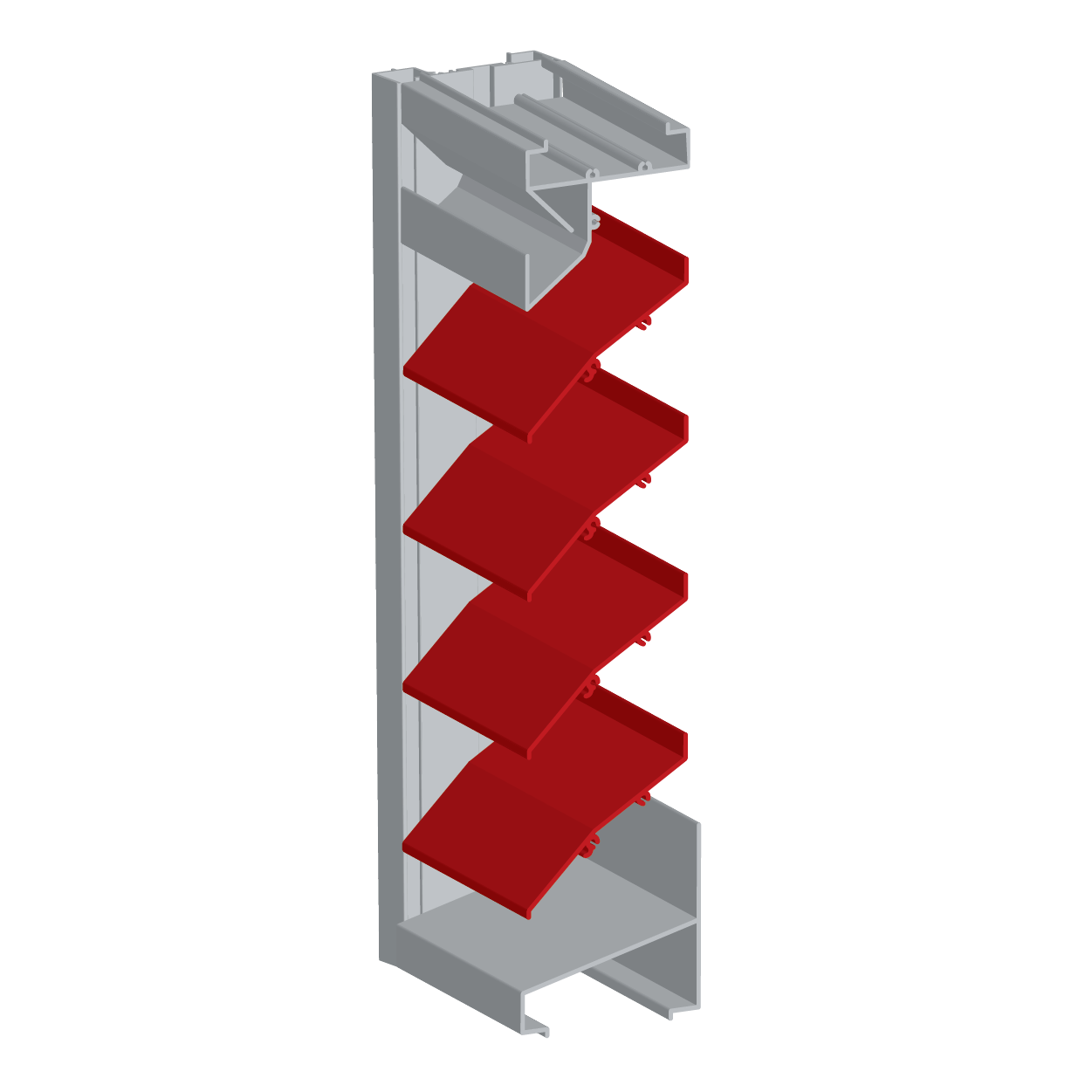

EA-410

4" Deep 37° Extruded Aluminum Fixed Straight Blade Louver

EA410

Free Area %: 57%
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)(FPM)

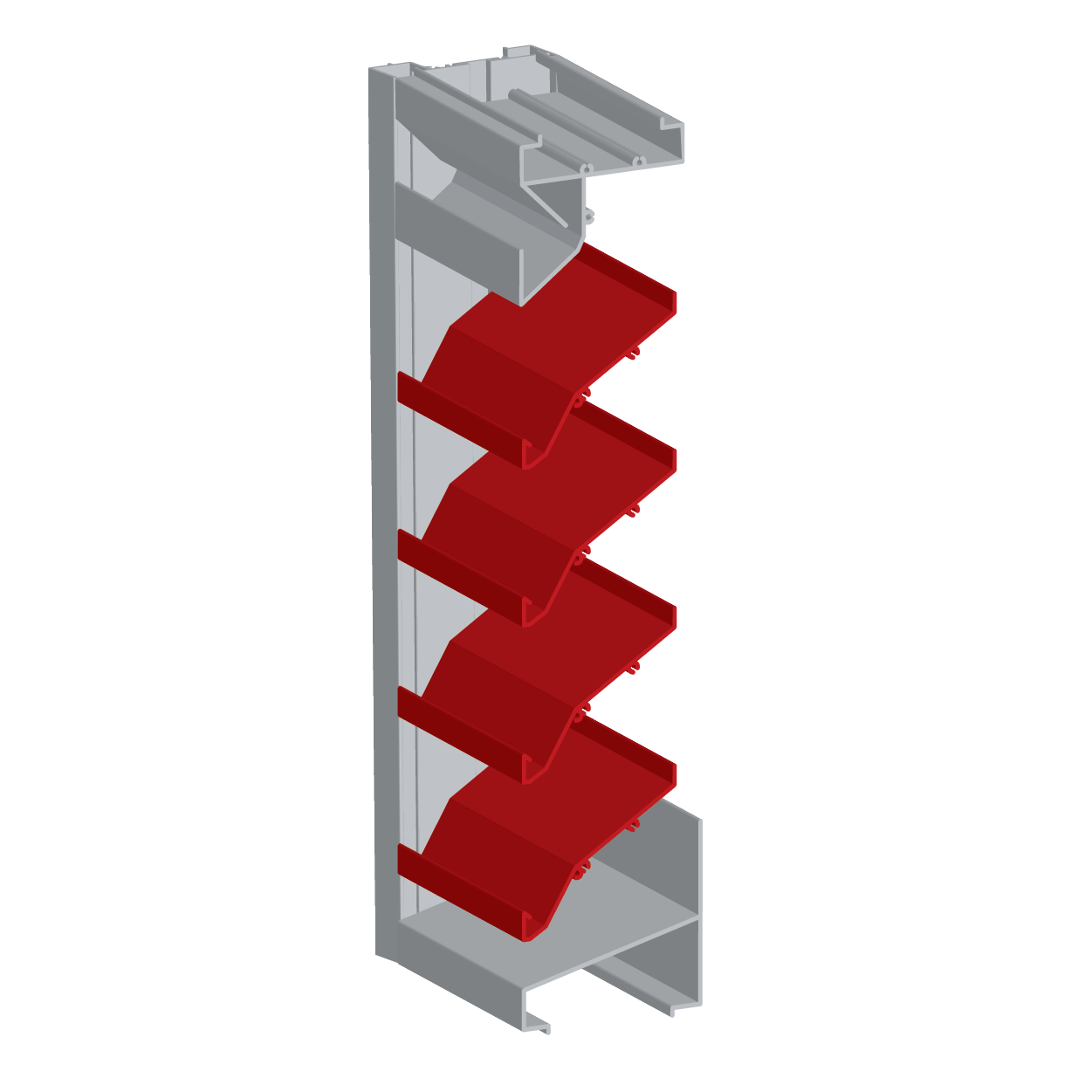

EA-415-D

4" Deep 37° Extruded Aluminum Drainable Blade Louver

EA415D

Free Area %: 57%
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)(FPM)

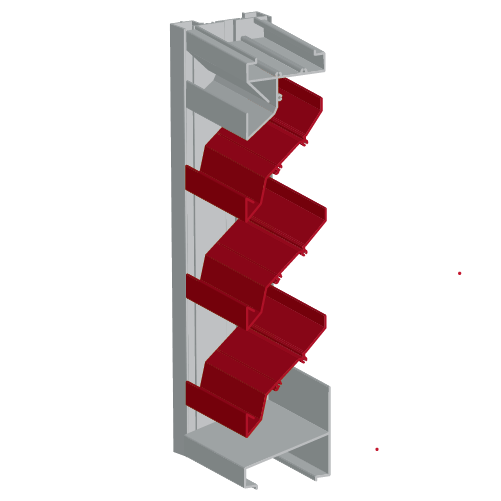

EA-445-D

4" Deep 45° Drain Blade Extruded Aluminum Louver

EA445D

Free Area %: 51%
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)(FPM)

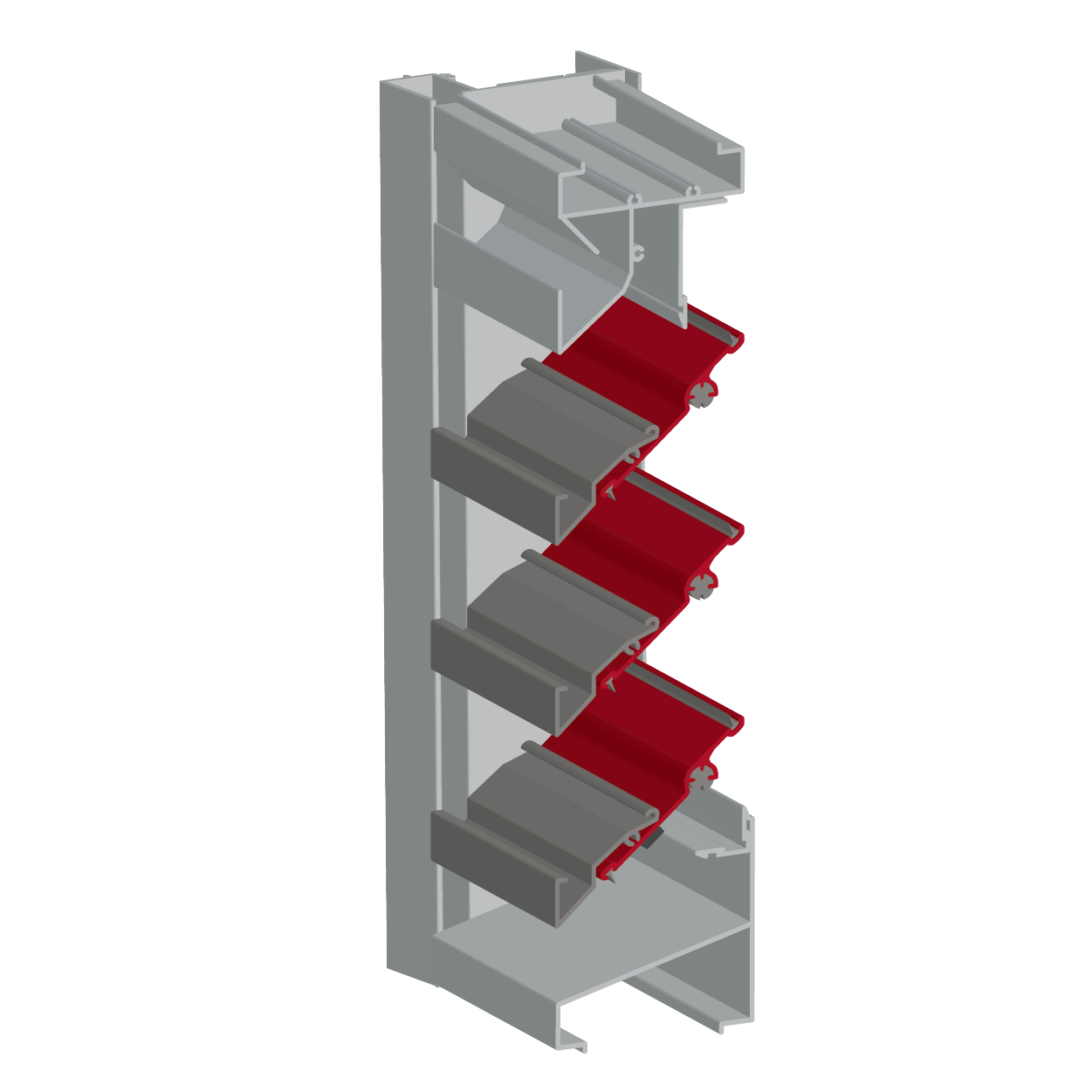

EA-480-D

4" Deep Drainable Combination Adjustable and Stationary Louver

EA480D

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)(FPM)

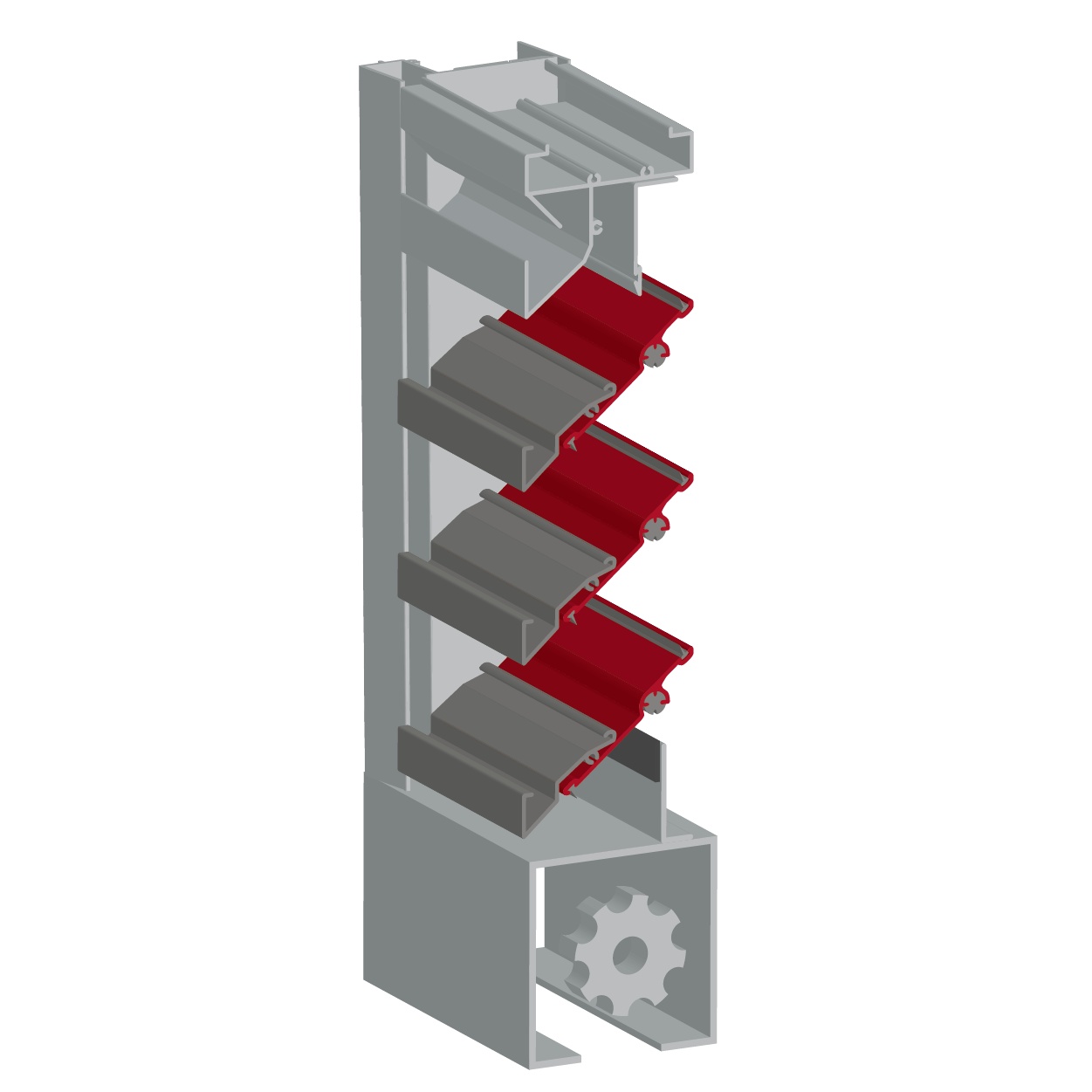

EA-480-D-M

4" Deep Drainable Combination Adjustable and Stationary Louver With Concealed Actuator

EA480DM

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

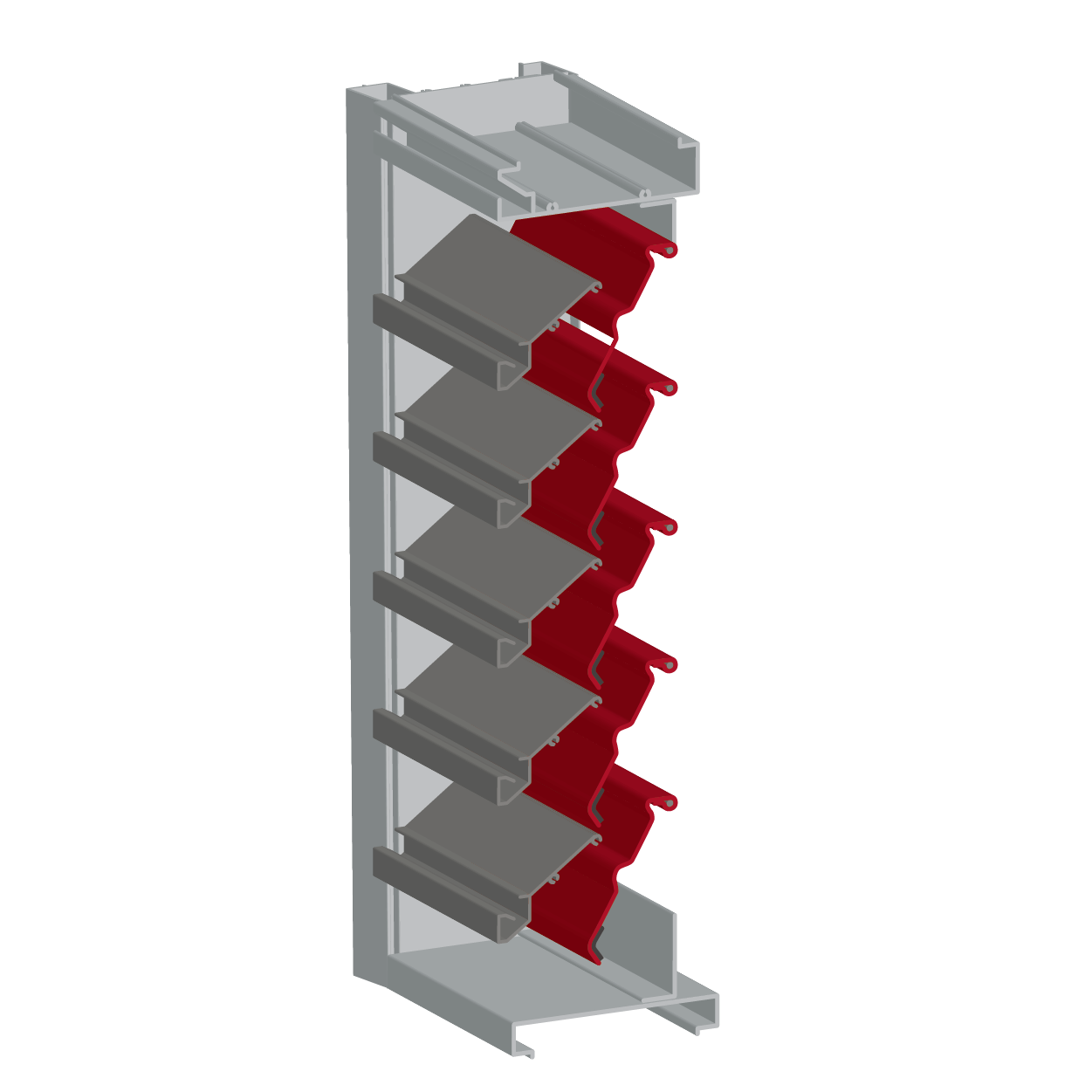

EA-677-E

6" Deep 35° Combination Stationary and Adjustable Exhaust Louver

EA677E

Free Area %: 52%

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

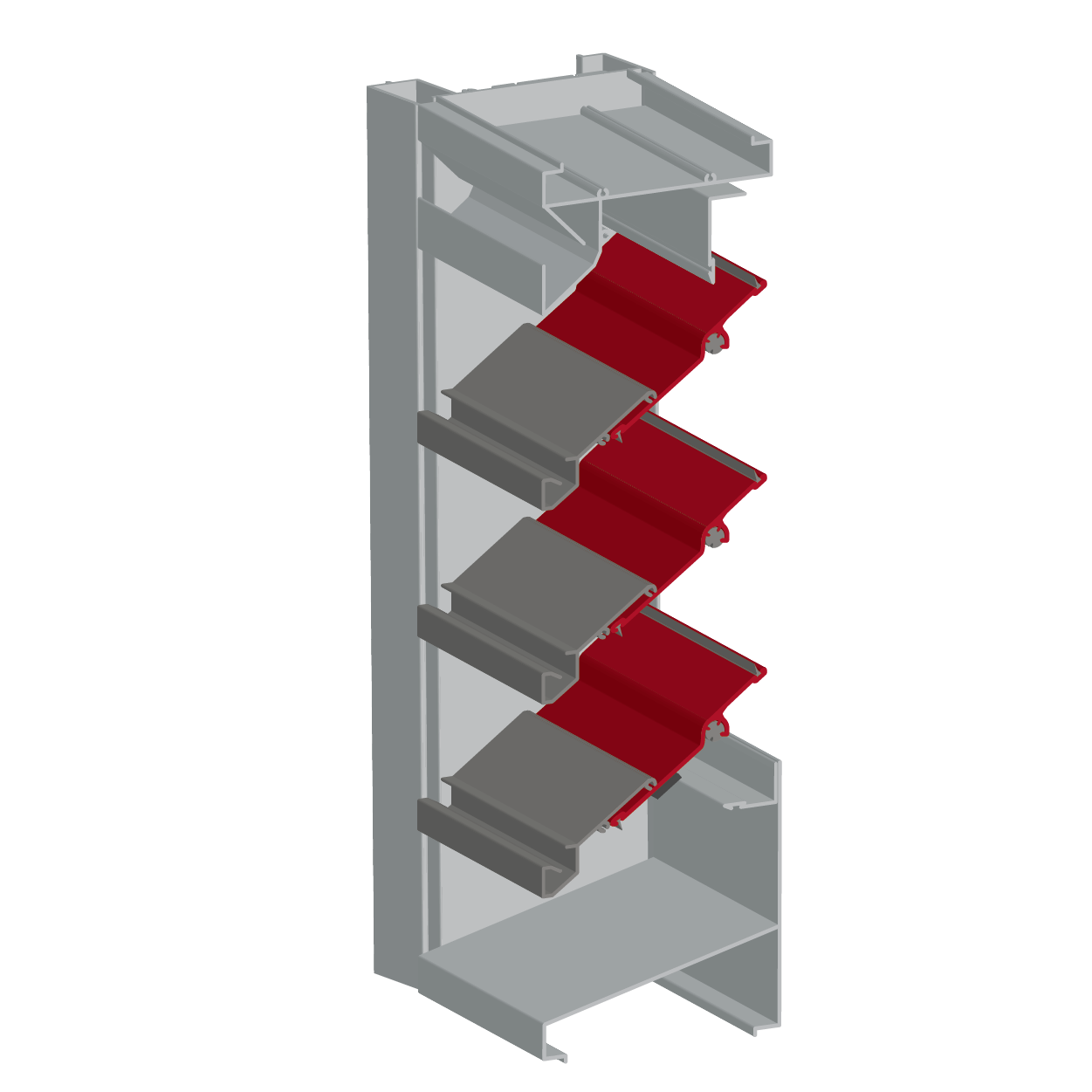

EA-680-D

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver

EA680D

Free Area %: 52%
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)(FPM)

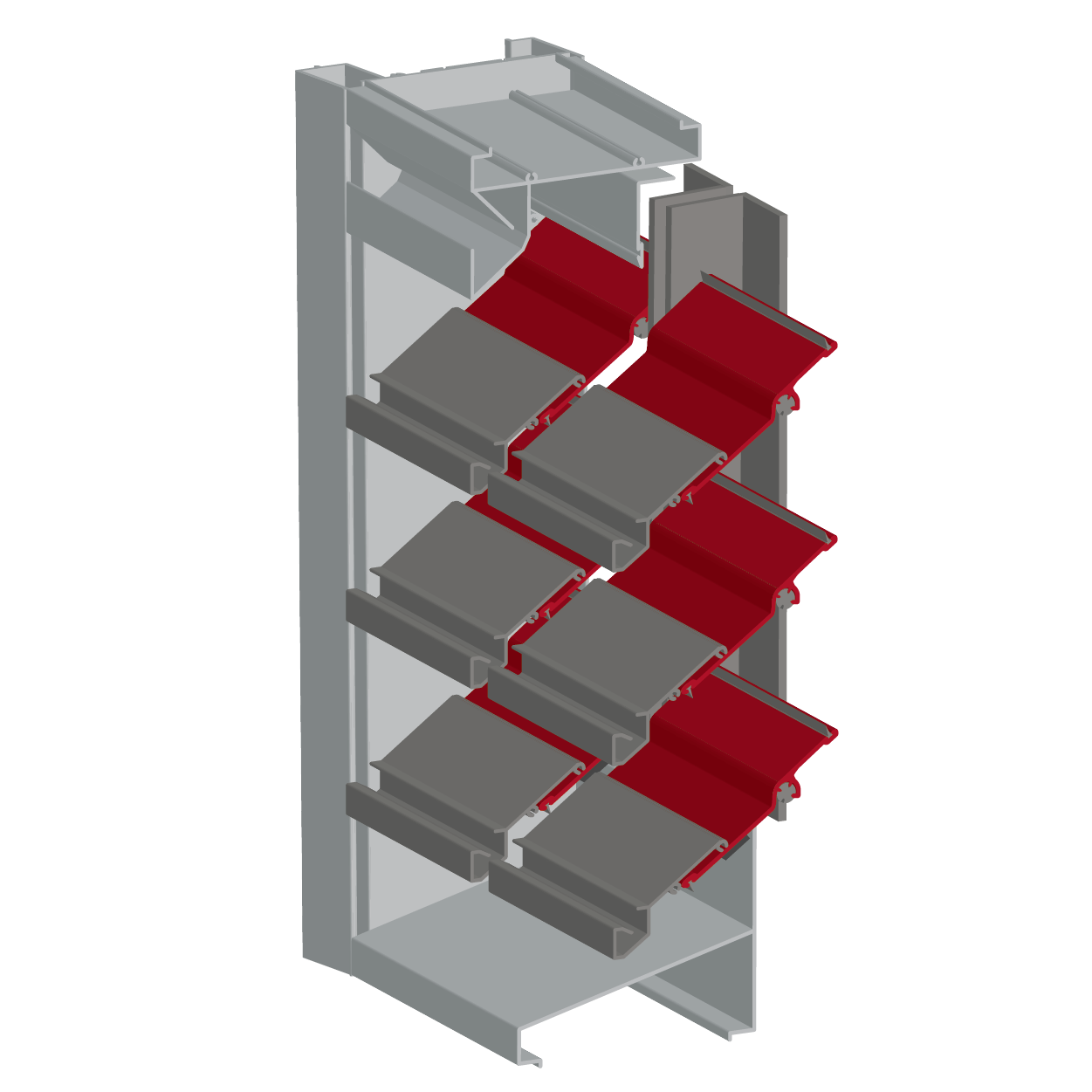

EA-680-D-C

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver with Concealed Mullion

EA680DC

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

EA-680-D-M

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver w/ Concealed Actuator

EA680DM

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

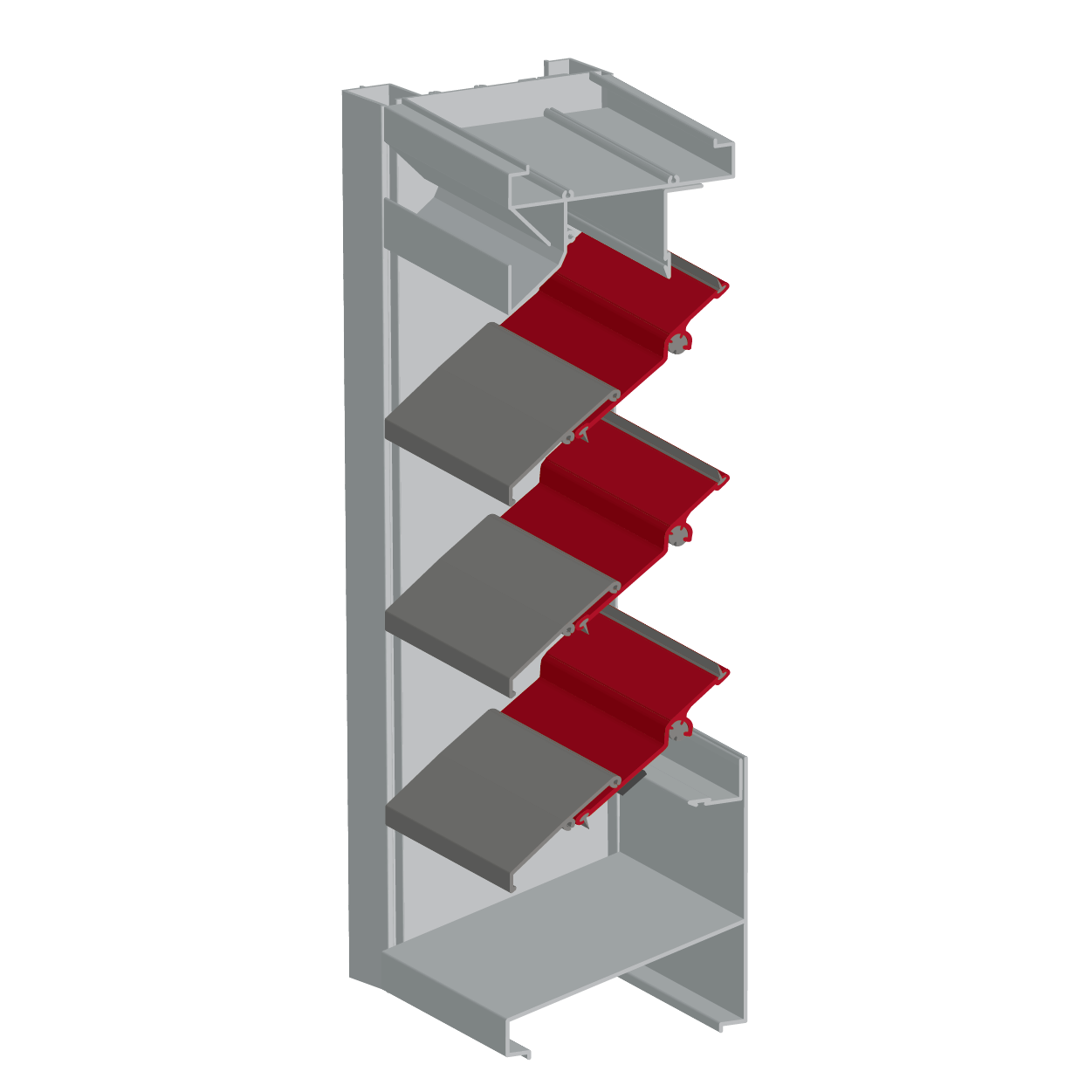

EA-681

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver

EA681

Free Area %: 52%
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)(FPM)

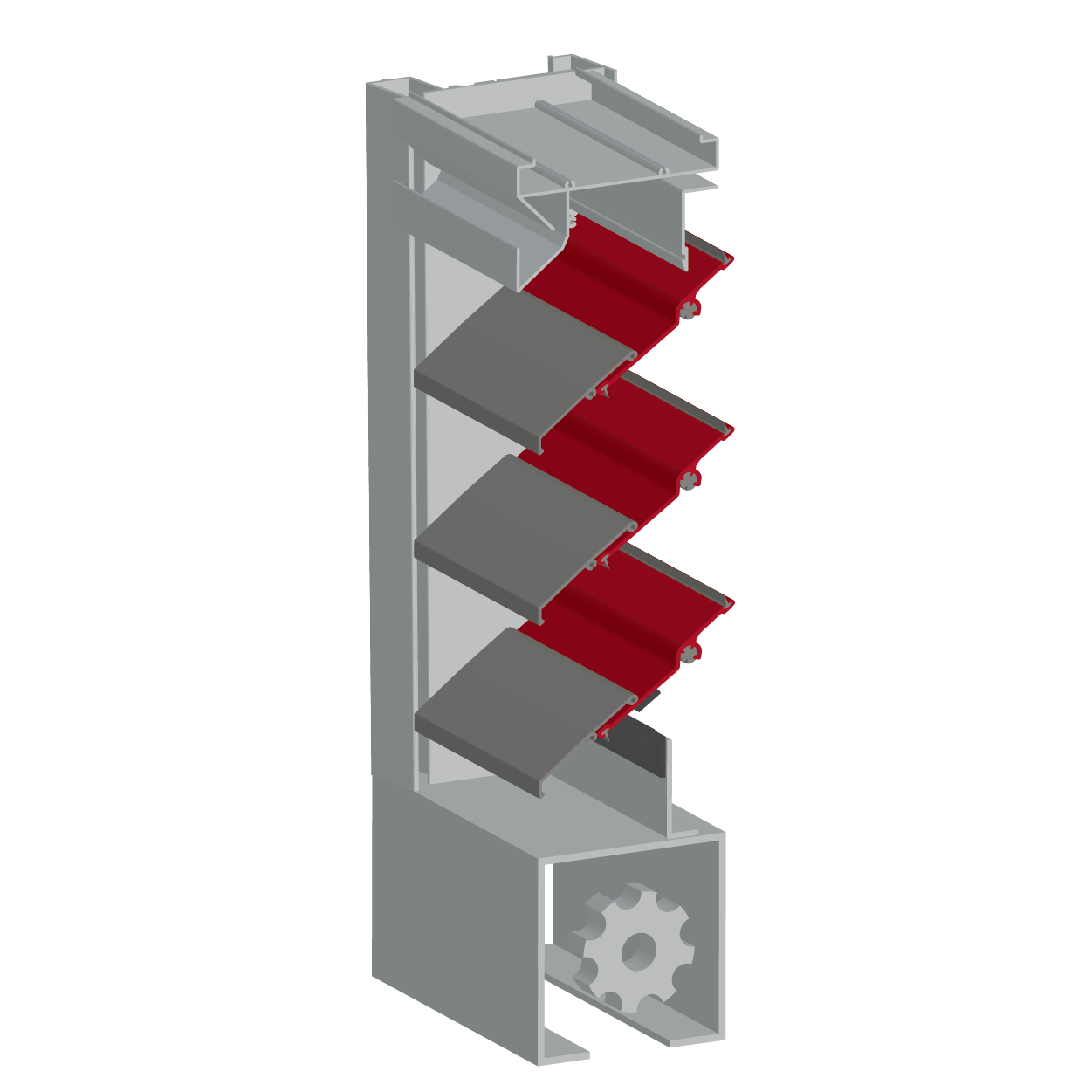

EA-681-M

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Actuator

EA681M

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

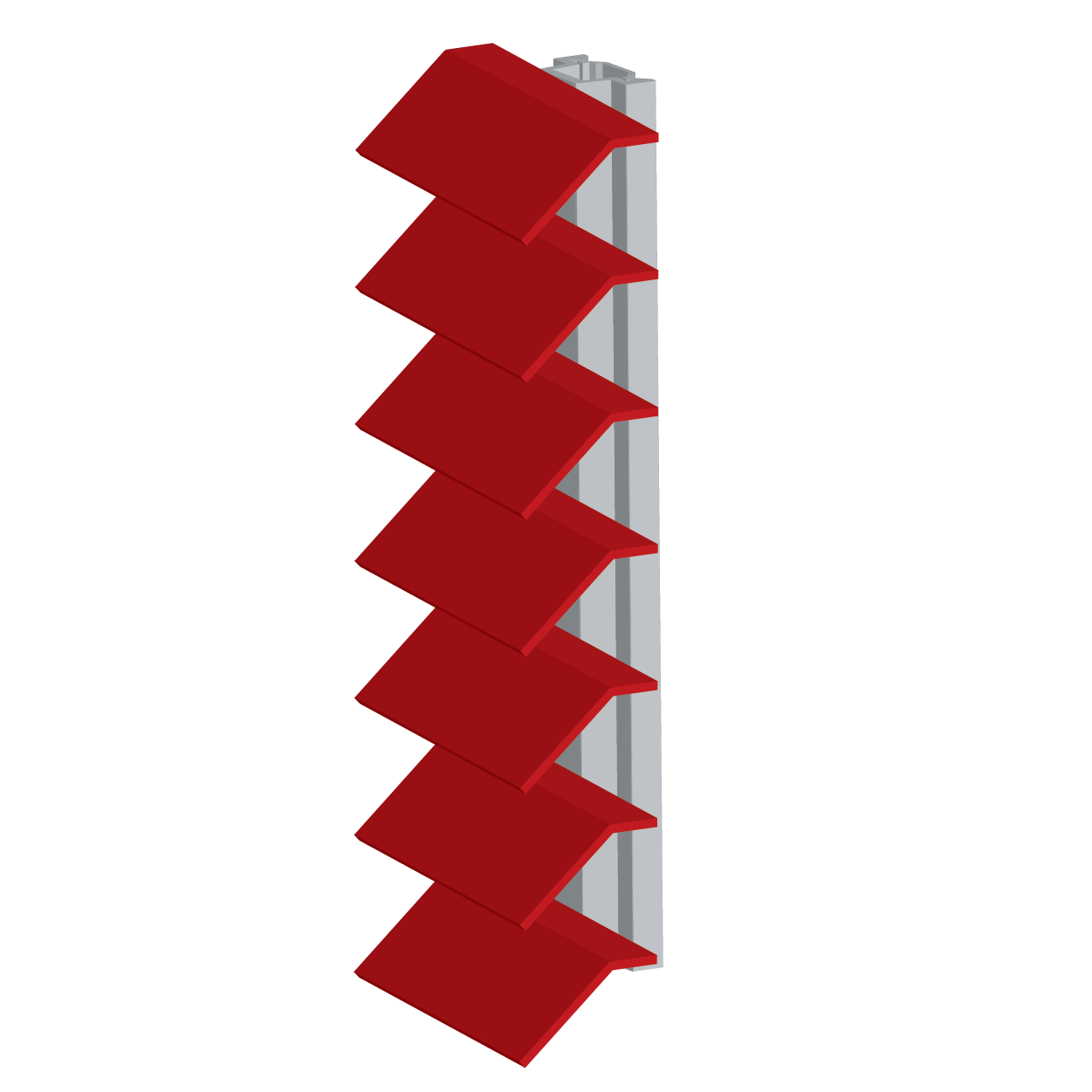

EA-TL-30

0.465" Deep 30° Non-Drainable Blade Thin Line Extruded Aluminum Louver

EATL30

Free Area %: 72.6%

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

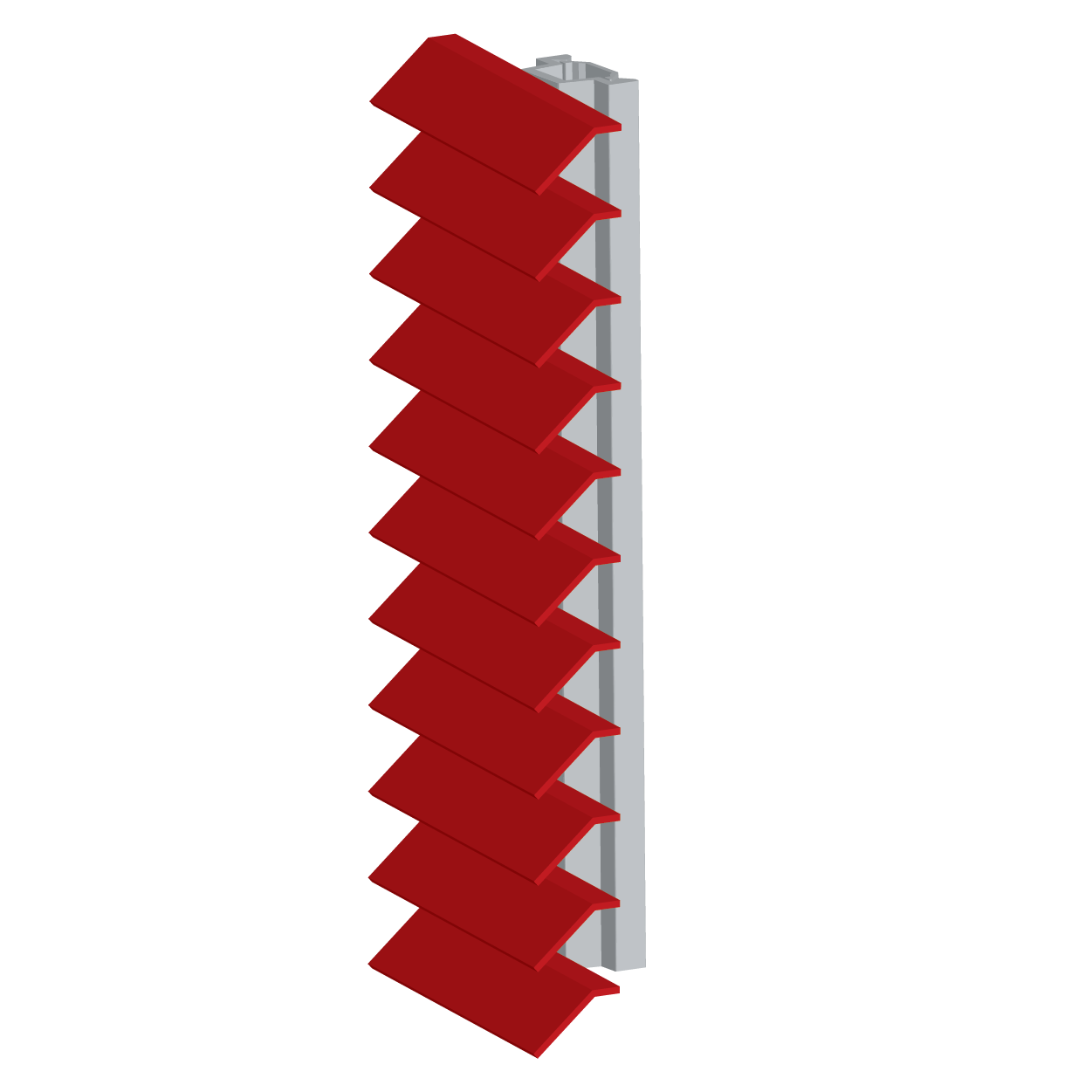

EA-TL-42

0.465" Deep 42° Non-Drainable Blade Thin Line Extruded Aluminum Louver

EATL42

Free Area %: 61.11%

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

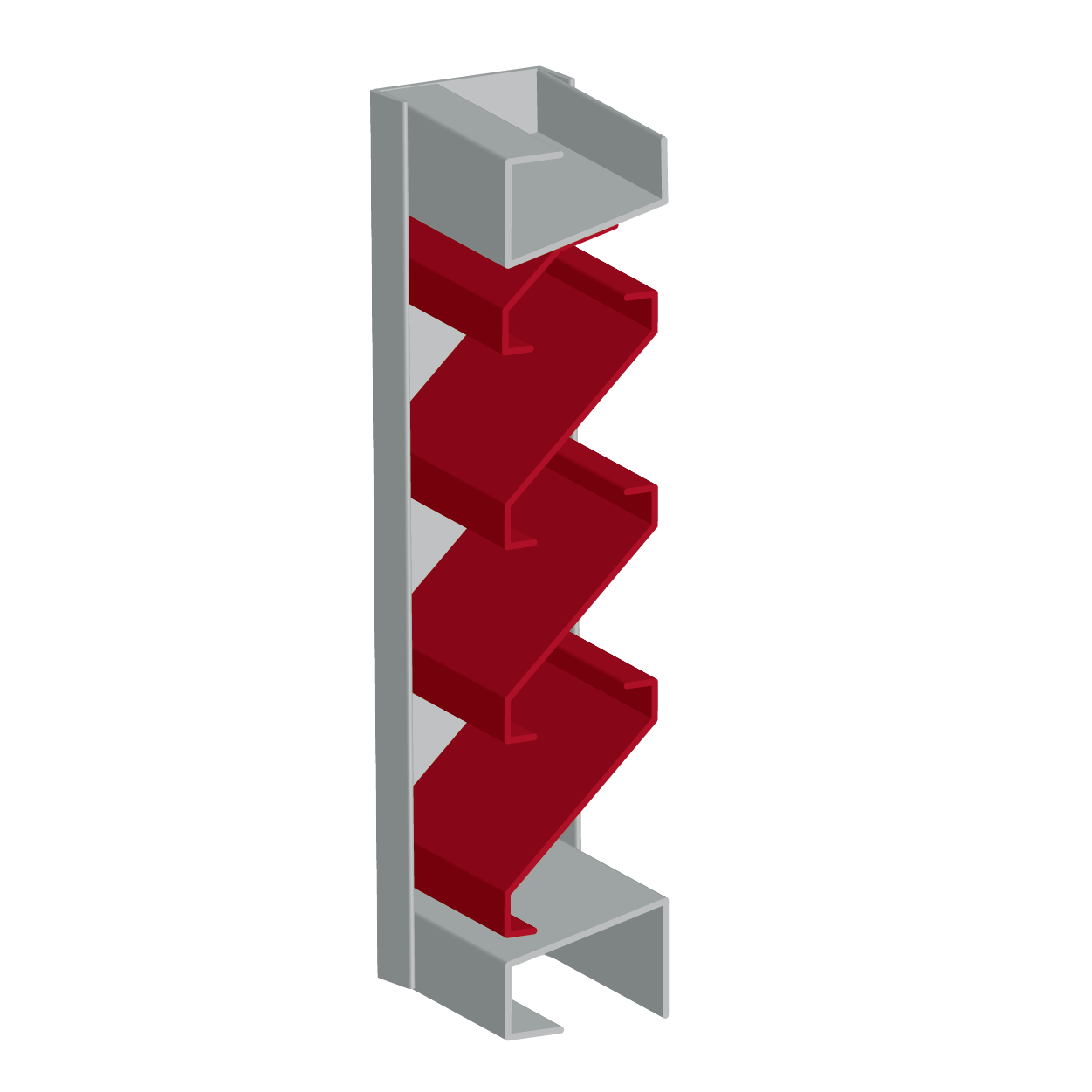

FS-200

2" Deep 45° Stationary Non-Drainable Blade Steel Louver

FS200

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

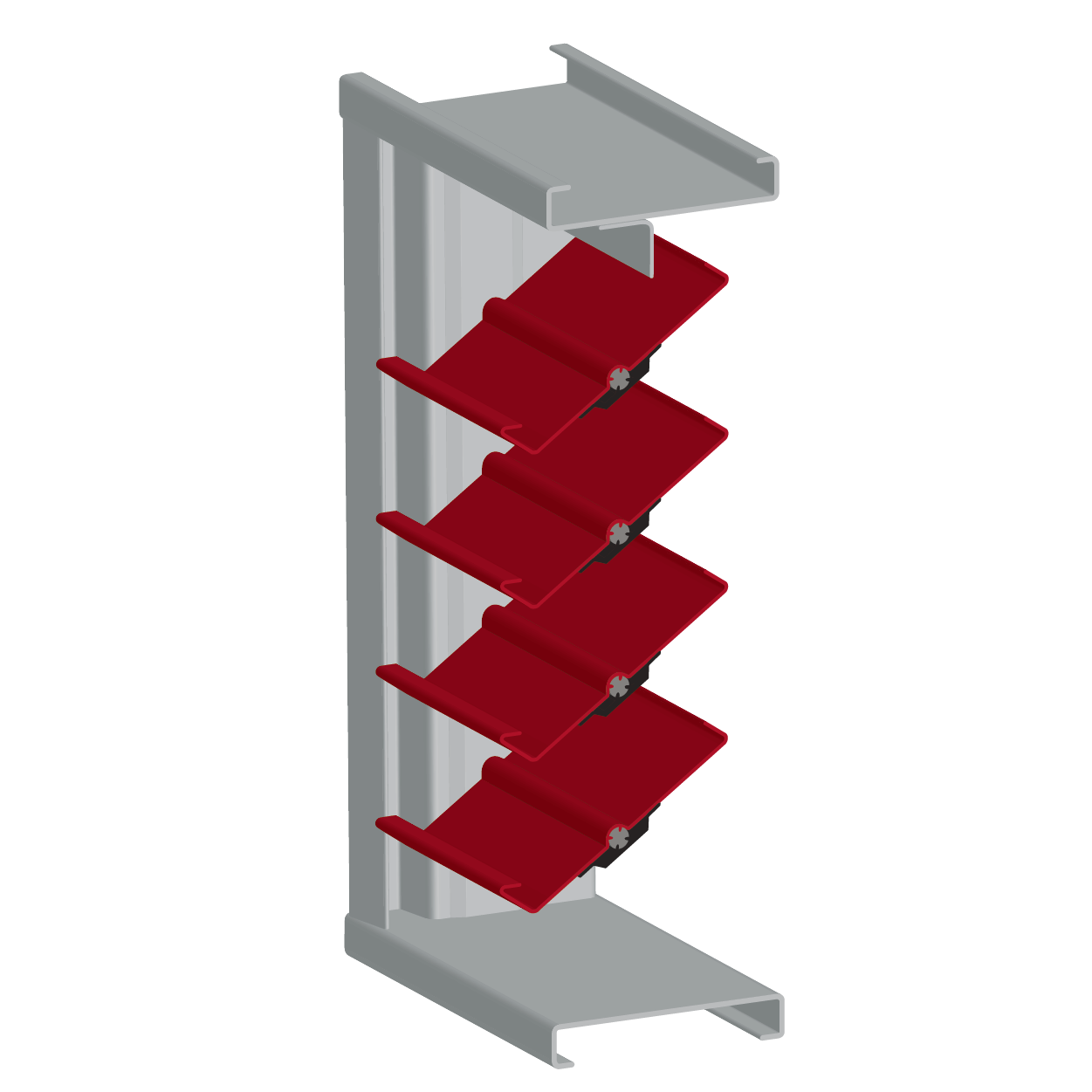

FS-271

6" Deep Drainable Blade Adjustable Steel Louver

FS271

Free Area %: 53.13%
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)(FPM)

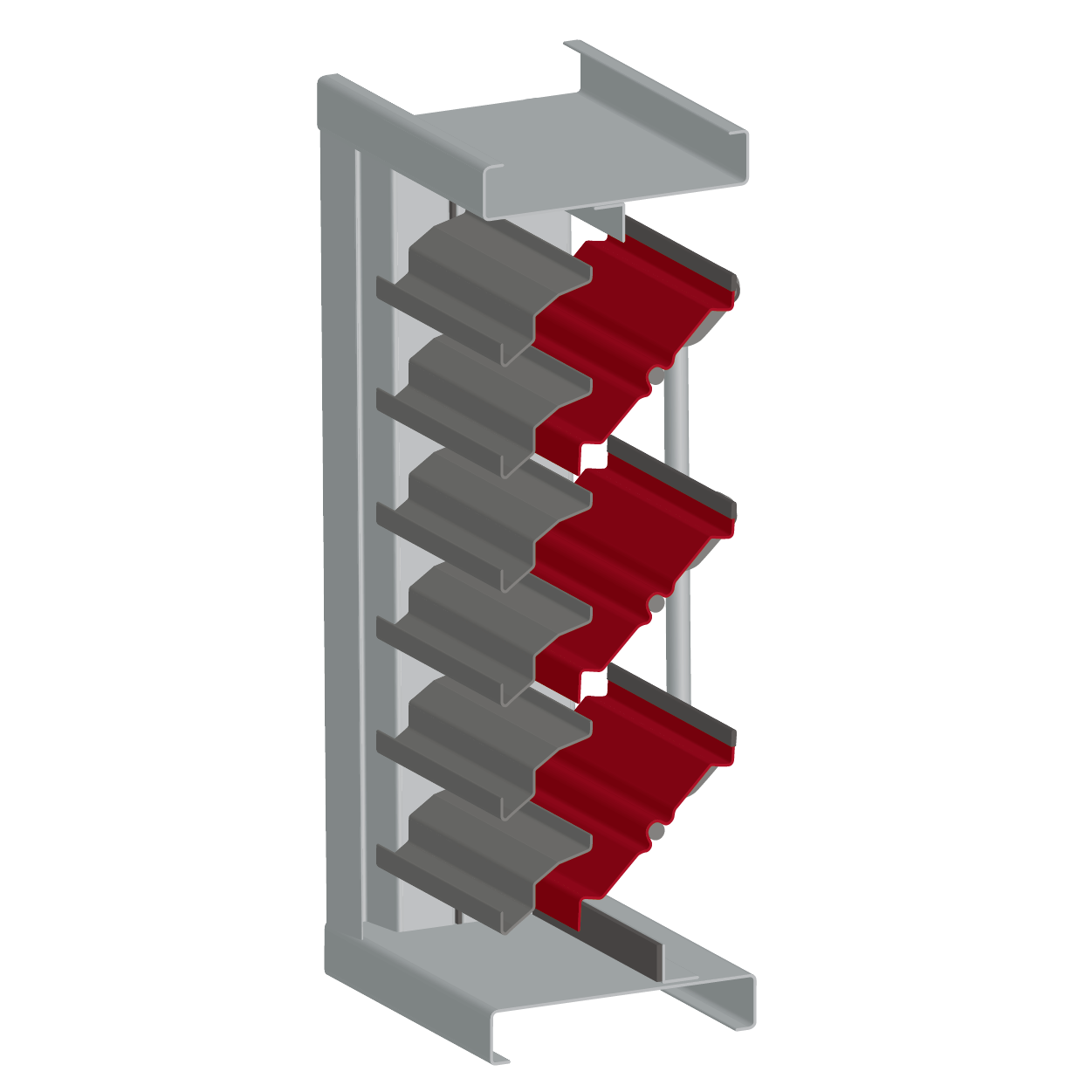

FS-280

7" Drainable Blade Combination Stationary and Adjustable Steel Louver

FS280

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

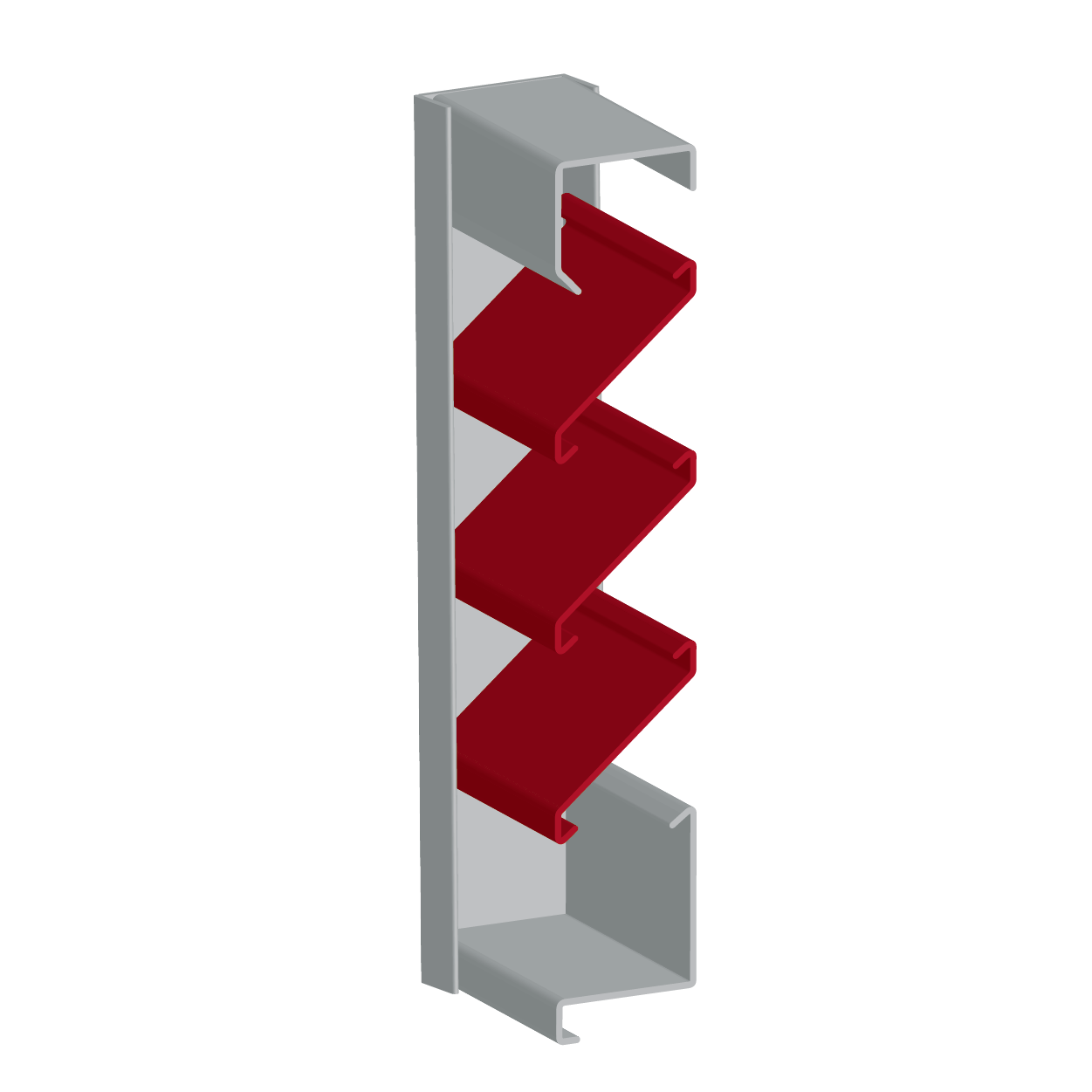

FS-400

4" Deep 45° Stationary Non-Drainable Blade Steel Louver

FS400

Free Area %: 51%
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)(FPM)

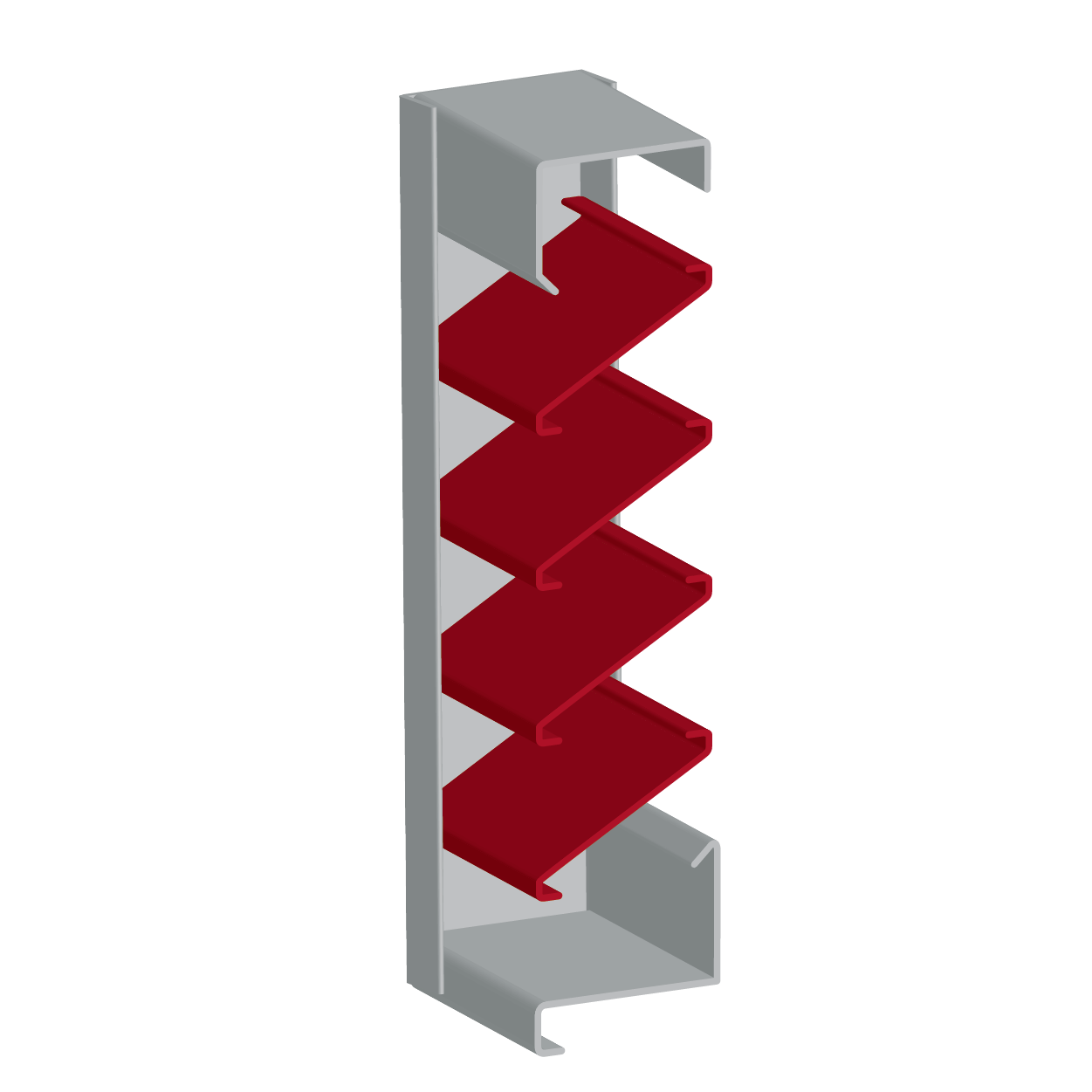

FS-430

4" Deep 30° Stationary Non-Drainable Blade Steel Louver

FS430

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

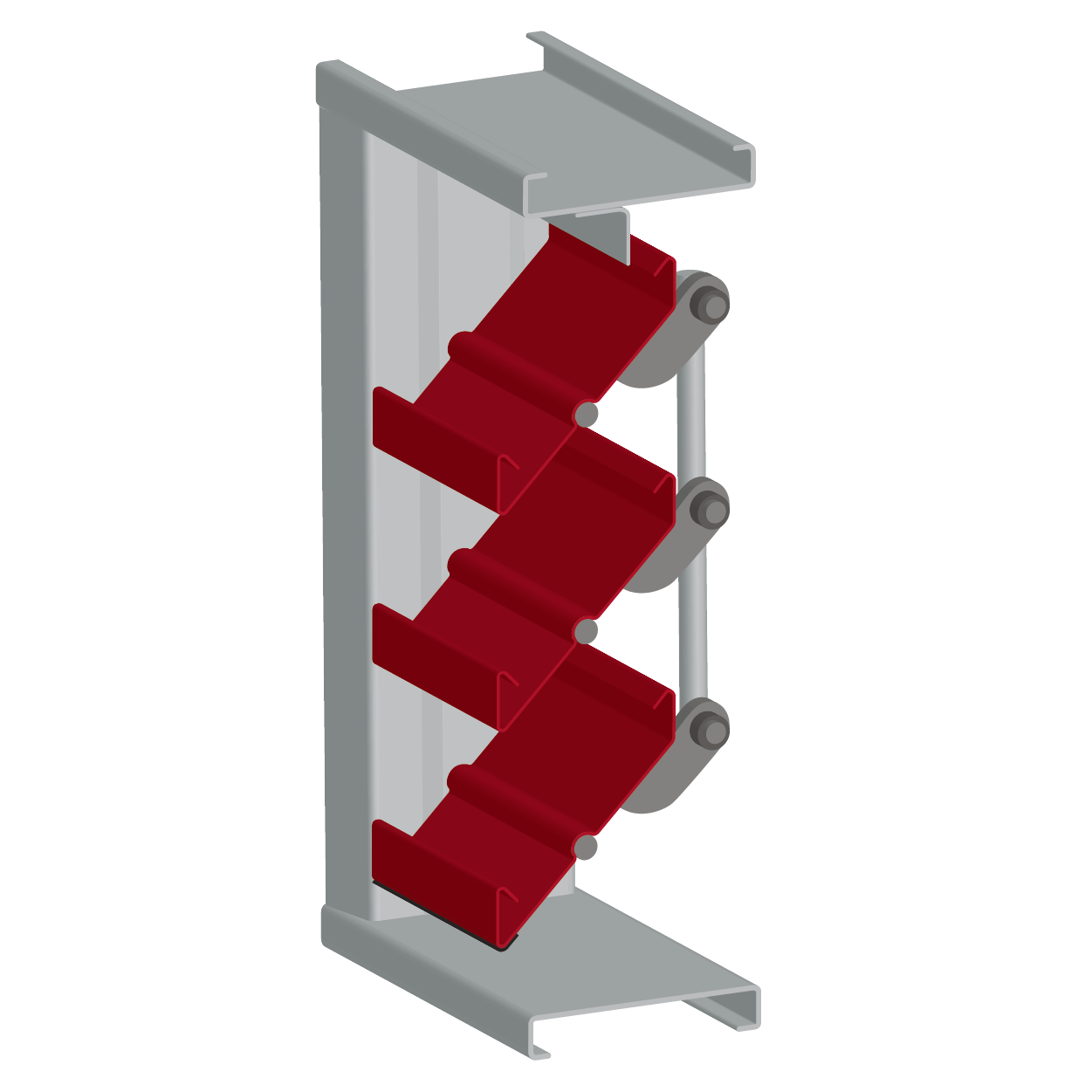

FS-446-D

4" Deep 45° Blade Adjustable Steel Louver

FS446D

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)(FPM)

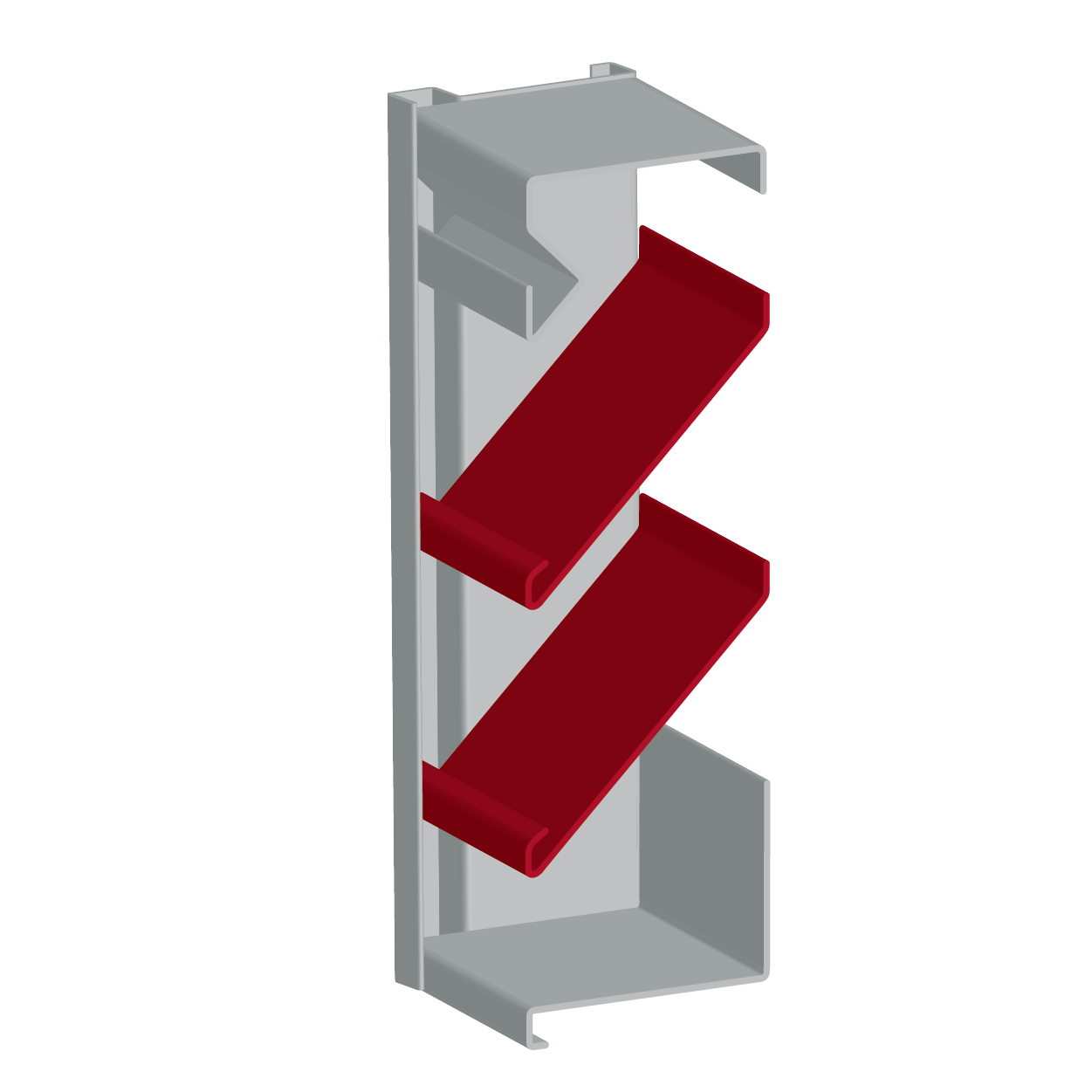

FS-606-D

6" Deep 45° Stationary Drainable Blade Steel Louver

FS606D

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)(FPM)

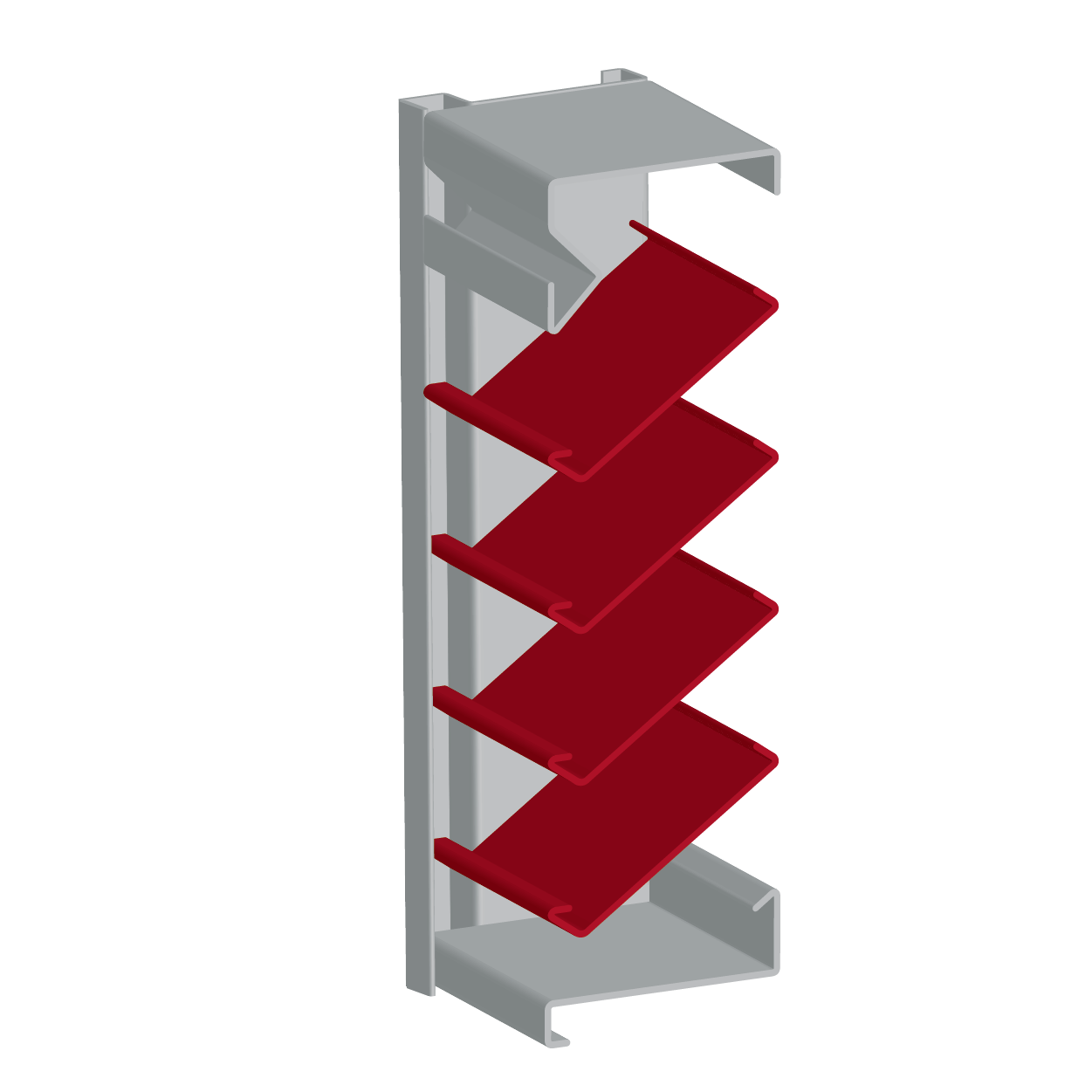

FS-615-D

6" Deep 35° Stationary Drainable Blade Steel Louver

FS615D

Free Area %: 55%
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)(FPM)

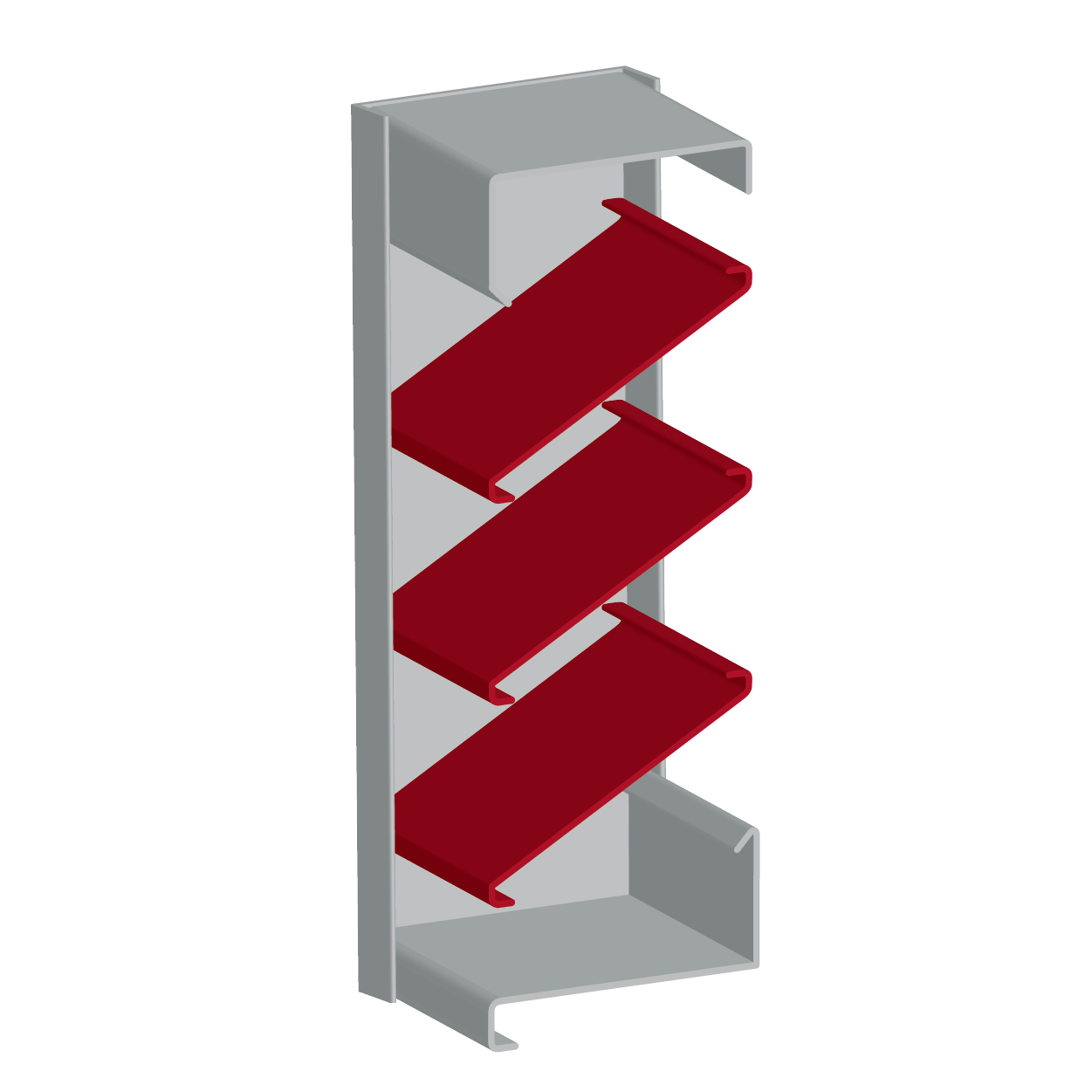

FS-630

6" Deep 30° Stationary Non-Drainable Blade Steel Louver

FS630

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

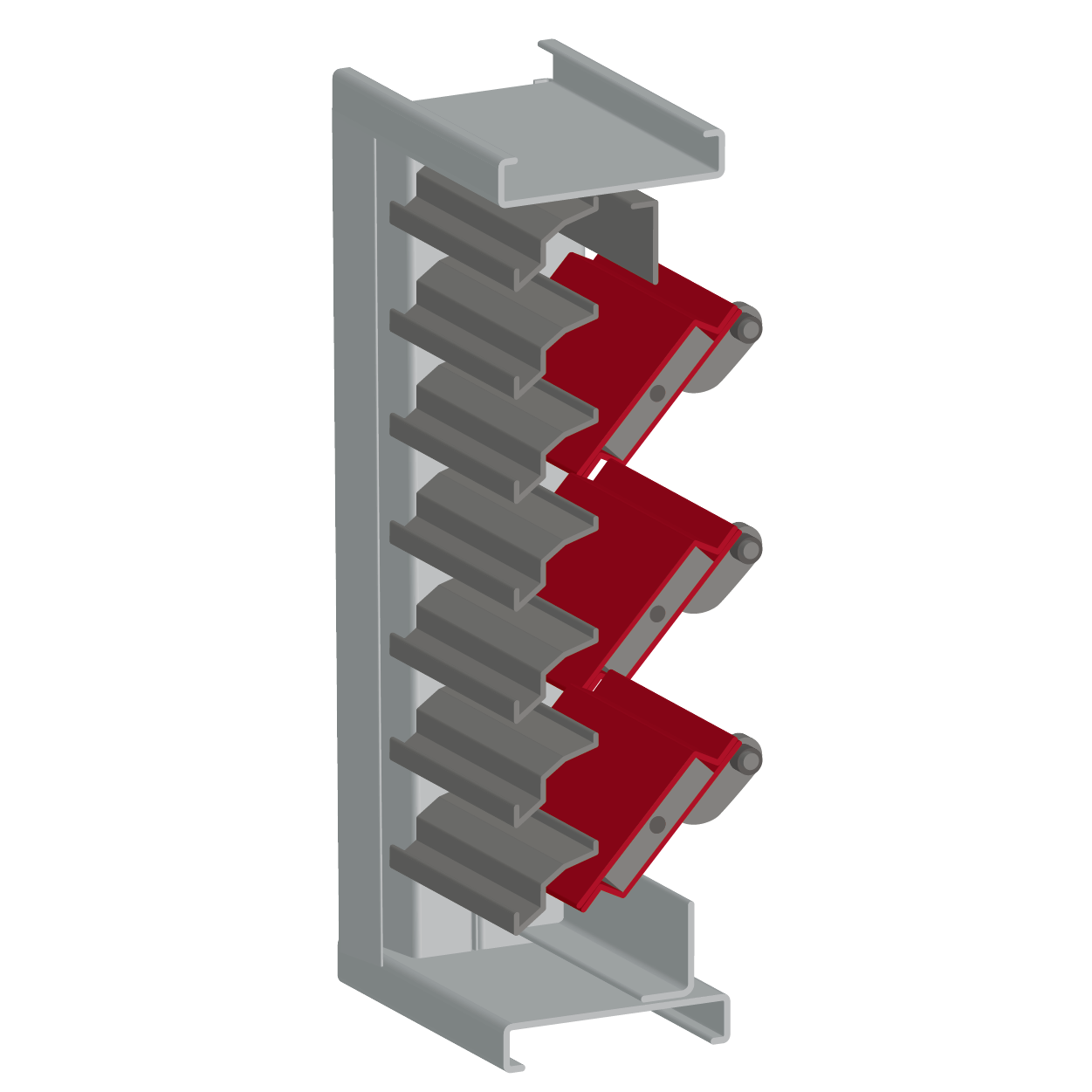

FS-700

7" Deep Insulated Blade Combination Adjustable and Stationary Acoustical Steel Louver

FS700

Free Area %: 45.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)(FPM)

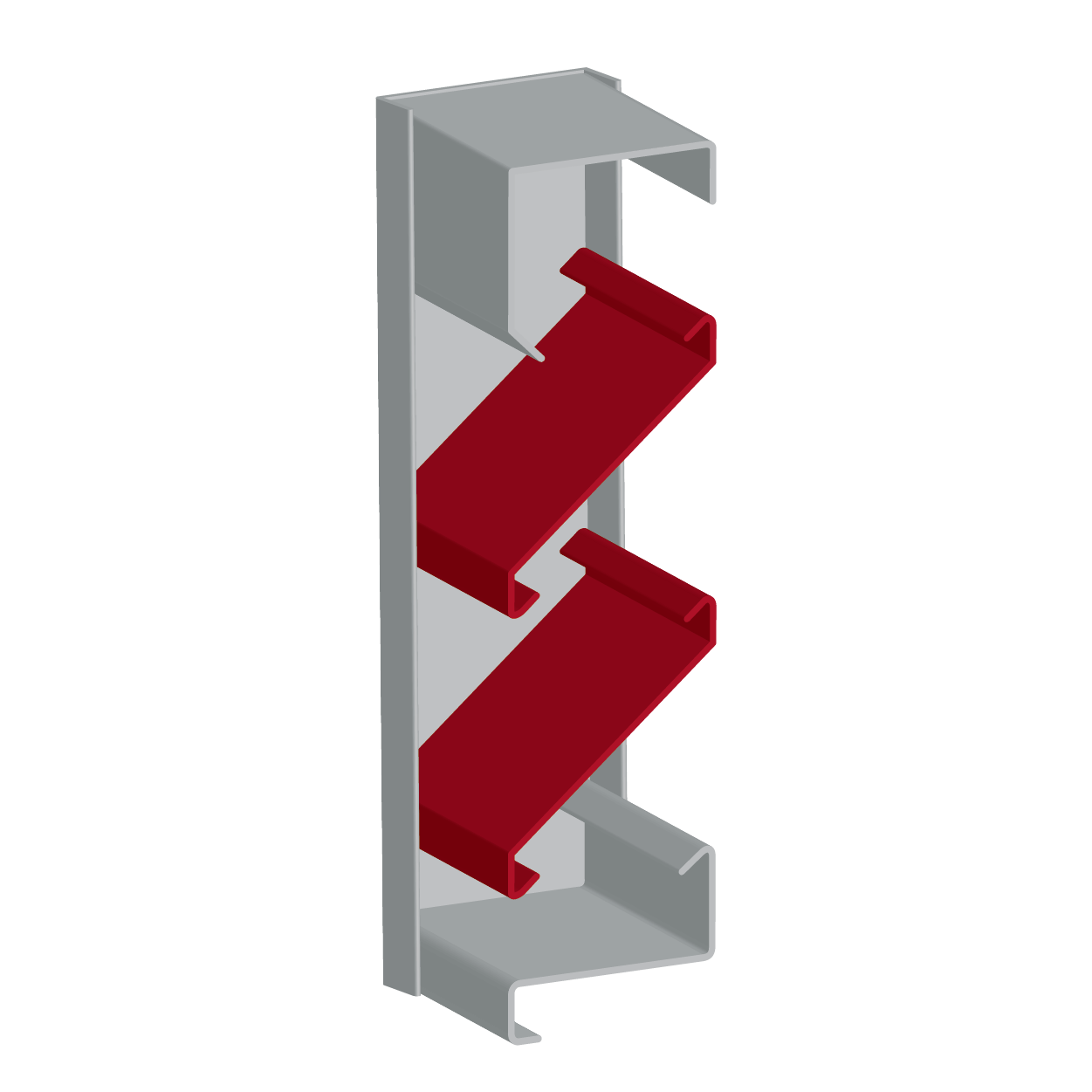

FS-400-6

6" Deep 45° Stationary Non-Drainable Blade Steel Louver

FS4006

Free Area %: 46.3%

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

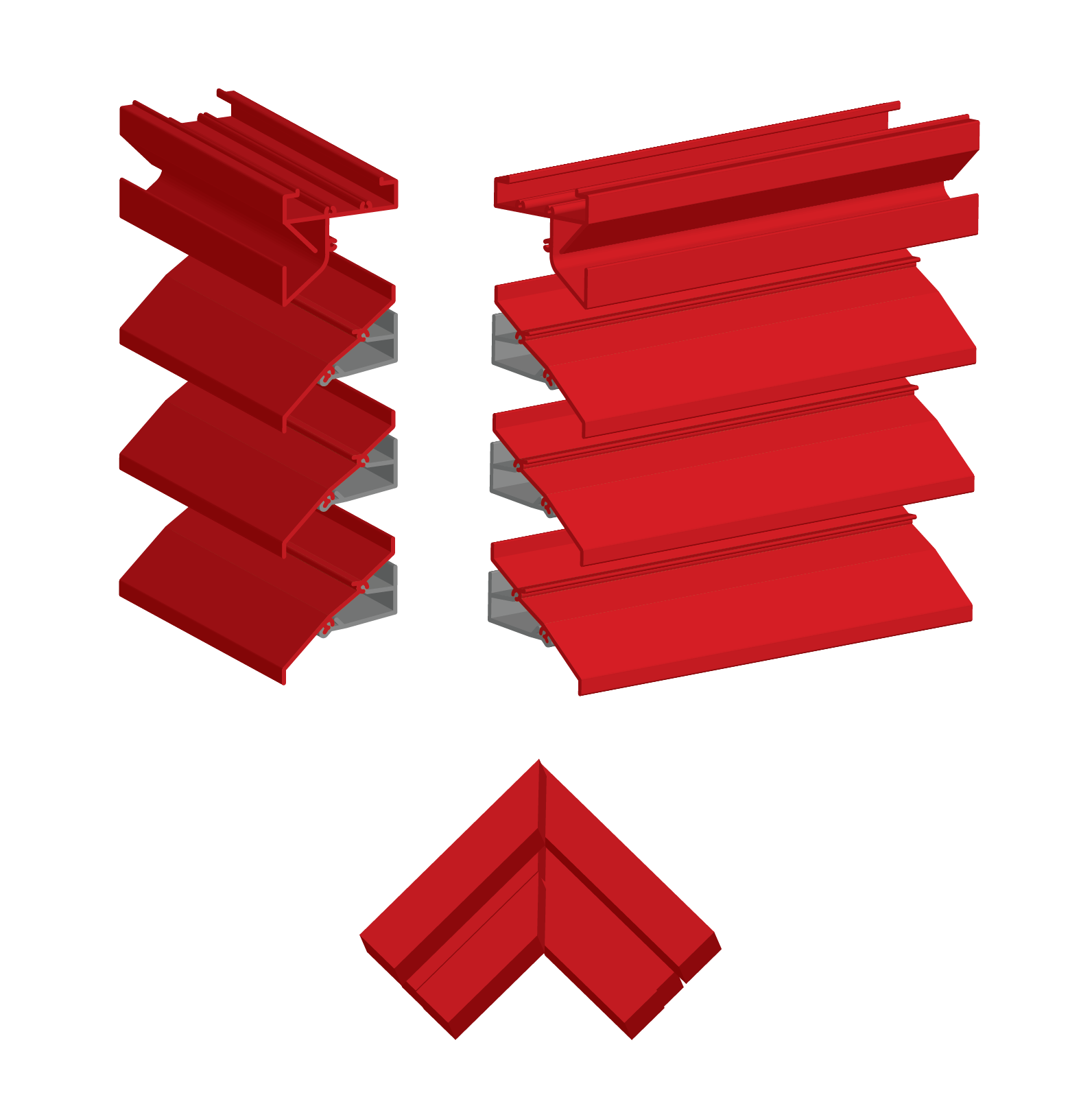

SPH-20-F

4" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

SPH20F

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

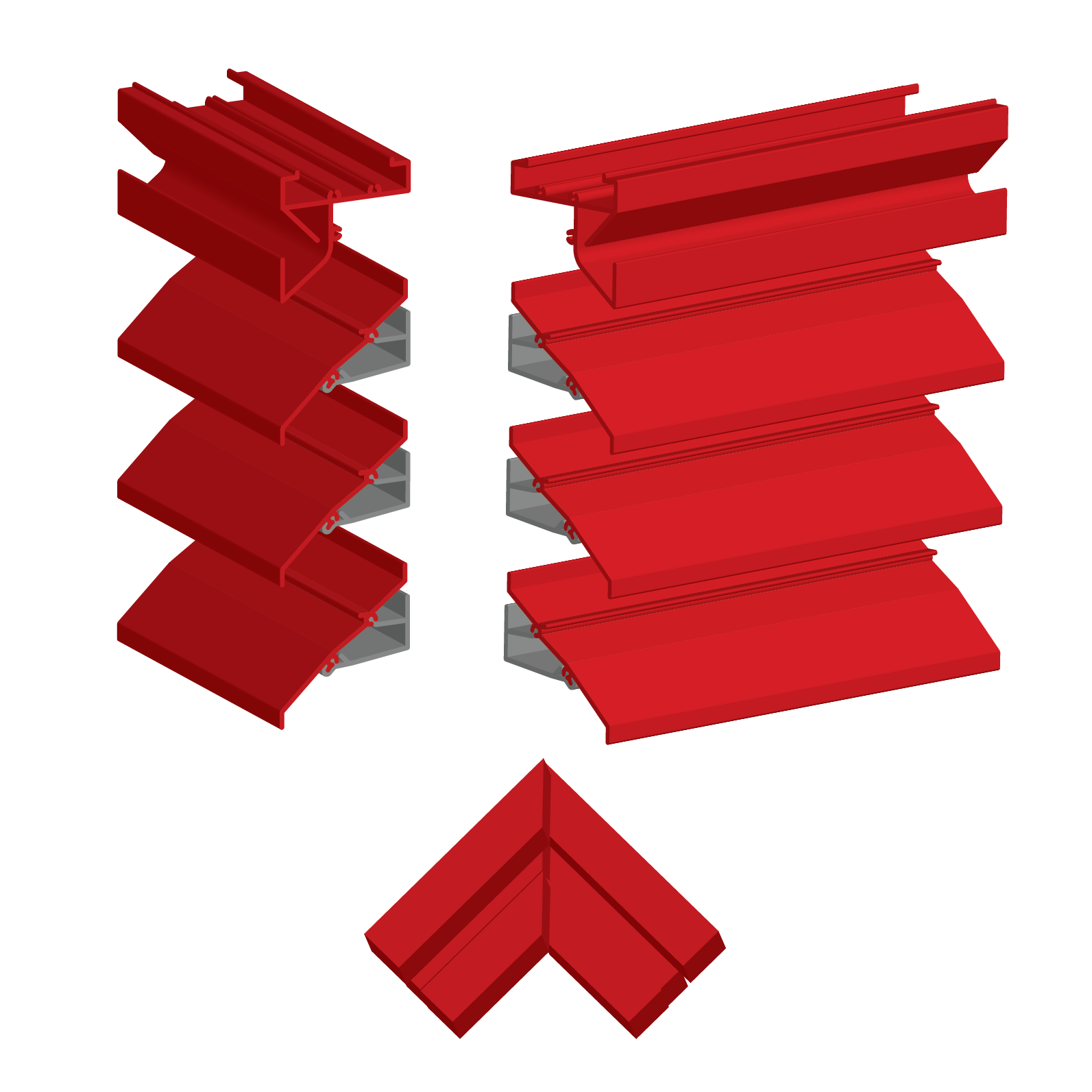

SPH-20-F-6

6" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

SPH20F6

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

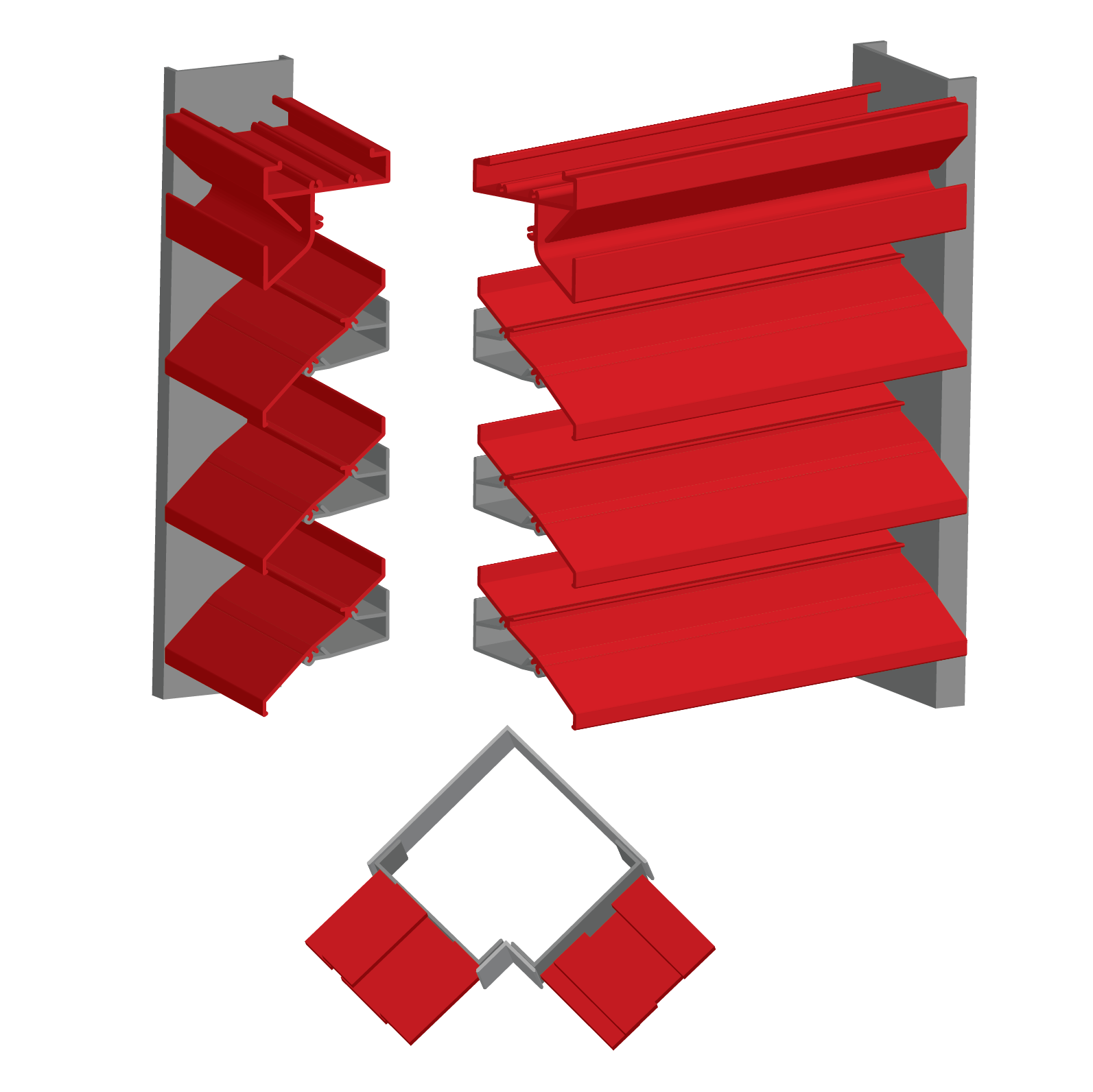

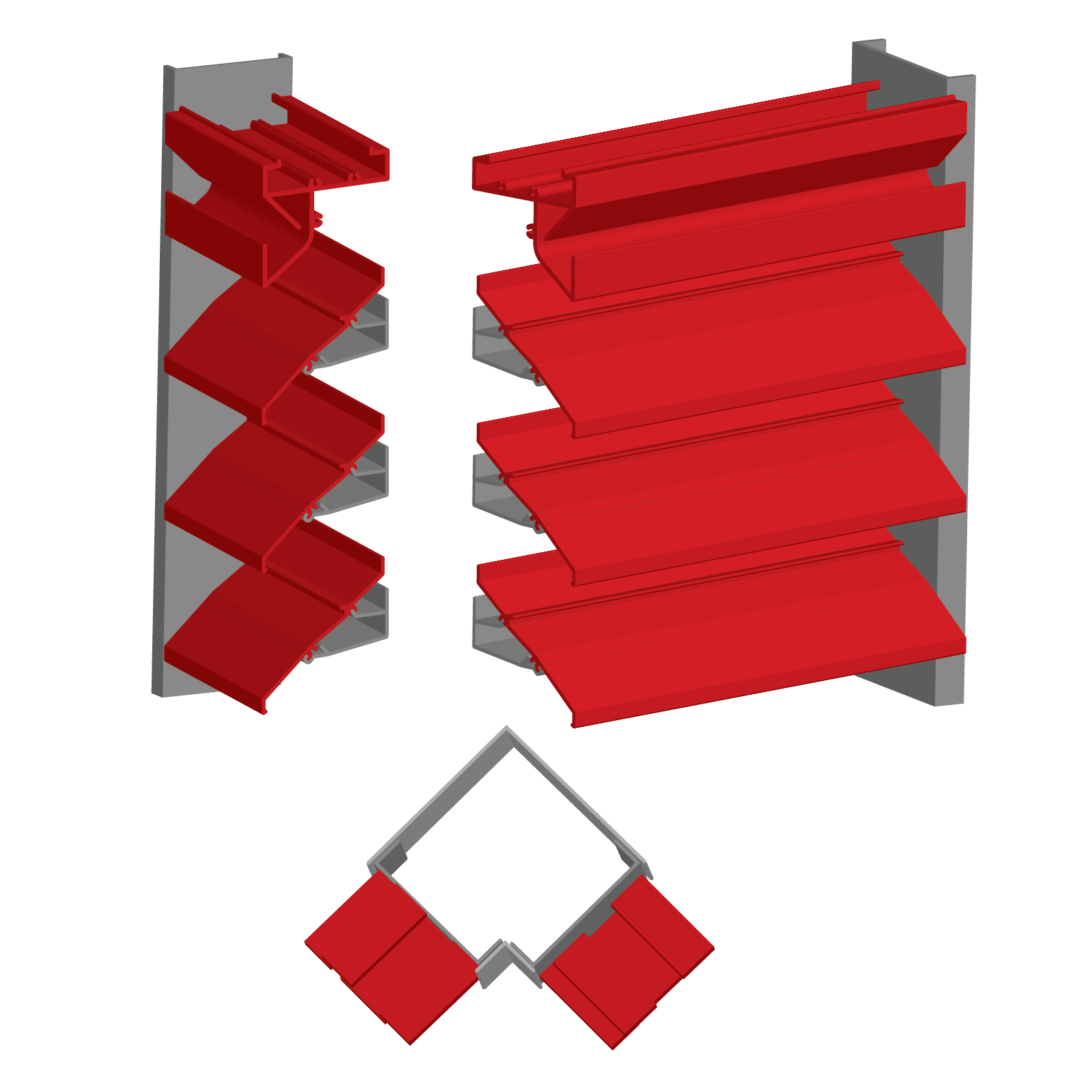

SPH-22-F-6

6" Deep Extruded Aluminum Straight Blade Penthouse with Post Corners

SPH22F6

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

SPH-35-F

4" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

SPH35F

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

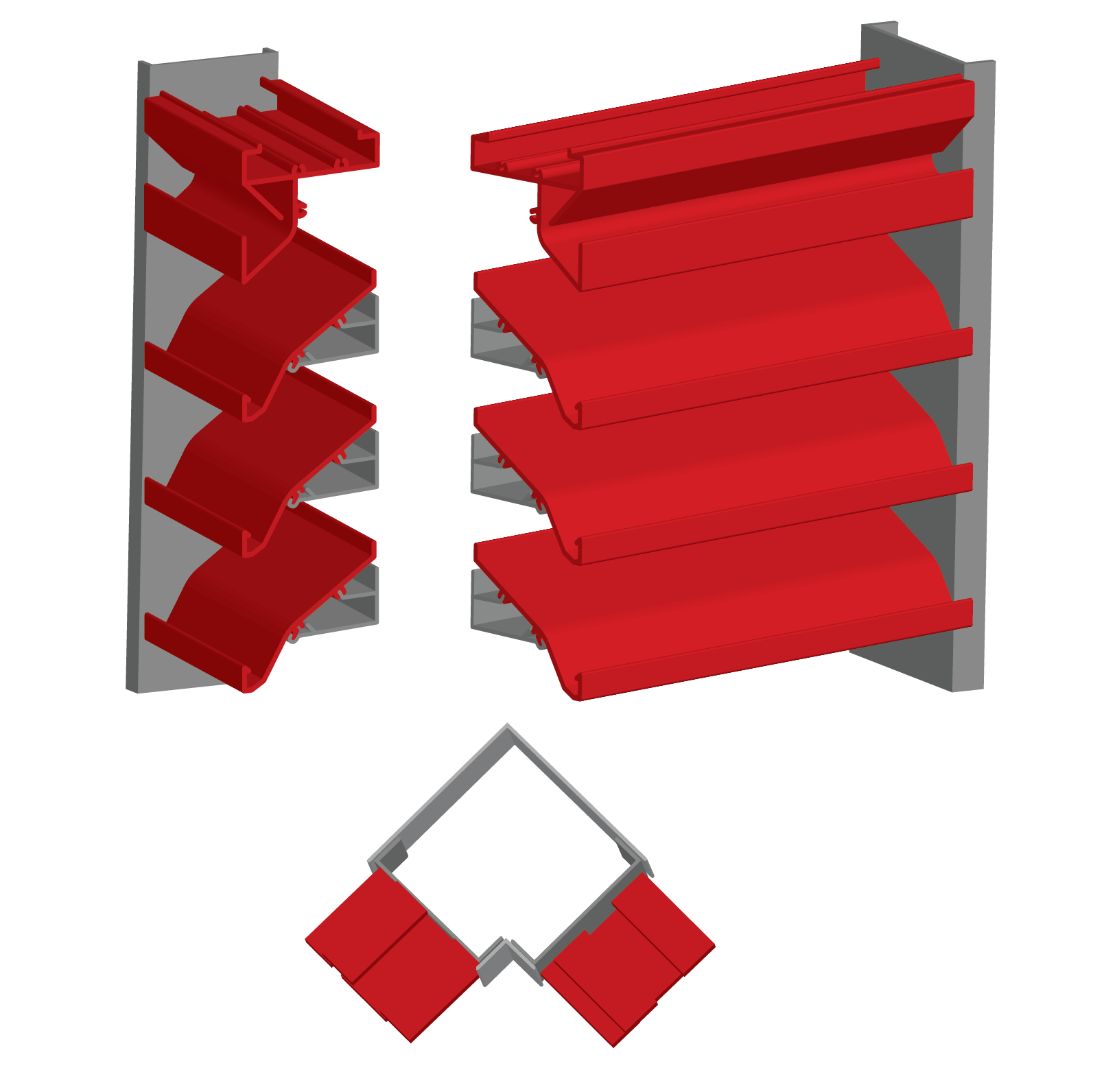

SPH-35-F-6

6" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

SPH35F6

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

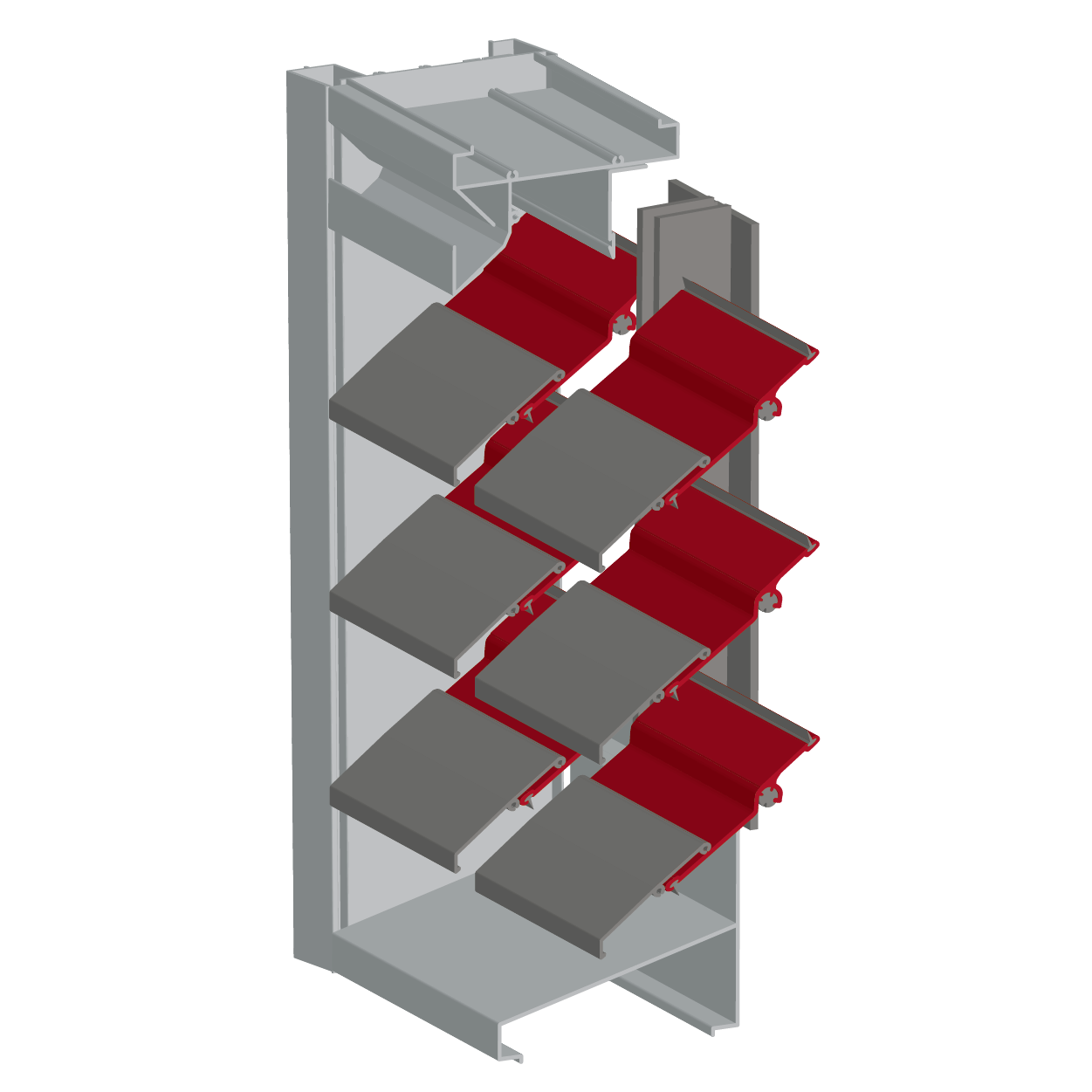

EA-681-CM

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Mullions

EA681C

Material Options: Extruded Aluminum
Blade Type: Straight Blade (J-Blade)

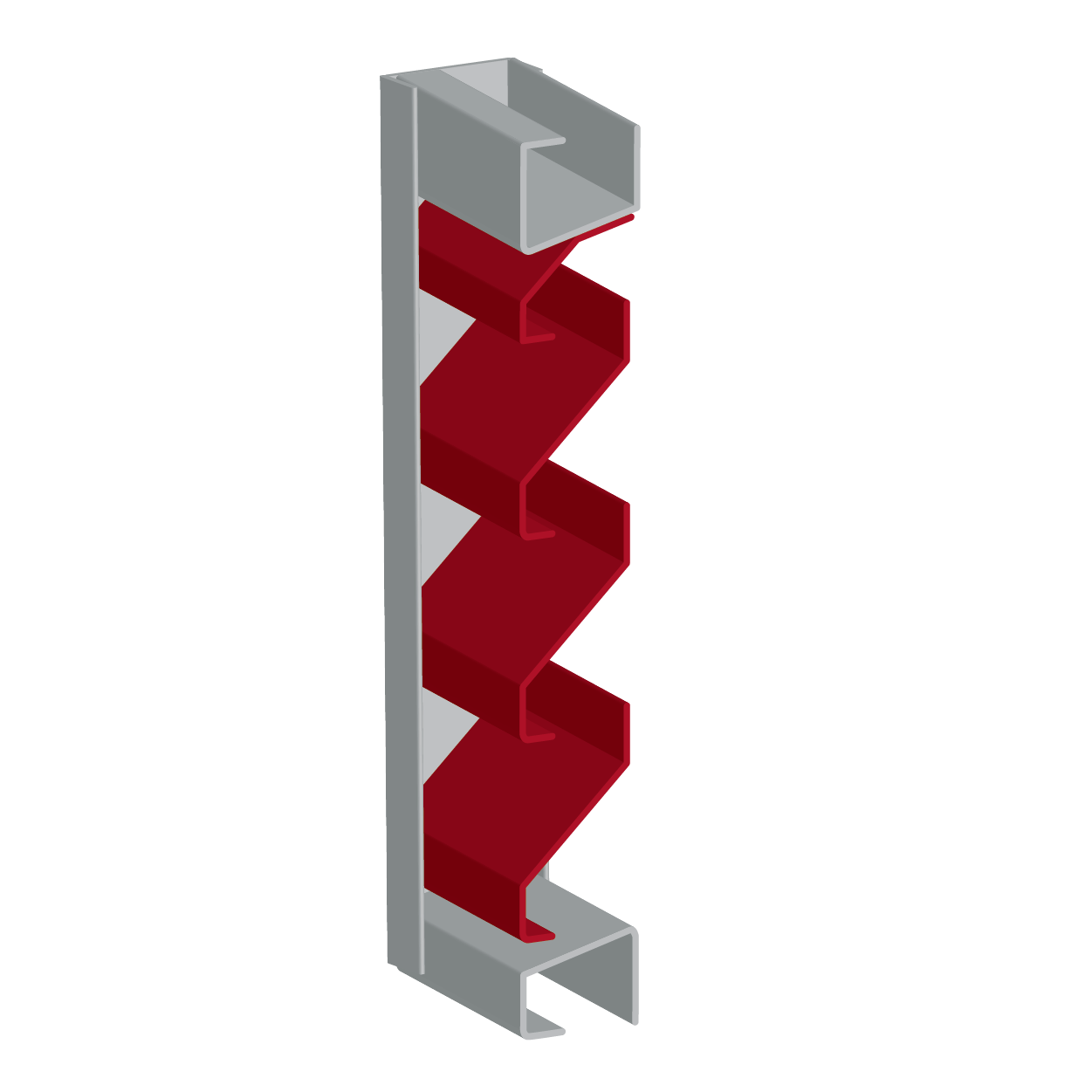

FS-150

1.5" Deep 45 Degree Stationary Formed Steel Louver

FS150

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

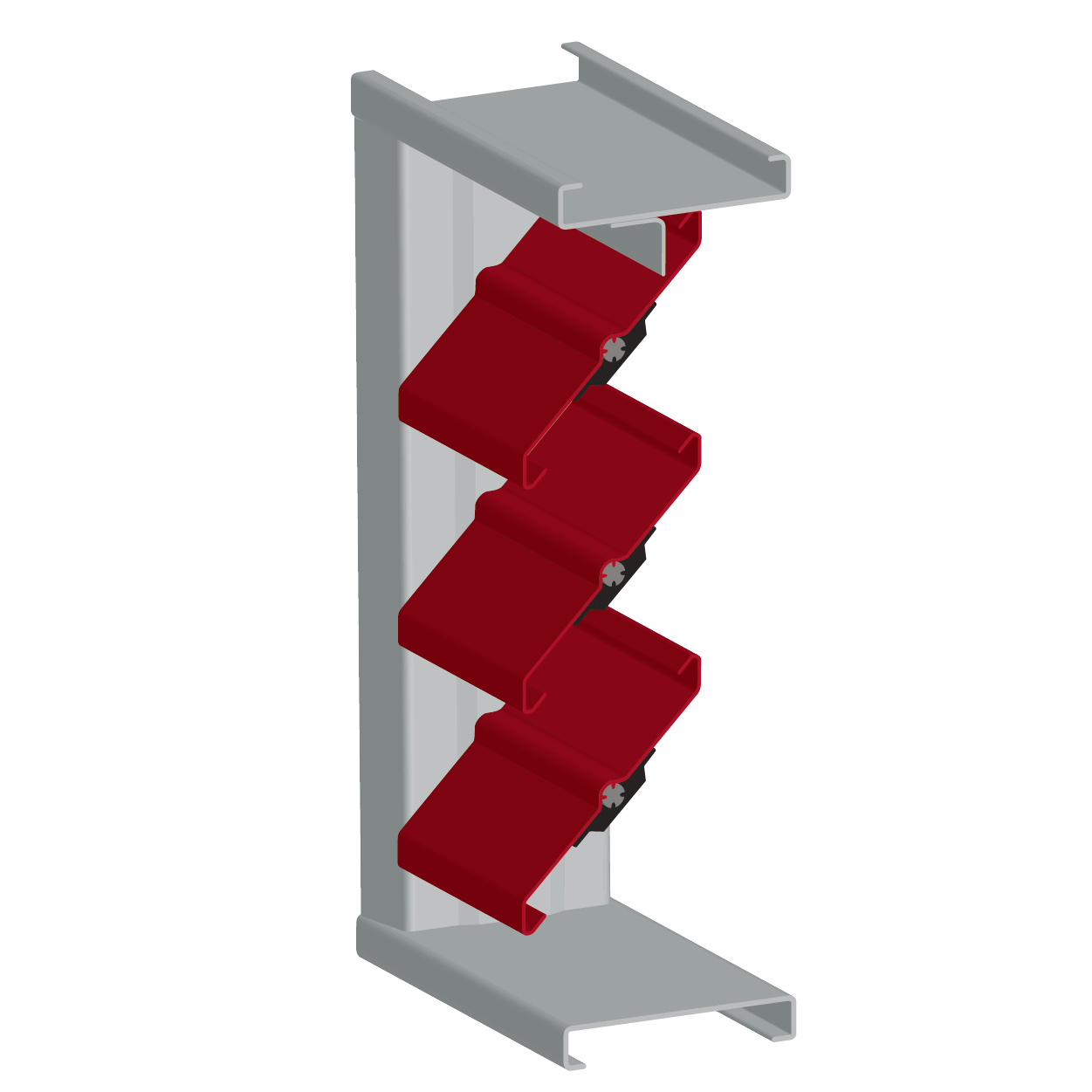

FS-403

4" Deep Formed Steel Adjustable Louver

FS403

Free Area %: 48.68%
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)(FPM)

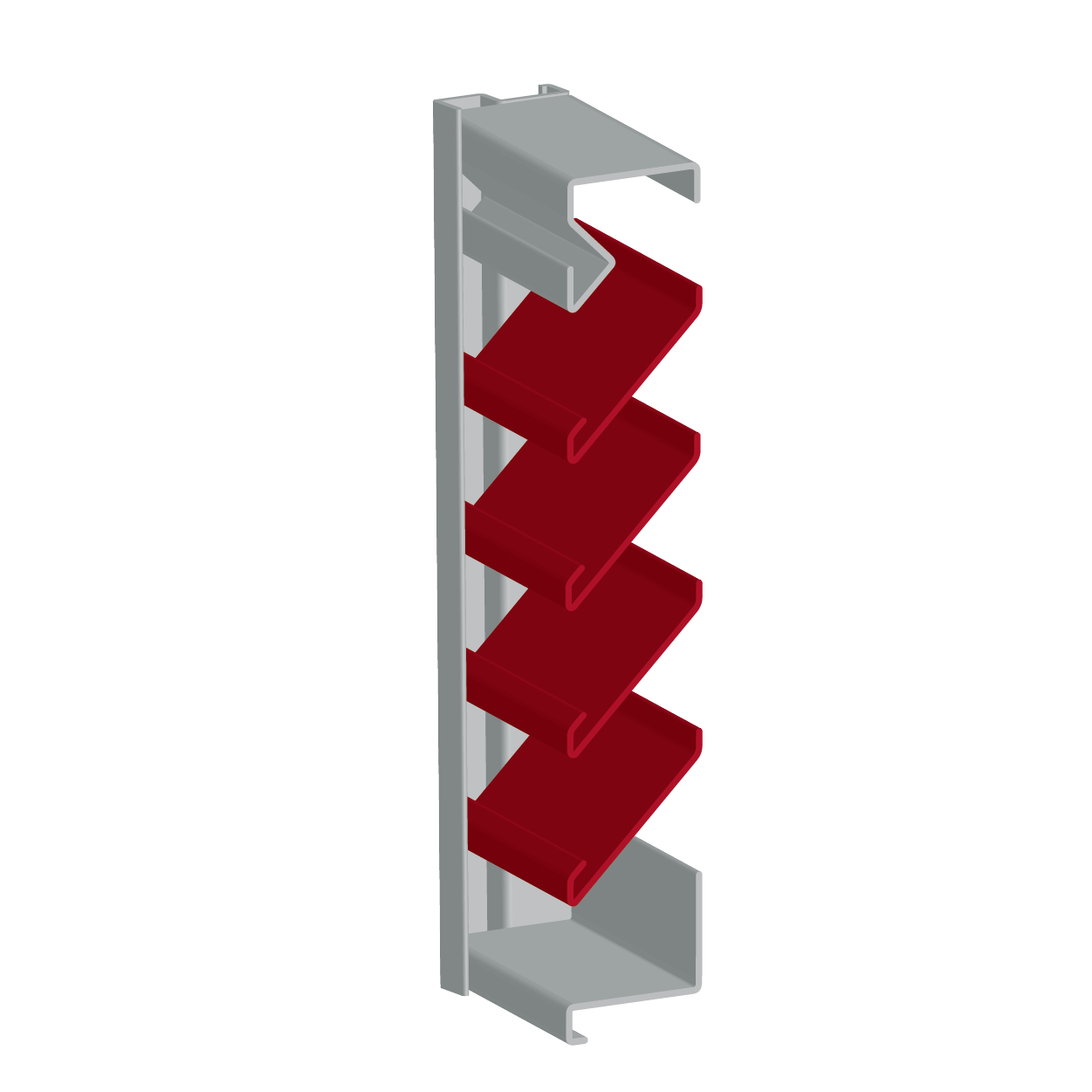

FS-406-D

4" Deep 45 Degree Stationary Drain Blade Steel Louver

FS406D

Free Area %: 50%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)(FPM)

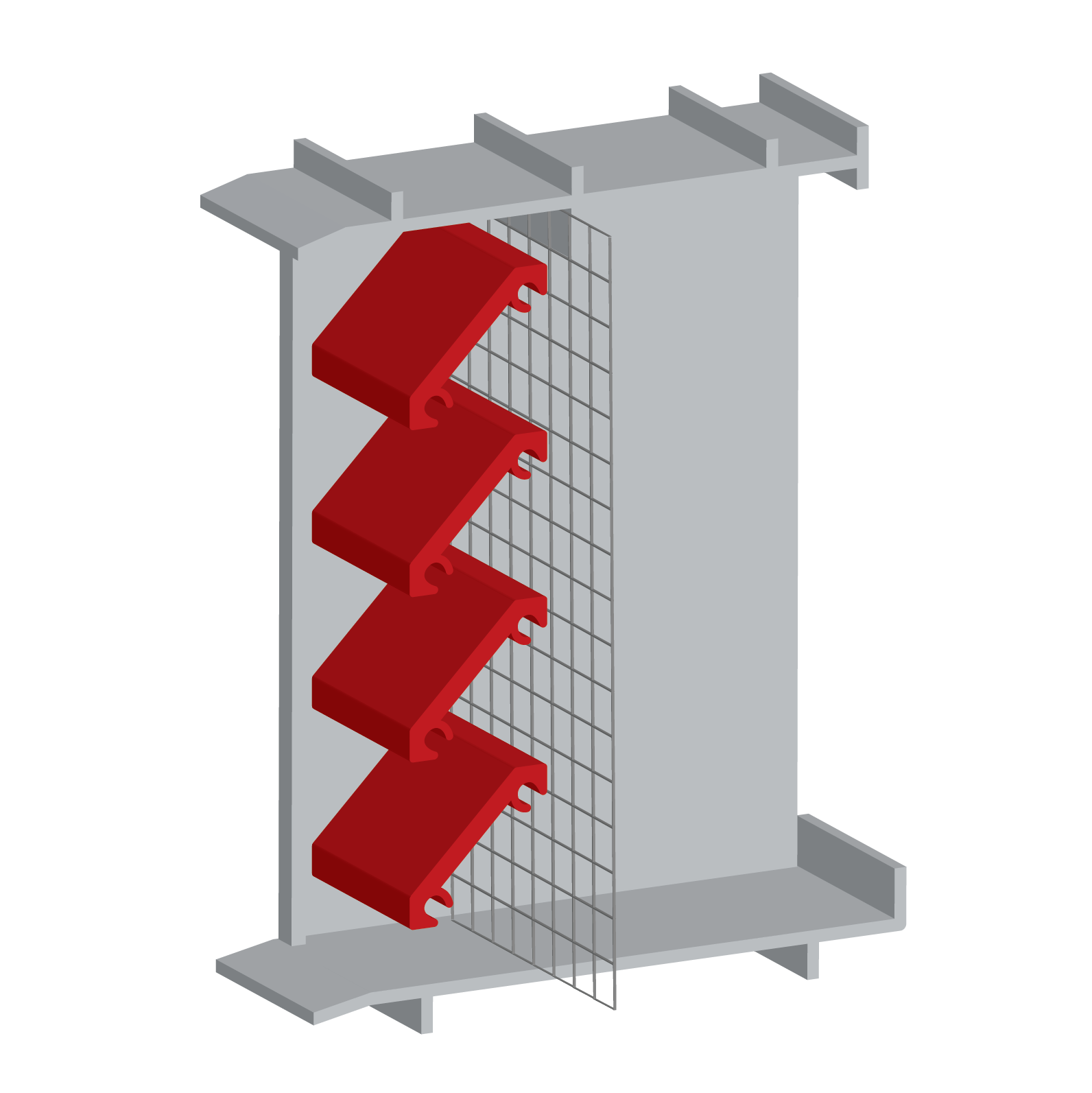

BV

Brick Vents with Standard Frames

BV

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
