Blade Type - Arrow

Chevron Blade

High-class protection with no compromises. Chevron blades have a wave design that prevents water infiltration without compromising air performance. Drainable models provide quick drainage for maximum weather protection.

Chevron blades are available for stationary louvers and severe weather louvers.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products 27

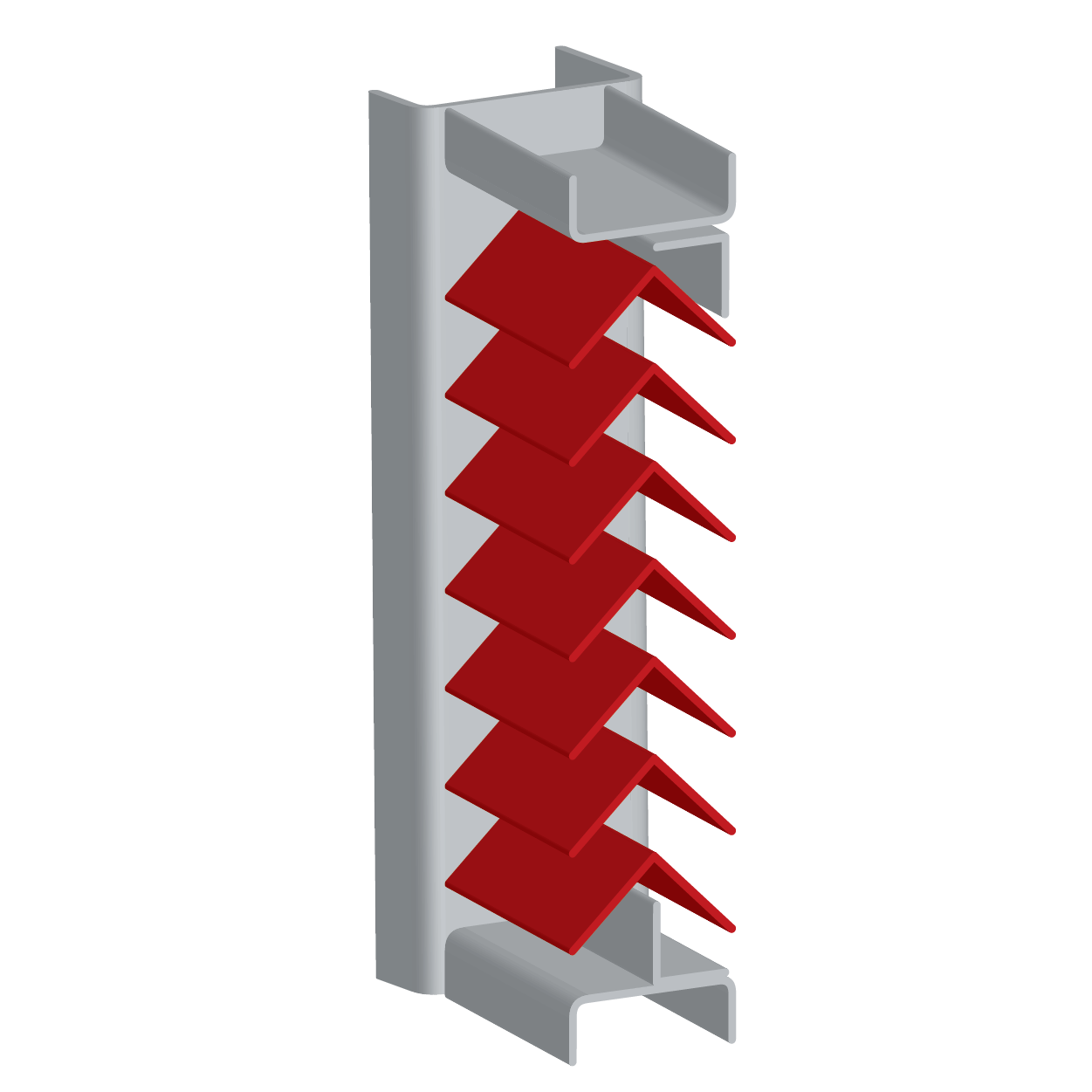

AL-UF5

5.5" Deep Aluminum FEMA Louver

ALUF5

Free Area %: 49.3%
Pressure Drop: .35 in. w.g. @ 1000 fpm

Material Options: Structural Aluminum, or Rolled Aluminum
Blade Type: Chevron Blade
Pressure Drop: .35 in. w.g. @ 1000 fpm

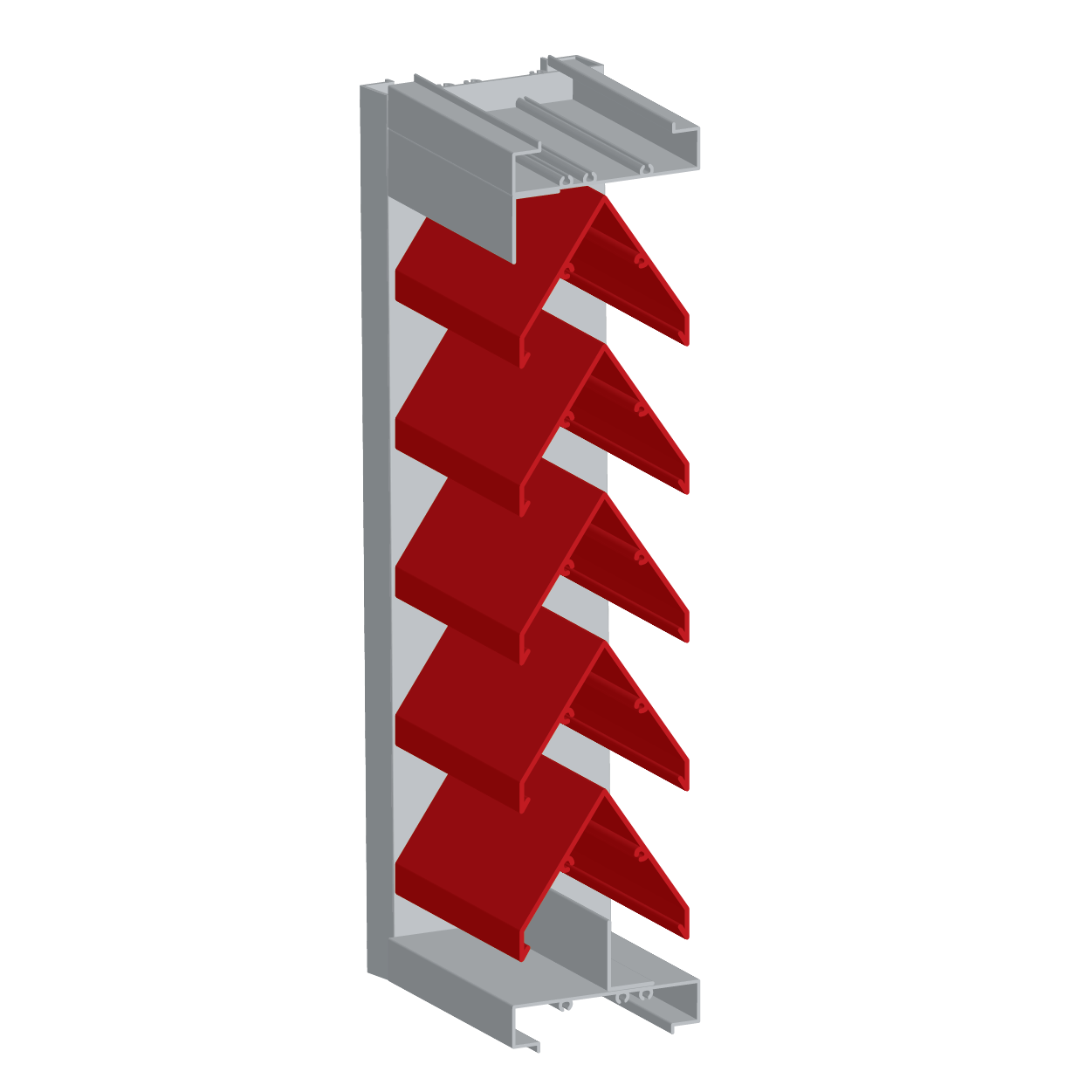

C-33

4" Deep Horizontal Extruded Aluminum Sightproof Chevron Blade Louver

C33

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 789 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Blade Action: Parallel
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 789 (fpm)(FPM)

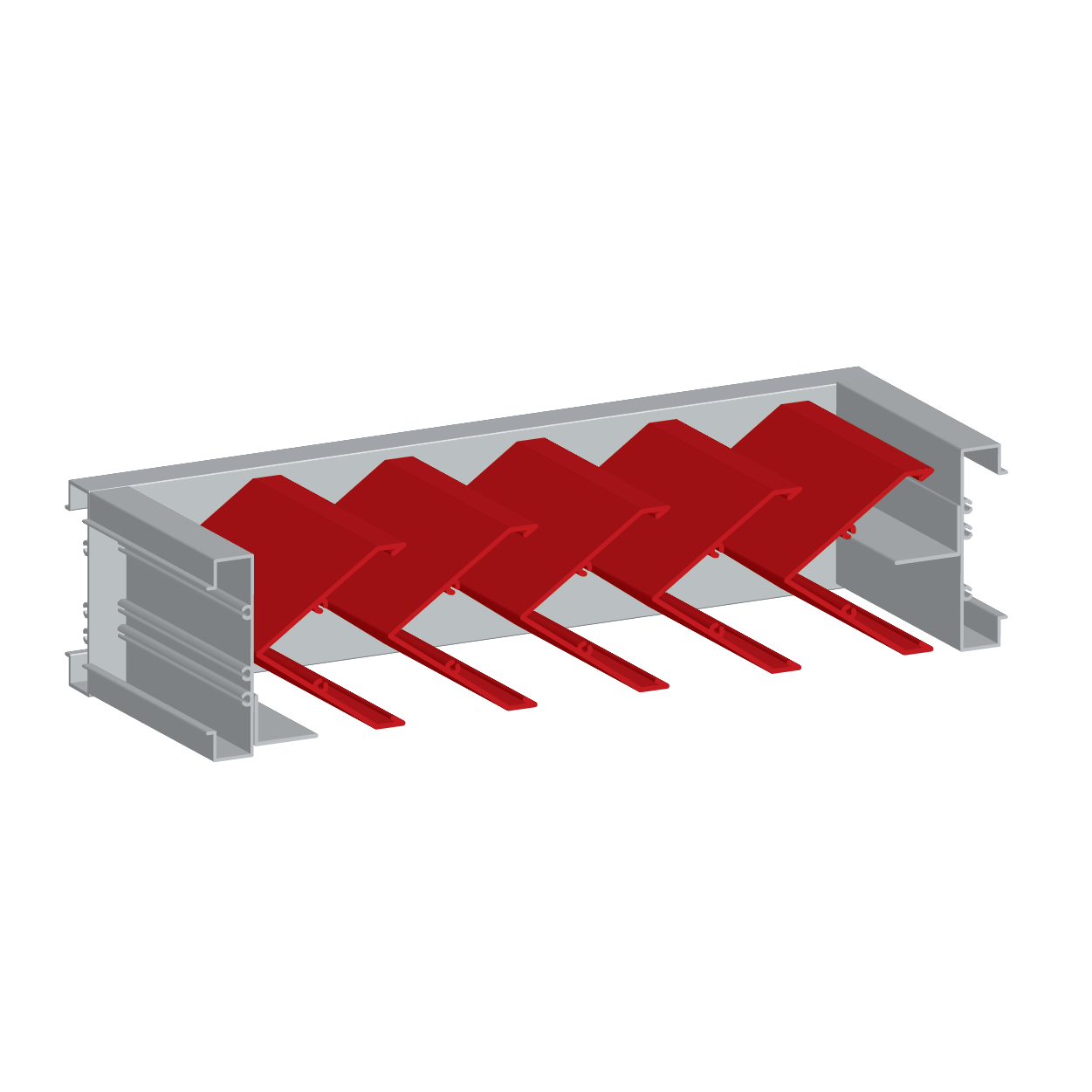

C-34

4" Deep Vertical Extruded Aluminum Sightproof Chevron Blade Louver

C34

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 848 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 848 (fpm)(FPM)

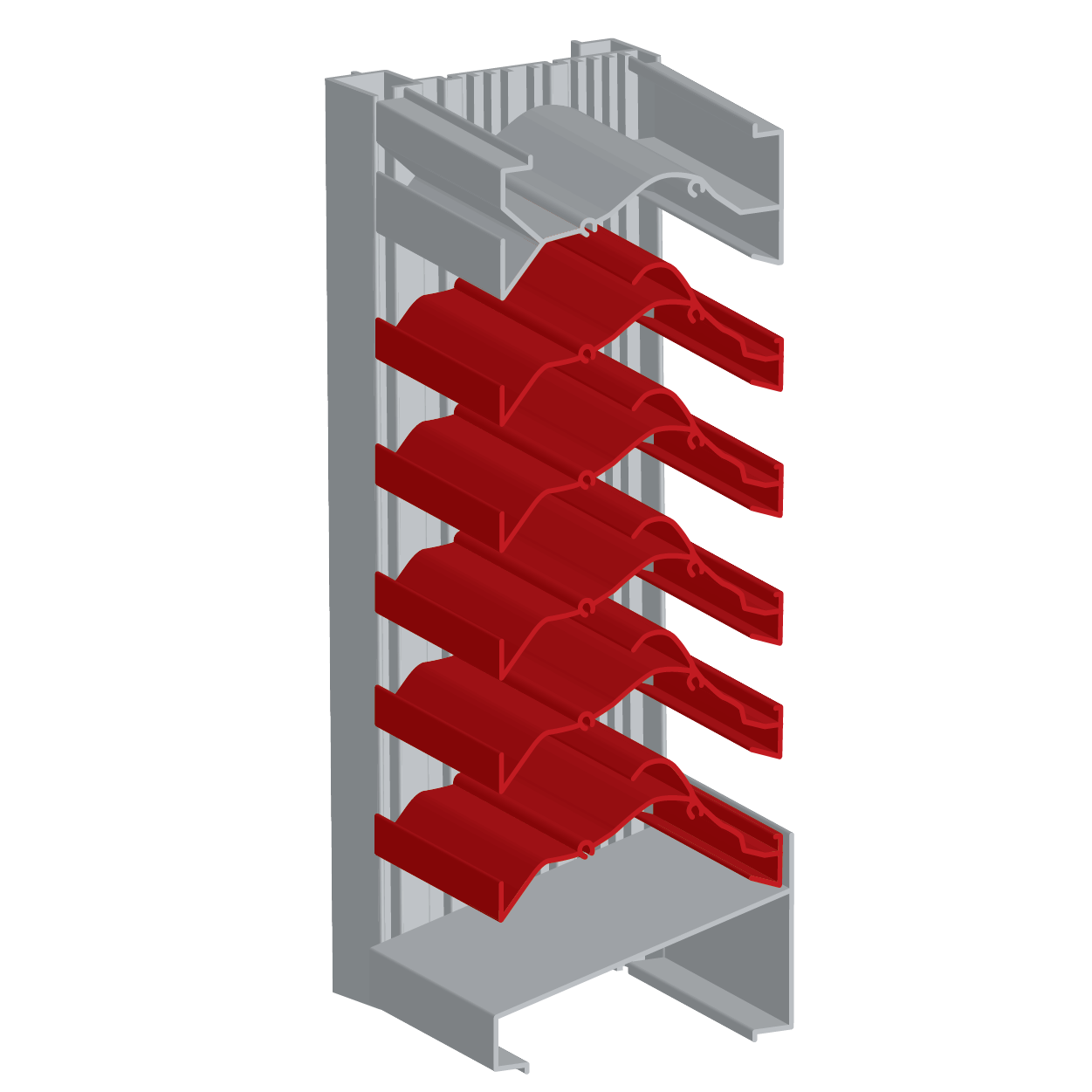

EA-52

5" Deep, Fixed Chevron Drainable Blade, Hurricane Louver (Miami-Dade Certified)

EA52

Free Area %: 44.3%
Pressure Drop: .31 in. w.g. @ 1250 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .31 in. w.g. @ 1250 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

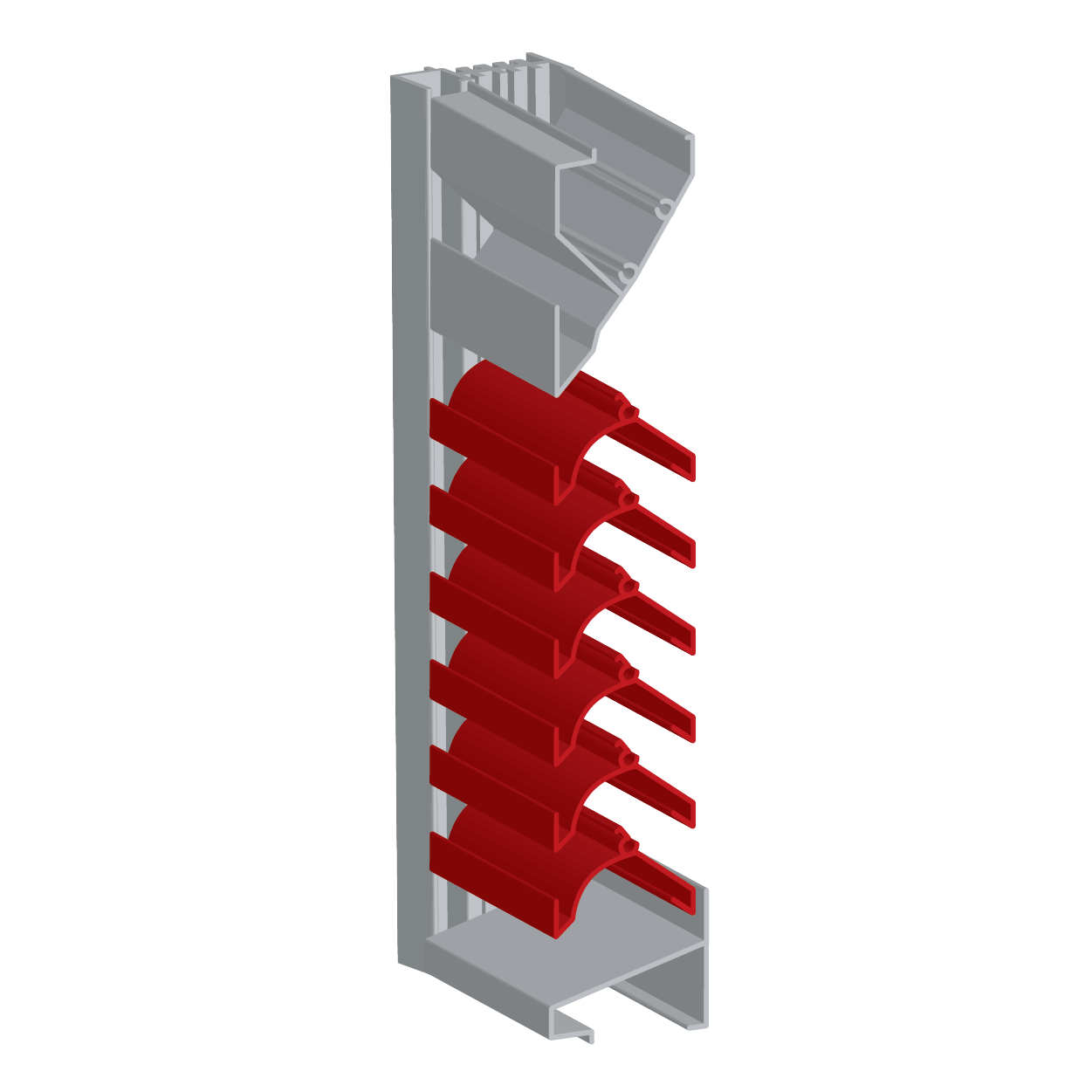

EA-210-D

2" Deep Horizontal Drainable Chevron Blades Wind Driven Rain

EA210D

Free Area %: 43.3%
Pressure Drop: .38 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .38 in. w.g. @ 1000 fpm

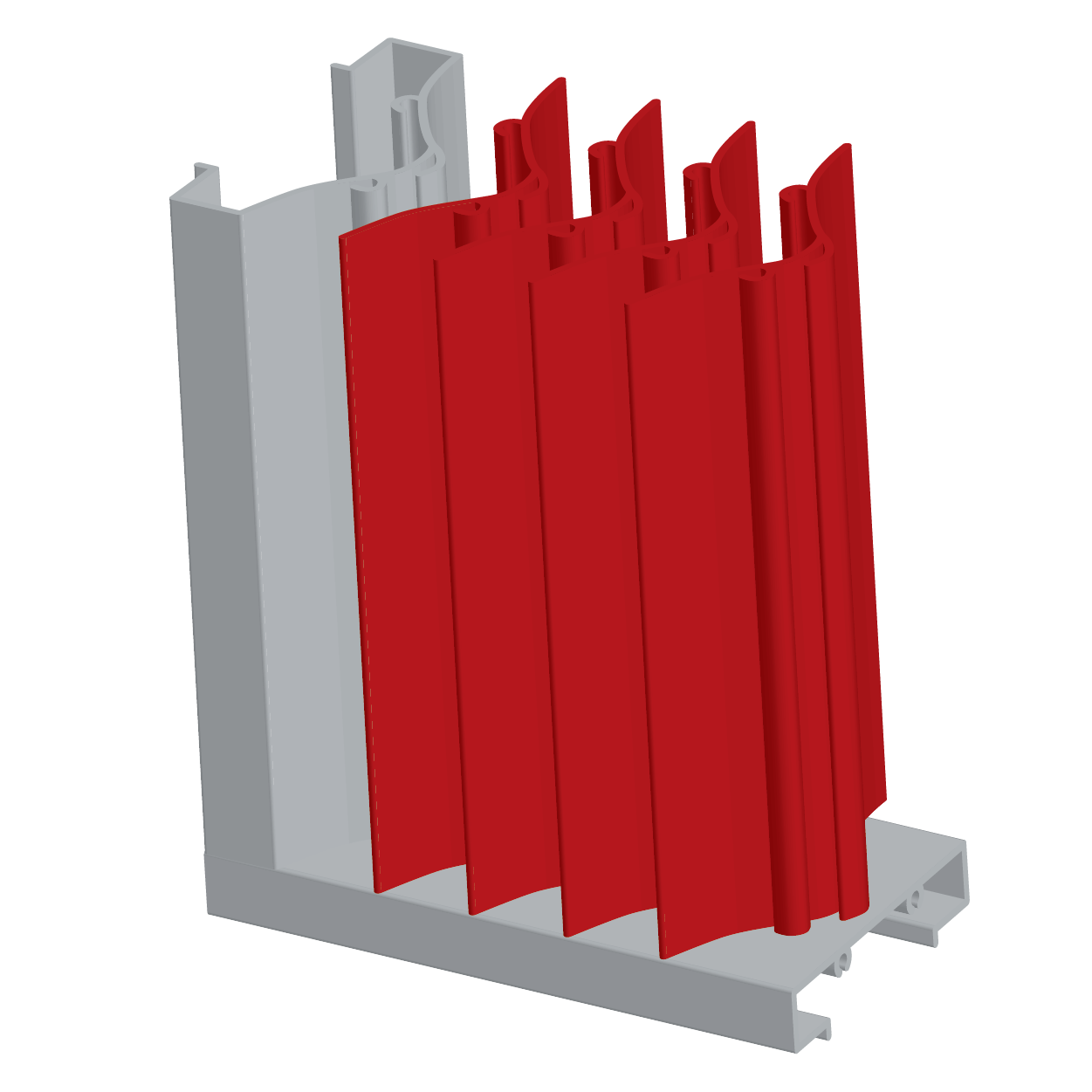

EA-331-VSL

3" Deep Extruded Aluminum Vertical Chevron Blade Rain Resistant Storm Louver

EA331VSL

Free Area %: 44%
Pressure Drop: .083 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .083 in. w.g. @ 1000 fpm

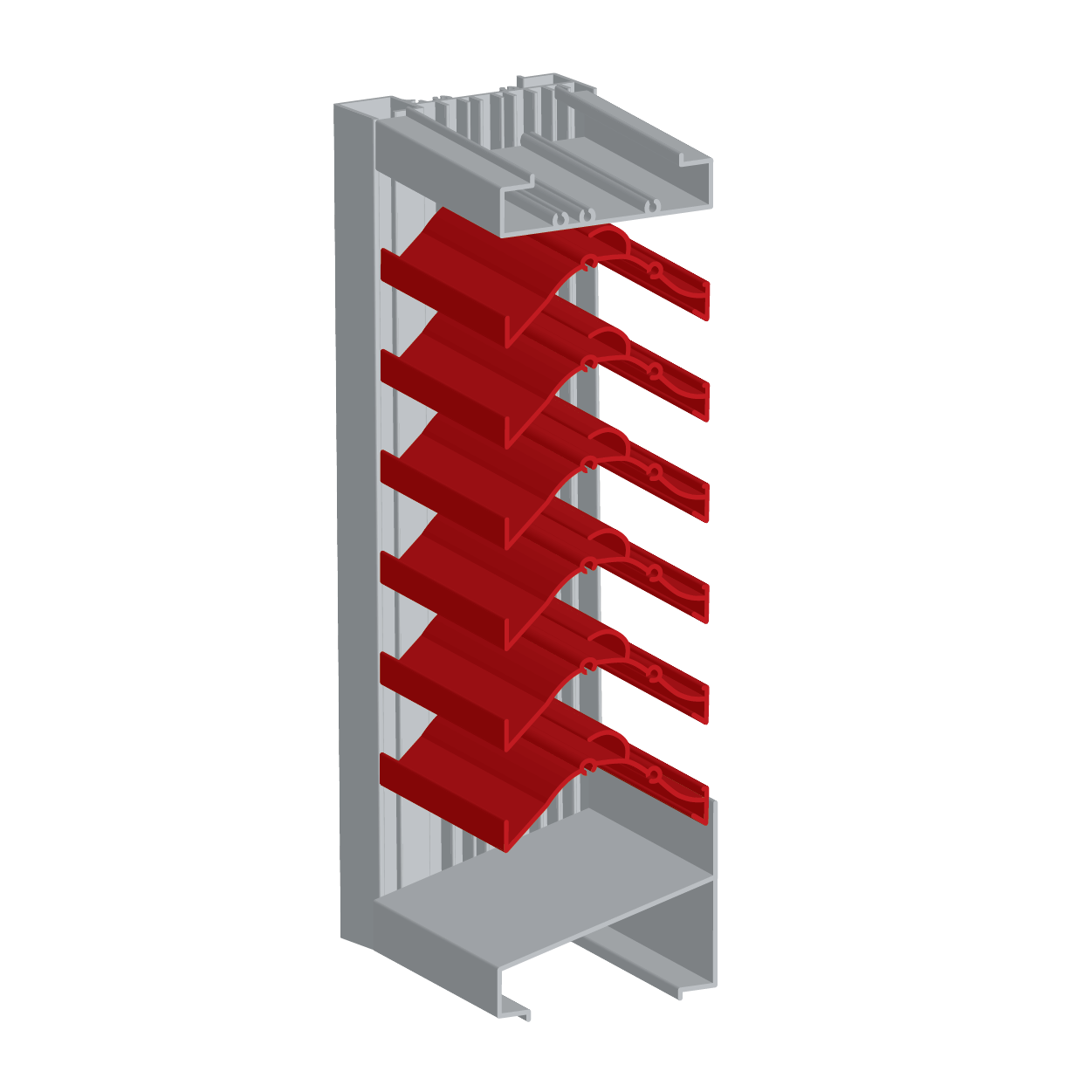

EA-475-DH

4" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

EA475DH

Free Area %: 47%
Pressure Drop: .26 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .26 in. w.g. @ 1000 fpm

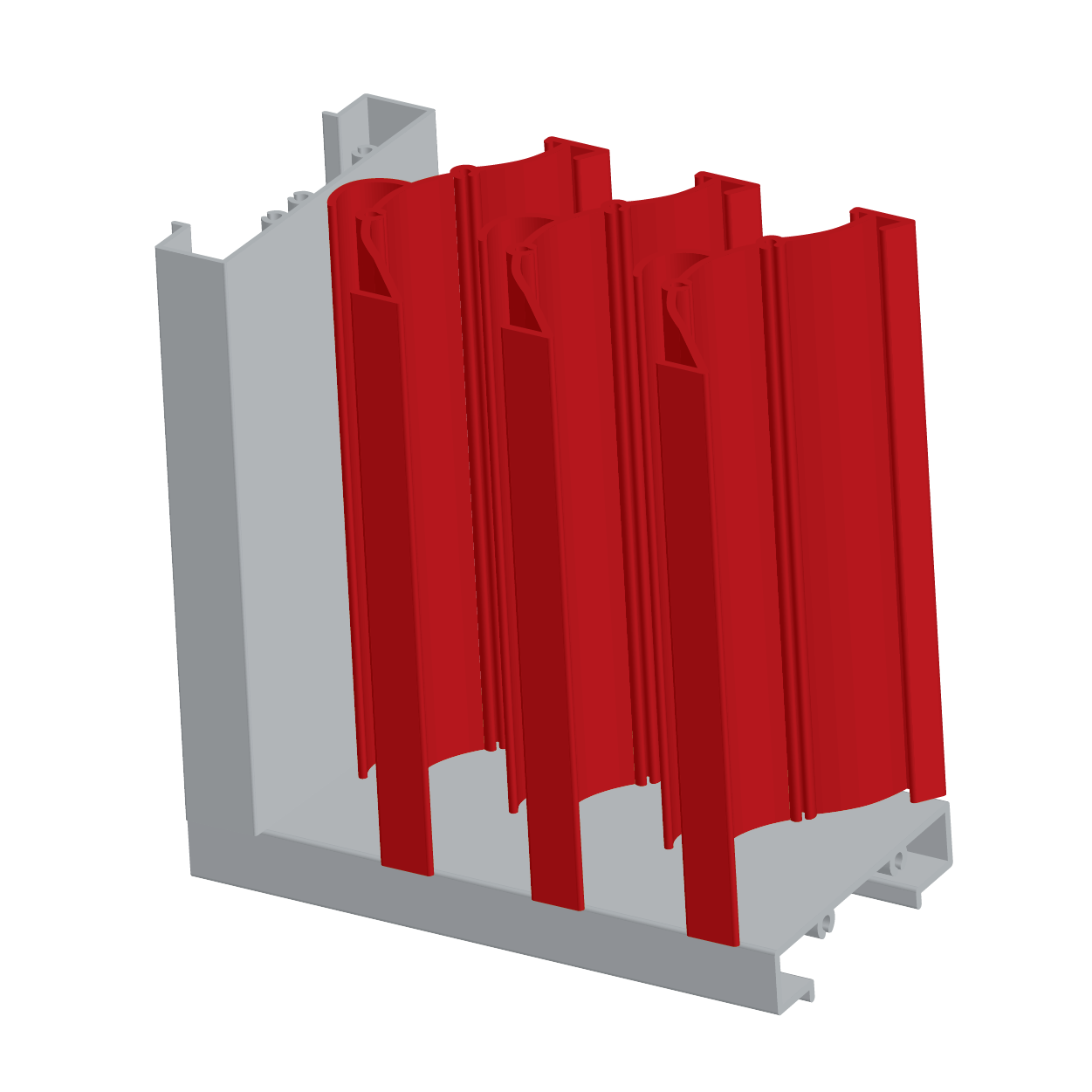

EA-475-DV

4" Deep Vertical Chevron Drainable Blade Wind Driven Rain Resistant Louver

EA475DV

Free Area %: 47%
Pressure Drop: .26 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .26 in. w.g. @ 1000 fpm

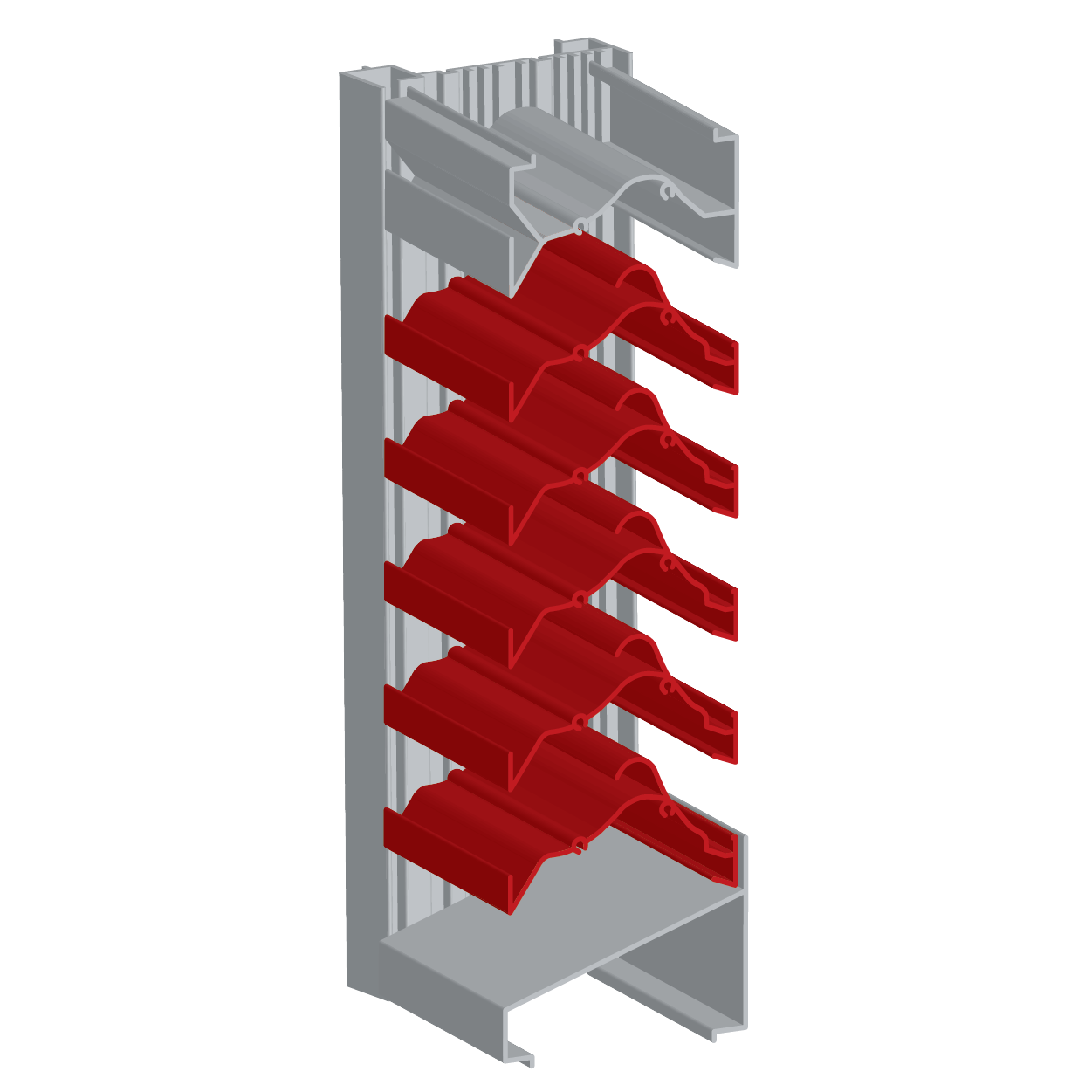

EA-520-D

5" Deep Drainable Chevron Blade Wind Driven Rain Resistant Sightproof Louver

EA520D

Free Area %: 44.3%
Pressure Drop: .32 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .32 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

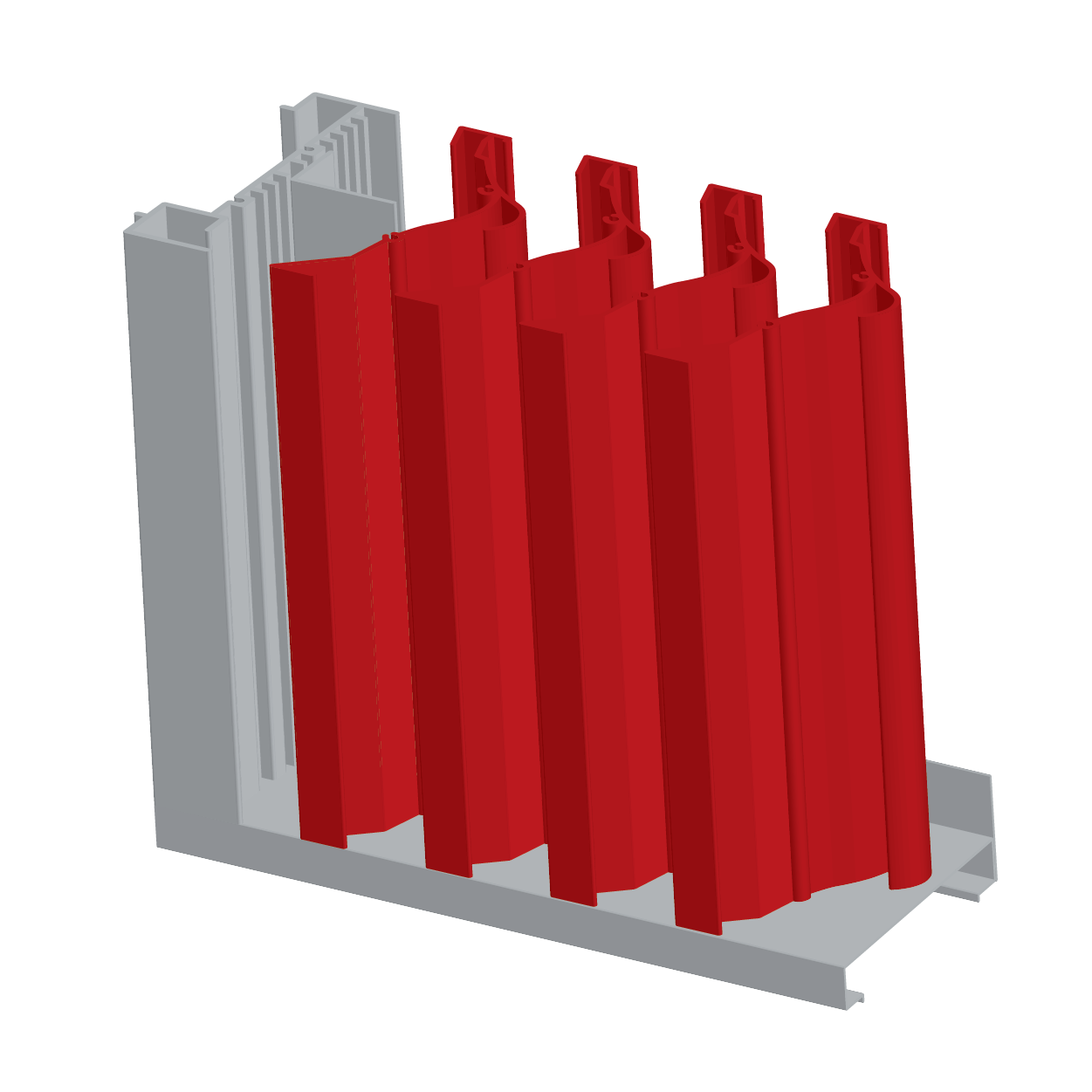

EA-521V

5" Deep Vertical Chevron Drainable Blade Wind Driven Rain Resistant Sightproof Louver

EA521V

Free Area %: 46.1%
Pressure Drop: .22 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .22 in. w.g. @ 1000 fpm

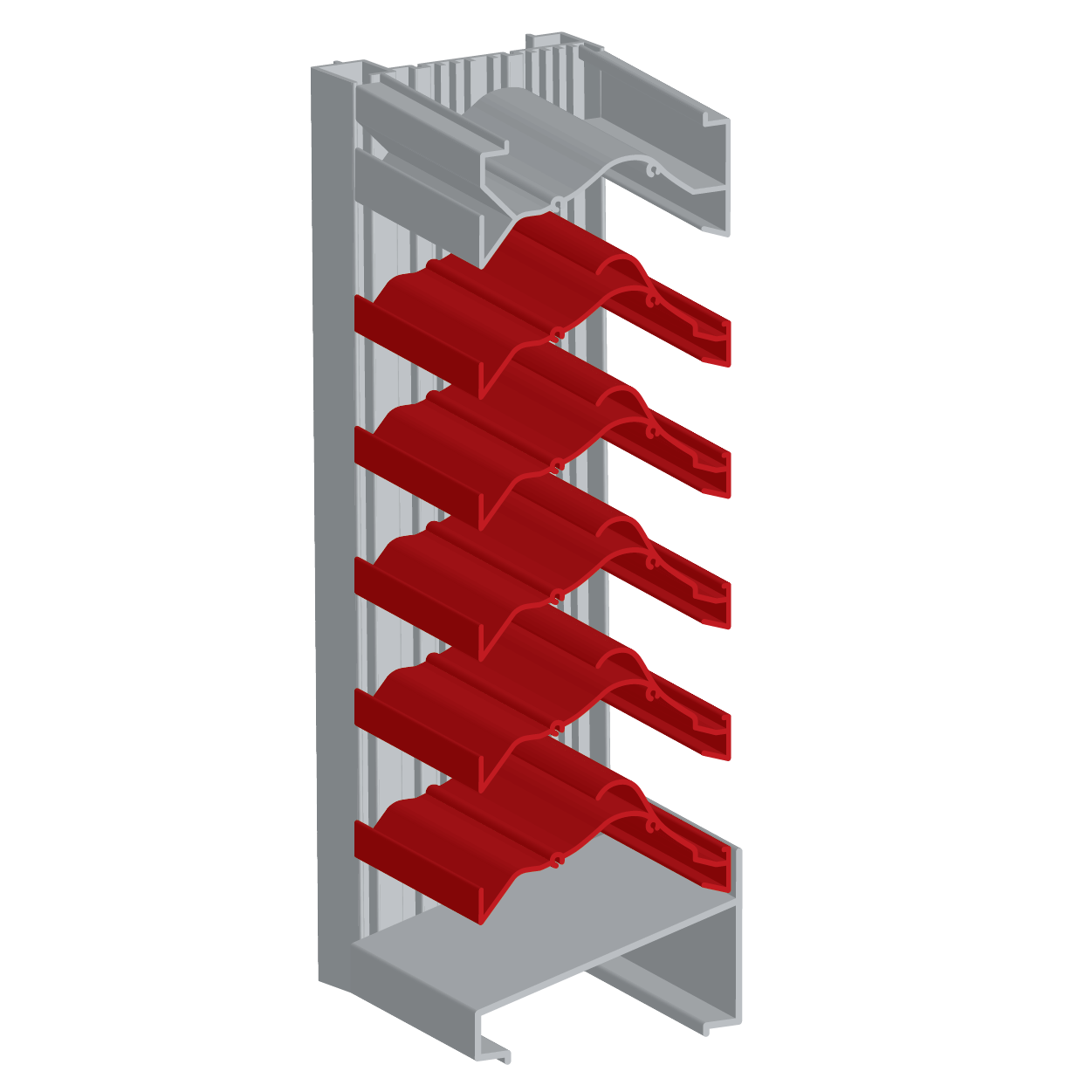

EA-522-D

5" Deep Chevron Drainable Blade Louver

EA522D

Free Area %: 48.3%
Pressure Drop: .208 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1141 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .208 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1141 (fpm)(FPM)

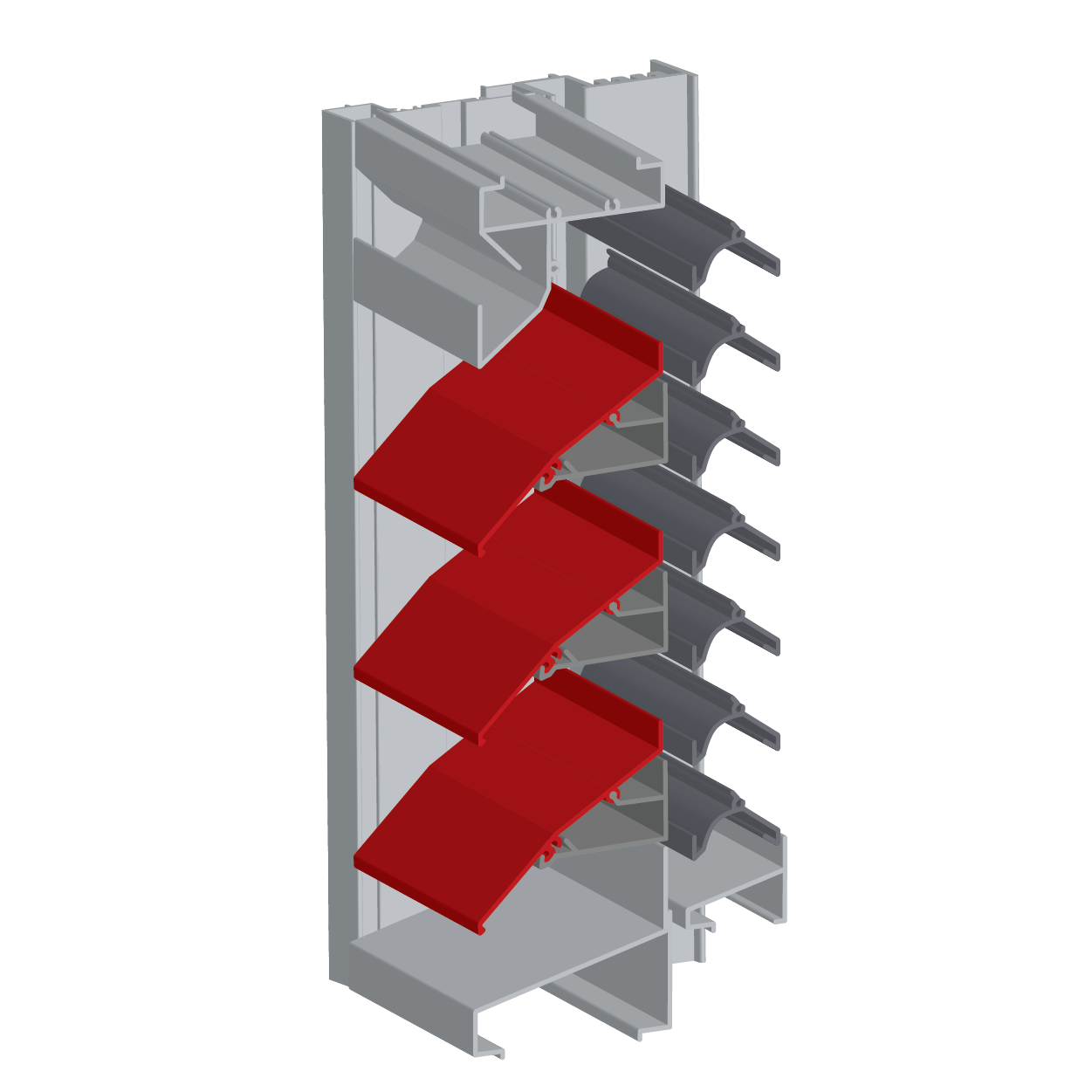

EA-620

6" Deep Drainable Combination Stationary Wind Driven Rain Resistant Storm Louver

EA620

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .16 in. w.g. @ 1000 fpm

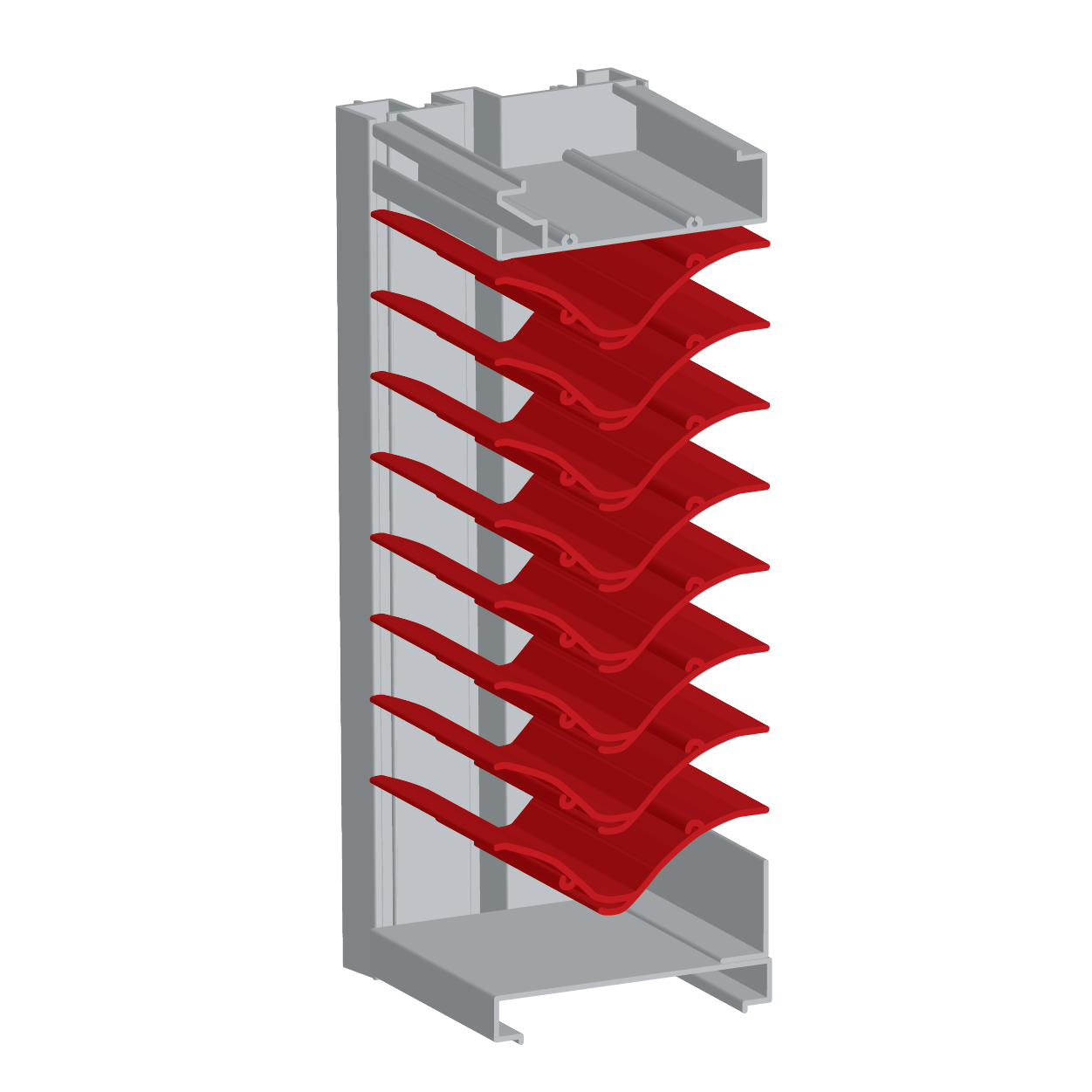

EA-662-HSL

6" Deep Extruded Aluminum Horizontal Chevron Blade Rain Resistant Storm Louver

EA662HSL

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 925 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .1 in. w.g. @ 925 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

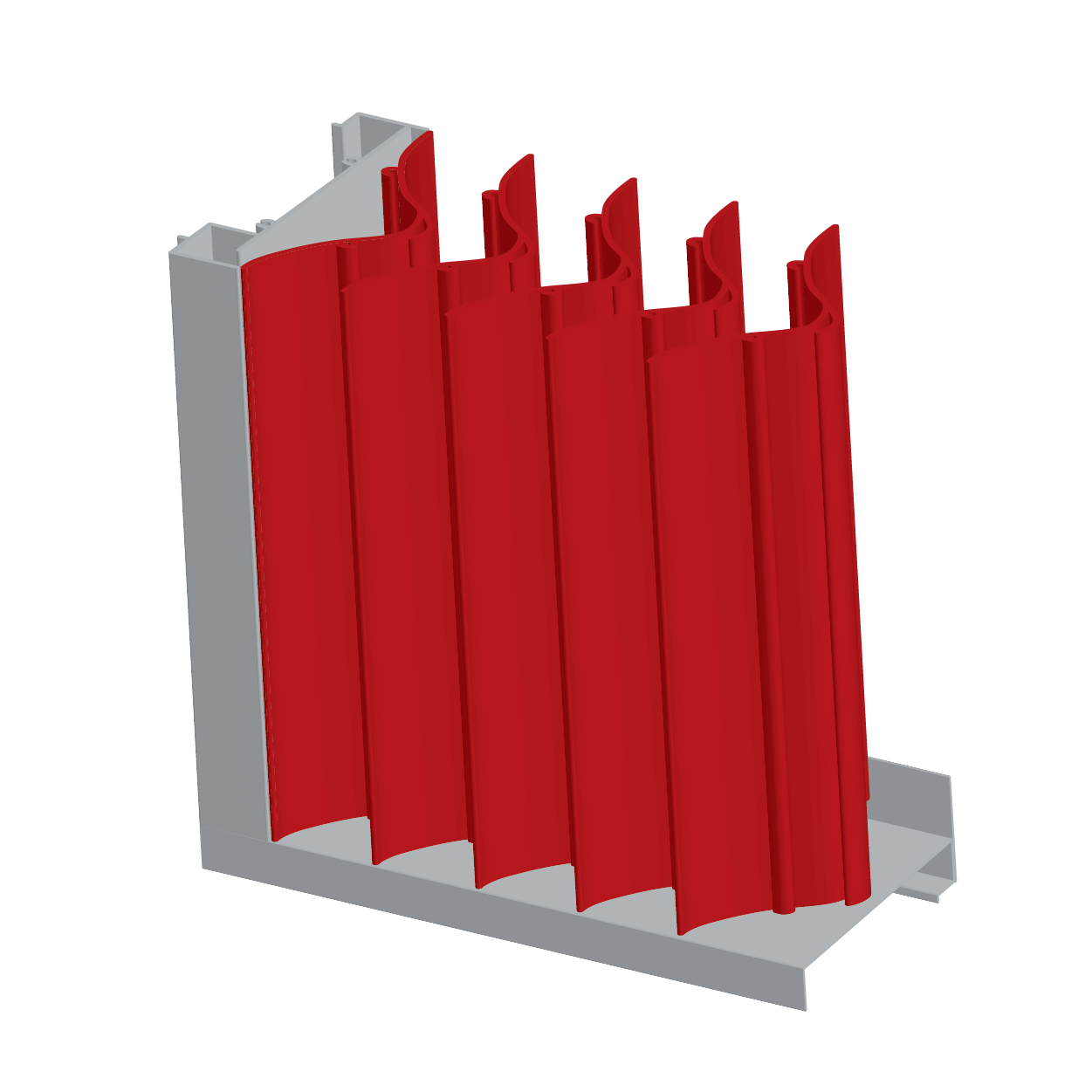

EA-662-VSL

6" Deep Extruded Aluminum Vertical Chevron Blade Rain Resistant Storm Louver

EA662VSL

Free Area %: 53%
Pressure Drop: .103 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .103 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

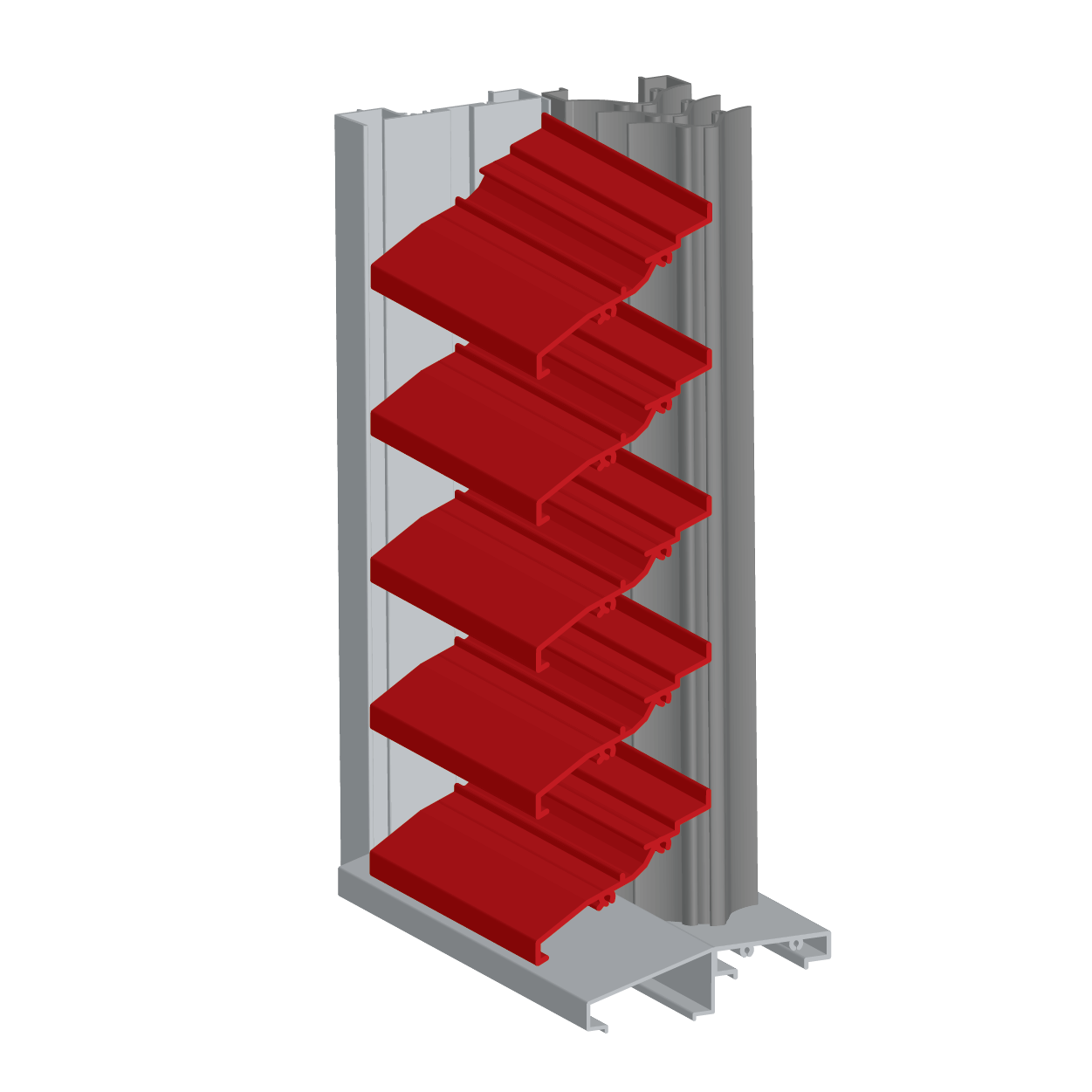

EA-721-S

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

EA721S

Free Area %: 42.4%
Pressure Drop: .022 in. w.g. @ 400 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .022 in. w.g. @ 400 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

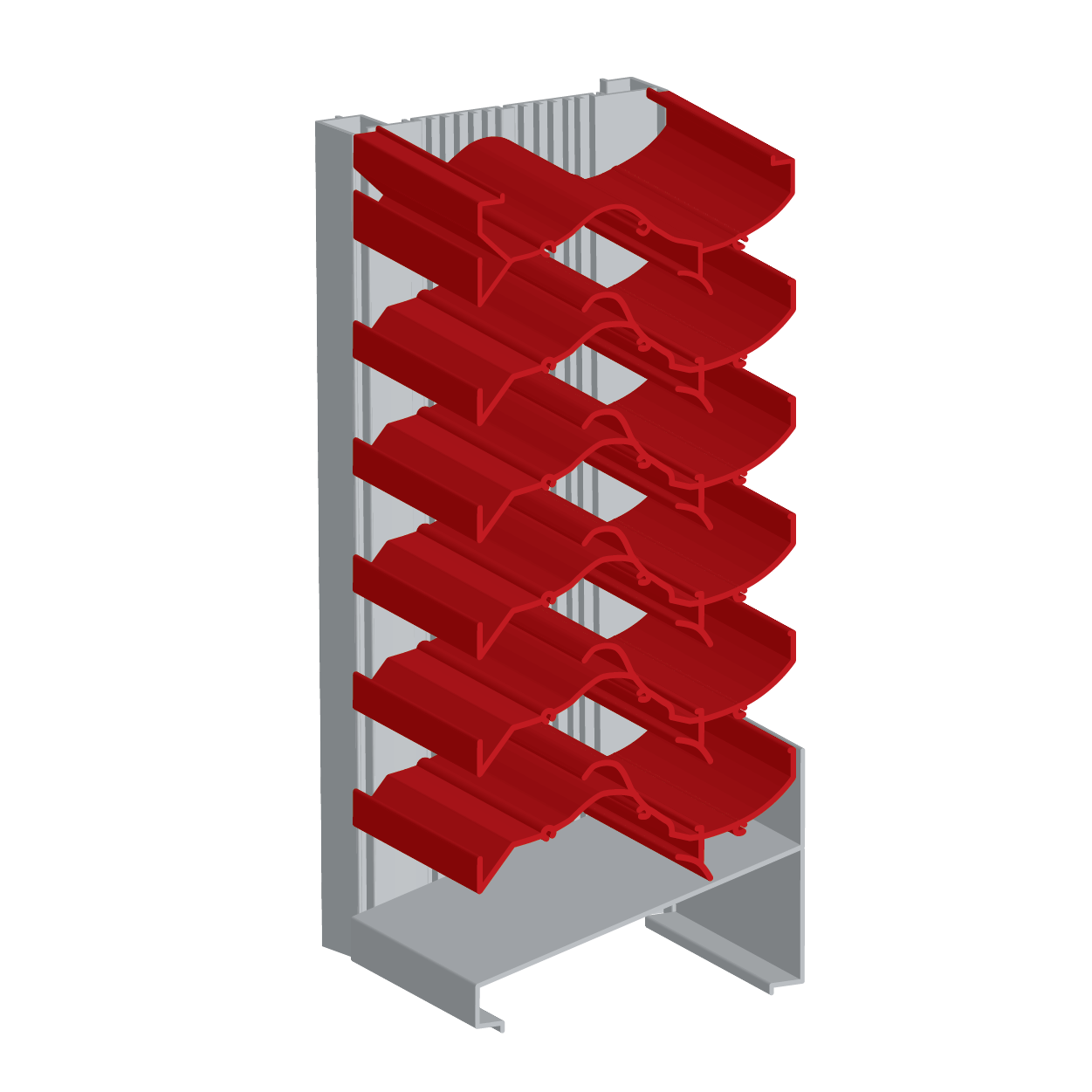

EA-725-D

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

EA725D

Free Area %: 45.1%
Pressure Drop: .34 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1187 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .34 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1187 (fpm)(FPM)

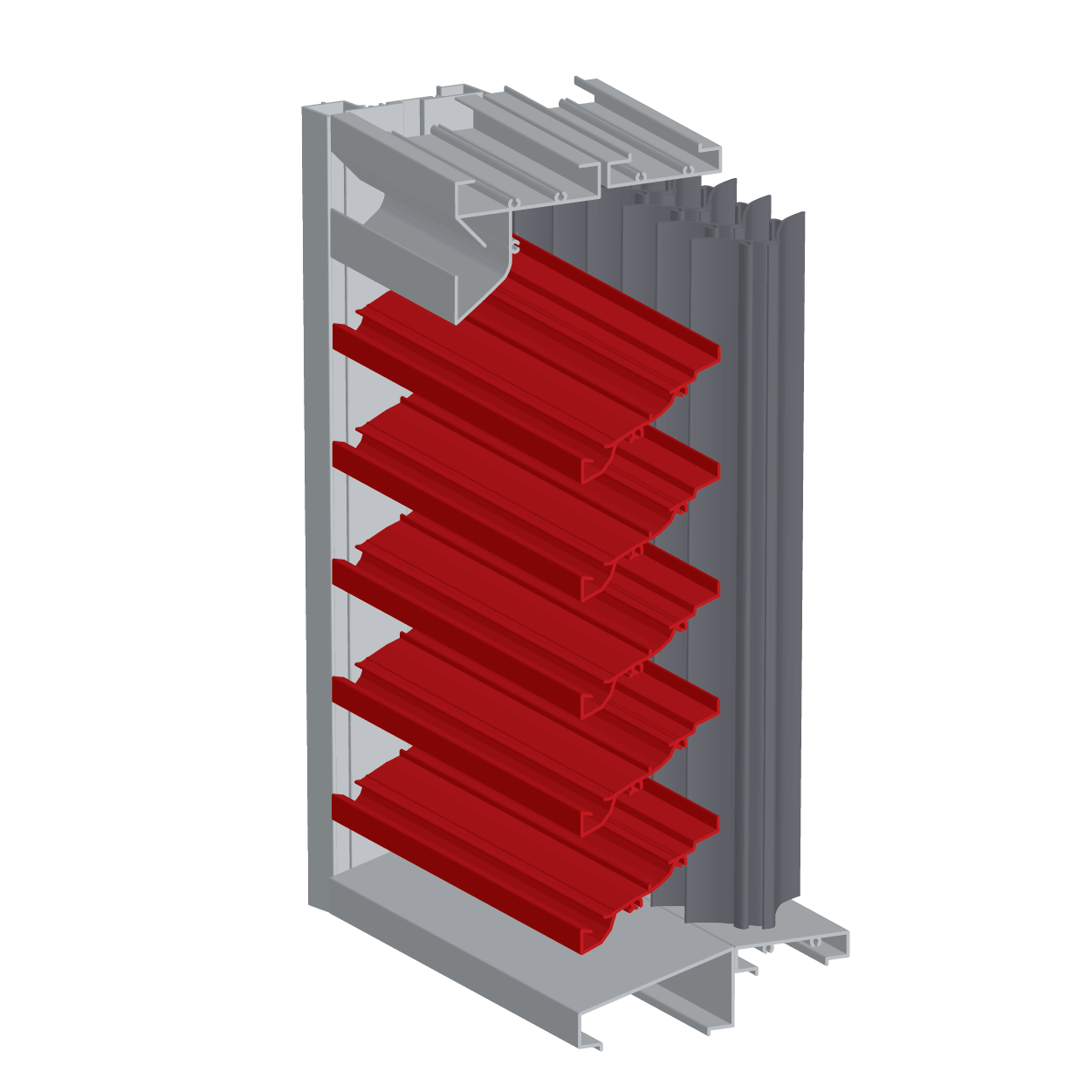

EA-731-D

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain and Impact Resistant Louver

New

EA731D

Free Area %: 42.4%
Pressure Drop: .022 in. w.g. @ 398 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .022 in. w.g. @ 398 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

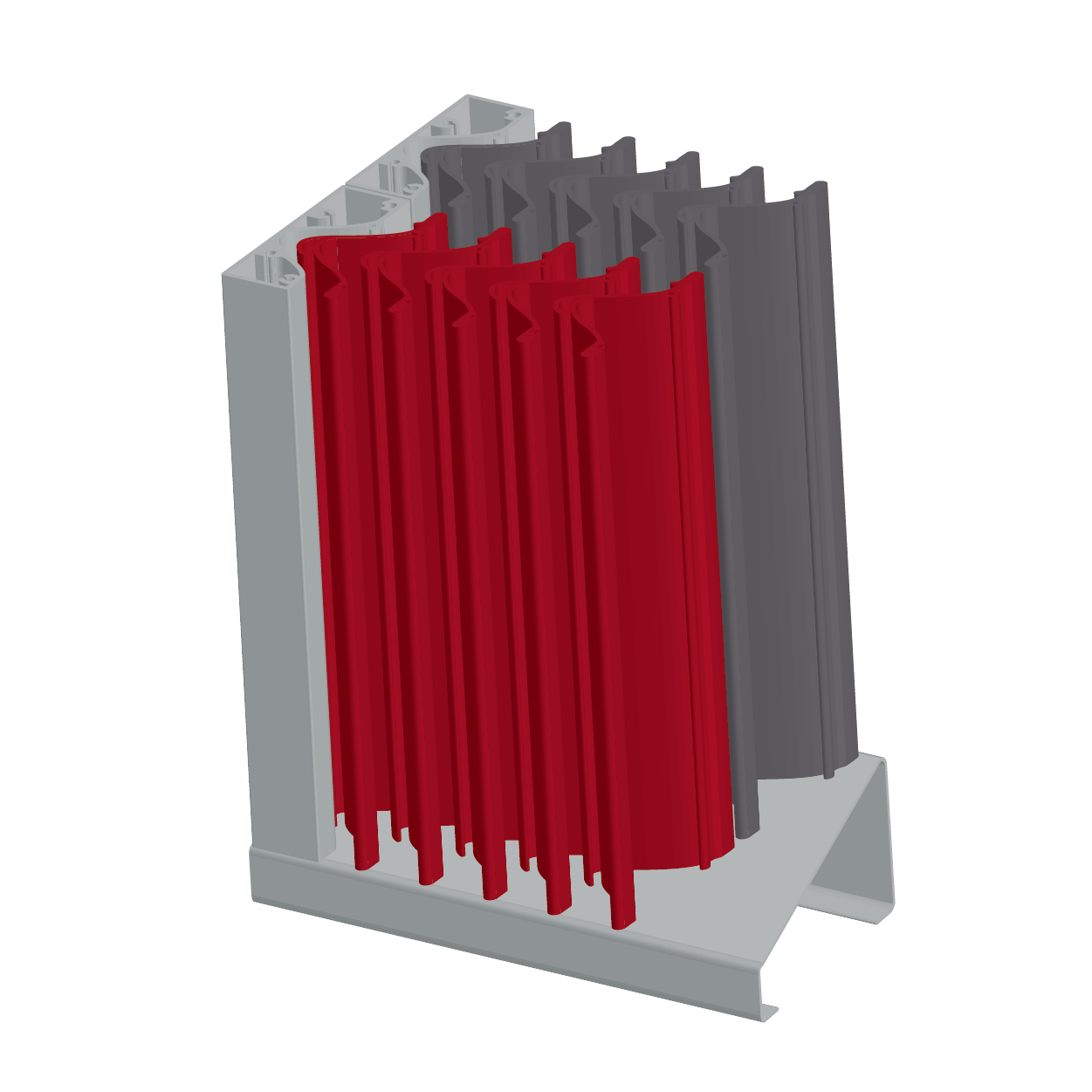

EA-800

8" Deep Extruded Aluminum Sand Louver

EA800

Free Area %: 27.56%
Pressure Drop: .65 in. w.g. @ 1250 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .65 in. w.g. @ 1250 fpm

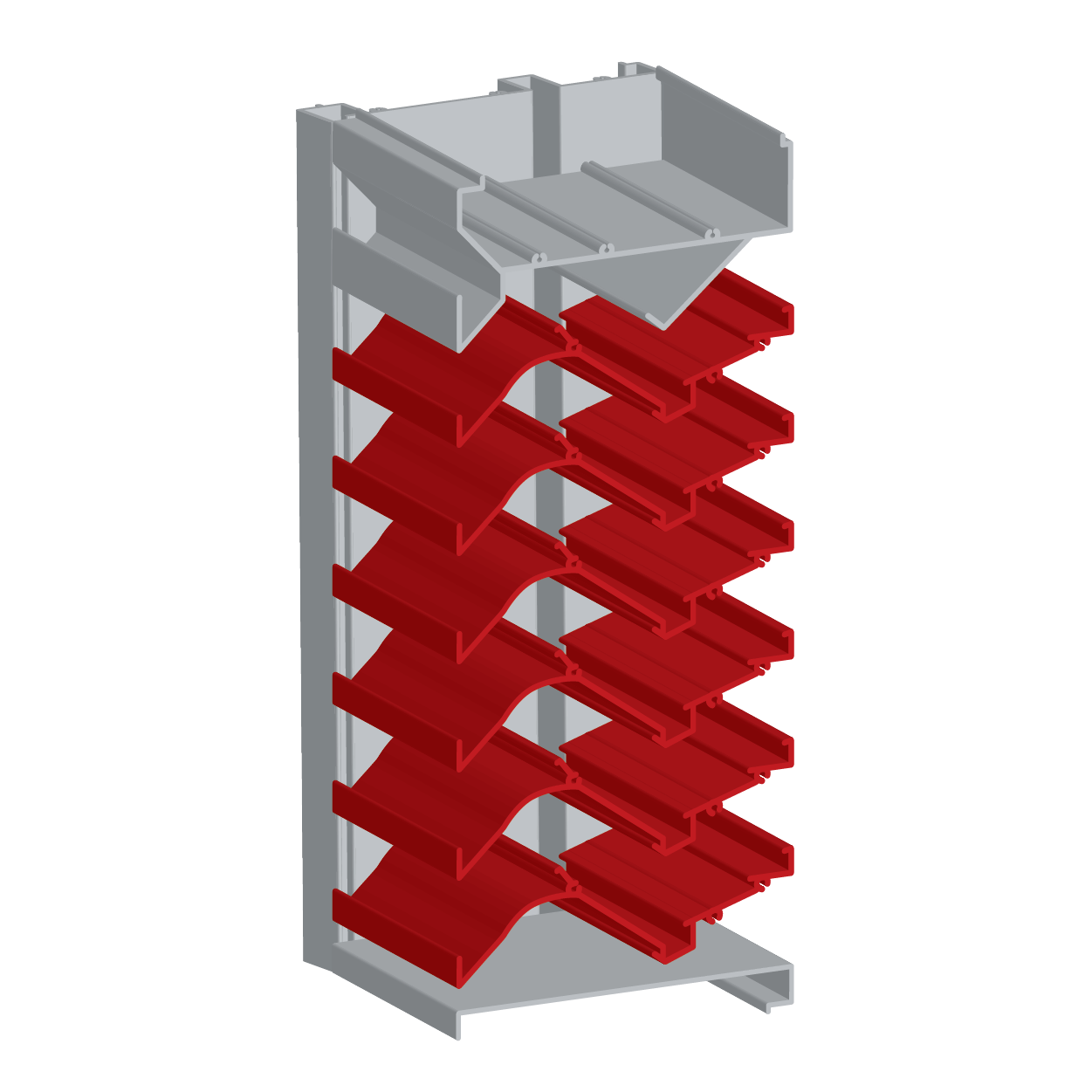

EA-825-D

8" Deep Chevron Drainable Blade Rain Resistant Louver

EA825D

Free Area %: 56%
Pressure Drop: .48 in. w.g. @ 1000 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .48 in. w.g. @ 1000 fpm

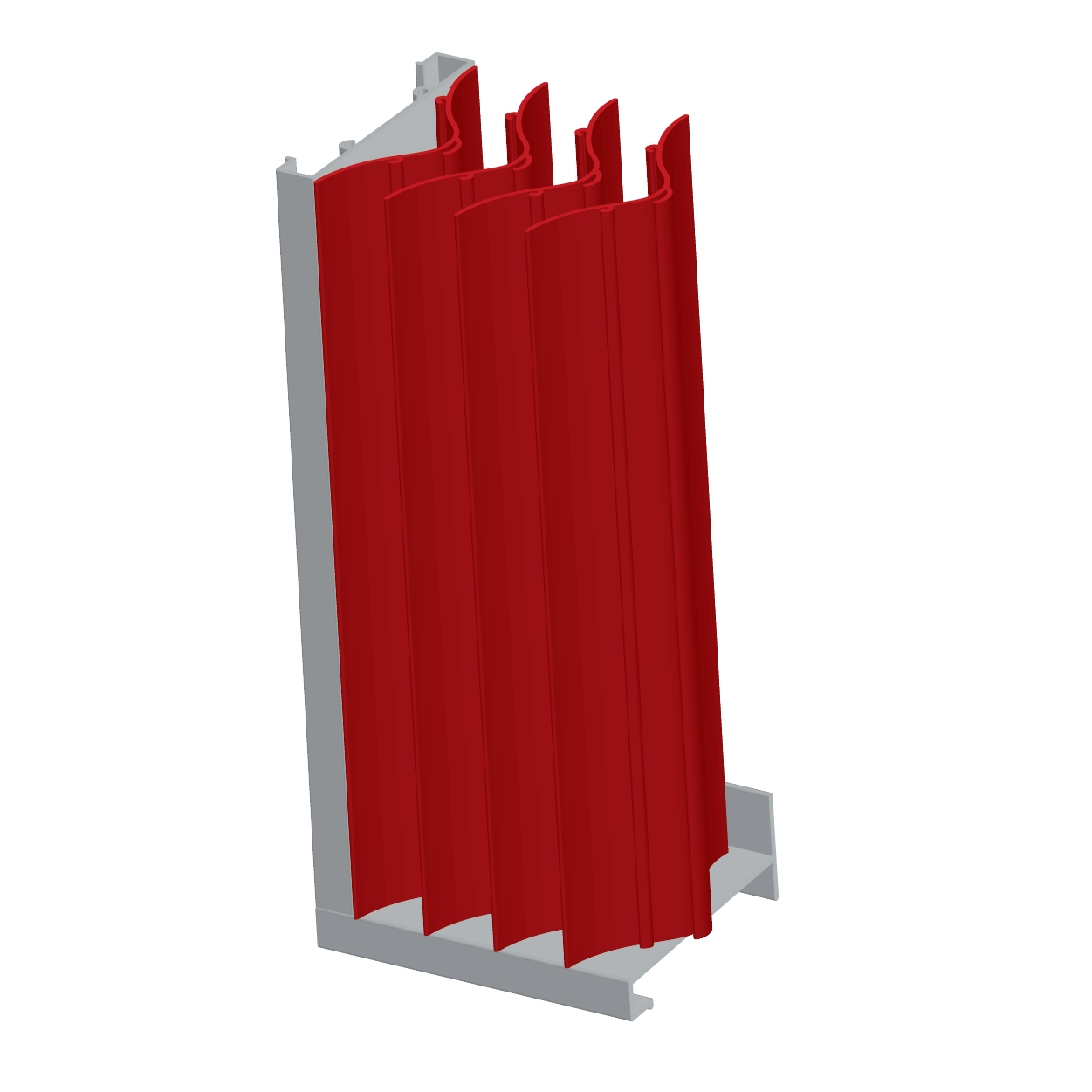

EAV-66

6" Deep Vertical Fixed Chevron Blade Hurricane Louver

EAV66

Free Area %: 49.1%
Pressure Drop: .164 in. w.g. @ 1250 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .164 in. w.g. @ 1250 fpm

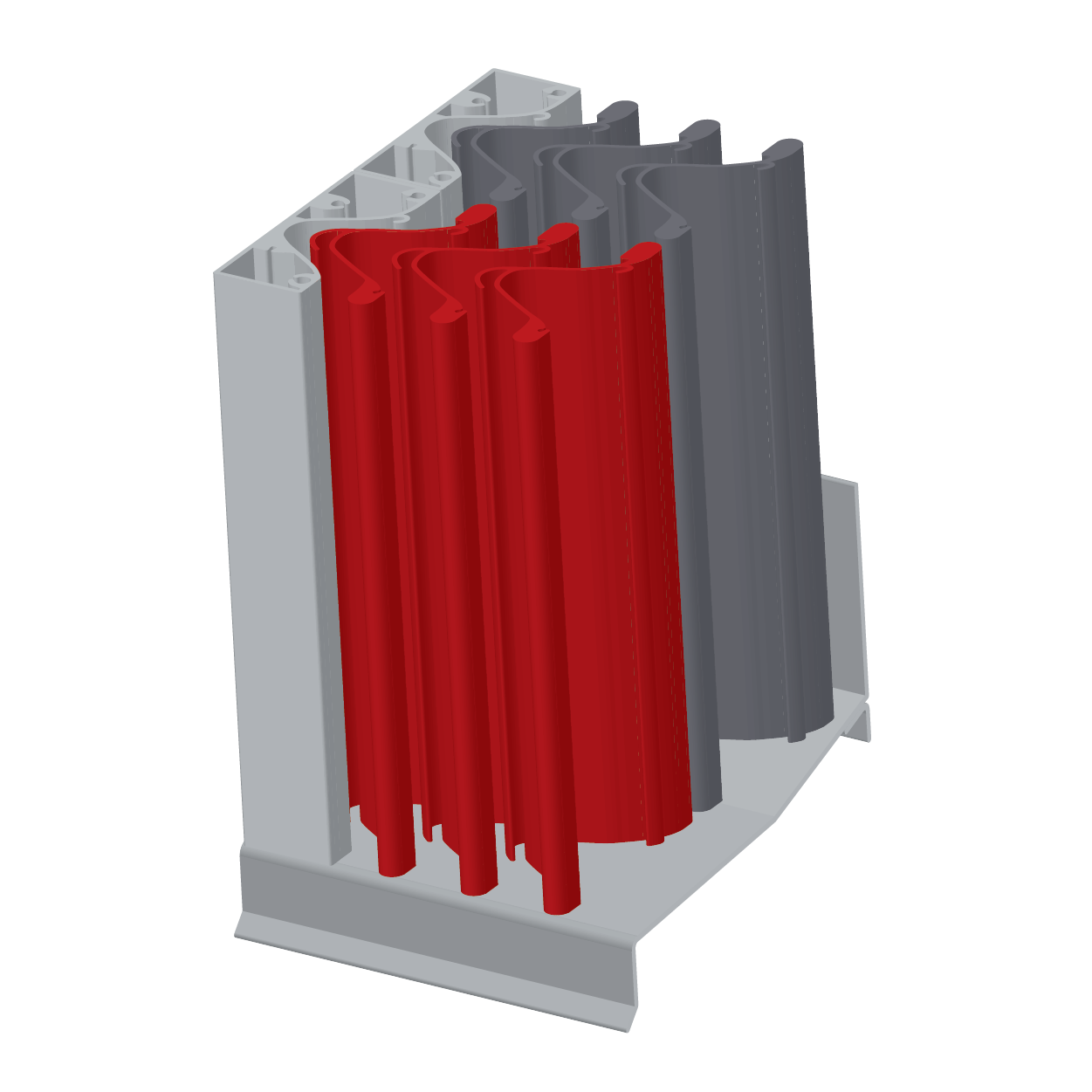

EAV-81

8" Deep Fixed Vertical Chevron Blade Hurricane Louver (Miami-Dade Certified)

EAV81

Free Area %: 29.31%
Pressure Drop: .3 in. w.g. @ 1250 fpm

Currently Unavaliable

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .3 in. w.g. @ 1250 fpm

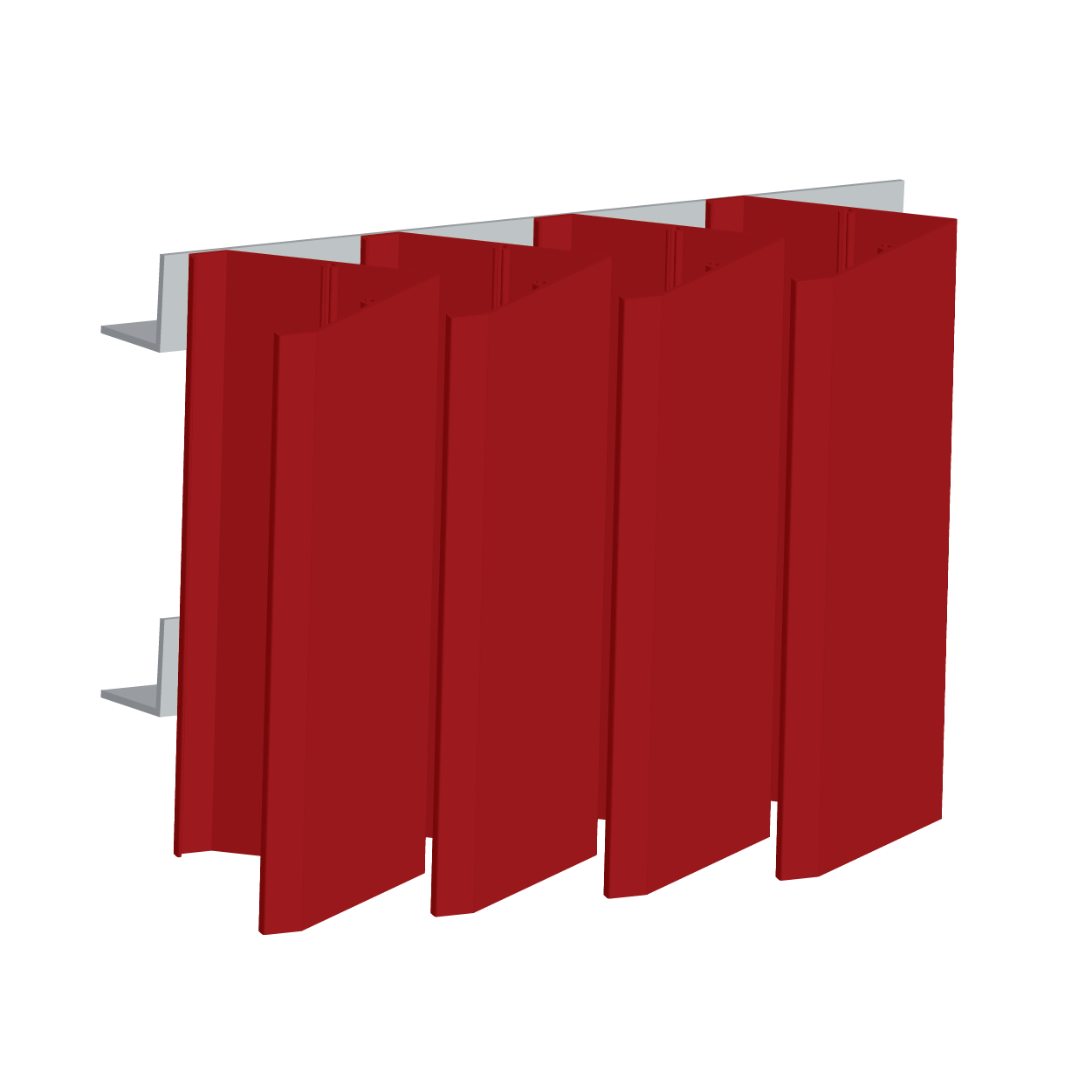

ESV-34

Extruded Aluminum Equipment Screen with Vertical Chevron Blades

ESV34

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade

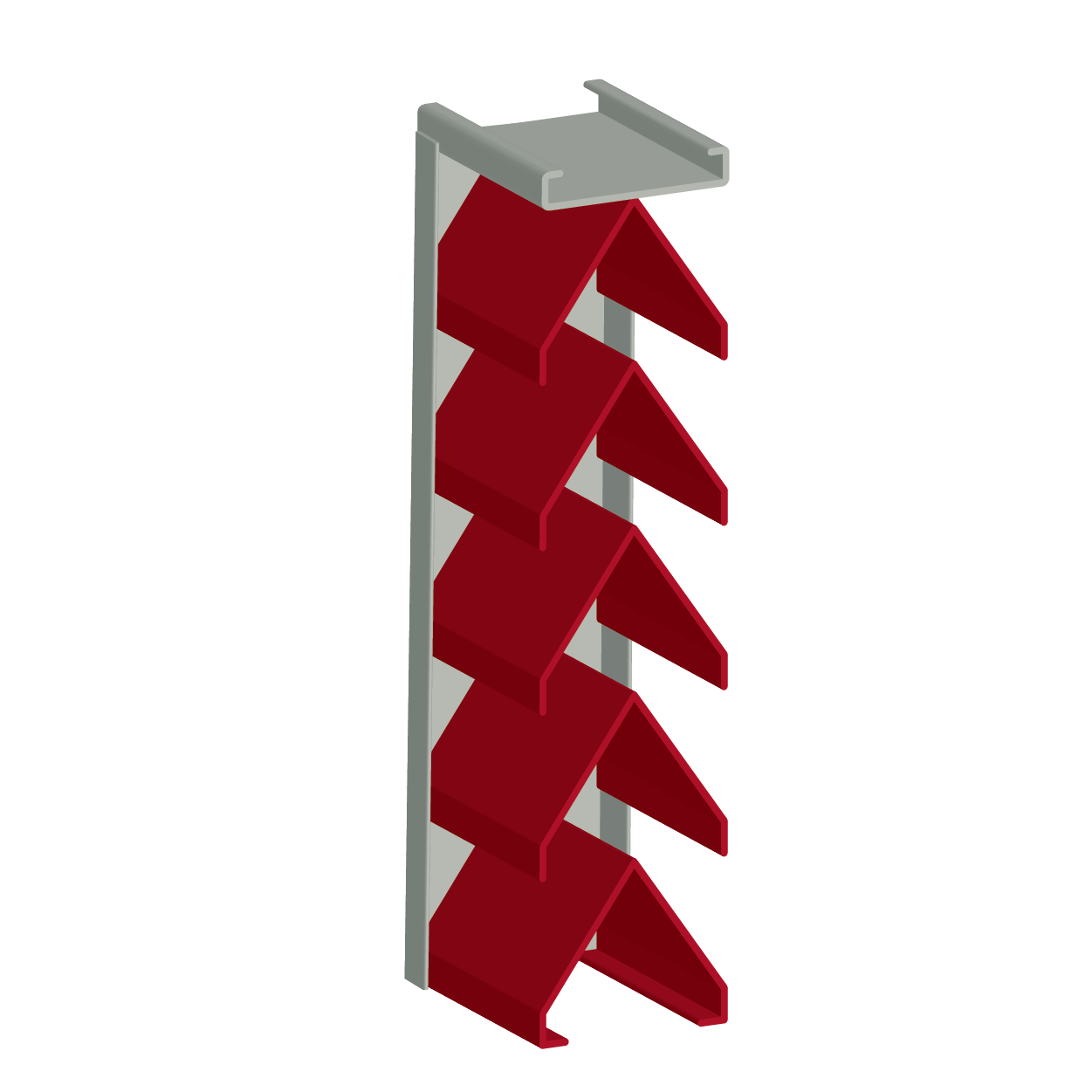

FS-109

4" Deep Stationary Inverted V Blade Steel Louver

FS109

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Chevron Blade

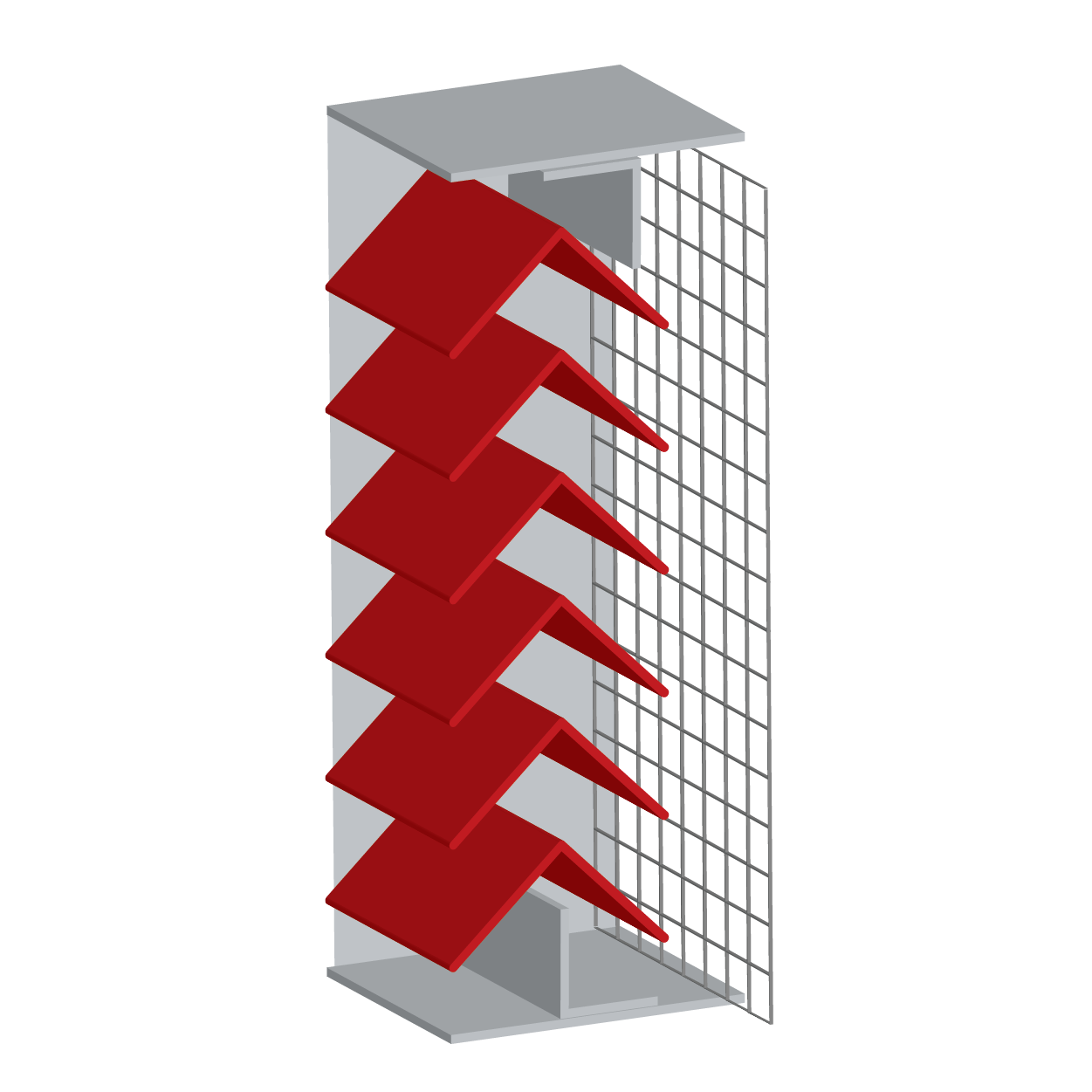

FS-UF8

8" Deep Steel FEMA Louver

FSUF8

Free Area %: 53%
Pressure Drop: .3 in. w.g. @ 1000 fpm

Material Options: Hot Rolled Steel, or Structural Steel
Blade Type: Chevron Blade
Pressure Drop: .3 in. w.g. @ 1000 fpm

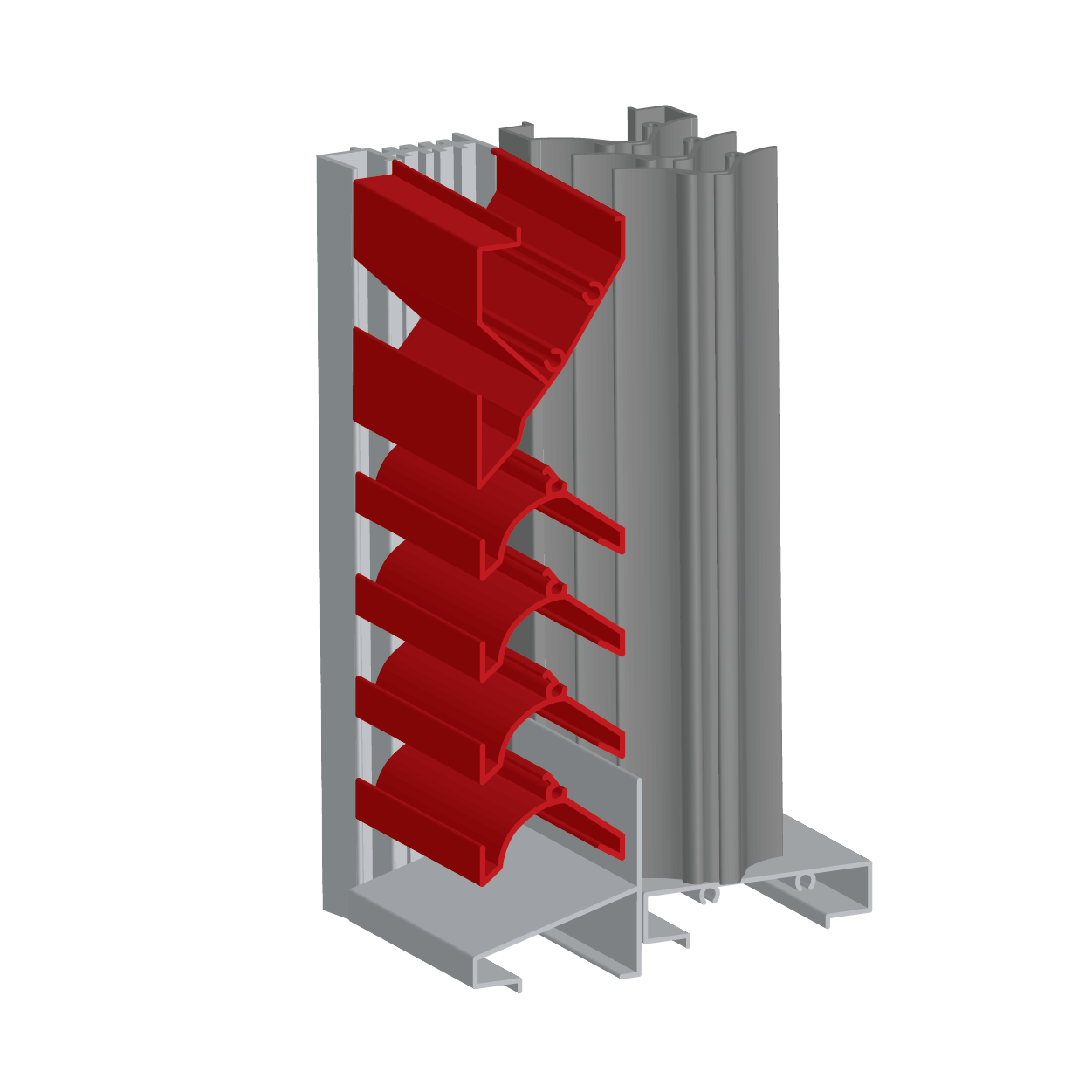

EA-531-D

5" Deep Extruded Aluminum Horizontal Combination Drain Blade, "Wind Driven Rain Resistant" Louver

New

EA531D

Free Area %: 43%
Pressure Drop: .47 in. w.g. @ 1000 fpm
Water Penetration (fpm): 821 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Frame Shape: Rectangular
Pressure Drop: .47 in. w.g. @ 1000 fpm
Water Penetration (fpm): 821 (fpm)(FPM)

EA-631-D

6" Deep Extruded Aluminum Wind Driven Rain Resistant Louver

New

EA631D

Free Area %: 43.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Chevron Blade
Pressure Drop: .17 in. w.g. @ 1000 fpm

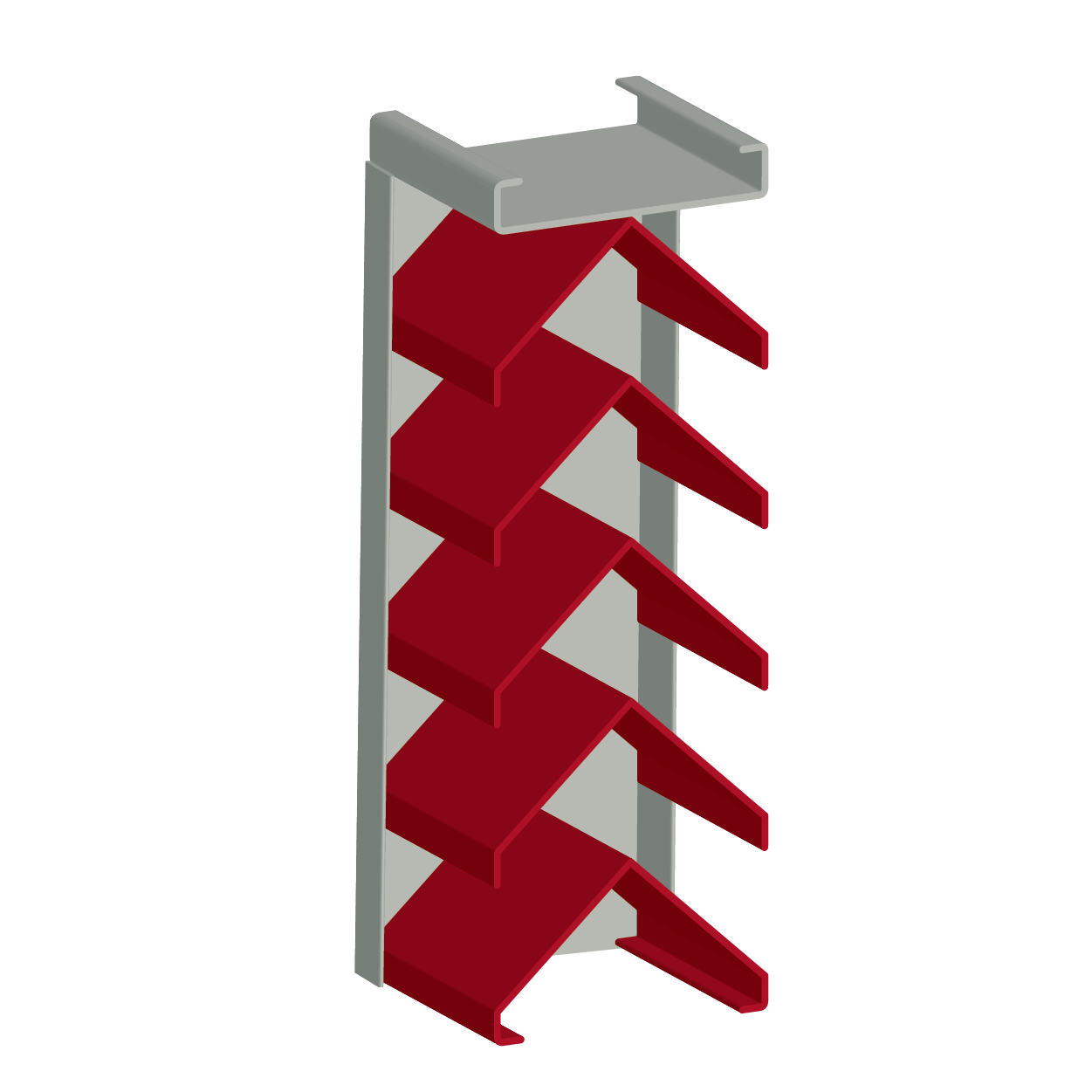

FS-609

6" Deep Stationary Inverted "V" Blade Steel Louver

FS609

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Chevron Blade
