Page 2 of 10 (310 Results, 235 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

390

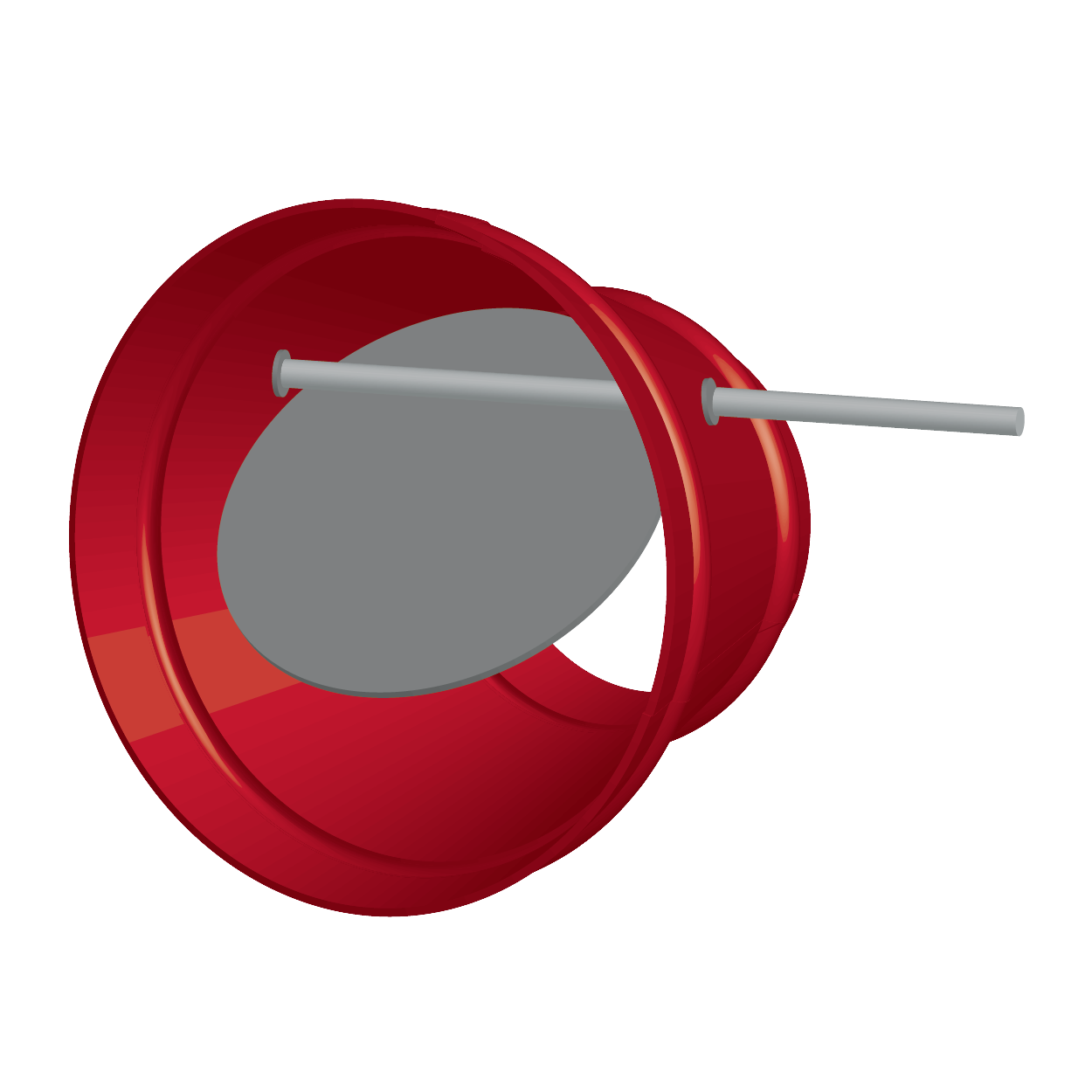

Stainless Steel Round Backdraft Damper

390

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

395

4" Deep Single Thickness Blade Low Leakage Control Damper

395

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

1 in Group Compare

400

4" Deep Heavy Duty Teardrop Blade Formed Steel Backdraft Damper

400

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .67 in. w.g. @ 1000 fpm

1 in Group Compare

421

10" Deep Industrial Single Thickness Blade Control Damper

421

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

422

10" Deep Industrial Single Thickness Blade Control Damper

422

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

423

10" Deep Formed Steel Industrial Control Damper

423

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

495 / 496

5.5" Deep Single Thickness Blade Control Damper

Arrow - 495-496

495, 496

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

2 in Group Compare

500-B

2" Deep Light Duty Aluminum Pressure Relief Damper

500B

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

1 in Group Compare

503

2" Deep Light Duty Stainless Steel Backdraft Damper

503

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .25 in. w.g. @ 1000 fpm

1 in Group Compare

515-SAF / 516-SAF

5.5" Deep Airfoil Blade Steel Control Damper

Arrow - 515SAF-516SAF

515SAF, 516SAF

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

2 in Group Compare

517 / 518

5.5" Deep Airfoil Blade Steel Control Damper

Arrow - 517-518

517, 518

Maximum Velocity (FPM): 5000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

1 in Group Compare

530

10" Deep Industrial Formed Steel Airfoil Control Damper

530

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

531

10" Deep Industrial Formed Steel Airfoil Control Damper

531

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 20 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

540

10" Deep Industrial Formed Steel Airfoil "Hi-Temp" Control Damper

540

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 15 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

545

10" Deep Industrial Formed Steel Airfoil Control Damper (Clean Air)

545

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

545-INS

10" Deep Industrial Insulated Airfoil Control Damper (Clean Air)

Arrow - 545-INS

545INS

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .1 in. w.g. @ 1000 fpm

1 in Group Compare

56

6.5" Deep Aluminum Airfoil Control Damper with Transition

56

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

1 in Group Compare

580-BD

10" Deep Round Industrial Backdraft Damper

580BD

Maximum Velocity (FPM): 6000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

580-R

Industrial Single Blade Round Control Damper

580R

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

581-R

Industrial Heavy Duty Round Control Damper

581R

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 16 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

655

4" Deep Extruded Aluminum Backdraft Damper

655

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

1 in Group Compare

70

7.5" Deep Round Galvanized Steel Damper

70

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

1 in Group Compare

70-GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

70GL

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

1 in Group Compare

70-R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

70R

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

1 in Group Compare

Page 2 of 10 (310 Results, 235 Groups)
