Page 9 of 10 (310 Results, 235 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

FS-446-D

4" Deep 45° Blade Adjustable Steel Louver

Arrow - FS-446-D

FS446D

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)

1 in Group Compare

FS-461

4" Deep Formed Steel Galvanized Sand Louver

FS461

Free Area %: 34%
Pressure Drop: .7 in. w.g. @ 1000 fpm

1 in Group Compare

FS-606-D

6" Deep 45° Stationary Drainable Blade Steel Louver

Arrow - FS-606-D

FS606D

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)

1 in Group Compare

FS-609

6" Deep Stationary Inverted "V" Blade Steel Louver

FS609

1 in Group Compare

FS-615-D

6" Deep 35° Stationary Drainable Blade Steel Louver

Arrow - FS-615-D

FS615D

Free Area %: 55%
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)

1 in Group Compare

FS-630

6" Deep 30° Stationary Non-Drainable Blade Steel Louver

FS630

1 in Group Compare

FS-700

7" Deep Insulated Blade Combination Adjustable and Stationary Acoustical Steel Louver

FS700

Free Area %: 45.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

1 in Group Compare

FS-UF8

8" Deep Steel FEMA Louver

FSUF8

Free Area %: 53%
Pressure Drop: .3 in. w.g. @ 1000 fpm

1 in Group Compare

ID-200

Parallel Double Thickness Insulated Blade Control Damper

ID200

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

IL-100

6" Deep Insulated Blade Adjustable Steel Louver

IL100

1 in Group Compare

MA17

1.5 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA17H, MA17V, MA17CH, MA17CV

UL Fire Resistance Rating: 1.5 Hours
Maximum Velocity (FPM): 4000 fpm

1 in Group Compare

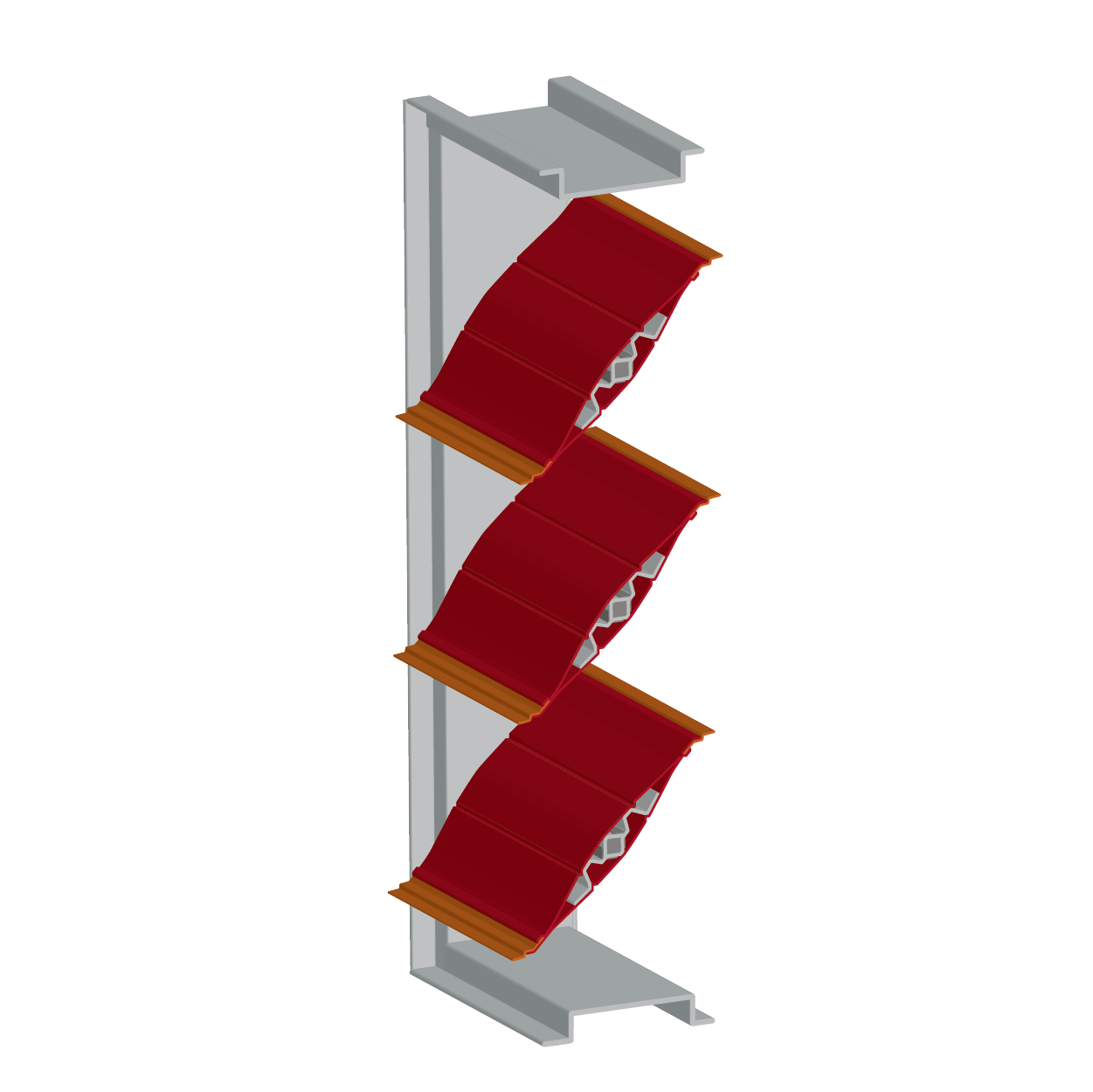

MA37

3 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA37H, MA37V, MA37CH, MA37CV, MA37H4, MA37V4, MA37CH4, MA37CV4

UL Fire Resistance Rating: 3 Hours
Maximum Velocity (FPM): 2000 fpm

2 in Group Compare

MD17

1.5 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD17H, MD17V, MD17CH, MD17CV, MD17H4, MD17V4, MD17CH4, MD17CV4

UL Fire Resistance Rating: 1.5 Hours
Maximum Velocity (FPM): 2000 fpm

1 in Group Compare

MD17(SS)

1.5 Hour Rated Non-Motorized Stainless Steel Dynamic Fire Damper

MD17(SS)H, MD17(SS)V, MD17(SS)CH, MD17(SS)CV, MD17(SS)H4, MD17(SS)V4, MD17(SS)CH4, MD17(SS)CV4

UL Fire Resistance Rating: 1.5 Hours
Maximum Velocity (FPM): 2000 fpm

2 in Group Compare

MD37

3 Hour Rated Non-Motorized Single Thickness Blade Dynamic Fire Damper

MD37H, MD37V, MD37CH, MD37CV

UL Fire Resistance Rating: 3 Hours
Maximum Velocity (FPM): 2000 fpm

1 in Group Compare

MS17

1½ Hr. Rated Vertical Mount Non-Motorized Fire Damper

MS17V, MS17CV

UL Fire Resistance Rating: 1.5 Hours

1 in Group Compare

PL-506/507

5" Deep Parallel Single Thickness Blade Pin-Lock Control Damper

Arrow - 506-507

506, 507

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

2 in Group Compare

R17

1½ Hour Rated True Round "Philips" Curtain Fire Damper

R17

UL Fire Resistance Rating: 1.5 Hours
Maximum Velocity (FPM): 3000 fpm

1 in Group Compare

R9

1½ Hour Rated True Round Single Blade Fire Damper

R9

UL Fire Resistance Rating: 1.5 Hours
Maximum Velocity (FPM): 3000 fpm

1 in Group Compare

RA

Class I True Round Combination Fire-Smoke Damper

RA250, RA350

UL Fire Resistance Rating: 1.5 Hours
UL Leakage Rating: Class I
Maximum Velocity (FPM): 2000 fpm

1 in Group Compare

RU

Class I True Round Smoke Damper

RU250, RU350

UL Leakage Rating: Class I
Maximum Velocity (FPM): 3000 fpm

1 in Group Compare

SB-28

2" Deep Single Blade Aluminum Damper

SB28

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

1 in Group Compare

SEP-45-S

Smoke Evacuation Extruded Aluminum Penthouse

Arrow - SEP-45-S

SEP-45-S-32, SEP-45-S-38, SEP-45-S-44

Free Area %: 30.69%
Pressure Drop: .125 in. w.g. @ 1000 fpm

1 in Group Compare

SPH-20-F

4" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

Arrow - SPH-20-F

SPH20F

1 in Group Compare

Page 9 of 10 (310 Results, 235 Groups)

…
