Page 4 of 10 (318 Results, 238 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

EA-405

4" Deep 45° Extruded Aluminum Baffle Blade Louver

EA405

Free Area %: 56%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 932 (fpm)

1 in Group Compare

EA-425-DD

4" Deep 45° Dual Drain Blade Extruded Aluminum Louver

EA425DD

Free Area %: 52%
Pressure Drop: .17 in. w.g. @ 1100 fpm
Water Penetration (fpm): 942 (fpm)

1 in Group Compare

EA-430

4" Deep 30° Baffle Blade Louver

Free Area %: 47.9%
Pressure Drop: .08 in. w.g. @ 780 fpm
Water Penetration (fpm): 763 (fpm)

Some Items Currently Unavaliable

1 in Group Compare

EA-615-D

6" Deep Extruded Aluminum 35°/42° Drainable Blade Louver

EA615D

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

1 in Group Compare

EA-625-DD

6" Deep 42° Dual Drainable Blade Louver

EA625DD

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 993 (fpm)

1 in Group Compare

EA-TL-30

0.465" Deep 30° Non-Drainable Blade Thin Line Extruded Aluminum Louver

EATL30

Free Area %: 72.6%

Some Items Currently Unavaliable

1 in Group Compare

EA-TL-42

0.465" Deep 42° Non-Drainable Blade Thin Line Extruded Aluminum Louver

EATL42

Free Area %: 61.11%

1 in Group Compare

C-33

4" Deep Horizontal Extruded Aluminum Sightproof Chevron Blade Louver

C33

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 789 (fpm)

1 in Group Compare

C-34

4" Deep Vertical Extruded Aluminum Sightproof Chevron Blade Louver

C34

Free Area %: 38.9%
Pressure Drop: .5 in. w.g. @ 1000 fpm
Water Penetration (fpm): 848 (fpm)

1 in Group Compare

Y-27

4" Deep Inverted Y Blade Extruded Aluminum Horizontal Sightproof Louver

Y27

Free Area %: 37.4%
Pressure Drop: .36 in. w.g. @ 1000 fpm
Water Penetration (fpm): 920 (fpm)

1 in Group Compare

Y-28

4" Deep Inverted Y Blade Extruded Aluminum Vertical Sightproof Louver

Y28

Free Area %: 37.4%
Pressure Drop: .35 in. w.g. @ 1000 fpm
Water Penetration (fpm): 984 (fpm)

1 in Group Compare

Y-45

2" Deep, Extruded Aluminum Horizontal Sightproof Louver

Y45

Free Area %: 27.7%
Pressure Drop: .4 in. w.g. @ 1000 fpm
Water Penetration (fpm): 924 (fpm)

1 in Group Compare

EA-DI-50

4" Deep Combined Stationary Intake & Discharge Louver

EADI50

1 in Group Compare

EA-640-DR

6" Deep Continuous Line Extruded Aluminum Drainable Blade Louver with Recessed Mullions

EA640DR

Free Area %: 53%
Pressure Drop: .1 in. w.g. @ 800 fpm
Water Penetration (fpm): 1100 (fpm)

Some Items Currently Unavaliable

1 in Group Compare

EA-52

5" Deep, Fixed Chevron Drainable Blade, Hurricane Louver (Miami-Dade Certified)

EA52

Free Area %: 44.3%
Pressure Drop: .31 in. w.g. @ 1250 fpm
Water Penetration (fpm): 1250 (fpm)

1 in Group Compare

EA-64

6” Fixed Deep Drainable Blade Hurricane Louver (Miami-Dade Certified)

EA64

Free Area %: 58%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

1 in Group Compare

EA-64C

6" Deep Adjustable Blade Hurricane Louver (Miami-Dade Certified)

A320C

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Some Items Currently Unavaliable

1 in Group Compare

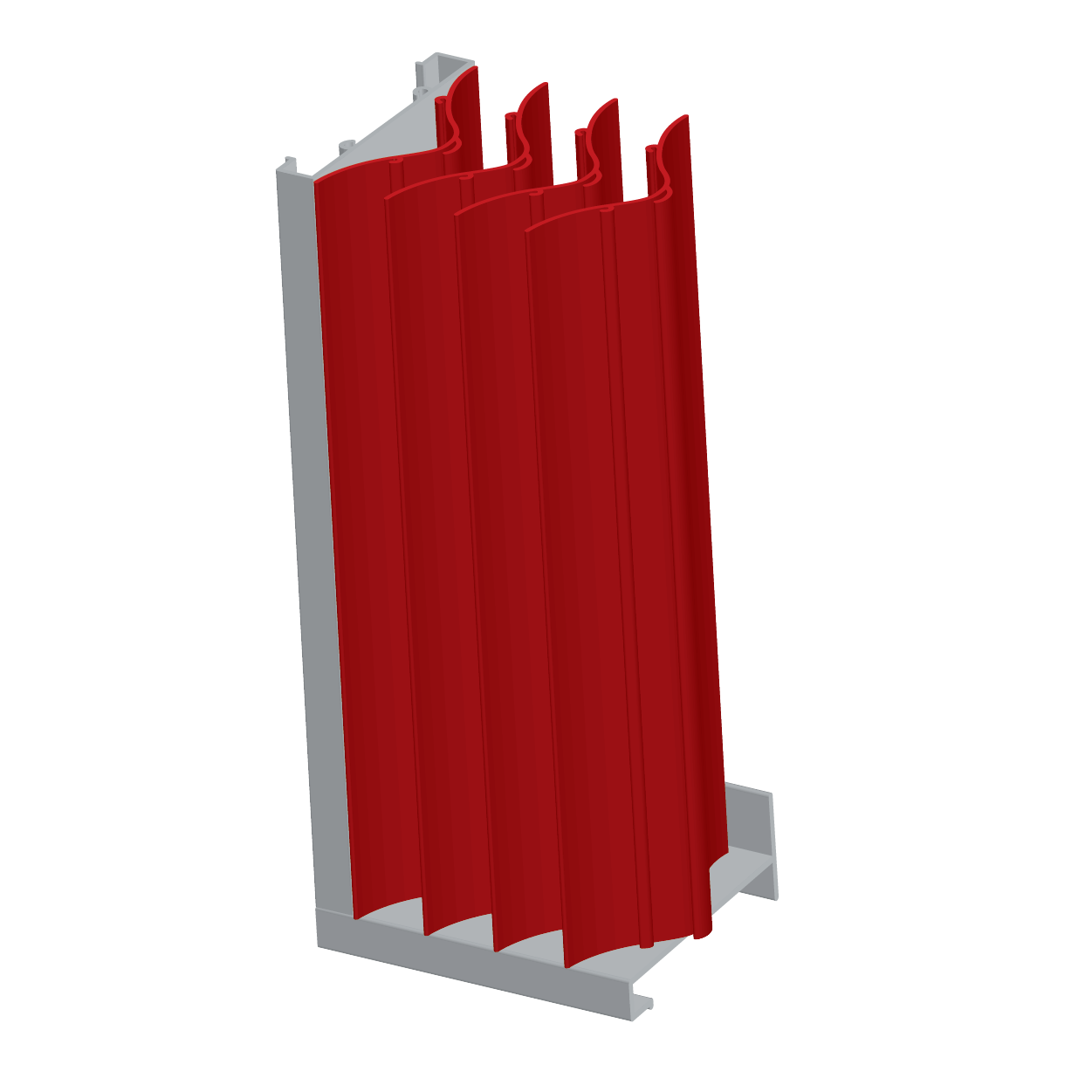

EAV-66

6" Deep Vertical Fixed Chevron Blade Hurricane Louver (Miami-Dade Certified)

EAV66

Free Area %: 49.1%
Pressure Drop: .164 in. w.g. @ 1250 fpm

1 in Group Compare

EAV-81

8" Deep Fixed Vertical Chevron Blade Hurricane Louver (Miami-Dade Certified)

EAV81

Free Area %: 29.31%
Pressure Drop: .3 in. w.g. @ 1250 fpm

Some Items Currently Unavaliable

1 in Group Compare

EA-731-D

7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain and Impact Resistant Louver

EA731D

Free Area %: 42.4%
Pressure Drop: .022 in. w.g. @ 398 fpm
Water Penetration (fpm): 1250 (fpm)

1 in Group Compare

EA-631-D

6" Deep Extruded Aluminum Combo Stationary Severe Weather Louver

EA631D

Free Area %: 43.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm

1 in Group Compare

EA-210-D

2" Deep Horizontal Drainable Chevron Blades Wind Driven Rain

EA210D

Free Area %: 43.3%
Pressure Drop: .38 in. w.g. @ 1000 fpm

1 in Group Compare

EA-331-VSL

3" Deep Extruded Aluminum Vertical Chevron Blade Rain Resistant Storm Louver

EA331VSL

Free Area %: 44%
Pressure Drop: .083 in. w.g. @ 1000 fpm

1 in Group Compare

EA-475-DH

4" Deep Horizontal Chevron Drainable Blade Wind Driven Rain Resistant Louver

EA475DH

Free Area %: 47%
Pressure Drop: .26 in. w.g. @ 1000 fpm

1 in Group Compare

Page 4 of 10 (318 Results, 238 Groups)
